DTC
(MIL indication ) Two Drive Cycle
Detection Detection Item MIL Note
11-11
P0606 (0)
Engine Control Module (ECM)/Powertrain Control Module (PCM)
Processor Malfunction ON (see page 11-145)
P060A (131) Powertrain Control Module (PCM) (A/T System) Internal Control
Module Malfunction ON (see page 11-145)
P062F (131) Engine Control Module (ECM)/Powertrain Control Module (PCM)
Internal Control Module Keep Alive Memory (KAM) Error ON (see page 11-144)
P0630 (139) VIN Not Programmed or Mismatch ON (see page 11-146)
P0685 (135) Engine Control Module (ECM)/Powertrain Control Module (PCM)
Power Control Circuit/Internal Circuit Malfunction ON (see page 11-147)
P0720 (122) Output Shaft (Countershaft) Speed Sensor Circuit Malfunction ON (see page 11-148)
P0720 (122) Output Shaft (Countershaft) Speed Sensor Circuit Malfunction ON (see page 11-149)
P1009 (56) Variable Valve Timing Control (VTC) Advance Malfunction ON (see page 11-283)
P1109 (13) Barometric Pressure (BARO) Sensor Circuit Out of Range High ON (see page 11-152)
P1116 (86) Engine Coolant Temperature (ECT) Sensor 1 Circuit Range/
Performance Problem ON (see page 11-153)
P1128 (5) Manifold Absolute Pressure (MAP) Sensor Signal Lower Than
Expected ON (see page 11-155)
P1129 (5) Manifold Absolute Pressure (MAP) Sensor Signal Higher Than
Expected ON (see page 11-156)
P1157 (48) Air Fuel Ratio (A/F) Sensor (Sensor 1) AFS Circuit High Voltage ON (see page 11-157)
P1172 (61) Air Fuel Ratio (A/F) Sensor (Sensor 1) Circuit Out of Range High ON (see page 11-159)
P1297 (20) Electrical Load Detector (ELD) Circuit Low Voltage OFF (see page 11-160)
P1298 (20) Electrical Load Detector (ELD) Circuit High Voltage OFF (see page 11-162)
P1454 (91) Fuel Tank Pressure (FTP) Sensor Circuit Range/Performance Problem ON (see page 11-402)
P145C (90) Evaporative Emission (EVAP) System Purge Flow Malfunction ON (see page 11-404)
P1549 (34) Charging System High Voltage OFF (see page 11-164)
P1658 (40) Electronic Throttle Control System (ETCS) Control Relay ON
Malfunction ON (see page 11-241)
P1659 (40) Electronic Throttle Control System (ETCS) Control Relay OFF
Malfunction ON (see page 11-243)
P1683 (40) Throttle Valve Default Position Spring Performance Problem ON (see page 11-247)
P1684 (40) Throttle Valve Return Spring Performance Problem ON (see page 11-248)
P16BB (116) Alternator B Terminal Circuit Low Voltage OFF (see page 11-165)
P16BC (116) Alternator FR Terminal Circuit/IGP Circuit Low Voltage OFF (see page 11-166)
P2101 (40) Electronic Throttle Control System (ETCS) Malfunction ON (see page 11-249)
P2118 (40) Throttle Actuator Current Range/Performance Problem ON (see page 11-251)
P2122 (37) Accelerator Pedal Position (APP) Sensor A (Throttle Position (TP)
Sensor D) Circuit Low Voltage ON (see page 11-253)
P2123 (37) Accelerator Pedal Position (APP) Sensor A (Throttle Position (TP)
Sensor D) Circuit High Voltage ON (see page 11-256)
P2127 (37) Accelerator Pedal Position (APP) Sensor B (Throttle Position (TP)
Sensor E) Circuit Low Voltage ON (see page 11-257)
P2128 (37) Accelerator Pedal Position (APP) Sensor B (Throttle Position (TP)
Sensor E) Circuit High Voltage ON (see page 11-260)
P2135 (7) Throttle Position (TP) Sensor A/B Incorrect Voltage Correlation ON (see page 11-262)
P2138 (37) Accelerator Pedal Position (APP) Sensor A/B (Throttle Position (TP)
Sensor D/E) Incorrect Voltage Correlation ON (see page 11-264)
P2176 (40) Throttle Actuator Control System Idle Position Not Learned ON (see page 11-266)
P2183 (192) Engine Coolant Temperature (ECT) Sensor 2 Circuit Range/
Performance Problem ON (see page 11-168)
P2184 (192) Engine Coolant Temperature (ECT) Sensor 2 Circuit Low Voltage ON (see page 11-170)
P2185 (192) Engine Coolant Temperature (ECT) Sensor 2 Circuit High Voltage ON (see page 11-172)
P2195 (48) Air Fuel Ratio (A/F) Sensor (Sensor 1) Signal Stuck Lean ON (see page 11-174)
NOTE:  The above DTCs are indicated when the PGM-FI system is selected with the HDS.
 Some automatic transmission DTCs cause the MIL to come on. If the MIL is on and no DTCs are indicated in the PGM-FI system, select the A/T system, and check for automatic transmission DTCs.
: These DTCs are indicated by a blinking MIL when the SCS line is jumped with the HDS.
1: A/T
2: The D indicator and the MIL may come on at the same time (A/T).
3: M/T
4: K20Z2 engine
5: K20Z3 engine
9: ’09 model
(cont’d)
1
9
1, 2
3
4
5
5
3
1
08/08/21 14:12:36 61SNR030_110_0011
ProCarManuals.com
DYNOMITE -2009-

Î
´
ECM/PCM Electrical Connections
11-16Fuel and Emissions Systems
System Description (cont’d)
IGNITION
SWITCH
IG1
ST B
IG2
IG1 HOT in ON (II)
and START (III) IGNITION COIL
RELAY
ELD PGM-FI MAIN
RELAY 2 (FUEL PUMP)P
FUEL PUMP
PGM-FI MAIN
RELAY 1
BATTERY A/C CONDENSER
FAN RELAYRADIATOR
FAN RELAY
A/C COMPRESSOR
CLUTCH RELAY
To
COOLING
FAN CONTROL
RELAY E
A8 IGPC36 IG1
A14 ACC
A5 FANH A23 ELD
A4 FANL GF
C
B
D
A
PG1 B36PG2 B1
MRLY A6
IMOFPR A15
SUBRLY A21
ETCSRLY A20 STARTER CUT
RELAY (ST CUT)
PGMETCS C2 PGM-FI
SUBRELAY
ETCS CONTROL
RELAY
I
IG1ETCS C1
ECM/PCM
CLUTCH
INTERLOCK
SWITCH
H
J*2
*1
T
*3
*1: A/T
*2: M/T
*3: K20Z3 engine
UNDER-HOOD
FUSE/RELAY BOX:
No. 1 MAIN FUSE (100 A)
No.19FIMAIN(15A)
No. 2 IG MAIN (50 A)
No. 23 BACK UP (10 A)
No. 12 STOP & HORN
(15 A) No. 18 IG COIL (15 A)
UNDER-DASH
FUSE/RELAY BOX: No. 3 ALTERNATOR
(10 A) No. 2 FUEL PUMP (15 A)
No. 36 IG2 HAC (A/C)
(10 A)
UNDER-HOOD
FUSE/RELAY BOX: No.15OILLVL(7.5A)
No. 11 FI SUB (15 A)
No. 21 DBW (THROTTLE
ACTUATOR CONTROL) (15 A)
08/08/21 14:12:37 61SNR030_110_0016
ProCarManuals.com
DYNOMITE -2009-

µµ
Ø
ECM/PCM Inputs and Outputs at Connector A ( ) (44P)
Terminal
numberWire color Terminal name DescriptionSignal
11-25
NOTE: Standard battery voltage is about 12 V.
4 PUR FANL (RADIATOR FAN CONTROL) Drives radiator fan relay With radiator fan running: about 0 V
With radiator fan stopped: battery voltage
5 GRY FANH (RADIATOR FAN CONTROL) Drives A/C condenser fan
relayWith A/C condenser fan running: about 0 V
With A/C condenser fan stopped: battery voltage
6 GRN MRLY (PGM-FI MAIN RELAY 1) Drives PGM-FI main relay 1
Power source for DTC
memoryWith ignition switch ON (II): about 0 V
With ignition switch OFF: battery voltage
8 ORN IGP (POWER SOURCE) Power source for ECM/PCM circuitWith ignition switch ON (II): battery voltage
9 BLK SG6 (SENSOR GROUND) Sensor ground Less than 1.0 V at all times
10 LT GRN VSV (EVAPORATIVE EMISSION (EVAP)
CANISTER VENT SHUT
VALVE) Drives EVAP canister vent
shut valve
With ignition switch ON (II): battery voltage
14 RED ACC (A/C COMPRESSOR CLUTCH RELAY) Drives A/C compressor
clutch relayWith compressor ON: about 0 V
With compressor OFF: battery voltage
15 BRN IMOFPR (IMMOBILIZER FUEL PUMP RELAY) Drives PGM-FI main relay 2
(FUEL PUMP)About 0 V for 2 seconds after turning ignition switch
ON (II), then battery voltage
16 LT GRN ACPD (A/C PRESSURE SENSOR) Detects A/C pressure
sensor signalWith A/C switch ON: about 1.7 4.8 V
(depending on A/C pressure)
17 YEL APSA (ACCELERATOR PEDAL POSITION (APP)
SENSOR A) Detects APP sensor A signal With ignition switch ON (II) and accelerator pedal
pressed: about 4.7 V
With ignition switch ON (II) and accelerator pedal
released: about 0.5 V
18 PUR APSB (ACCELERATOR PEDAL POSITION (APP)
SENSOR B) Detects APP sensor B signal With ignition switch ON (II) and accelerator pedal
pressed: about 2.3 V
With ignition switch ON (II) and accelerator pedal
released: about 0.25 V
19 RED VCC6 (SENSOR VOLTAGE) Provides sensor reference voltageWith ignition switch ON (II): about 5.0 V
20 YEL ETCSRLY (ELECTRONIC THROTTLE CONTROL
SYSTEM (ETCS) CONTROL
RELAY) Drives electronic throttle
control system (ETCS)
control relay
With ignition switch ON (II): about 0 V
(4.0 V momentarily)
21 PNK SUBRLY (PGM-FI SUBRELAY) Drives PGM-FI subrelay With ignition switch ON (II): about 0 V
23 ORN ELD (ELECTRICAL LOAD DETECTOR (ELD)) Detects ELD signal With ignition switch ON (II): about 0.1 4.8 V
(depending on electrical load)
(cont’d)
Terminal side of female terminals
08/08/21 14:12:42 61SNR030_110_0025
ProCarManuals.com
DYNOMITE -2009-








PGM-FI System
Air Conditioning (A/C) Compressor Clutch Relay
Air Fuel Ratio (A/F) Sensor
Barometric Pressure (BARO) Sensor
Camshaft Position (CMP) Sensor BCrankshaft Position (CKP) Sensor
Engine Coolant Temperature (ECT) Sensor 1 and 2
Ignition Timing Control
Injector Timing and Duration
11-33
ZIRCONIA
ELEMENT
SENSOR
TERMINALS
HEATER
TERMINALS
O-RING
MAGNET
TERMINAL TERMINAL
O-RING
MAGNET
THERMISTOR O-RING TERMINAL
The programmed fuel injection (PGM-FI) system is a
sequential multiport fuel injection system.
When the ECM/PCM receives a demand for cooling
from the A/C system, it delays the compressor from
being energized, and enriches the mixture to assure
smooth transition to the A/C mode.
The A/F sensor operates over a wide air/fuel range. The
A/F sensor is installed upstream of the TWC, and sends
signals to the ECM/PCM which varies the duration of
fuel injection accordingly.
The BARO sensor is inside the ECM/PCM. It converts
atmospheric pressure into a voltage signal that
modifies the basic duration of the fuel injection
discharge.
CMP sensor B detects the position of the No. 1 cylinder
as a reference for sequential fuel injection to each
cylinder. The CKP sensor detects crankshaft speed and is used by
the ECM/PCM to determine the ignition timing, timing
for the fuel injection of each cylinder, and engine
misfire detection.
ECT sensors 1 and 2 are temperature dependent
resistors (thermistors). The resistance decreases as the
engine coolant temperature increases.
The ECM/PCM contains the memory for basic ignition
timing at various engine speeds and manifold absolute
pressures. It also adjusts the timing according to engine
coolant temperature and intake air temperature.
The ECM/PCM contains the memory for basic discharge
duration at various engine speeds and manifold
pressures. The basic discharge duration, after being
read out from the memory, is further modified by
signals sent from various sensors to obtain the final
discharge duration.
By monitoring long term fuel trim, the ECM/PCM
detects long term malfunctions in the fuel system and
sets diagnostic trouble codes (DTCs) if needed.
(cont’d)
08/08/21 14:13:37 61SNR030_110_0033
ProCarManuals.com
DYNOMITE -2009-

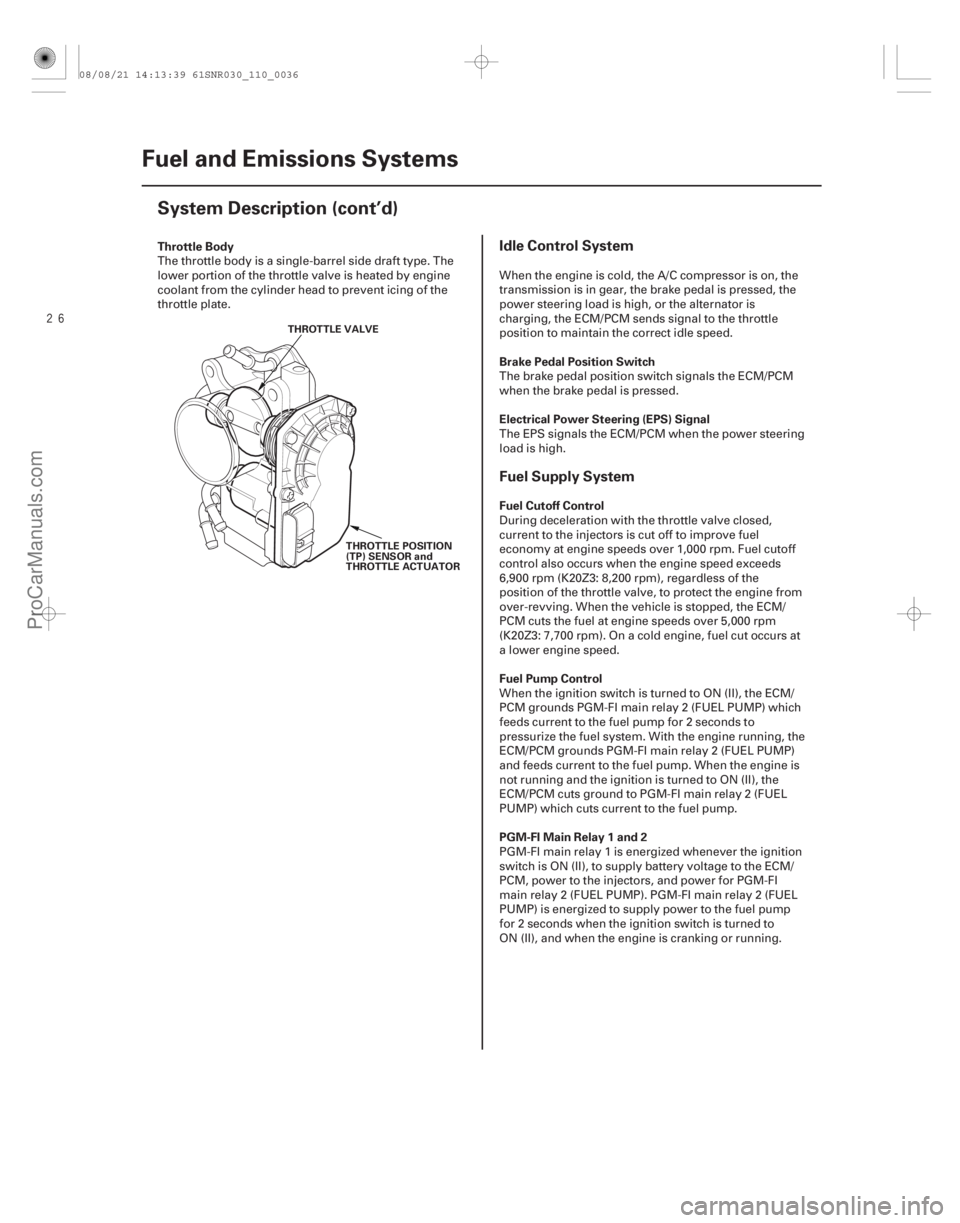

Throttle Body
Brake Pedal Position Switch
Electrical Power Steering (EPS) Signal
Fuel Cutoff Control
Fuel Pump Control
PGM-FI Main Relay 1 and 2
Idle Control System
Fuel Supply System
11-36Fuel and Emissions Systems
System Description (cont’d)
THROTTLE VALVE
THROTTLE POSITION
(TP) SENSOR and
THROTTLE ACTUATOR
The throttle body is a single-barrel side draft type. The
lower portion of the throttle valve is heated by engine
coolant from the cylinder head to prevent icing of the
throttle plate. When the engine is cold, the A/C compressor is on, the
transmission is in gear, the brake pedal is pressed, the
power steering load is high, or the alternator is
charging, the ECM/PCM sends signal to the throttle
position to maintain the correct idle speed.
The brake pedal position switch signals the ECM/PCM
when the brake pedal is pressed.
The EPS signals the ECM/PCM when the power steering
load is high.
During deceleration with the throttle valve closed,
current to the injectors is cut off to improve fuel
economy at engine speeds over 1,000 rpm. Fuel cutoff
control also occurs when the engine speed exceeds
6,900 rpm (K20Z3: 8,200 rpm), regardless of the
position of the throttle valve, to protect the engine from
over-revving. When the vehicle is st
opped, the ECM/
PCM cuts the fuel at engine speeds over 5,000 rpm
(K20Z3: 7,700 rpm). On a cold engine, fuel cut occurs at
a lower engine speed.
When the ignition switch is turned to ON (II), the ECM/
PCM grounds PGM-FI main relay 2 (FUEL PUMP) which
feeds current to the fuel pump for 2 seconds to
pressurize the fuel system. With the engine running, the
ECM/PCM grounds PGM-FI main relay 2 (FUEL PUMP)
and feeds current to the fuel pump. When the engine is
not running and the ignition is turned to ON (II), the
ECM/PCM cuts ground to PGM-FI main relay 2 (FUEL
PUMP) which cuts current to the fuel pump.
PGM-FI main relay 1 is energized whenever the ignition
switch is ON (II), to supply battery voltage to the ECM/
PCM, power to the injectors, and power for PGM-FI
main relay 2 (FUEL PUMP). PGM-FI main relay 2 (FUEL
PUMP) is energized to supply power to the fuel pump
for 2 seconds when the ignition switch is turned to
ON (II), and when the engine is cranking or running.
08/08/21 14:13:39 61SNR030_110_0036
ProCarManuals.com
DYNOMITE -2009-

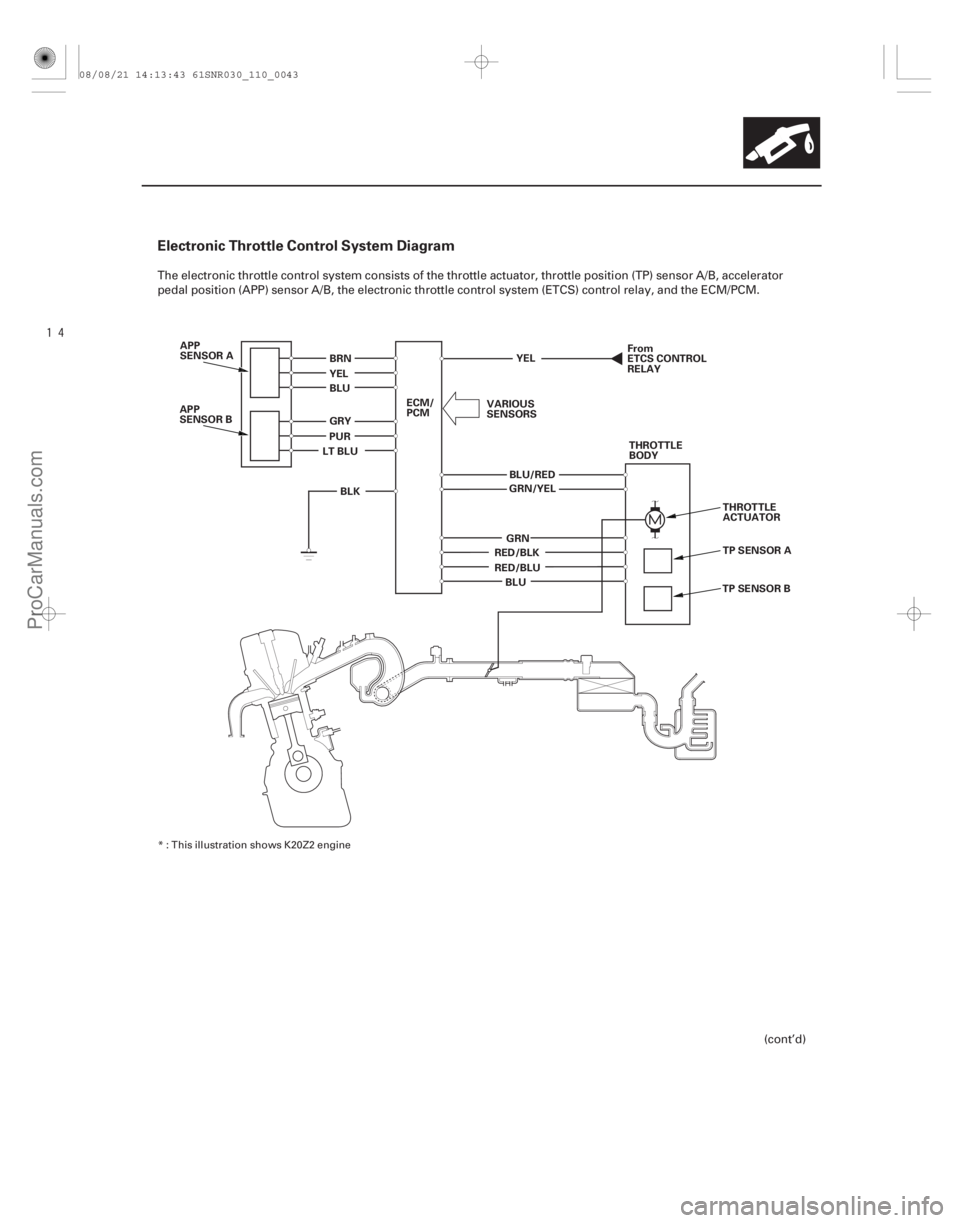

Electronic Throttle Control System Diagram
11-43
TP SENSOR A
TP SENSOR B THROTTLE
ACTUATOR
THROTTLE
BODY
From
ETCS CONTROL
RELAY
VARIOUS
SENSORS
ECM/
PCM
APP
SENSOR A
APP
SENSOR B BRN
YEL
BLU
PUR
LT BLU GRY
BLK YEL
GRN
RED/BLU BLUBLU/RED
GRN/YEL
RED/BLK
The electronic throttle control system consists of the throttle actuator, throttle position (TP) sensor A/B, accelerator
pedal position (APP) sensor A/B, the electronic throttle control system (ETCS) control relay, and the ECM/PCM.
(cont’d)
* : This illustration shows K20Z2 engine
08/08/21 14:13:43 61SNR030_110_0043
ProCarManuals.com
DYNOMITE -2009-

Î

Evaporative Emission (EVAP) Control Diagram
11-45
ATMOSPHERE
ATMOSPHERE
FUEL FILL
CAP FUEL TANK VAPOR
RECIRCULATION
TUBE
FUEL TANK VAPOR
CONTROL VALVE
VARIOUS
SENSORS
FUEL TANK FTP SENSOR
EVAP CANISTER
VENT SHUT VALVE
PUR
LT GRN
ECM/PCM BLK
YEL
YEL/BLU
BLK/YEL RED
BLU BLK
LT GRN
From
No. 3
ALTERNATOR
(10 A) FUSE
From
PGM-FI
SUBRELAY
EVAP
CANISTER
EVAP CANISTER
PURGE VALVE ATMOSPHERE
The EVAP controls minimize the amount of fuel vapor escaping into the atmosphere. Vapor from the fuel tank is
temporarily stored in the EVAP canister until it can be purged from the canister into the engine and burned.
The EVAP canister is purged by drawing fresh air through it and into a port on the intake manifold.
The purging vacuum is controlled by the EVAP canister purge valve, which operates whenever engine coolant
temperature is above 60 °C (140 °F).
(cont’d)
* : This illustration shows K20Z2 engine
08/08/21 14:13:44 61SNR030_110_0045
ProCarManuals.com
DYNOMITE -2009-

Î

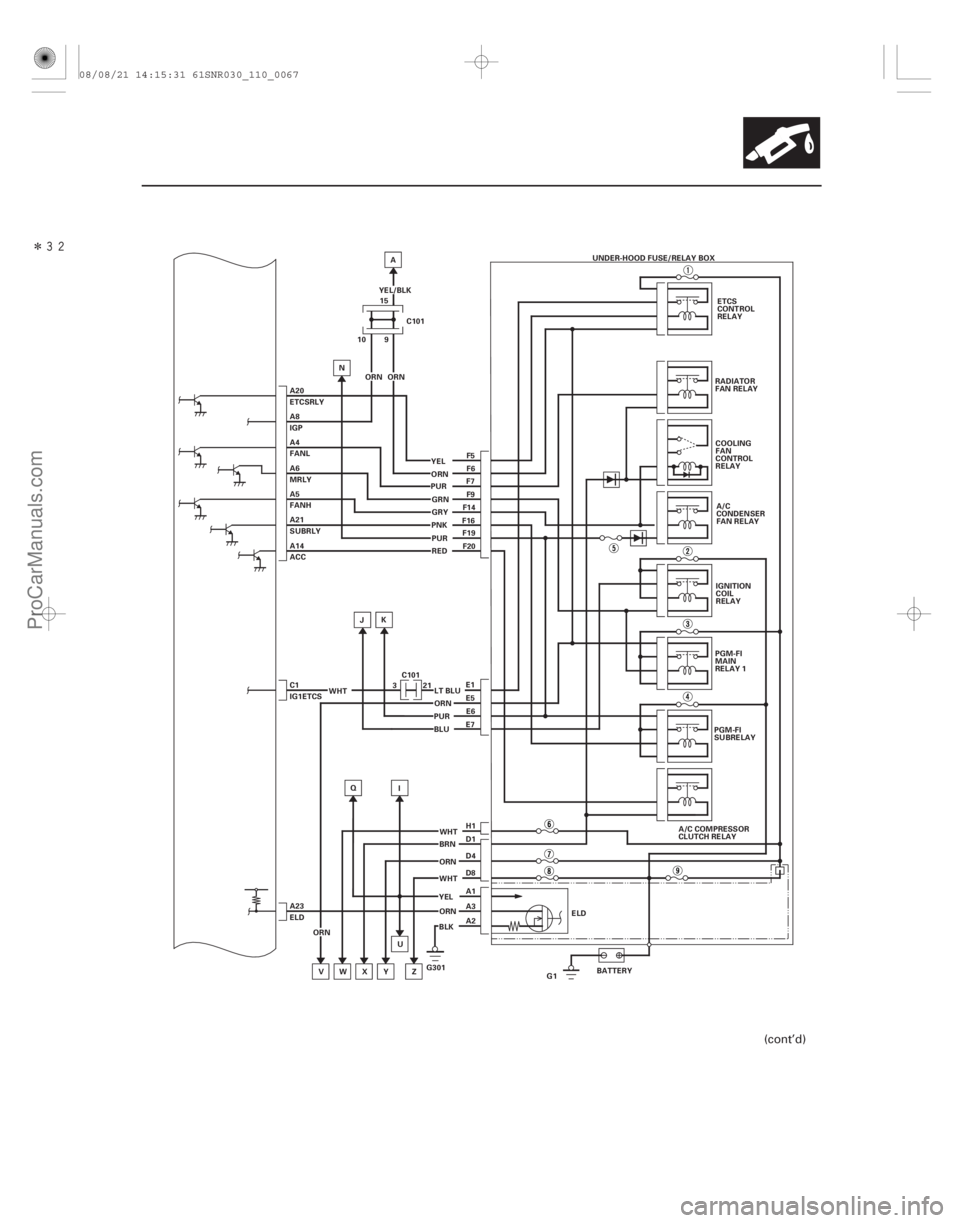

11-57
ETCS
CONTROL
RELAY
A/C COMPRESSOR
CLUTCH RELAY
ELD BATTERY
UNDER-HOOD FUSE/RELAY BOX
WHT
BRN D1
ORN D4
WHT D8
YEL A1
ORN A3
BLK A2
G301 GRY
PUR E6
BLU E7
ORN
E5
E1
LT BLU
C1
IG1ETCS 21
WHT P
M
A23
ELD U RED
F20
PNK
F16 F14
GRN
F9 F7
ORN
F6
YEL
F5
A14
ACC A21
SUBRLY A5
FANH A6
MRLY A4
FANL A8
IGP A20
ETCSRLY
ORN L
AD
AC AE
ABAA
Z PGM-FI
SUBRELAY
PGM-FI
MAIN
RELAY 1
IGNITION
COIL
RELAYA/C
CONDENSER
FAN RELAY
COOLING
FAN
CONTROL
RELAY
RADIATOR
FAN RELAY
9
10
ORN
ORN YEL/BLK
A
AH
F19
H1
C101 PUR
C101
PUR
G1
15
3
(cont’d)
08/08/21 14:13:52 61SNR030_110_0057
ProCarManuals.com
DYNOMITE -2009-

Î
´
ECM/PCM Circuit Diagram (K20Z2 engine) (cont’d)
11-58Fuel and Emissions Systems
System Description (cont’d)
Z
C36 IG1
A44 S-NET5V
A15
IMOFPR
A31
SCS
A40
BKSW BLK/GRN
C101 2
MICU
V
PGM-FI MAIN
RELAY 2
(FUEL PUMP)
UNDER-DASH FUSE/RELAY BOX
F5
YEL
F8
PNK
F10
BRN
F11
BRN
F24
BRN
F25
LT GRN
F30
LT GRN
F31
WHT
F29
G2
ORN
G4
ORN
BRN
G16
WHT
G20
WHT
Q1
WHT
Q5
ORN
Q8
LT BLU
E9
GRN
E27
YEL
IG2
B IG1
D1
WHT
D2
BLU
C3
ORN
C1
YEL
3
AD
ST
AC
AB
O
ORN
AE
AA
YW
X
ST6
4
1
R
IGNITION SWITCH FUEL PUMPP
2
4
BLK E28
G601
IG1 HOT in ON (II)
and START (III) YEL
G12 STARTER
CUT RELAY
(ST CUT)
22
UNDER-HOOD FUSE/RELAY BOX: No. 21 DBW (THROTTLE
ACTUATOR CONTROL) (15 A) No. 18 IG COIL (15 A)
No.19FIMAIN(15A)
No.11FISUB(15A)
No.15OILLVL(7.5A)
No. 2 IG MAIN (50 A)
No. 23 BACK UP (10 A)
No.12STOP&HORN(15A)
No. 1 MAIN FUSE (100 A)
UNDER-DASH FUSE/RELAY BOX: No. 3 ALTERNATOR (10 A)
No. 2 FUEL PUMP (15 A)
No. 36 IG2 HAC (A/C) (10 A)
No. 10 METER (7.5 A)
08/08/21 14:13:53 61SNR030_110_0058
ProCarManuals.com
DYNOMITE -2009-

Î
11-67
ETCS
CONTROL
RELAY
A/C COMPRESSOR
CLUTCH RELAY
ELD BATTERY
UNDER-HOOD FUSE/RELAY BOX
WHT H1
BRN D1
ORN D4
WHT D8
YEL A1
ORN A3
BLK A2
G301 GRY
PUR E6
BLU E7
ORN
E5 E1
LT BLU
C1
IG1ETCS 21
C101
WHT K
J
A23
ELD Q RED
F20
PUR
F19
F16 F14
GRN
F9
F7
ORN
F6
YEL
F5
A14
ACC A21
SUBRLY A5
FANH A6
MRLY A4
FANL A8
IGP A20
ETCSRLY
ORN I
U
Y Z
XW
V N
PGM-FI
SUBRELAYPGM-FI
MAIN
RELAY 1
IGNITION
COIL
RELAYA/C
CONDENSER
FAN RELAY
COOLING
FAN
CONTROL
RELAY
RADIATOR
FAN RELAY
G1
9
10
ORN
ORN C101
YEL/BLK
A
PURPNK
15
3
(cont’d)
08/08/21 14:15:31 61SNR030_110_0067
ProCarManuals.com
DYNOMITE -2009-
