sensor ACURA CSX 2006 Service Repair Manual




µ
µ
µ
µ µ
µ
YES
NO
YES
NO YES
NO
24-133
LEFT SIDE IMPACT SENSOR
(SECOND) 2P CONNECTOR
LEFT SIDE IMPACT SENSOR
(SECOND) 2P CONNECTOR LEFT SIDE IMPACT SENSOR
(SECOND) 2P CONNECTOR
B
070AZ-SNAA300 07SAZ-TB4011A
A
10. Measure the resistance between left side impact
sensor (second) 2P connector terminals No. 1 and
No. 2. There should be an open circuit or at least
1M .
Go to step 11.
Short in the floor wire harness; replace the
floor wire harness, then clear the DTC.
11. Measure the resistance between body ground and left side impact sensor (second) 2P connector
terminals No. 1 and No. 2, individually. There
should be an open circuit or at least 1 M .
Go to step 12.
Short to ground in the floor wire harness;
replace the floor wire harness, then clear the
DTC. 12. Reconnect the negative cable to the battery.
13. Turn the ignition switch to ON (II).
14. Measure the voltage between body ground and left
side impact sensor (second) 2P connector terminals
No. 1 and No. 2, individually. There should be less
than 0.2 V.
Go to step 15.
Short to power in the floor wire harness;
replace the floor wire harness, then clear the
DTC.
15. Turn the ignition switch to LOCK (0).
16. Connect the SRS inflator simulator (jumper connector) and the red lead (A) of simulator lead L
to the floor wire harness 4P connector (B).
(cont’d)
Terminal side of female terminals
Terminal side of female terminals Terminal side of female terminals
Is the resistance as specif ied?
Is the resistance as specif ied? Is the voltage as specif ied?
08/08/21 13:59:43 61SNR030_240_0133
ProCarManuals.com
DYNOMITE -2009-


(#'
'
-)
µ
µ µ
µ
µ
µ
YES
NO Special Tools Required
YES
NO
YES
NO

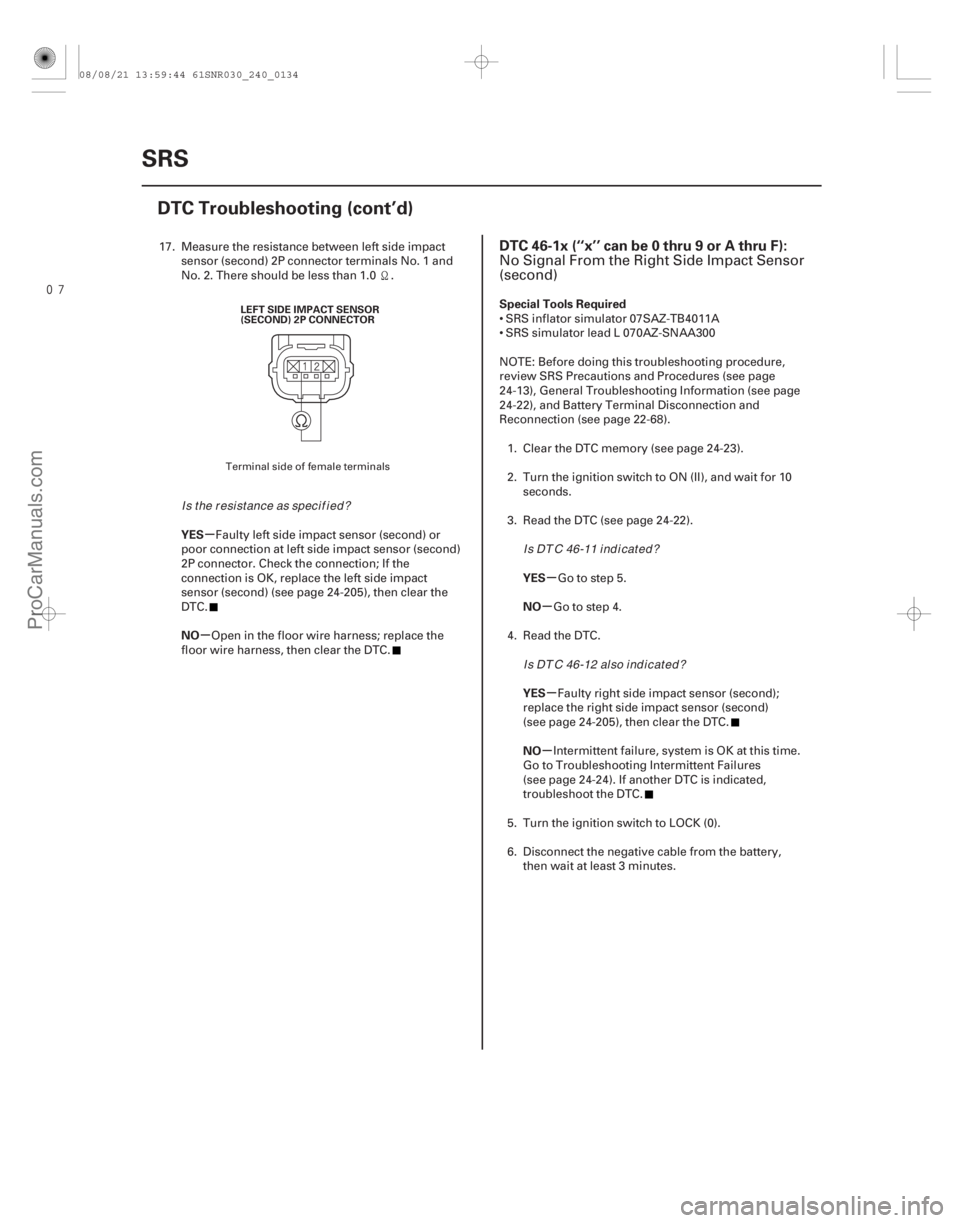

DTC 46-1x (‘‘x’’ can be 0 thru 9 or A thru F):
24-13424-134SRS
DTC Troubleshooting (cont’d)
LEFT SIDE IMPACT SENSOR
(SECOND) 2P CONNECTOR
17. Measure the resistance between left side impact
sensor (second) 2P connector terminals No. 1 and
No. 2. There should be less than 1.0 .
Faulty left side impact sensor (second) or
poor connection at left side impact sensor (second)
2P connector. Check the connection; If the
connection is OK, replace the left side impact
sensor (second) (see page 24-205), then clear the
DTC.
Open in the floor wire harness; replace the
floor wire harness, then clear the DTC.  SRS inflator simulator 07SAZ-TB4011A
 SRS simulator lead L 070AZ-SNAA300
NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13), General Troubleshooting Information (see page
24-22), and Battery Terminal Disconnection and
Reconnection (see page 22-68).
1. Clear the DTC memory (see page 24-23).
2. Turn the ignition switch to ON (II), and wait for 10 seconds.
3. Read the DTC (see page 24-22).
Go to step 5.
Go to step 4.
4. Read the DTC.
Faulty right side impact sensor (second);
replace the right side impact sensor (second)
(see page 24-205), then clear the DTC.
Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC.
5. Turn the ignition switch to LOCK (0).
6. Disconnect the negative cable from the battery, then wait at least 3 minutes.
No Signal From the Right Side Impact Sensor
(second)
Terminal side of female terminals
Is the resistance as specif ied?
Is DTC 46-11 indicated?
Is DTC 46-12 also indicated?
08/08/21 13:59:44 61SNR030_240_0134
ProCarManuals.com
DYNOMITE -2009-




µ
µ
µ
µ
YES
NO
YES
NO

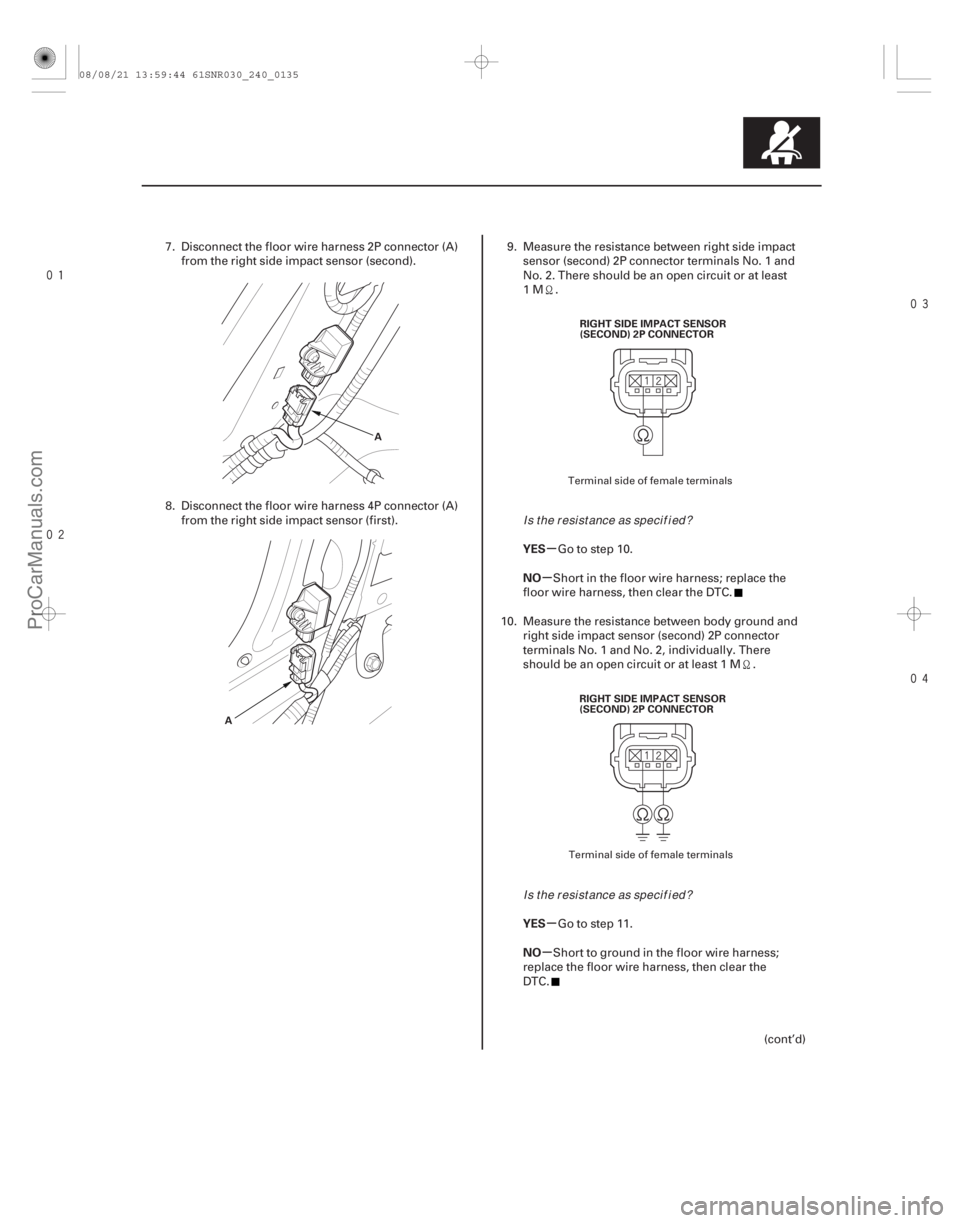

24-135
A
A RIGHTSIDEIMPACTSENSOR
(SECOND) 2P CONNECTOR
RIGHTSIDEIMPACTSENSOR
(SECOND) 2P CONNECTOR
7. Disconnect the floor wire harness 2P connector (A) from the right side impact sensor (second).
8. Disconnect the floor wire harness 4P connector (A) from the right side impact sensor (first). 9. Measure the resistance between right side impact
sensor (second) 2P connector terminals No. 1 and
No. 2. There should be an open circuit or at least
1M .
Go to step 10.
Short in the floor wire harness; replace the
floor wire harness, then clear the DTC.
10. Measure the resistance between body ground and right side impact sensor (second) 2P connector
terminals No. 1 and No. 2, individually. There
should be an open circuit or at least 1 M .
Go to step 11.
Short to ground in the floor wire harness;
replace the floor wire harness, then clear the
DTC.
(cont’d)
Terminal side of female terminals
Terminal side of female terminals
Is the resistance as specif ied? Is the resistance as specif ied?
08/08/21 13:59:44 61SNR030_240_0135
ProCarManuals.com
DYNOMITE -2009-




µ
µ µ
µ
YES
NO YES
NO

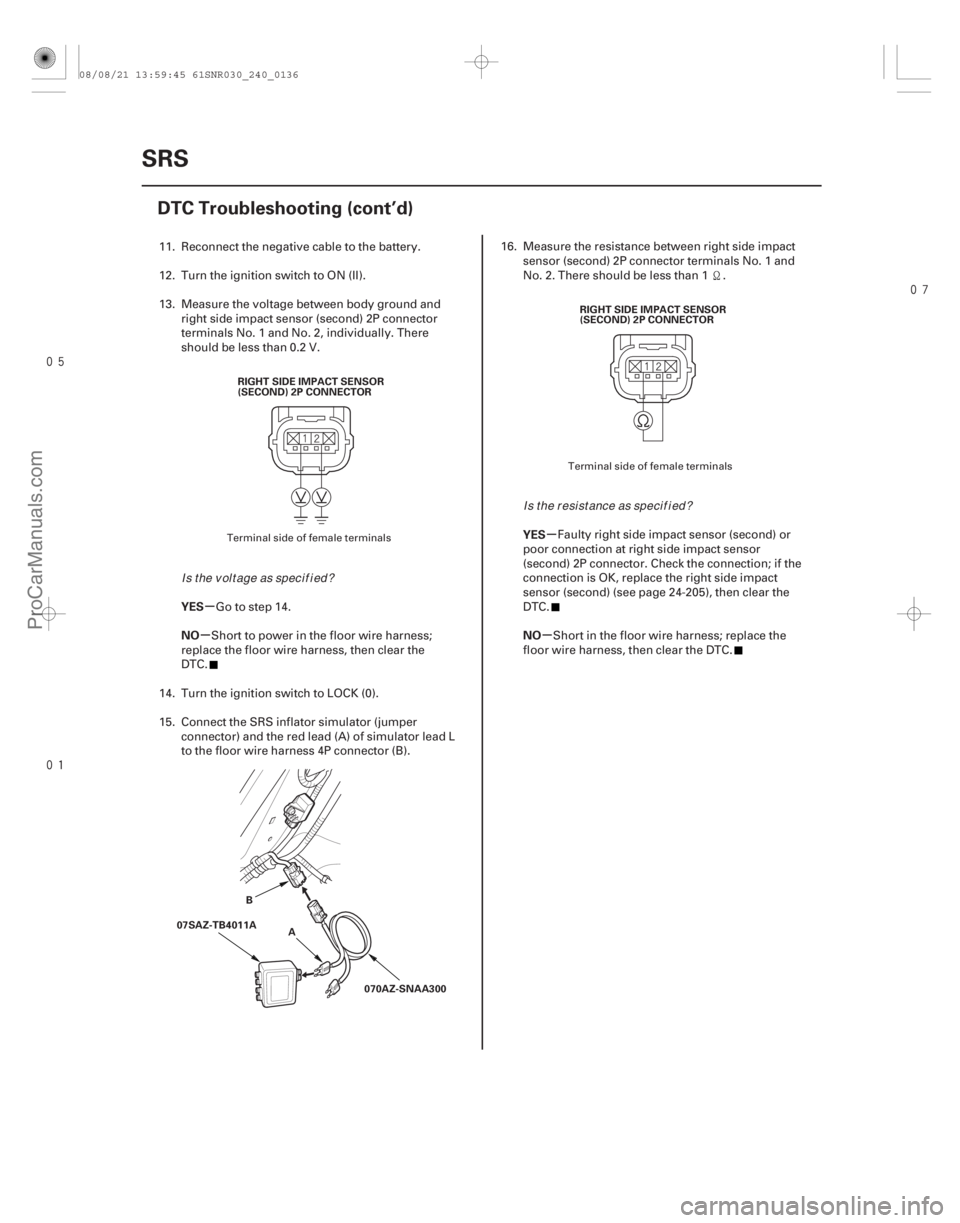

24-136SRS
DTC Troubleshooting (cont’d)
RIGHTSIDEIMPACTSENSOR
(SECOND) 2P CONNECTOR
070AZ-SNAA300
07SAZ-TB4011A
B
A RIGHTSIDEIMPACTSENSOR
(SECOND) 2P CONNECTOR
11. Reconnect the negative cable to the battery.
12. Turn the ignition switch to ON (II).
13. Measure the voltage between body ground and
right side impact sensor (second) 2P connector
terminals No. 1 and No. 2, individually. There
should be less than 0.2 V.
Go to step 14.
Short to power in the floor wire harness;
replace the floor wire harness, then clear the
DTC.
14. Turn the ignition switch to LOCK (0).
15. Connect the SRS inflator simulator (jumper connector) and the red lead (A) of simulator lead L
to the floor wire harness 4P connector (B). 16. Measure the resistance between right side impact
sensor (second) 2P connector terminals No. 1 and
No. 2. There should be less than 1 .
Faulty right side impact sensor (second) or
poor connection at right side impact sensor
(second) 2P connector. Check the connection; if the
connection is OK, replace the right side impact
sensor (second) (see page 24-205), then clear the
DTC.
Short in the floor wire harness; replace the
floor wire harness, then clear the DTC.
Terminal side of female terminals Terminal side of female terminals
Is the voltage as specif ied?
Is the resistance as specif ied?
08/08/21 13:59:45 61SNR030_240_0136
ProCarManuals.com
DYNOMITE -2009-

(#'
'-)
(#'
'-)
µ
µ µ
µ

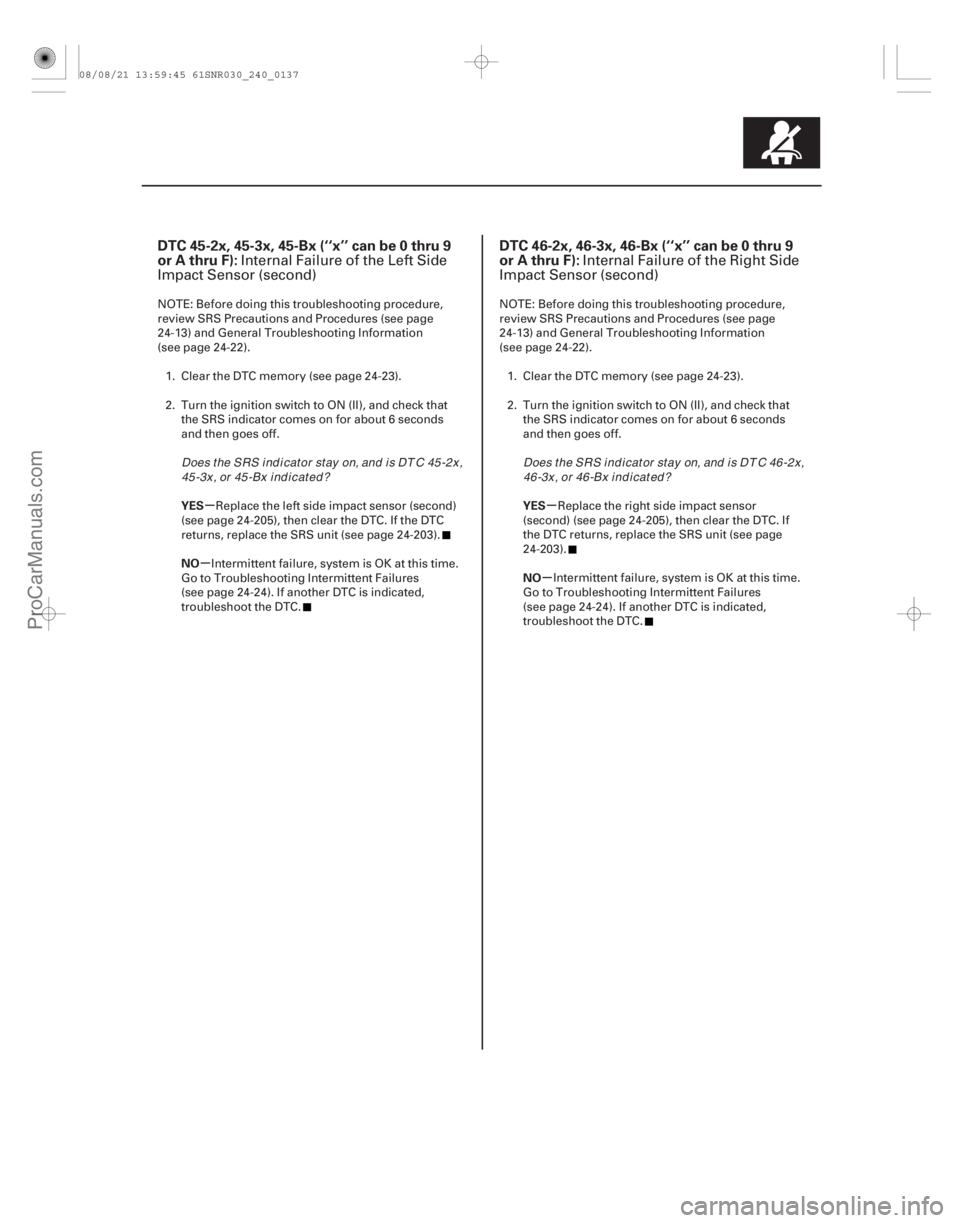

DTC 45-2x, 45-3x, 45-Bx (‘‘x’’ can be 0 thru 9
or A thru F): DTC 46-2x, 46-3x, 46-Bx (‘‘x’’ can be 0 thru 9
or A thru F):
YES
NO YES
NO
24-13724-137
Internal Failure of the Left Side
Impact Sensor (second) Internal Failure of the Right Side
Impact Sensor (second)
NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13) and General Troubleshooting Information
(see page 24-22).
1. Clear the DTC memory (see page 24-23).
2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds
and then goes off.
Replace the left side impact sensor (second)
(see page 24-205), then clear the DTC. If the DTC
returns, replace the SRS unit (see page 24-203).
Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC. NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13) and General Troubleshooting Information
(see page 24-22).
1. Clear the DTC memory (see page 24-23).
2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds
and then goes off.
Replace the right side impact sensor
(second) (see page 24- 205), then clear the DTC. If
the DTC returns, replace the SRS unit (see page
24-203).
Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC.
Does the SRS indicator stay on, and is DT C 45-2x, 45 -3x , or 45 -Bx i nd i cat ed ? Does the SRS indicator stay on, and is DT C 46-2x,
46-3x , or 46-Bx i nd i cat ed ?
08/08/21 13:59:45 61SNR030_240_0137
ProCarManuals.com
DYNOMITE -2009-

µ
µ µ
µ
YES
NO YES
NO

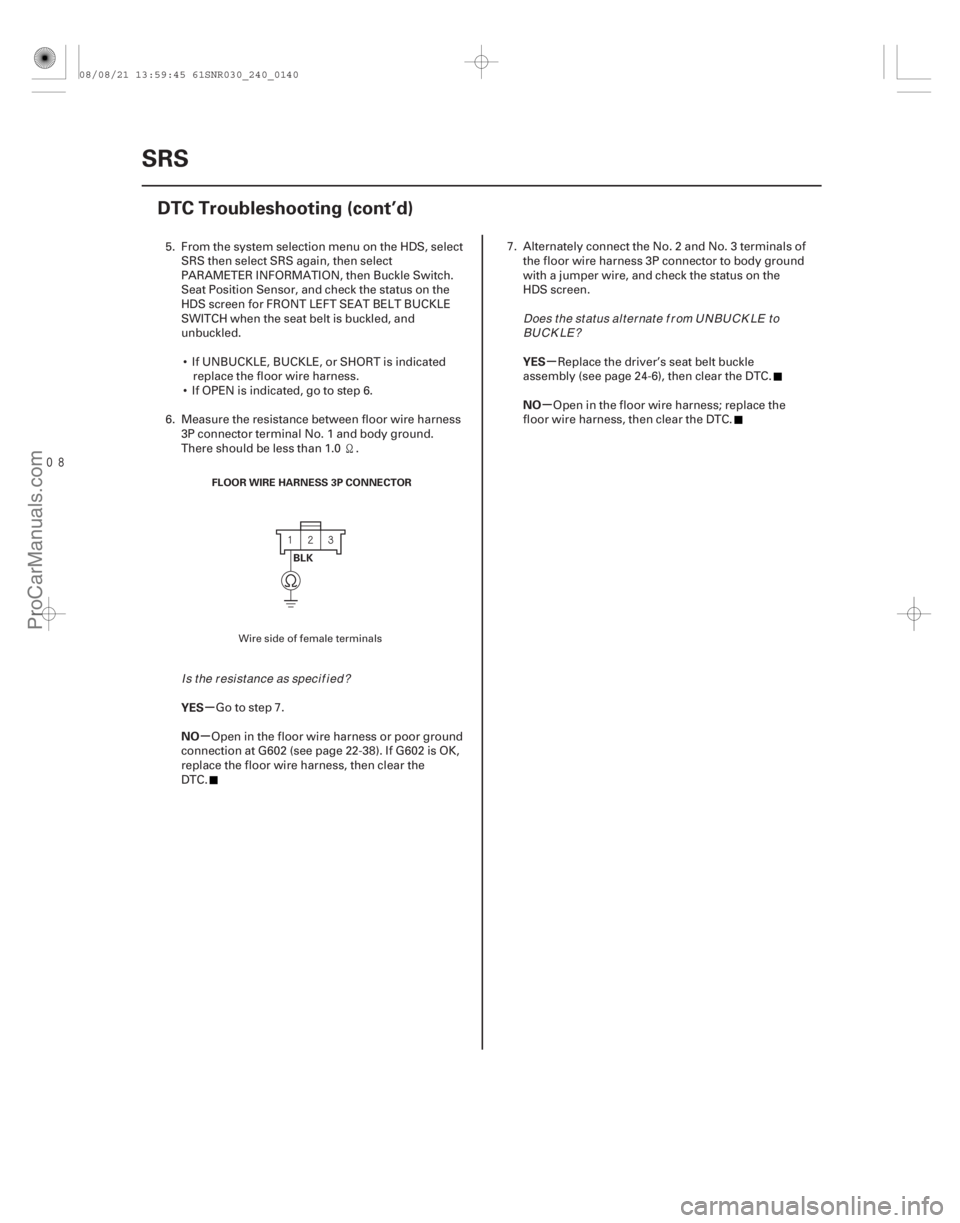

24-140SRS
DTC Troubleshooting (cont’d)
FLOOR WIRE HARNESS 3P CONNECTOR
BLK
5. From the system selection menu on the HDS, selectSRS then select SRS again, then select
PARAMETER INFORMATION, then Buckle Switch.
Seat Position Sensor, and check the status on the
HDS screen for FRONT LEFT SEAT BELT BUCKLE
SWITCH when the seat belt is buckled, and
unbuckled.
 If UNBUCKLE, BUCKLE, or SHORT is indicated replace the floor wire harness.
 If OPEN is indicated, go to step 6.
6. Measure the resistance between floor wire harness 3P connector terminal No. 1 and body ground.
There should be less than 1.0 .
Go to step 7.
Open in the floor wire harness or poor ground
connection at G602 (see page 22-38). If G602 is OK,
replace the floor wire harness, then clear the
DTC. 7. Alternately connect the No. 2 and No. 3 terminals of
the floor wire harness 3P connector to body ground
with a jumper wire, and check the status on the
HDS screen.
Replace the driver’s seat belt buckle
assembly (see page 24-6), then clear the DTC.
Open in the floor wire harness; replace the
floor wire harness, then clear the DTC.
Wire side of female terminals
Is the resistance as specif ied? Does the status alternate f rom UNBUCK LE to
BUCK LE?
08/08/21 13:59:45 61SNR030_240_0140
ProCarManuals.com
DYNOMITE -2009-


(#'
'
-)
µ
µ µ
µ

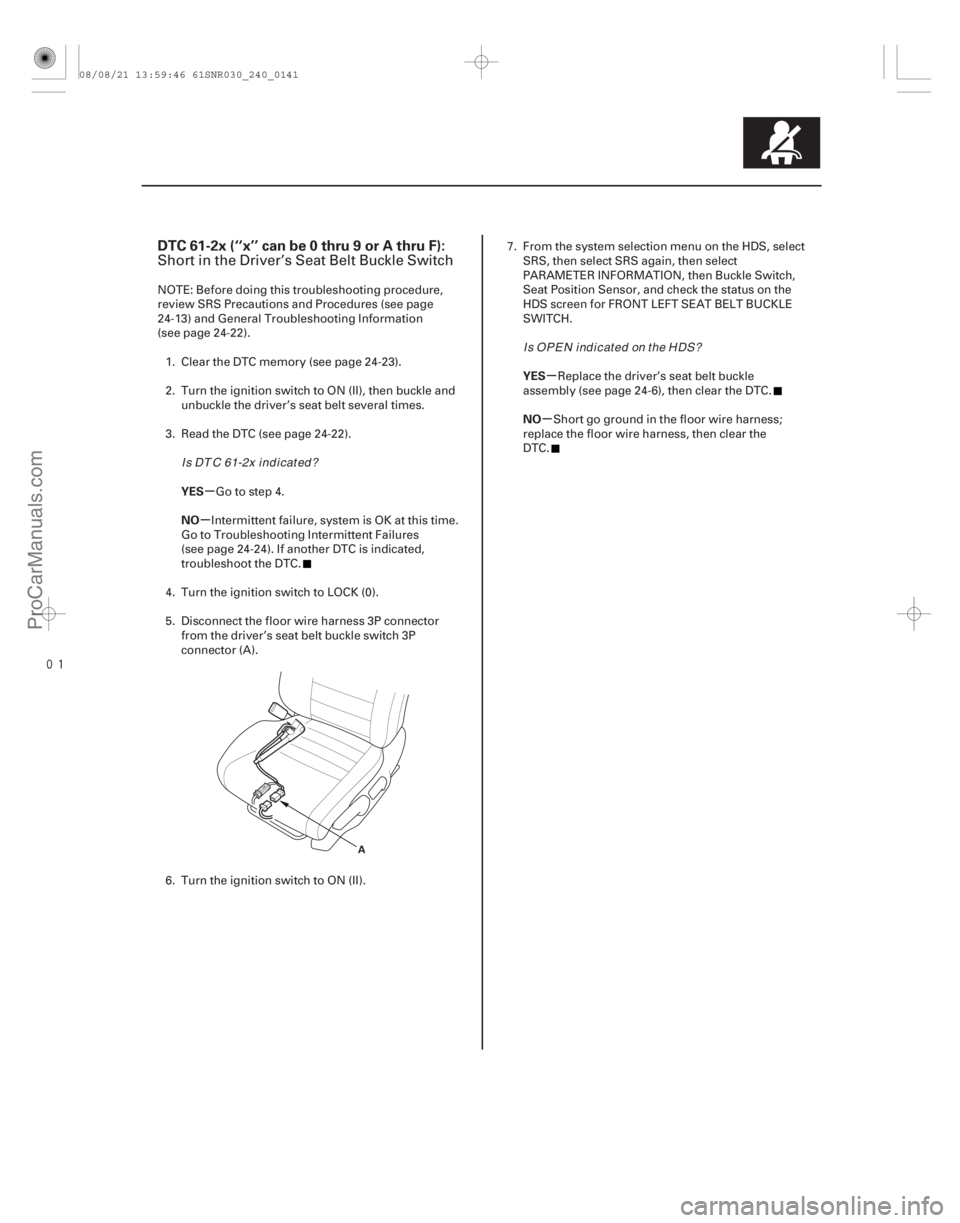

DTC 61-2x (‘‘x’’ can be 0 thru 9 or A thru F):
YES
NO YES
NO
24-141
A
Short in the Driver’s Seat Belt Buckle Switch
NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13) and General Troubleshooting Information
(see page 24-22).
1. Clear the DTC memory (see page 24-23).
2. Turn the ignition switch to ON (II), then buckle and unbuckle the driver’s seat belt s everal times.
3. Read the DTC (see page 24-22).
Go to step 4.
Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC.
4. Turn the ignition switch to LOCK (0).
5. Disconnect the floor wire harness 3P connector from the driver’s seat belt buckle switch 3P
connector (A).
6. Turn the ignition switch to ON (II). 7. From the system selection menu on the HDS, select
SRS, then select SRS again, then select
PARAMETER INFORMATION, then Buckle Switch,
Seat Position Sensor, and check the status on the
HDS screen for FRONT LEFT SEAT BELT BUCKLE
SWITCH.
Replace the driver’s seat belt buckle
assembly (see page 24-6), then clear the DTC.
Short go ground in the floor wire harness;
replace the floor wire harness, then clear the
DTC.
Is DTC 61-2x indicated? Is OPEN indicated on the HDS?
08/08/21 13:59:46 61SNR030_240_0141
ProCarManuals.com
DYNOMITE -2009-



(#'
'
-)
µ
µ
µ
µ
µ
µ

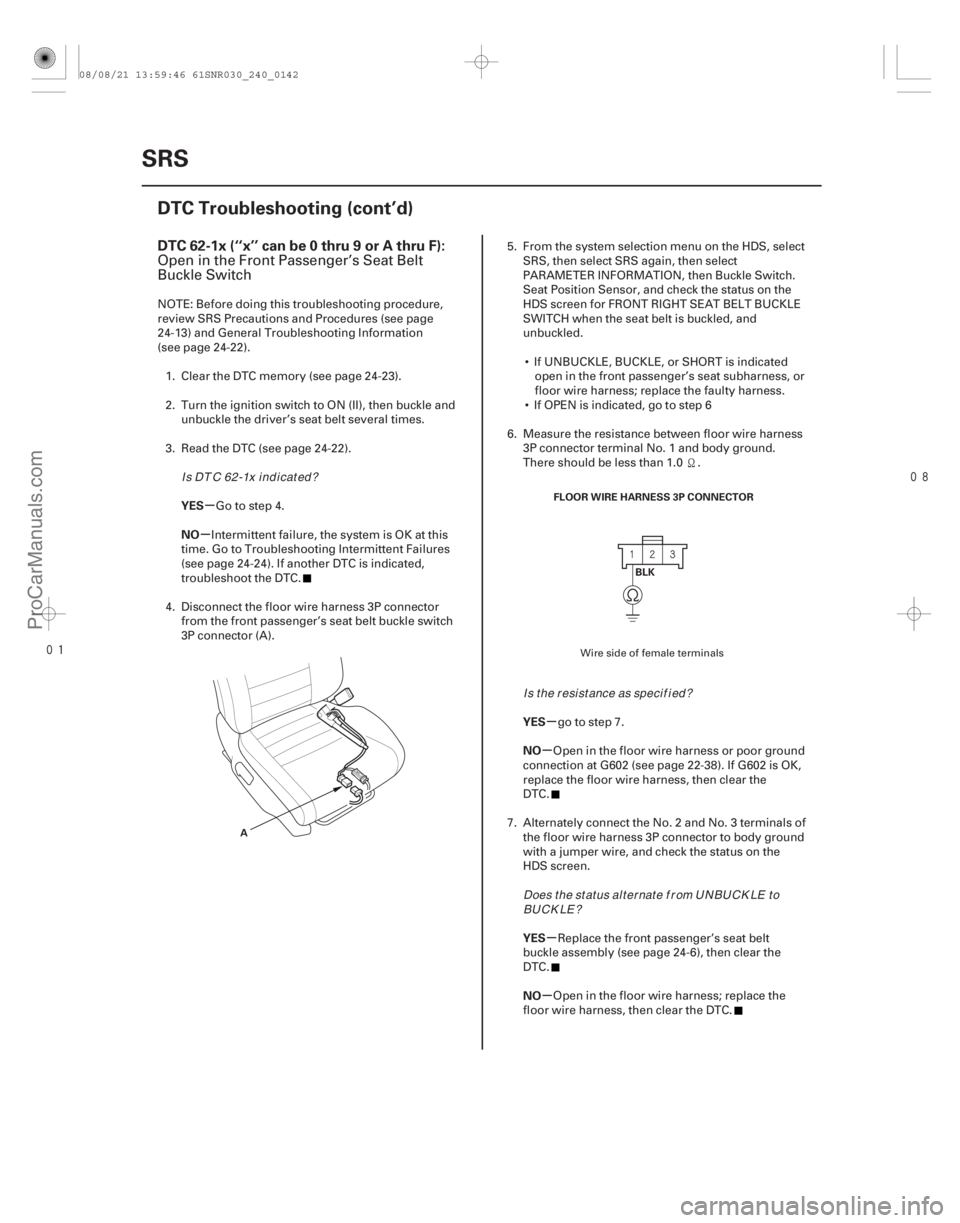

DTC 62-1x (‘‘x’’ can be 0 thru 9 or A thru F):
YES
NO
YES
NO
YES
NO
24-142SRS
DTC Troubleshooting (cont’d)
A
FLOOR WIRE HARNESS 3P CONNECTOR
BLK
Open in the Front Passenger’s Seat Belt
Buckle Switch
NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13) and General Troubleshooting Information
(see page 24-22).1. Clear the DTC memory (see page 24-23).
2. Turn the ignition switch to ON (II), then buckle and unbuckle the driver’s seat belt s everal times.
3. Read the DTC (see page 24-22).
Go to step 4.
Intermittent failure, the system is OK at this
time. Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC.
4. Disconnect the floor wire harness 3P connector from the front passenger’s seat belt buckle switch
3P connector (A). 5. From the system selection menu on the HDS, select
SRS, then select SRS again, then select
PARAMETER INFORMATION, then Buckle Switch.
Seat Position Sensor, and check the status on the
HDS screen for FRONT RIGHT SEAT BELT BUCKLE
SWITCH when the seat belt is buckled, and
unbuckled.
 If UNBUCKLE, BUCKLE, or SHORT is indicated open in the front passenger’s seat subharness, or
floor wire harness; replace the faulty harness.
 If OPEN is indicated, go to step 6
6. Measure the resistance between floor wire harness 3P connector terminal No. 1 and body ground.
There should be less than 1.0 .
go to step 7.
Open in the floor wire harness or poor ground
connection at G602 (see page 22-38). If G602 is OK,
replace the floor wire harness, then clear the
DTC.
7. Alternately connect the No. 2 and No. 3 terminals of the floor wire harness 3P connector to body ground
with a jumper wire, and check the status on the
HDS screen.
Replace the front passenger’s seat belt
buckle assembly (see page 24-6), then clear the
DTC.
Open in the floor wire harness; replace the
floor wire harness, then clear the DTC.
Wire side of female terminals
Is DTC 62-1x indicated?
Is the resistance as specif ied?Does the status alternate f rom UNBUCK LE toBUCK LE?
08/08/21 13:59:46 61SNR030_240_0142
ProCarManuals.com
DYNOMITE -2009-


(#'
'-)
µ
µ µ
µ

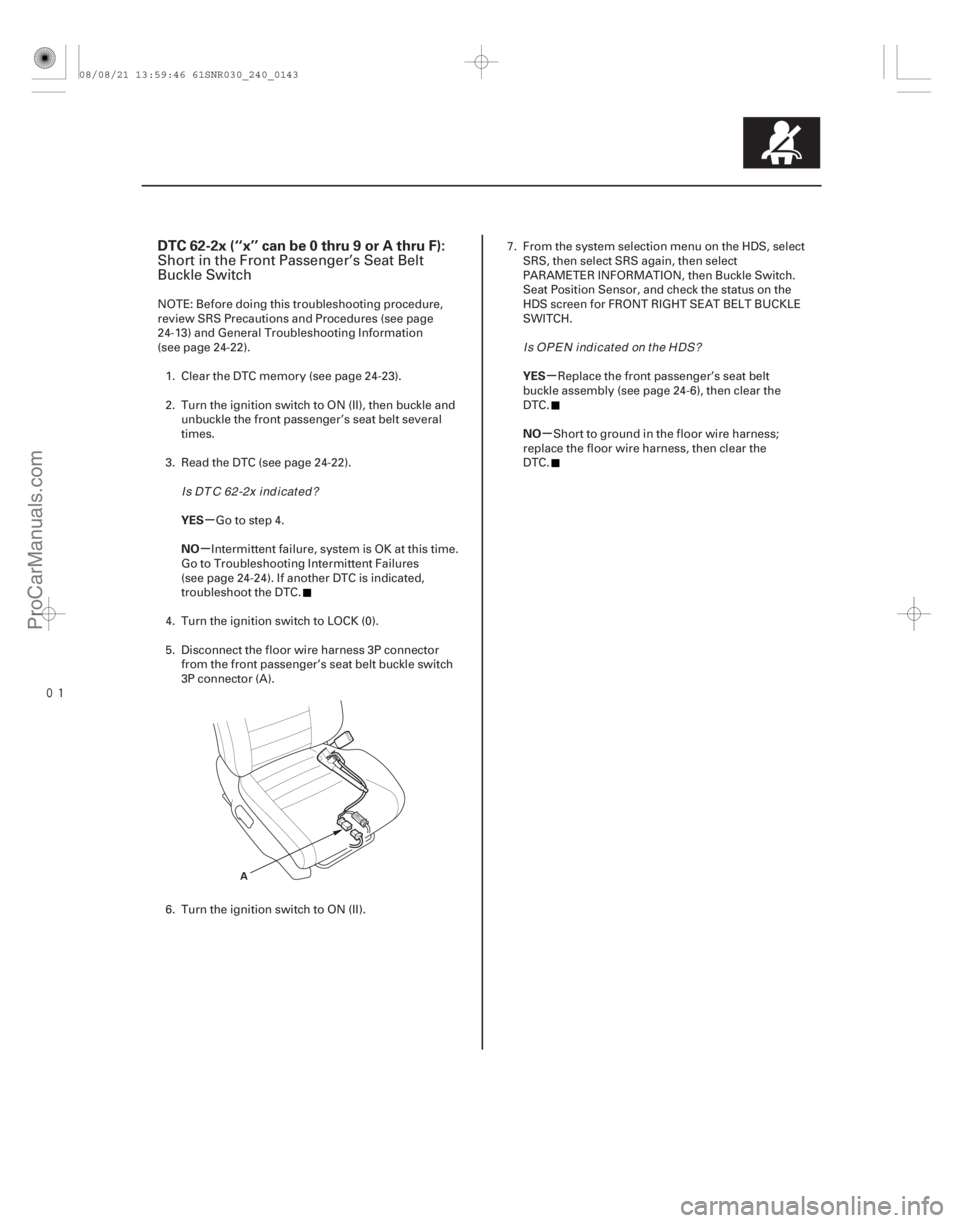

DTC 62-2x (‘‘x’’ can be 0 thru 9 or A thru F):
YES
NO YES
NO
24-143
A
Short in the Front Passenger’s Seat Belt
Buckle Switch
NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13) and General Troubleshooting Information
(see page 24-22).
1. Clear the DTC memory (see page 24-23).
2. Turn the ignition switch to ON (II), then buckle and unbuckle the front passenger’s seat belt several
times.
3. Read the DTC (see page 24-22).
Go to step 4.
Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC.
4. Turn the ignition switch to LOCK (0).
5. Disconnect the floor wire harness 3P connector from the front passenger’s seat belt buckle switch
3P connector (A).
6. Turn the ignition switch to ON (II). 7. From the system selection menu on the HDS, select
SRS, then select SRS again, then select
PARAMETER INFORMATION, then Buckle Switch.
Seat Position Sensor, and check the status on the
HDS screen for FRONT RIGHT SEAT BELT BUCKLE
SWITCH.
Replace the front passenger’s seat belt
buckle assembly (see page 24-6), then clear the
DTC.
Short to ground in the floor wire harness;
replace the floor wire harness, then clear the
DTC.
Is DT C 62-2x indicated? Is OPEN indicated on the HDS?
08/08/21 13:59:46 61SNR030_240_0143
ProCarManuals.com
DYNOMITE -2009-


(#'
'

-)
µ
µ
µ
µ
DTC 71-1x (‘‘x’’ can be 0 thru 9 or A thru F):
YES
NO
YES
NO
24-144 SRS
DTC Troubleshooting (cont’d)
A
Open in the Driver’s Seat Position Sensor
NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-13), General Troubleshooting Information (see page
24-22), and Battery Terminal Disconnection and
Reconnection (see page 22-68).
1. Clear the DTC memory (see page 24-23).
2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds
and then goes off.
Go to step 3.
Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC.
3. Check the connection between the seat position sensor harness 2P connector and the driver’s seat
position sensor (see page 24-11).
4. Clear the DTC memory.
5. Read the DTC (see page 24-22).
Go to step 6.
Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures
(see page 24-24). If another DTC is indicated,
troubleshoot the DTC.
6. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait at least 3
minutes. 7. Disconnect the driver’s seat position sensor
harness 2P connector from the driver’s seat
position sensor (A).
8. Connect the No. 1 and No. 2 terminals of the driver’s seat position sensor harness 2P connector with a
jumper wire.
9. Disconnect both seat belt buckle tensioner connectors (see step 8 on page 24-21) and both
seat belt tensioner connectors (see step 7 on page
24-21).
Does the SRS indicator stay on, and is DT C 71-1xindicated?
I s DT C 7 1-1x i nd i cat ed ?
08/08/21 13:59:46 61SNR030_240_0144
ProCarManuals.com
DYNOMITE -2009-
