Acura ILX 2015 Owners Manual

90
15 ACURA ILX-31TX66200.book 90 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

91
Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock................................ 92
Locking and Unlocking the Doors
Key Types and Functions .................... 93
Low Keyless Access Remote Signal Strength ........................................... 94
Locking/Unlocking the Doors from the Outside ............................................ 95
Locking/Unlocking the Doors from the
Inside ............................................... 99
Childproof Door Locks ..................... 100
Auto Door Locking/Unlocking .......... 101
Opening and Closing the Trunk ....... 102
Security System ................................ 106
Immobilizer System .......................... 106 Security System Alarm...................... 106Opening and Closing the Windows
.... 108Opening and Closing the Moonroof....... 111Operating the Switches Around the
Steering Wheel
ENGINE START/STOP Button............. 112
Turn Signals ..................................... 114
Light Switches.................................. 114
Fog Lights
*...................................... 117
Daytime Running Lights ................... 117
Wipers and Washers ........................ 118
Brightness Control ........................... 119
Rear Defogger/Heated Door Mirror Button...120
Adjusting the Steering Wheel........... 120 Adjusting the Mirrors
....................... 121
Interior Rearview Mirror ................... 121
Power Door Mirrors ......................... 122
Adjusting the Seats .......................... 123
Adjusting the Seat Positions ............. 123
Interior Lights/Interior Convenience Items ................................................ 131
Interior Lights .................................. 131
Interior Convenience Items .............. 132
Climate Control System ................... 136
Using Automatic Climate Control .... 136
Synchronized Mode ......................... 138
Automatic Climate Control Sensors......139
* Not available on all models
15 ACURA ILX-31TX66200.book 91 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

92
Controls
Setting the Clock
Clock
You can adjust the time in the clock display, with the power mode in ON.1.Press the SETUP button.
2. Rotate to select Adjust Clock on the
screen.
3. Press . Adjust Clock appears.
4. Rotate to select the item you want to
adjust (12/24 hour mode, hour, minute).
Then press .
5. Rotate to make the adjustment.
6. Press to enter your selection. The display
returns to Adjust Clock . Repeat steps 4 to
6 to adjust other items.
7. To enter the selection, rotate and select
Set , then press .
1Clock
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
Models without navigation system
SETUP Button
15 ACURA ILX-31TX66200.book 92 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

93Continued
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
■Keyless access remote
Use the keyless access remote to start and
stop the engine, to lock and unlock the doors
and to open the trunk.
There is a PANIC button in the remote
transmitter.
The built-in key can be us ed to lock/unlock the
doors when the keyless access remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, pull it out while
pressing the release button. To reinstall the
built-in key, push the built-in key into the
keyless access remote until it clicks.
■Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 106
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the keyless access system may not
work.
If the keys do not work properly, have them
inspected by a dealer.
Built-in Key
Release Button
15 ACURA ILX-31TX66200.book 93 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

uuLocking and Unlocking the Doors uLow Keyless Access Remote Signal Strength
94
Controls
Contains a number that you will need if you
purchase a replacement key.
Low Keyless Access Remo te Signal Strength
The vehicle transmits radio waves to loca te the keyless access remote when locking/
unlocking the doors, opening the trunk, or to start the engine.
In the following cases, locking/unlocking the doors, opening the trunk, or starting
the engine may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the keyless access remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or co vering the keyless access remote.
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
1 Low Keyless Access Remote Signal Strength
Communication between the keyless access remote
and the vehicle consumes the keyless access remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the keyless access
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
15 ACURA ILX-31TX66200.book 94 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

95
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls

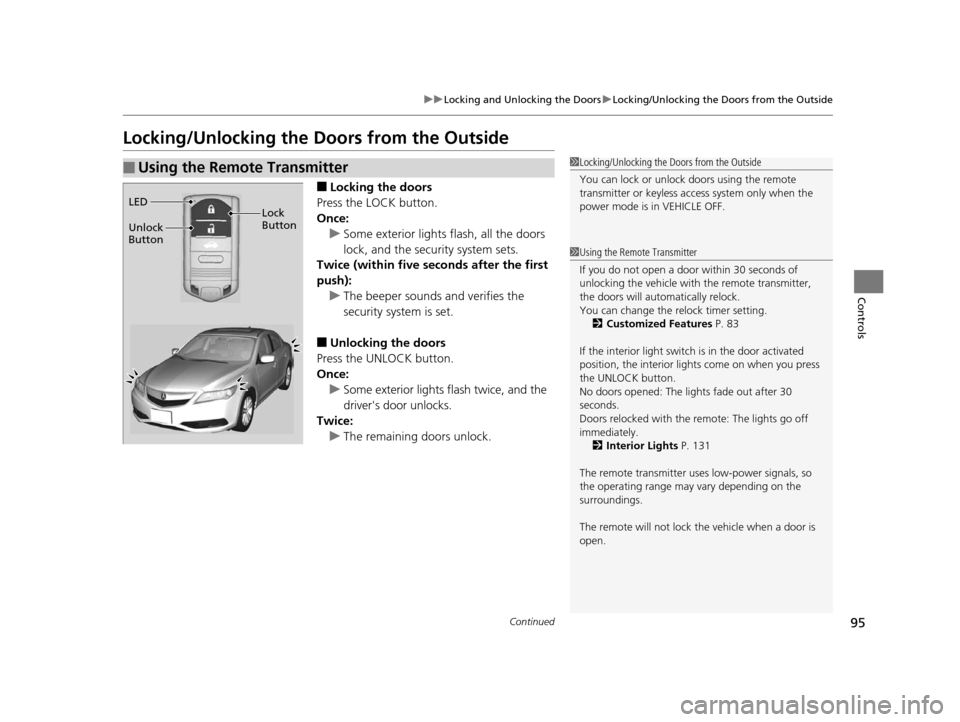

Locking/Unlocking the Doors from the Outside
■Locking the doors
Press the LOCK button.
Once: u Some exterior lights flash, all the doors
lock, and the security system sets.
Twice (within five se conds after the first
push): u The beeper sounds and verifies the
security system is set.
■Unlocking the doors
Press the UNLOCK button.
Once:
u Some exterior lights flash twice, and the
driver's door unlocks.
Twice:
u The remaining doors unlock.
■Using the Remote Transmitter1Locking/Unlocking the Doors from the Outside
You can lock or unlock doors using the remote
transmitter or keyless access system only when the
power mode is in VEHICLE OFF.
1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will auto matically relock.
You can change the relock timer setting.
2 Customized Features P. 83
If the interior light switch is in the door activated
position, the interior light s come on when you press
the UNLOCK button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 131
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
LED
Unlock
Button Lock
Button
15 ACURA ILX-31TX66200.book 95 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
96
Controls
When you carry the keyless access remote,
you can lock/unlock the doors and open the
trunk.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.
■Locking the vehicle
Press the door lock button on the front door.u Some exterior lights flash; the beeper
sounds; all the doors lock; and the
security system sets.
■Using the Keyless Access System
Door Lock Button
1Using the Keyless Access System
•Do not leave the keyless access remote in the
vehicle when you get out . Carry it with you.
•Even if you are not carrying the keyless access
remote, you can lock/unlock the doors while
someone else with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the keyless access remote is within range.
•If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
•The door may not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
If the distance at which it works varies, the battery is
probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 296
You can customize the door lock mode and keyless
lock acknowledge ment setting.
2 Customized Features P. 83
15 ACURA ILX-31TX66200.book 96 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

Continued97
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Unlocking the vehicle
Grab the driver’s door handle:u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All the doors unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button: u The trunk unlocks and opens.
u The beeper will sound.
2 Using the Trunk Release Button P. 103
Trunk Release Button
1Using the Keyless Access System
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unl ock the doors with the
keyless access remote if it is above or below the
outside handle.
•The keyless access remote may not operate if it is
too close to the door and door glass.
If you do not open a door within 30 seconds of
unlocking the vehicle, th e doors will automatically
relock.
The light flash, beep a nd unlock settings can be
customized using the mu lti-information display.
2 Customized Features P. 83
15 ACURA ILX-31TX66200.book 97 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
98
Controls

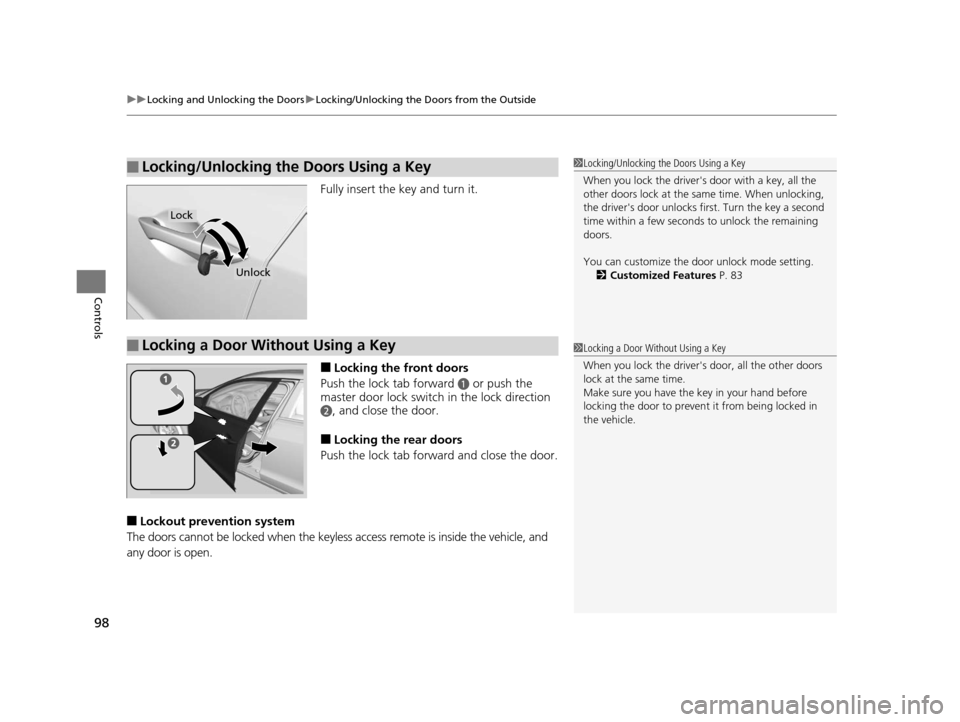

Fully insert the key and turn it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors cannot be locked wh en the keyless access remote is inside the vehicle, and
any door is open.
■Locking/Unlocking the Doors Using a Key1 Locking/Unlocking the Doors Using a Key
When you lock the driver's door with a key, all the
other doors lock at the sa me time. When unlocking,
the driver's door unlocks first. Turn the key a second
time within a few seconds to unlock the remaining
doors.
You can customize the door unlock mode setting. 2 Customized Features P. 83
Lock
Unlock
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver's door, all the other doors
lock at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in
the vehicle.
15 ACURA ILX-31TX66200.book 98 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

99
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Continued
Controls

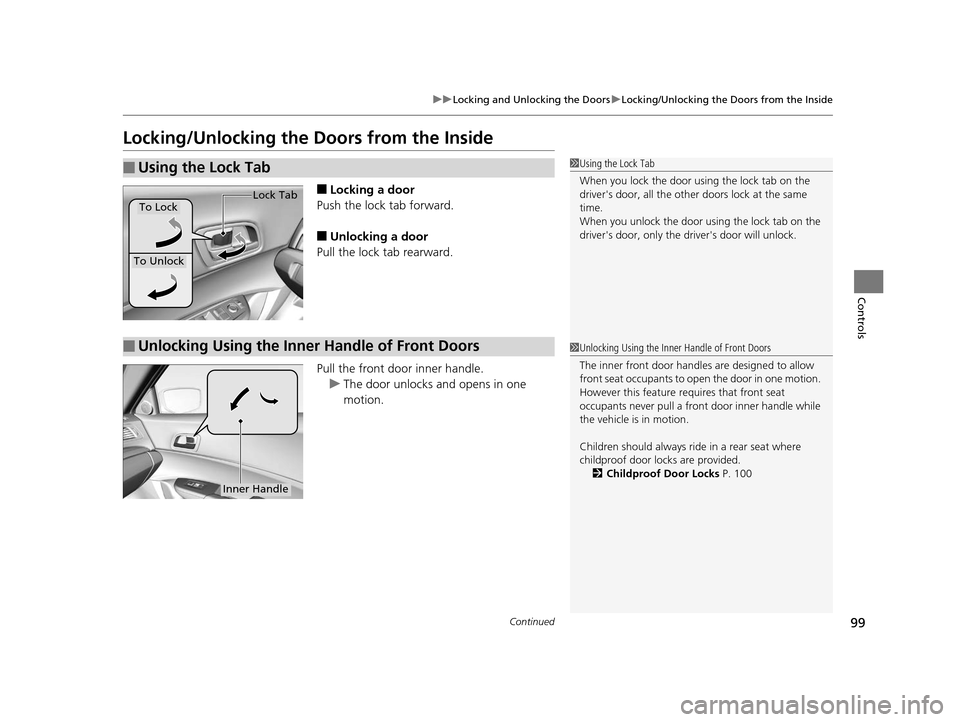

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
Pull the front door inner handle. u The door unlocks and opens in one
motion.
■Using the Lock Tab1Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, all the other doors lock at the same
time.
When you unlock the door using the lock tab on the
driver's door, only the driv er's door will unlock.
To UnlockLock Tab
To Lock
■Unlocking Using the Inner Handle of Front Doors1
Unlocking Using the Inner Handle of Front Doors
The inner front door handl es are designed to allow
front seat occupants to open the door in one motion.
However this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided. 2 Childproof Door Locks P. 100
Inner Handle
15 ACURA ILX-31TX66200.book 99 ページ ２０１４年３月２７日　木曜日　午前１０時３４分
