Acura ILX 2020 Owner's Manual

100
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
*1:Default SettingSetup Group Customizable Features
DescriptionSelectable Settings
Driving
Position
Setup
*Memory Position LinkTurns the driving position memory system on and
off.On*1/Off
Keyless
Access
Setup Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle.
Driver Door Only
*1/
All Doors
Keyless Access Light
Flash Causes some exterior lights to flash when you
unlock/lock the doors.
On
*1/
Off
Keyless Access Beep Sets the beeper sound or not when you grab either
front door handle. On
*1/
Off
Remote Start System On/
Off
*Turns the remote engine start feature on and off. On*1/Off
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time th e interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight Auto Off
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light Sensitivity*Changes the timing for the headlights to come on.Max/High /Mid*1/Low/ Min
* Not available on all models
20 ACURA ILX-31TX66710.book 100 ページ ２０２０年４月１６日　木曜日　午後８時４６分

101
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Door Setup Auto Door Lock
Changes the setting for when the doors
automatically lock. With Vehicle Speed
*1/
Shift
From P /Off
Auto Door Unlock Changes the setting for when the doors
automatically unlock. All Doors When Driver’s
Door Opens
*1/
All Doors
When Shifted To Park /All
Doors When Ignition
Switched Off /Off
Key And Remote Unlock
Mode Sets up either the driver’s door or all doors to unlock
on the first operation of
the remote or built-in key. Driver Door
*1/
All Doors
Walk Away Auto Lock Changes the settings for th
e automatic locking the
doors when you walk away from the vehicle while
carrying the keyless access remote. On
/Off
*1
Keyless Lock Answer
Back LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
On*1/
Off
Security Relock Timer Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without op
ening any door. 90sec
/60sec /30sec
*1
Maintenance
Info.Maintenance ResetResets the Maintenance MinderTM display when you
have performed the maintenance service.Cancel /Reset
Default All —Cancels customized changes you have made or
restores them to their default setting. Cancel
/Set
20 ACURA ILX-31TX66710.book 101 ページ ２０２０年４月１６日　木曜日　午後８時４６分

102
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Press and release the button to
select Vehicle Settings , then press the
SEL/RESET button.
2. Press and release the button until
Meter Setup appears on the display.
3. Press the SEL/RESET button.
u Language Selection appears first on
the display.
20 ACURA ILX-31TX66710.book 102 ページ ２０２０年４月１６日　木曜日　午後８時４６分

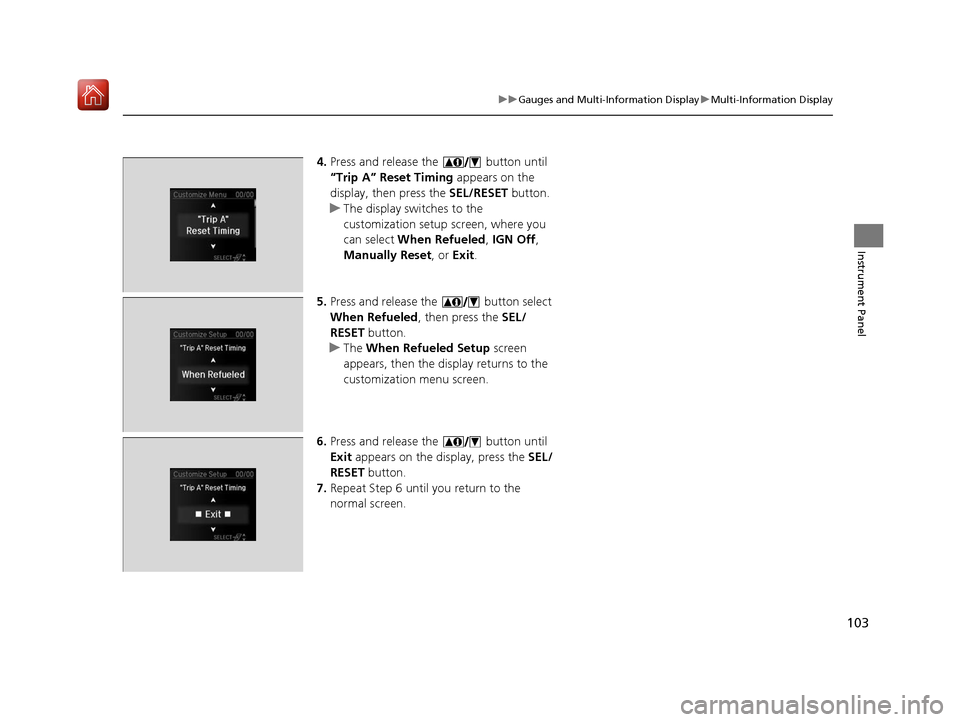

103
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
4. Press and release the button until
“Trip A” Reset Timing appears on the
display, then press the SEL/RESET button.
u The display swit ches to the
customization setup screen, where you
can select When Refueled , IGN Off,
Manually Reset , or Exit .
5. Press and release the button select
When Refueled , then press the SEL/
RESET button.
u The When Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Press and release the button until
Exit appears on the display, press the SEL/
RESET button.
7. Repeat Step 6 until you return to the
normal screen.
20 ACURA ILX-31TX66710.book 103 ページ ２０２０年４月１６日　木曜日　午後８時４６分

104
20 ACURA ILX-31TX66710.book 104 ページ ２０２０年４月１６日　木曜日　午後８時４６分

105
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 106
Locking and Unlocking the Doors
Key .................................................. 108
Low Keyless Access Remote Signal Strength ......................................... 110
Locking/Unlocking the Doors from the Outside .......................................... 111
Locking/Unlocking the Doors from the
Inside ............................................. 120
Childproof Door Locks ..................... 122
Auto Door Locking/Unlocking .......... 123
Opening and Closing the Trunk ....... 124
Security System ................................ 128
Immobilizer System .......................... 128 Security System Alarm...................... 128Opening and Closing the Windows
.... 131Moonroof............................................. 134Operating the Switches Around the
Steering Wheel
ENGINE START/STOP Button............. 135
Turn Signals ..................................... 138
Light Switches.................................. 139
Fog Lights
*...................................... 142
Daytime Running Lights ................... 142
Auto High-Beam .............................. 143
Wipers and Washers ........................ 146
Brightness Control ........................... 148
Rear Defogger/Heated Door Mirror Button ..149 Adjusting the Steering Wheel .......... 149
Driving Position Memory System
*.... 150
Adjusting the Mirrors ....................... 152
Interior Rearview Mirror ................... 152
Power Door Mirrors ......................... 153
Adjusting the Seats .......................... 154
Front Seats ...................................... 154
Interior Lights/Interior Convenience
Items ................................................ 164
Interior Lights .................................. 164
Interior Convenience Items .............. 166
Climate Control System ................... 171
Using Automatic Climate Control .... 171
Automatic Climate Control Sensors......174
* Not available on all models
20 ACURA ILX-31TX66710.book 105 ページ ２０２０年４月１６日　木曜日　午後８時４６分

106
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the power mode in ON.
1. Press the SETUP button.
2. Rotate to select Adjust Clock on the
screen.
3. Press . Adjust Clock appears.
4. Rotate to select the item you want to
adjust (12/24 hour mode, hour, minute).
Then press .
5. Rotate to make the adjustment.
6. Press to enter your selection. The display
returns to Adjust Clock . Repeat steps 4 to
6 to adjust other items.
7. To enter the selection, rotate and select
Set , then press .
■Adjusting the Time
1Clock
The clock is automatically updated through the audio
system.
Models with navigation system
1Adjusting the Clock
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Models with one display
Models with one display
SETUo Button
20 ACURA ILX-31TX66710.book 106 ページ ２０２０年４月１６日　木曜日　午後８時４６分

107
uuClock uAdjusting the Clock
Controls
1. Press the SETTINGS button.
2. Rotate to select Clock Settings, then
press .
u Repeat the procedure to select Clock
Adjustment .
3. Rotate to change hour, then move .
4. Rotate to change minute, then press
.
1Adjusting the Clock
These indications are used to show how to operate
the interface dial.
Rotate to select.
Press to enter.
Move to select a secondary menu.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 310
You can turn the clock display in the information
screen on and off. 2 Customized Features P. 310
You cannot adjust the time while the vehicle is
moving.
Models with two displays
U.S. models with two displays
Models with two displays
20 ACURA ILX-31TX66710.book 107 ページ ２０２０年４月１６日　木曜日　午後８時４６分

108
Controls
Locking and Unlocking the Doors
Key
This vehicle comes with the following keys:Use the keys to start and stop the engine, and
to lock and unlock all the doors and to open
the trunk.1Key
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 128
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the two-way
keyless access remote. 2 Remote Engine Start
* P. 428
Models with two-way keyless access remote
Models without two-way keyless
access remote
Models with two-way keyless access
remote
* Not available on all models
20 ACURA ILX-31TX66710.book 108 ページ ２０２０年４月１６日　木曜日　午後８時４６分

109
uuLocking and Unlocking the Doors uKey
Continued
Controls
The built-in key can be used to lock/unlock the
doors when the keyless access remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
keyless access remote until it clicks.
■Built-in Key
Built-in Key Release Knob
Models without two-way keyless
access remote
Models with two-way keyless access
remote
Release Knob
Built-in Key
