reset Acura ILX 2020 Owner's Manual

5
Quick Reference Guide
❚Wipers/Washers (P146)
❚Audio Remote Controls (P181)
❚Brightness Control (P148)
❚Headlights/Turn Signals (P138)
❚Fog Lights* (P142)
❚Paddle Shifter (Shift down) (P436)
❚Paddle Shifter (Shift up) (P436)
❚Horn (Press an area around .)
❚Voice Control Buttons* (P218)
❚Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P339, 368)
❚SEL/RESET Button (P91)
❚ (Information) Button (P90)
❚Lane Keeping Assist System (LKAS) Button
(P477)
❚Interval Button (P468)
❚MAIN Button (P460, 477)
❚Adaptive Cruise Control (ACC) Buttons (P461)
* Not available on all models
20 ACURA ILX-31TX66710.book 5 ページ ２０２０年４月１６日　木曜日　午後８時４６分

11
Quick Reference Guide
Controls (P105)
Clock (P106)
aPress the CLOCK (AUX ) button until the
displayed time begins flashing.
bPress Preset ( 4 (Hour) or (5 (Minute)
to set the time. Press Preset
( 6 (Reset)
to set the time to the nearest hour.
cPress the CLOCK button again to set
the time.
aEnter the Clock Adjustment screen.
2 Adjusting the Clock (P106)
bRotate to change hour, then move
.
cRotate to change minute, then
press .
Models with one display
Models with two displays
The clock is automati cally updated through
the audio system.
ENGINE START/STOP
Button
(P135)
Press the button to ch ange the vehicle’s
power mode.
Models with navigation systemTurn Signals (P138)
Lights (P139)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
20 ACURA ILX-31TX66710.book 11 ページ ２０２０年４月１６日　木曜日　午後８時４６分

15
Quick Reference Guide
Features (P175)
Audio System (P176)
(P183)
Models with one display
Audio/Information Screen
Selector Knob VOL / (Volume/Power) Knob
CD Button
CD Slot
(CD Eject) Button
Preset Buttons
SETUP Button
PHONE Button DISPLAY Button
A.SEL
(Auto Select) Button
SKIP Bar AUX
Button
BACK Button
SCAN
Button
FM
Button
AM
Button
FOLDER Bar
20 ACURA ILX-31TX66710.book 15 ページ ２０２０年４月１６日　木曜日　午後８時４６分

16
Quick Reference Guide
For navigation system operation () See the Navigation System Manual
(P206)
*1:Icons that appear on the screen vary by the source selected.
Models with two displays
Information Screen
Audio Menu (CD Eject) Button
VOL / (Volume/Power) Knob
BACK Button Interface Dial (
ENTER/MENU
Button)
INFO Button
On Demand Multi-Use
Display
TM
PHONE
Button
(Tune Down) Icon
*1
Source
(Day/Night) Button
Tune*1
CD Slot (Information) Icon
Preset Icons*1
(Tune Up) Icon*1
Stations*1
SCAN*1
SMARTPHONE Button
SETTINGS Button
NAV Button*
HD Radio List*, *1
20 ACURA ILX-31TX66710.book 16 ページ ２０２０年４月１６日　木曜日　午後８時４６分

17
Quick Reference Guide
Audio Remote Controls
(P181)
●VOL (Volume) Button
Press / to adjust the volume up/
down.
●MODE Button
Press to change the audio mode: FM1/
FM2/AM/CD/AUX.
Press to change the audio mode: FM/AM/
SiriusXM ®/CD/HDD
*/USB/iPod/Apple
CarPlay/Android Auto/ Bluetooth® Audio/
Pandora ®
*/AUX
CH Button MODE
Button
VOL
Button
Models with one display
Models with two displays
●CH (Channel) Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD/HDD
*/USB device:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
* Not available on all models
20 ACURA ILX-31TX66710.book 17 ページ ２０２０年４月１６日　木曜日　午後８時４６分

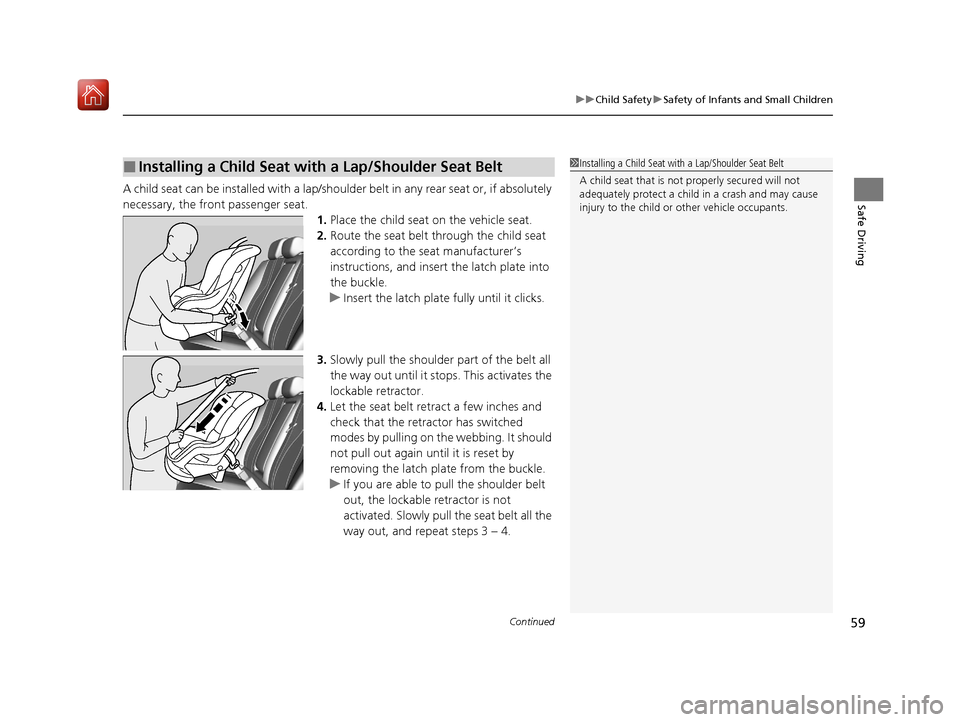

Continued59
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA child seat can be installed with a lap/shoulder belt in any rear seat or, if absolutely
necessary, the front passenger seat.
1.Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch pl ate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1 Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
20 ACURA ILX-31TX66710.book 59 ページ ２０２０年４月１６日　木曜日　午後８時４６分

91
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■Lower displays
Press the SEL/RESET button to change the display.
Odometer Trip ATrip B
Outside temperature
SEL/RESET Button
SEL/RESET
Button SEL/RESET

Button
SEL/RESET Button
20 ACURA ILX-31TX66710.book 91 ページ ２０２０年４月１６日　木曜日　午後８時４６分

uuGauges and Multi-Information Display uMulti-Information Display
92
Instrument Panel
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ± 5°F (U.S.) or ± 3°C (Canada) if the
temperature reading seems incorrect.
Shows the estimated average fuel econom y of each trip meter in mpg (U.S.) or
l/100 km (Canada). The display is updated at set intervals. When a trip meter is reset,
the average fuel economy is also reset.
■Odometer
■Trip Meter
■Outside Temperature
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the multi-information display’s customized
features to correct the temperature.
2 Customized Features P. 95, 310
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 95, 310
20 ACURA ILX-31TX66710.book 92 ページ ２０２０年４月１６日　木曜日　午後８時４６分

Continued93
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the estimated distance you can travel on the remaining power and fuel. This
estimated distance is based on the vehicle’s current fuel economy.
Shows the time elapsed since the Trip A or Trip B was reset.
Shows the average speed in mph (U.S.) or km /h (Canada) since the Trip A or Trip B
was reset.
■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 270
■Instant Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Navigation*
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 95, 310
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 95, 310
1Navigation*
You can select whether the turn-by-turn display
comes on or not during the route guidance.
2 Customized Features P. 95, 310
* Not available on all models
20 ACURA ILX-31TX66710.book 93 ページ ２０２０年４月１６日　木曜日　午後８時４６分

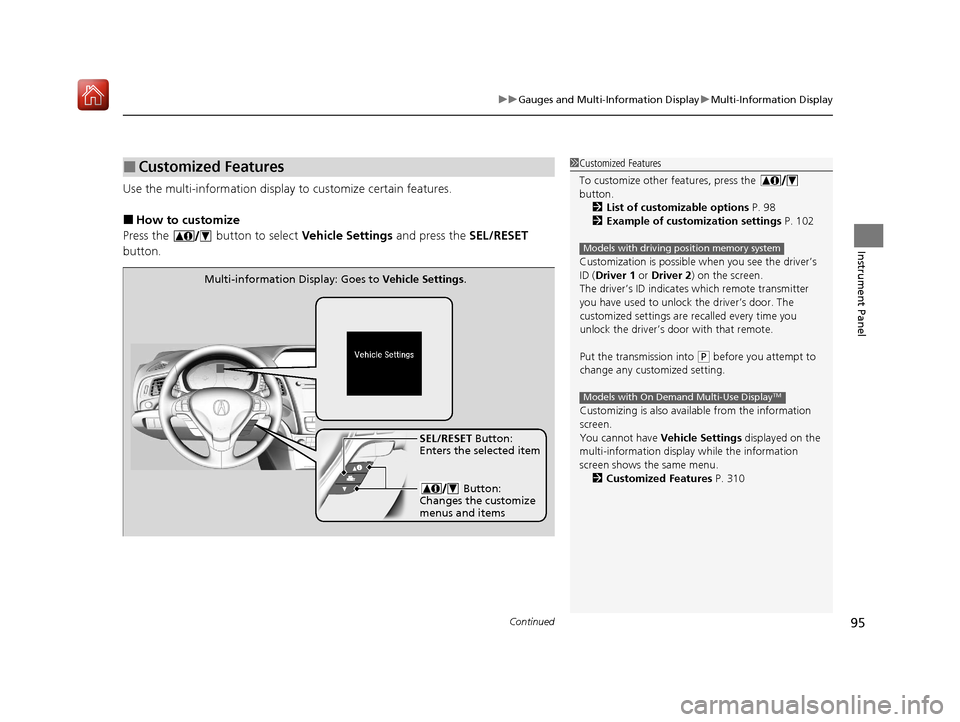

Continued95
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Use the multi-information display to customize certain features.
■How to customize
Press the button to select Vehicle Settings and press the SEL/RESET
button.
■Customized Features1 Customized Features
To customize other features, press the
button.
2 List of customizable options P. 98
2 Example of customization settings P. 102
Customization is possible when you see the driver’s
ID ( Driver 1 or Driver 2 ) on the screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door. The
customized settings are recalled every time you
unlock the driver’s door with that remote.
Put the transmission into
( P before you attempt to
change any customized setting.
Customizing is also available from the information
screen.
You cannot have Vehicle Settings displayed on the
multi-information display while the information
screen shows the same menu.
2 Customized Features P. 310
Models with driving position memory system
Models with On Demand Multi-Use DisplayTM
Multi-information Display: Goes to Vehicle Settings.
SEL/RESET Button:
Enters the selected item
Button:
Changes the customize
menus and items
