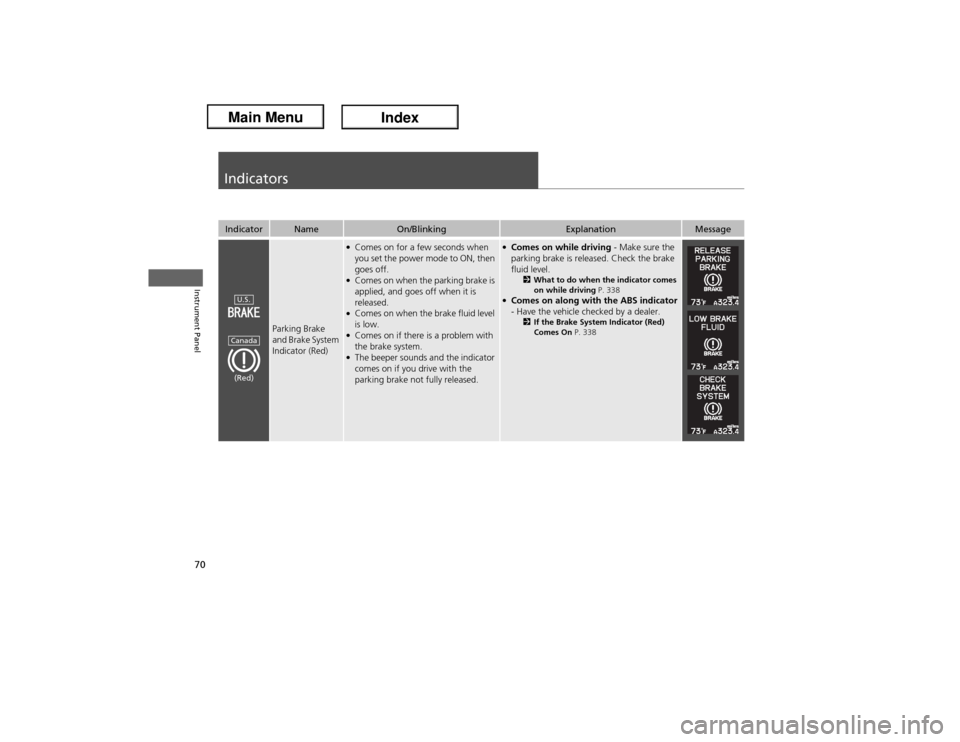

70Instrument Panel
IndicatorsIndicator
Name
On/Blinking
Explanation
Message
Parking Brake
and Brake System
Indicator (Red)
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Comes on when the parking brake is
applied, and goes off when it is
released.●Comes on when the brake fluid level
is low.●Comes on if there is a problem with
the brake system.●The beeper sounds and the indicator
comes on if you drive with the
parking brake not fully released.
●Comes on while driving - Make sure the
parking brake is released. Check the brake
fluid level.
2What to do when the indicator comes
on while driving P. 338
●Comes on along with the ABS indicator
- Have the vehicle checked by a dealer.
2If the Brake System Indicator (Red)
Comes On P. 338
U.S.Canada(Red)

71
uuIndicatorsu
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
Brake System
Indicator (Amber)
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Comes on if there is a problem with
the cooperative control with
regenerative brake.
●Stays on constantly - Have the vehicle
checked by a dealer. Normal braking is not
affected.
Malfunction
Indicator Lamp
●Comes on when you set the power
mode to ON, and goes off either
when the engine starts or after
several seconds if the engine is not
started. If “readiness codes” have
not been set, it blinks five times
before it goes off.●Comes on if there is a problem with
the emissions control system.●Blinks when a misfire in the engine's
cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 351
●Comes on while driving - Have the
vehicle checked by a dealer.●Blinks while driving - Stop in a safe place
where there are no flammable objects. Stop
the engine for 10 minutes or more, and
wait for it to cool down. Then, take the
vehicle to a dealer.
2If the Malfunction Indicator Lamp
Comes On or Blinks P. 337
U.S.Canada(Amber)
U.S.Canada

72
uuIndicatorsu
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
12 Volt Battery
Charging System
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
engine starts.●Comes on when the 12 volt battery is
not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger in
order to reduce electricity consumption.
2If the Charging System Indicator
Comes On P. 336
Shift Lever
Position Indicator
●Indicates current shift lever position.
2Shifting P. 231
—
Transmission
Indicator
●Blinks if the transmission system has
a problem.
●Blinks while driving - Avoid sudden starts
and acceleration and have the vehicle
checked by a dealer immediately.
M (7-speed
manual shift
mode) Indicator/
Shift Indicator
●Comes on when the 7-speed manual
shift mode is applied.
27-Speed Manual Shift Mode P. 233
—

73
uuIndicatorsu
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds if
you are not wearing a seat belt when
you set the power mode to ON.●If the front passenger is not wearing
a seat belt, the indicator comes on
about a few seconds later.●Blinks while driving if either you or
the front passenger has not fastened
a seat belt. The beeper sounds and
the indicator blinks at regular
intervals.
●The beeper stops and the indicator goes off
when you and the front passenger fasten
their seat belts.●Stays on after you or the front
passenger has fastened the seat belt -
A detection error may have occurred in the
sensor. Have the vehicle checked by a
dealer.
2Seat Belt Reminder P. 33
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 1.9 U.S.
gal./7.5 Liter left).●Blinks if there is a problem with the
fuel gauge.
●Comes on - Refuel your vehicle as soon as
possible.●Blinks - Have the vehicle checked by a
dealer.
ABS (Anti-lock
Brake System)
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●If it comes on at any other time, there
is a problem with the ABS.
●Stays on constantly - Have the vehicle
checked by a dealer. With this indicator on,
your vehicle still has normal braking ability
but no anti-lock function.
2ABS (Anti-lock Brake System) P. 247

74
uuIndicatorsu
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message

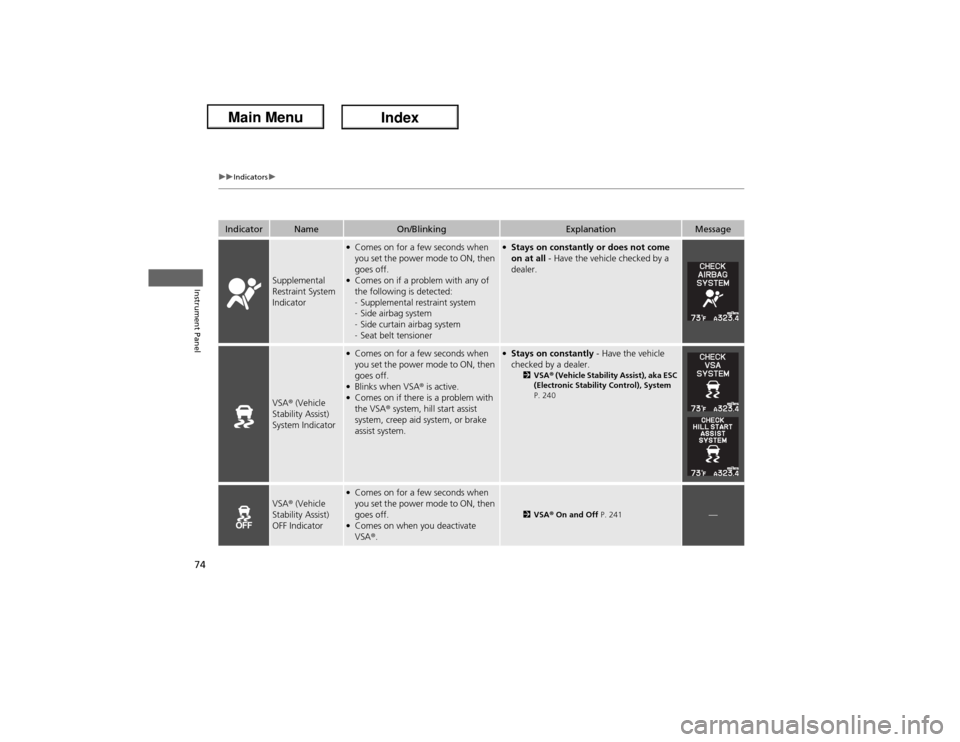

Supplemental
Restraint System
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
-Side airbag system
-Side curtain airbag system
-Seat belt tensioner
●Stays on constantly or does not come
on at all - Have the vehicle checked by a
dealer.
VSA® (Vehicle
Stability Assist)
System Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Blinks when VSA® is active.●Comes on if there is a problem with
the VSA® system, hill start assist
system, creep aid system, or brake
assist system.
●Stays on constantly - Have the vehicle
checked by a dealer.
2VSA® (Vehicle Stability Assist), aka ESC
(Electronic Stability Control), System
P. 240
VSA® (Vehicle
Stability Assist)
OFF Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Comes on when you deactivate
VSA®.
2VSA® On and Off P. 241
—

75
uuIndicatorsu
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
Low Oil Pressure
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
engine starts.●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2If the Low Oil Pressure Indicator
Comes On P. 336
Door and Trunk
Open Indicator
●Comes on for a few seconds if you
set the power mode to ON, then
goes off.●Comes on if any door or the trunk is
not completely closed.
●Goes off when all doors and the trunk are
closed.
EPS (Electric
Power Steering)
System Indicator
●Comes on when you set the power
mode to ON, and goes off when the
engine starts.●Comes on if there is a problem with
the EPS (Electric Power Steering)
System.
●Stays on constantly or does not come
on at all - Have the vehicle checked by a
dealer.
2If the EPS System Indicator Comes On
P. 338
Auto Idle Stop
Indicator
●Blinks when Auto Idle Stop is in
operation. The engine automatically
shuts off.
2Auto Idle Stop P. 250
—

76
uuIndicatorsu
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message

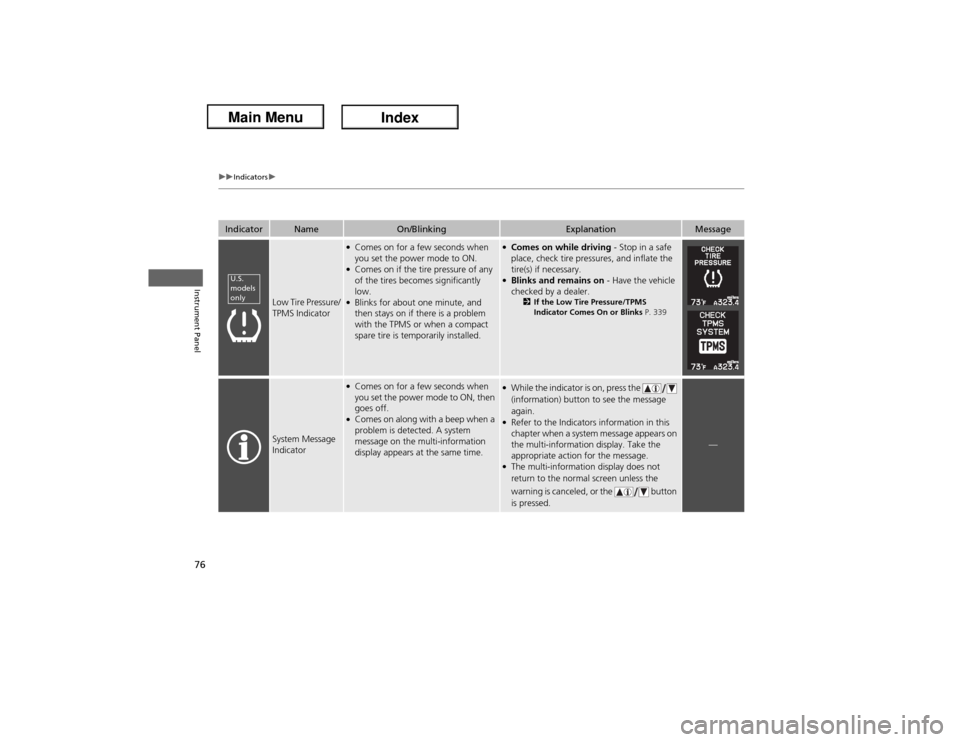

Low Tire Pressure/
TPMS Indicator
●Comes on for a few seconds when
you set the power mode to ON.●Comes on if the tire pressure of any
of the tires becomes significantly
low.●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS or when a compact
spare tire is temporarily installed.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.●Blinks and remains on - Have the vehicle
checked by a dealer.
2If the Low Tire Pressure/TPMS
Indicator Comes On or Blinks P. 339
System Message
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.
●While the indicator is on, press the
(information) button to see the message
again.●Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Take the
appropriate action for the message.●The multi-information display does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
U.S.
models
only

77
uuIndicatorsu
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
IMA System
Indicator
●Comes on for a few seconds when
you set the power mode to ON.●Comes on if there is a problem with
the hybrid system.
●Remains on or does not come on at all -
Avoid high speed driving and have the
vehicle checked by a dealer as soon as
possible.
2If the IMA Indicator Comes On P. 339
Turn Signal
Indicators
●The turn signal indicators blink when
you operate the turn signal lever.●If you press the hazard warning
button, both indicators and all turn
signals blink at the same time.
●Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the
bulb immediately.
2Replacing Light Bulbs P. 286, 288
—
High-Beam
Indicator
●Comes on when the high beam
headlights are on.
—
—
Lights On
Indicator
●Comes on whenever the light switch
is on, or in AUTO when the exterior
lights are on.
●If you set the power mode to ACCESSORY
or VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver's door is opened.
—
Fog Light
Indicator
●Comes on when the fog lights are
on.
—
—

78
uuIndicatorsu
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
Side Airbag Off
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Comes on when the passenger side
airbag system is automatically shut
off.
●It does not mean there is a problem with
your side airbags.●Comes on when nobody is sitting in the
passenger seat - Have the vehicle checked
by a dealer.●Comes on when someone is sitting in
the seat - Have the passenger sit properly.
Immobilizer
System Indicator
●Comes on briefly when you set the
power mode to ON, then goes off.●Comes on if the immobilizer system
cannot recognize the key
information.
●Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF (LOCK),
then select the ON mode again.●Repeatedly blinks - The system may be
malfunctioning. Have the vehicle checked
by a dealer.●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
U.S.Canada
U.S.Canada

79
uuIndicatorsu
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
Security System
Alarm Indicator
●Blinks when the Security System
Alarm has been set.
2Security System Alarm P. 118
—
Keyless Access
System Indicator
●Comes on for a few seconds when
you set the power mode to ON.●Comes on as soon as a problem is
detected in the keyless access system
or keyless starting system.
●Have your vehicle checked by a dealer.
Low Temperature
Indicator
●Comes on when the engine coolant
temperature is low.
●If the indicator stays on after the engine has
reached normal operating temperature,
there may be a problem with the
temperature sensors. Have the vehicle
inspected by a dealer.
—
Indicator
