Acura ILX Hybrid 2015 Owner's Manual

350Information

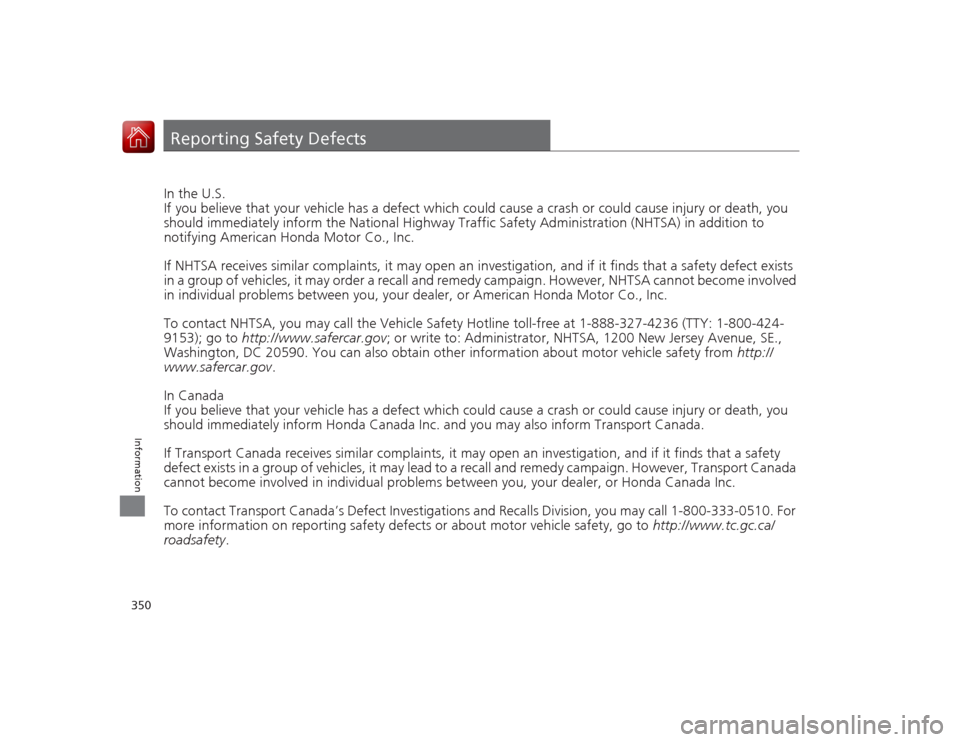

Reporting Safety DefectsIn the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar comp laints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall an d remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives simi lar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a reca ll and remedy campaign. However, Transport Canada
cannot become involved in individual problems be tween you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety.

351
Continued
Information
Emissions TestingTesting of Readiness CodesYour vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle’s emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40 °F and 95 °F (4 °C and 35 °C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P
. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the 12 volt
battery is disconnected, and set again only after
several days of driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing faci lity determines the readiness codes
are still not set, see a dealer.

352
uuEmissions Testing uTesting of Readiness Codes
Information

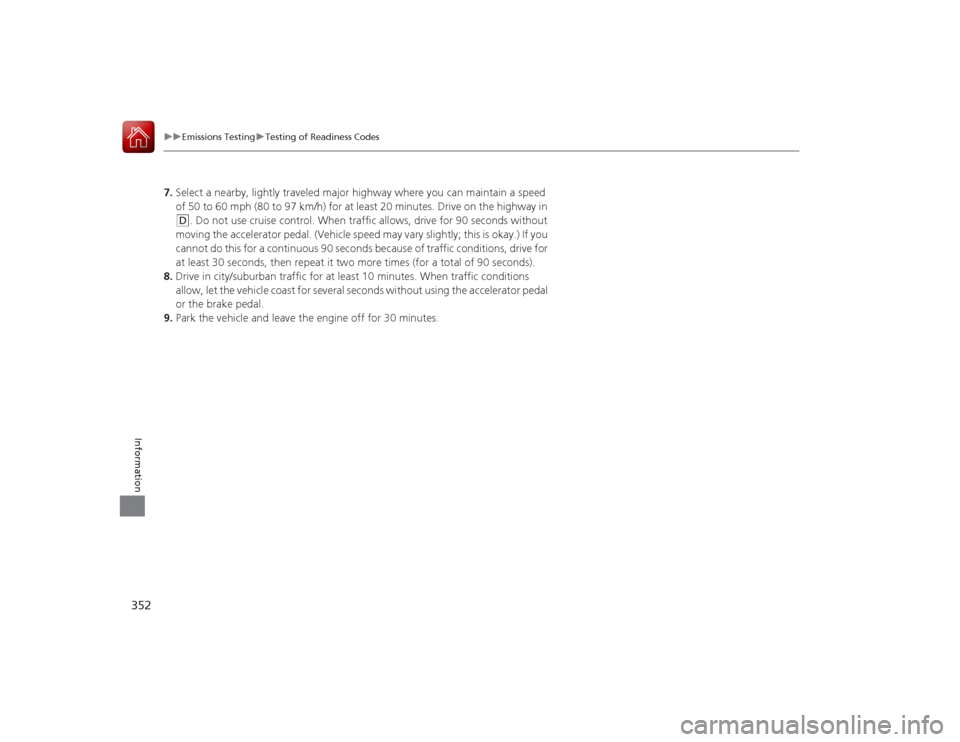

7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D
. Do not use cruise control. When traffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.

353
Continued
Information

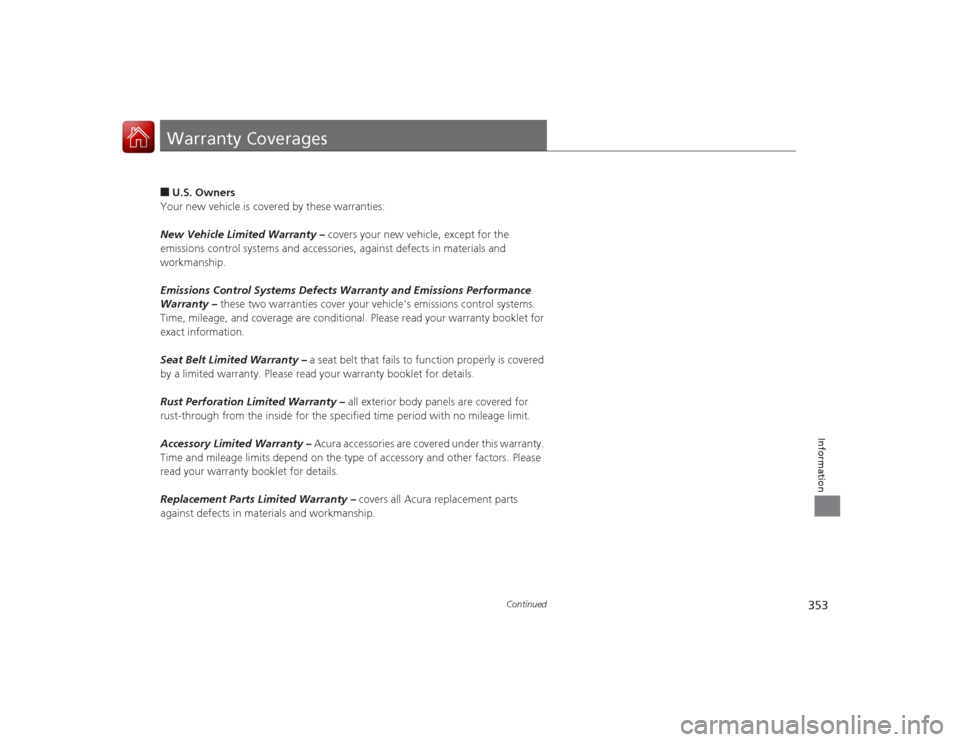

Warranty Coverages■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessories, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your vehicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.
Accessory Li mited Warranty – Acura accessories are covered under this warranty.
Time and mileage limits depend on the type of accessory and other factors. Please
read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Acura replacement parts
against defects in materials and workmanship.

354
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Lifetime Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all these warranties. Please read the Acura
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.■Canadian Owners
Please refer to the warranty manual that came with your vehicle.

355Information

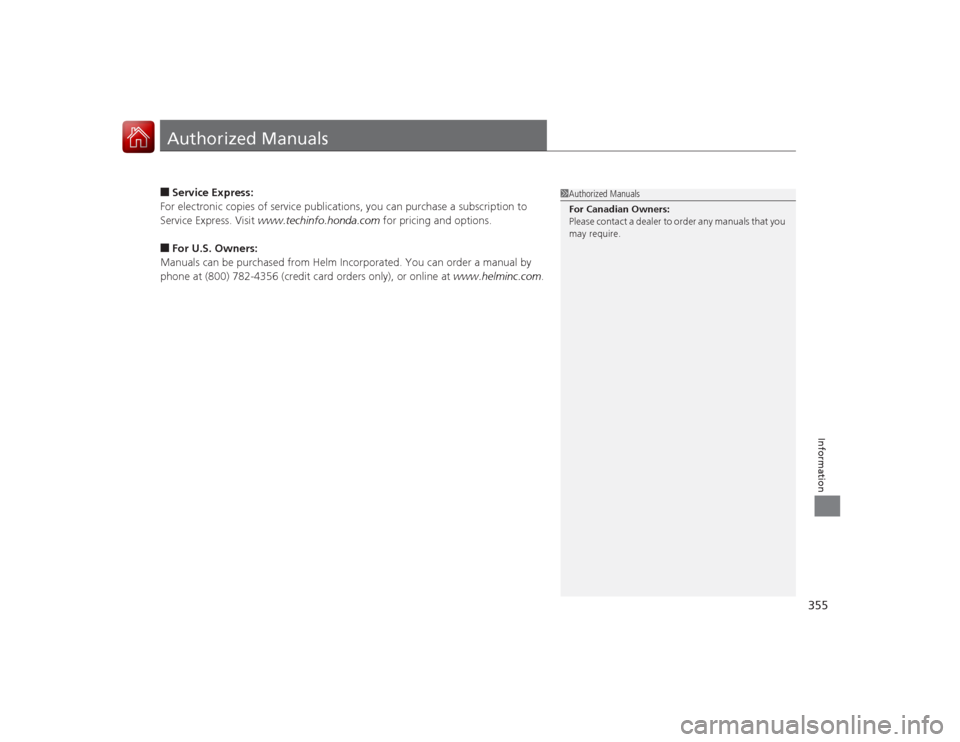

Authorized Manuals■Service Express:
For electronic copies of service publication s, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.■For U.S. Owners:
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at (800) 782-4356 (credit card orders only), or online at www.helminc.com.
1Authorized Manuals
For Canadian Owners:
Please contact a dealer to order any manuals that you
may require.

356Information

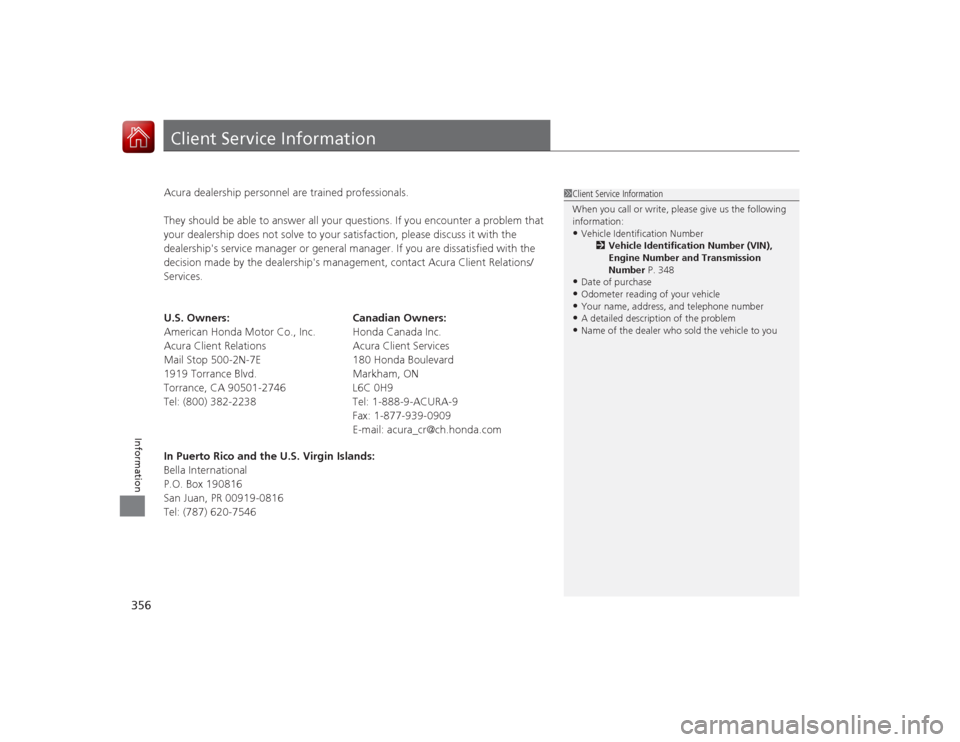

Client Service InformationAcura dealership personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership's service manager or general manager. If you are dissatisfied with the
decision made by the dealership's management, contact Acura Client Relations/
Services.
U.S. Owners:
American Honda Motor Co., Inc.
Acura Client Relations
Mail Stop 500-2N-7E
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 382-2238Canadian Owners:
Honda Canada Inc.
Acura Client Services
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-ACURA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7546
1 Client Service Information
When you call or write, please give us the following
information:•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number and Transmission
Number P. 348•Date of purchase•Odometer reading of your vehicle•Your name, address, and telephone number•A detailed description of the problem•Name of the dealer who sold the vehicle to you

Index
357Index
Index
Numbers7-Speed Manual Shift Mode................... 233
7-Speed Manual Shift Mode Operation ............................................... 234AABS (Anti-lock Brake System) .................. 250
Accessories and Modifications ................ 257
Accessory Power Socket ........................... 144
Acura Hybrid System .................................. 12
Additives Coolant .................................................. 277
Engine Oil ............................................... 274
Washer ................................................... 281
Additives, Engine Oil ............................... 272
Adjusting Armrest .................................................. 140
Front Seats.............................................. 135
Head Restraints ....................................... 138
Mirrors.................................................... 133
Steering Wheel ....................................... 132
Temperature ............................................. 90
Air Conditioning System (Climate Control
System) .................................................... 146
Changing the Mode................................ 146
Defrosting the Windshield and
Windows .............................................. 147
Dust and Pollen Filter .............................. 305
Recirculation/Fresh Air Mode................... 146
Sensor .................................................... 149 Synchronized Mode ................................. 148
Using Automatic Climate Control ............ 146
Air Pressure ............................................... 294
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
After a Collision ......................................... 42
Airbag Care ............................................... 53
Event Data Recorders ................................... 0
Front Airbags (SRS) .................................... 42
Indicator ........................................ 50, 74, 78
Passenger Airbag Off Indicator .................. 51
Sensors ...................................................... 45
Side Airbag Cutoff System ......................... 48
Side Airbag Off Indicator ........................... 48
Side Airbags .............................................. 46
Side Curtain Airbags .................................. 49
AM/FM Radio ............................................ 161
Anti-lock Brake System (ABS) .................. 250
Indicator .................................................... 73
Armrest ..................................................... 140
Audio Remote Controls ............................ 159
Audio System ............................................ 152
Adjusting the Sound ................................ 160
Auxiliary Input Jack .................................. 153
Error Messages ........................................ 180
General Information ................................ 183
iPhone ..................................................... 186
iPod ......................................................... 168
MP3/WMA/AAC ...................................... 173
Pandora ®................................................. 171
Reactivating ............................................. 154 Recommended CDs ................................. 184
Recommended Devices............................ 186
Security Code .......................................... 154
Theft Protection ...................................... 154
USB Adapter Cable.................................. 153
USB Flash Drives ...................................... 186
Audio/Information Screen ....................... 156
Authorized Manuals ................................ 355
Auto Door Locking/Unlocking ................. 113
Customize ................................................. 95
Auto Idle Stop .......................................... 236
Auto Idle Stop Indicator ............................ 75
Automatic Lighting .................................. 127
Auxiliary Input Jack .................................. 153
Average Fuel Economy .............................. 91
Average Fuel Economy Records ................ 91
Average Speed ........................................... 92
BBattery...................................................... 303
Charging System Indicator................. 72, 337
Jump Starting .......................................... 332
Maintenance (Checking the 12 Volt
Battery) ................................................. 303
Maintenance (Replacing) ......................... 304
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 143
Bluetooth® Audio..................................... 176
Bluetooth® HandsFreeLink® ..................... 189
Booster Seats (For Children) ...................... 65

358Index
Brake System............................................. 248
Anti-lock Brake System (ABS) ................... 250
Brake Assist System ................................. 251
Brake System Indicator....................... 71, 339
Fluid ........................................................ 280
Foot Brake ............................................... 249
Indicator ............................................ 71, 339
Parking Brake .......................................... 248
Brightness Control (Instrument Panel) .... 131
Bulb Replacement ..................................... 282
Back-Up Light Bulbs ................................. 290
Brake Light, Taillight, Rear Turn Signal Light and Rear Side Marker Light Bulbs .. 288
Bulb Specifications ................................... 346
Fog Lights ................................................ 284
Front Turn Signal Light Bulbs ................... 286
Headlights ............................................... 282
High-Mount Brake Light .......................... 291
Parking/Side Marker Light Bulbs ............... 287
Rear License Plate Light............................ 291CCarbon Monoxide Gas ................................ 66
Carrying Cargo .................................. 221, 223
CD Player ................................................... 165
Certification Label .................................... 348
Changing Bulbs ......................................... 282
Charge/Assist Gauge ................................... 86
Charging System Indicator ................. 72, 337Child Safety
................................................. 54
Childproof Door Locks............................. 112
Emergency Trunk Opener ........................ 117
Child Seat .................................................... 54
Booster Seats ............................................ 65
Child Seat for Infants................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 61
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Using a Tether ........................................... 63
Childproof Door Locks ............................. 112
Cleaning the Exterior ............................... 308
Cleaning the Interior ................................ 306
Client Service Information ....................... 356
Climate Control System ............................ 146
Changing the Mode ................................ 146
Defrosting the Windshield and Windows ............................................... 147
Dust and Pollen Filter............................... 305
Recirculation/Fresh Air Mode ................... 146
Sensors ................................................... 149
Synchronized Mode................................. 148
Using Automatic Climate Control ............ 146
Clock .......................................................... 104
Coat Hook ................................................. 144
Compact Spare Tire (Optional) ................ 322
Console Compartment ............................. 142 Continuous Variable Transmission
(CVT) ....................................................... 230
Creeping................................................. 230
Fluid ....................................................... 279
Kickdown ............................................... 230
Operating the Shift Lever ........................ 232
Shift Lever Does Not Move ...................... 334
Shifting ................................................... 231
Controls .................................................... 103
Coolant (Engine) ...................................... 277
Adding to the Radiator ........................... 278
Adding to the Reserve Tank .................... 277
Low Temperature Indicator ....................... 79
Overheating ............................................ 335
Creep Aid System ..................................... 228
Creeping ................................................... 230
Cruise Control .......................................... 240
Indicator ................................................... 80
Cup Holders .............................................. 143
Customized Features ................................. 95
DDaytime Running Lights .......................... 129
Dead Battery ............................................ 332
Defrosting the Windshield and Windows ................................................. 147
Devices that Emit Radio Waves ............... 349
Dimming Headlights .............................................. 126
Rearview Mirror ...................................... 133

359Index
Dipstick (Engine Oil)................................ 273
Directional Signals (Turn Signal) ............. 126
Doors ........................................................ 105
Auto Door Locking.................................. 113
Auto Door Unlocking .............................. 113
Door Open Indicator ........................... 31, 75
Keys........................................................ 105
Locking/Unlocking the Doors from the
Inside .................................................... 111
Locking/Unlocking the Doors from the Outside ................................................. 107
Lockout prevention system...................... 110
DOT Tire Quality Grading ........................ 297
Driving ...................................................... 219
Braking ................................................... 248
Continuous Variable Transmission (CVT) .................................................... 230
Cruise Control ........................................ 240
Shifting Speed Position ........................... 231
Starting the Engine ................................. 226
Dust and Pollen Filter .............................. 305EEco Assist System........................................ 10
ECON Button ............................................ 239
ECON Mode Indicator ................................ 80
Elapsed Time .............................................. 91
Electric Power Steering (EPS) System Indicator ........................................... 75, 339
Electronic Stability Control (ESC) ............ 243Emergency
................................................ 344
Emergency Trunk Opener ........................ 117
Emissions Testing (Readiness Codes) ....... 351
Engine ....................................................... 348
Coolant ................................................... 277
Jump Starting .......................................... 332
Oil ........................................................... 272
Starting ................................................... 226
Switch Buzzer .......................................... 125
Engine Compartment Cover .................... 270
Engine Coolant ......................................... 277
Adding to the Radiator ............................ 278
Adding to the Reserve Tank ..................... 277
Low Temperature Indicator ........................ 79
Overheating ............................................ 335
Engine Oil ................................................. 272
Adding .................................................... 274
Checking ................................................. 273
Displaying Oil Life .................................... 264
Low Oil Pressure Indicator .................. 75, 337
Recommended Engine Oil ........................ 272
ENGINE START/STOP Button .................... 124
EPS (Electric Power Steering) System ............................................... 75, 339
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Expanded View Driver’s Mirror ............... 134
Exterior Care (Cleaning) ........................... 308
Exterior Mirrors ........................................ 134
FFeatures.................................................... 151
Filters ......................................................... 305
Dust and Pollen ....................................... 305
Oil ........................................................... 275
Flat Tire ..................................................... 313
Floor Mats ................................................. 307
Fluids
Brake ...................................................... 280
Continuously Variable Transmission Fluid ...................................................... 279
Engine Coolant ....................................... 277
Windshield Washer ................................. 281
Fog Light Indicator ..................................... 77
Foot Brake ................................................ 249
Front Airbags (SRS) ..................................... 42
Front Seats ................................................ 135
Adjusting ................................................ 135
Fuel ...................................................... 21, 254
Economy ................................................. 256
Gauge ....................................................... 86
Instant Fuel Economy ................................ 91
Low Fuel Indicator ..................................... 73
Range ....................................................... 91
Recommendation .................................... 254
Refueling................................................. 254
Fuel Economy ........................................... 256
Fuel Economy Indicator ....................... 11, 90
Fuel Fill Cap ........................................ 21, 255
Message.................................................. 338
Fuel Fill Door ...................................... 21, 255
