Acura ILX Hybrid 2015 Owner's Manual

340
uuIndicator, Coming On/Blinking uIf the IMA Indicator Comes On
Handling the Unexpected
If the IMA Indicator Comes On
■Reasons for Indicator to Come On
Comes on when there is a problem with the hybrid system.■What to Do When the Indicator Comes On
Avoid high speeds and immediately get your vehicle inspected by a
dealer.
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire is installed, the indicator blinks for about one
minute, and then stays on.■What to do when the indicator comes on
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
U.S. models
1 If the Low Tire Pressure/TPMS Indicator Comes On or BlinksNOTICEDriving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

341
Continued
Handling the Unexpected
FusesFuse LocationsIf any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.■
Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit Protected
Amps
1
EPS
70 A
Booster Motor
40 A
ABS/VSA Motor
30 A
ABS/VSA FSR
30 A
WIPER
30 A
Main Fuse
100 A
2
IG Main
50 A
Fuse Box Main 60 A
Fuse Box Main 2
60 A
Headlight Main 30 A
ST/MG SW
*1
30 A
Rear Defogger 30 A −−
Blower 40 A
−−
Sub Fan Motor 20 A
Main Fan Motor 20 A
3
−
−
4 IG Coil 2 15 A
5
Starter DIAG, ST MG
7.5 A
6 IG Coil 1 15 A
7
−
−
8− −
9
−
−
10 − −
*1:Models with halogen bulb low beam headlights
*2:Models with discharge headlights11
Oil Level
7.5 A
12 Fog Lights 20 A
13
IMA 1
7.5 A
14 Hazard 10 A
15
FI Sub
15 A
16 IG Coil 20 A
17
Stop
15 A
18 Horn 10 A
19
IMA 2
10 A
20 Right Headlight Low Beam
*1
Right Headlight Low Beam
(HID)
*2
10 A
15 A
21
IGP
15 A
22 DBW 15 A
23
Left Headlight Low Beam
*1
Left Headlight Low Beam (HID)
*2
10 A
15 A
24 Booster SOL 15 A
25
MG Clutch
7.5 A
26 WASHER 15 A
27
SMALL
20 A
28 Interior Lights 7.5 A
29
Backup
10 A
Circuit Protected
Amps

342
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.■Circuit protected and fuse rating■
Interior Fuse BoxFuse Label
Circuit Protected
Amps
1
−
−
2
ACG
15 A
3
SRS
10 A
4
Fuel Pump
15 A
5
Meter
7.5 A
6
Power Window
7.5 A
7
VB SOL
*
7.5 A
8
Door Lock Motor 2 (Unlock)
15 A
9
Door Lock Motor 1 (Unlock)
15 A
10
−
−
11 Moonroof 20 A
12
Driver’s Power Seat Sliding
*
(20 A)
13 Driver’s Power Seat Reclining*(20 A)
14
Seat Heaters
*
(15 A)
15 Driver’s Door Lock Motor
(Unlock) 10 A
16
−
−
17 − −
18
−
−
19 ACC 7.5 A
20
ACC Key Lock
7.5 A
21 Daytime Running Lights 7.5 A
22
HAC
7.5 A
23 HYBRID A/C (7.5 A)
24
ABS/VSA
7.5 A
25 ACC (7.5 A)
26
−
−
27 Accessory Power Socket 20 A
28
−
−
29 ODS 7.5 A
30
Driver’s Door Lock Motor (Lock)
10 A
31 SMART 10 A
32
Door Lock Motor 2 (Lock)
15 A
33 Door Lock Motor 1 (Lock) 15 A
34
Small Lights
7.5 A
Circuit Protected
Amps
35 Illumination 7.5 A36
−
−
37 Premium Audio
*
(20 A)
38
Left Headlight High Beam
10 A
39 Right Headlight High Beam 10 A
40
TPMS
*
(7.5 A)
41 Door Lock 20 A
42
Driver’s Power Window
20 A
43 Rear Passenger’s Side Power
Window 20 A
44
Front Passenger’s Side Power
Window
20 A
45 Rear Driver’s Side Power
Window 20 A
46
−
−
Circuit Protected
Amps
* Not available on all models

343
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn the headlights and all
accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
1Inspecting and Changing FusesNOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 341 to 342.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown FuseFuse Puller

344Handling the Unexpected

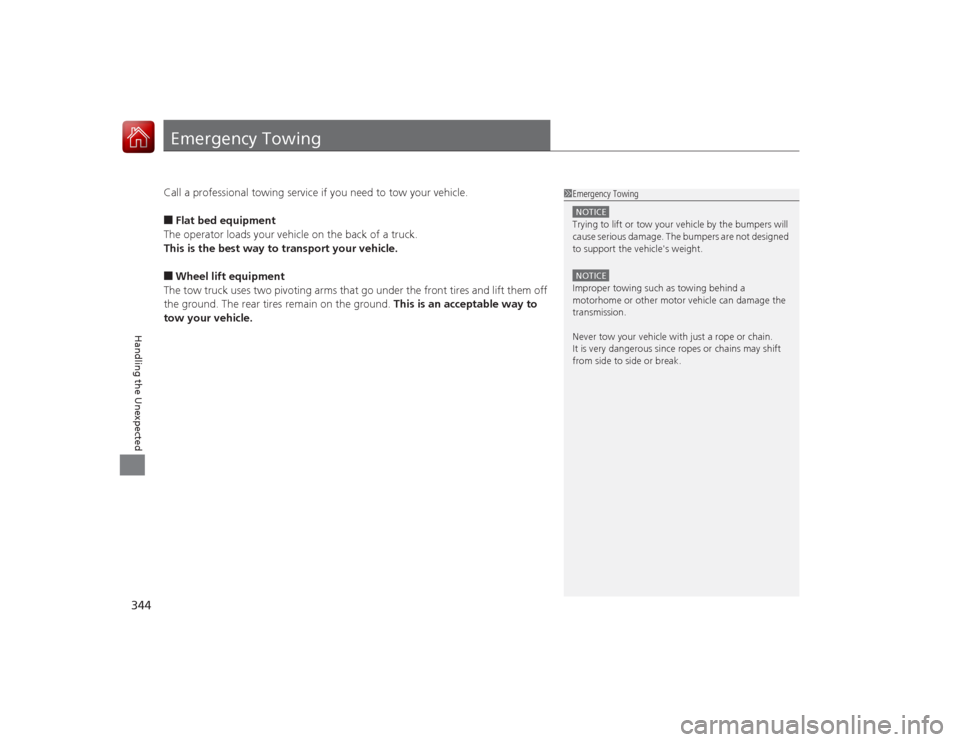

Emergency TowingCall a professional towing service if you need to tow your vehicle.■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.■Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency TowingNOTICETrying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.NOTICEImproper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

345

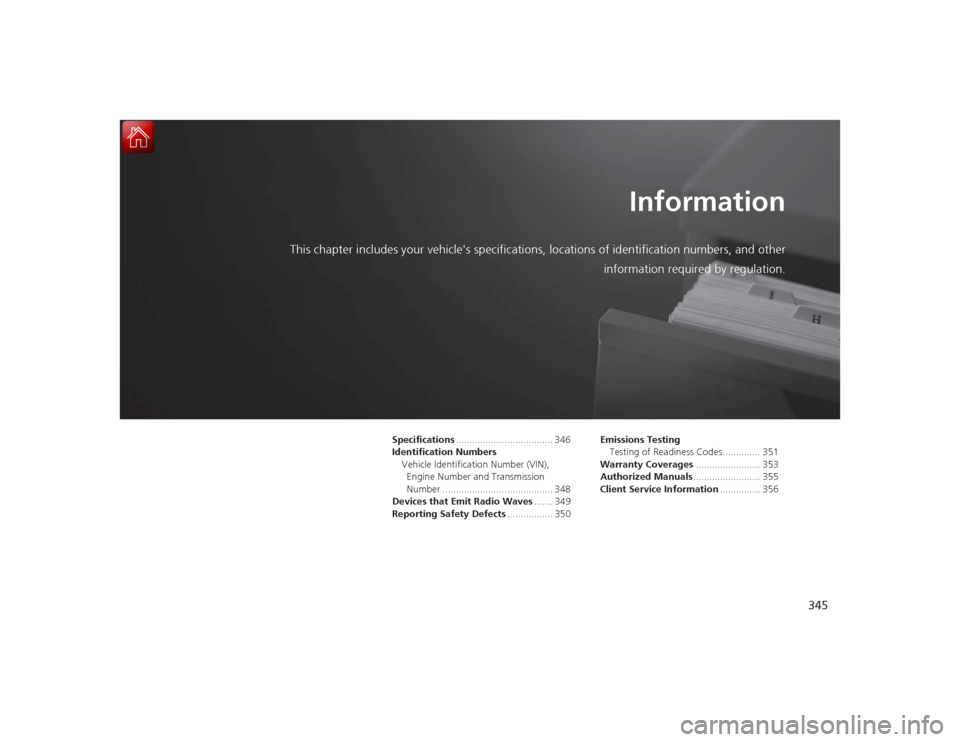

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 346
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 348
Devices that Emit Radio Waves ....... 349
Reporting Safety Defects ................. 350Emissions Testing
Testing of Readiness Codes.............. 351
Warranty Coverages ........................ 353
Authorized Manuals ......................... 355
Client Service Information ............... 356

346Information

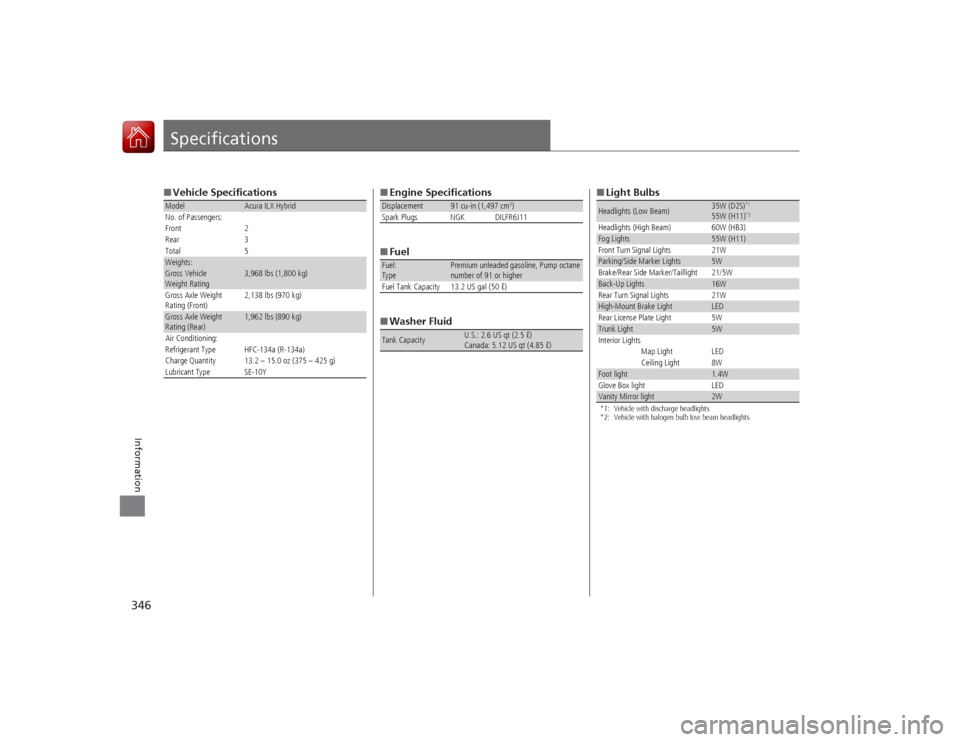

Specifications■Vehicle SpecificationsModel
Acura ILX Hybrid
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
3,968 lbs (1,800 kg)
Gross Axle Weight
Rating (Front)
2,138 lbs (970 kg)
Gross Axle Weight
Rating (Rear)
1,962 lbs (890 kg)
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SE-10Y
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
91 cu-in (1,497 cm
3)
Spark Plugs NGK DILFR6J11
Fuel:
Type
Premium unleaded gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light Bulbs*1: Vehicle with discharge headlights
*2: Vehicle with halogen bulb low beam headlightsHeadlights (Low Beam)
35W (D2S)
*1
55W (H11)
*2
Headlights (High Beam) 60W (HB3)Fog Lights
55W (H11)
Front Turn Signal Lights 21W
Parking/Side Marker Lights
5W
Brake/Rear Side Marker/Taillight 21/5W
Back-Up Lights
16W
Rear Turn Signal Lights 21W
High-Mount Brake Light
LED
Rear License Plate Light 5W
Trunk Light
5W
Interior Lights Map Light LED
Ceiling Light 8W
Foot light
1.4W
Glove Box light LED
Vanity Mirror light
2W

347

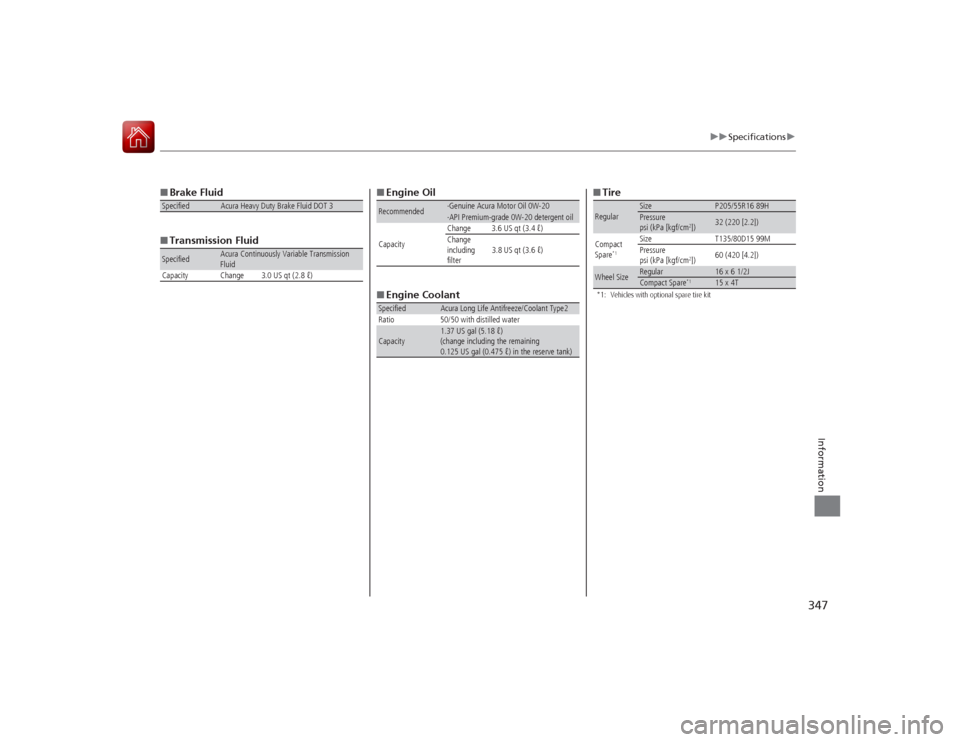

uuSpecifications u
Information
■Brake Fluid
■ Transmission FluidSpecified
Acura Heavy Duty Brake Fluid DOT 3
Specified
Acura Continuously Variable Transmission
Fluid
Capacity Change 3.0 US qt (2.8 ℓ)
■ Engine Oil
■ Engine CoolantRecommended
·Genuine Acura Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
Capacity Change 3.6 US qt (3.4 ℓ)
Change
including
filter
3.8 US qt (3.6 ℓ)
Specified
Acura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.37 US gal (5.18 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire*1: Vehicles with optional spare tire kitRegular
Size
P205/55R16 89H
Pressure
psi (kPa [kgf/cm
2])
32 (220 [2.2])
Compact
Spare
*1
Size T135/80D15 99M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel Size
Regular
16 x 6 1/2J
Compact Spare
*1
15 x 4T

348Information

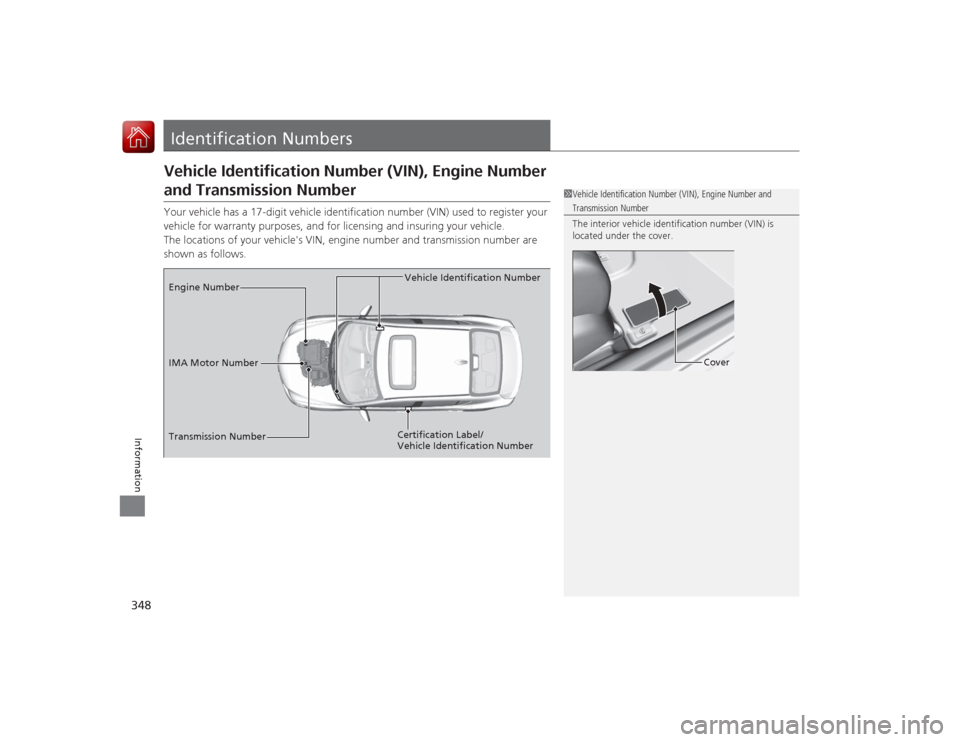

Identification NumbersVehicle Identification Number (VIN), Engine Number and Transmission NumberYour vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle's VIN, engine number and transmission number are
shown as follows.
1Vehicle Identification Number (VIN), Engine Number and Transmission Number
The interior vehicle iden tification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Transmission Number IMA Motor Number

349Information
Devices that Emit Radio WavesThe following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.U.S. AcuraLinkAudio SystemBluetooth ® AudioBluetooth® HandsFreeLink ®HomeLink® Universal TransceiverImmobilizer SystemKeyless Access SystemTire Pressure Monitoring System (TPMS)U.S. models only
