ACURA INTEGRA 1998 Service Repair Manual

6.
7.

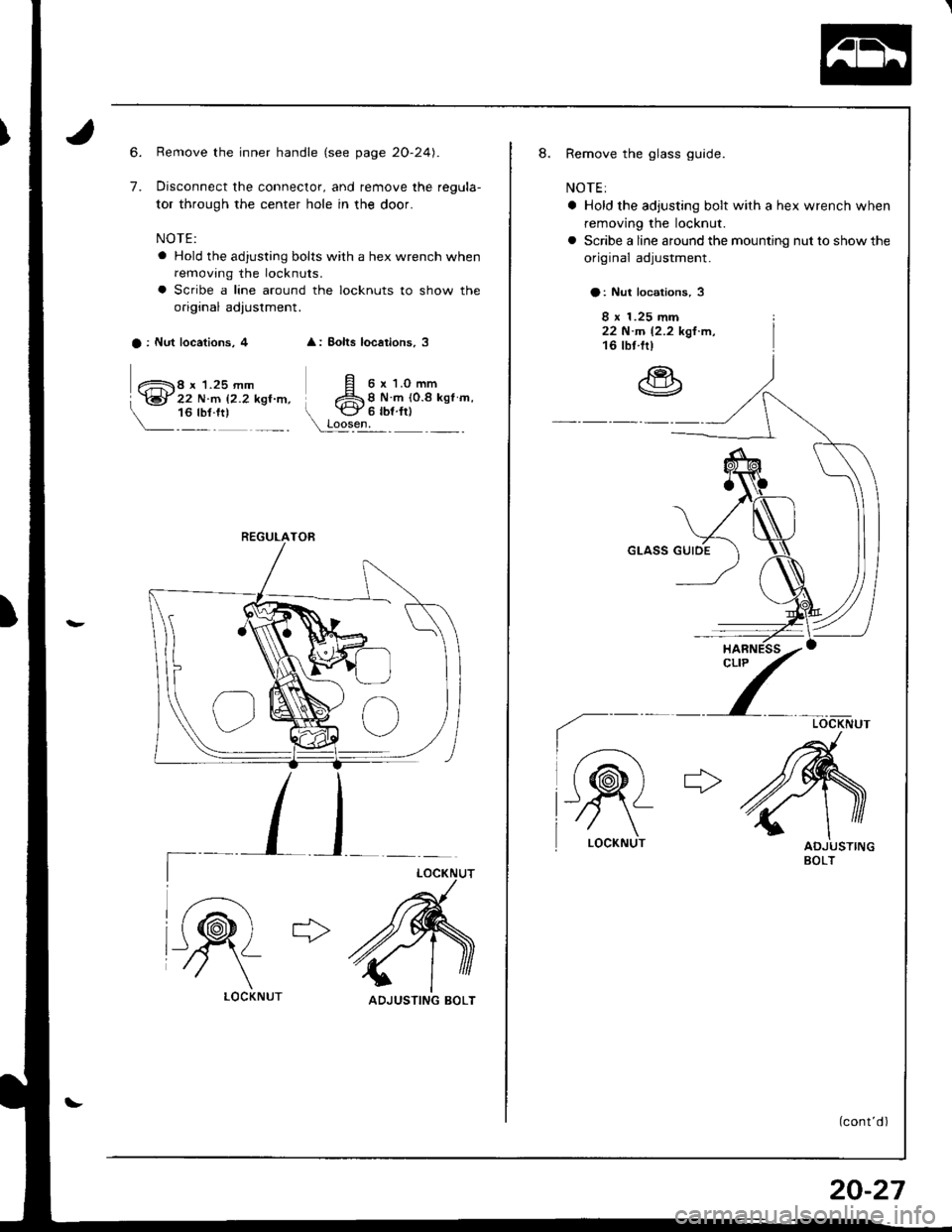

Remove the inner handle (see page 20-24).
Disconnect the connector, and remove the regula-
tor through the center hole in the door.
NOTE:
a Hold the adjusting bolts with a hex wrench when
removing the Iocknuts.
a Scribe a line around the locknuts to show the
original adjustment.
a : Nut locations, 4A: Eolts locations. 3
_i@I
LOCKNUT
REGULATOB
ADJUSTING BOLT
Remove the glass guide.
NOTE:
a Hold the adjusting bolt with a hex wrench when
removing the locknut.
a Scribe a line around the mounting nut to show the
original adjustment.
a: Nut locations, 3
I x 1.25 mm22 N.m (2.2 kgf.m,16 tbt frl
LOCKNUT
ffiADJUSTINGBOLT
a;
ir,frr
(cont'd)
20-27

Replacement (cont'dl

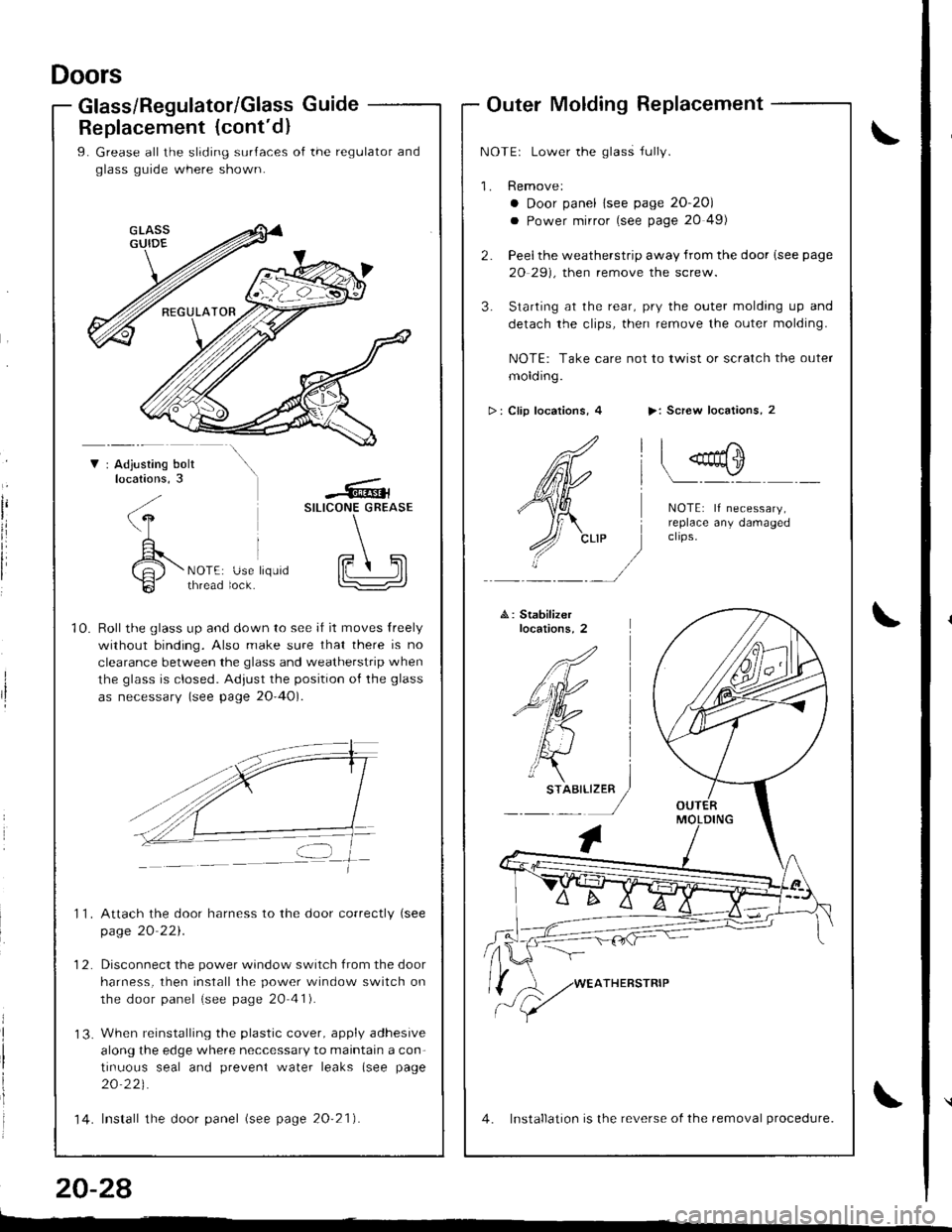

L Grease all the sliding surJaces of the regulatof and
glass guide where shown.
V : Adjusting boltlocations.3
4\
A
or.,-6- thread
61SILICONE GREASE
tF ht\_:-Use liquidlock.
10.
't1.
12.
r 3.
Roll the glass up and down to see if it moves lreely
without binding. Also make sure that there is no
clearance between the glass and weatherstrip when
the glass is closed. Adjust the position ot the glass
as necessary (see page 20-40).
Attach the door harness to the door correctly (see
page 20 221.
Disconnect the power window switch from the door
harness, ihen inslall the power window switch on
the door panel (see page 20 41).
When reinstalling the plastic cover, apply adhesive
along the edge where neccessary to maintain a con-
tinuous seal and prevent water leaks (see page
20 22\.
'14. Install the door panel (see page 20'21).
Doors
Glass/RegulatoriGlass Guide
I
,l
20-28
L-
Outer Molding Replacement
\
\
NOTEr Lower the glass Jully.
1. Remove:
. Door panel lsee page 2O-2O)
. Power mirror (see page 20 49)
2.
3.
Peel the weatherstrip away from the door lsee page
20 29), then remove the screw.
Starting at the rear, pry the outer molding up and
detach the clips, then remove the outer molding.
NOTE: Take care not to twist or scratch the outer
mold ing.
>: Clip locations, 4>: Screw locations, 2
L@
NOTE: lf necessary,replace any damagedclrps,
4. Installation is the reverse of the removal procedure.

@
llr*ff1
| |
*-r::ff"::"d*'*:T:'""" I
)l -
|
--*-tj,fit'tt;l,i.xffi':il"
__]
!
_
ro_r,

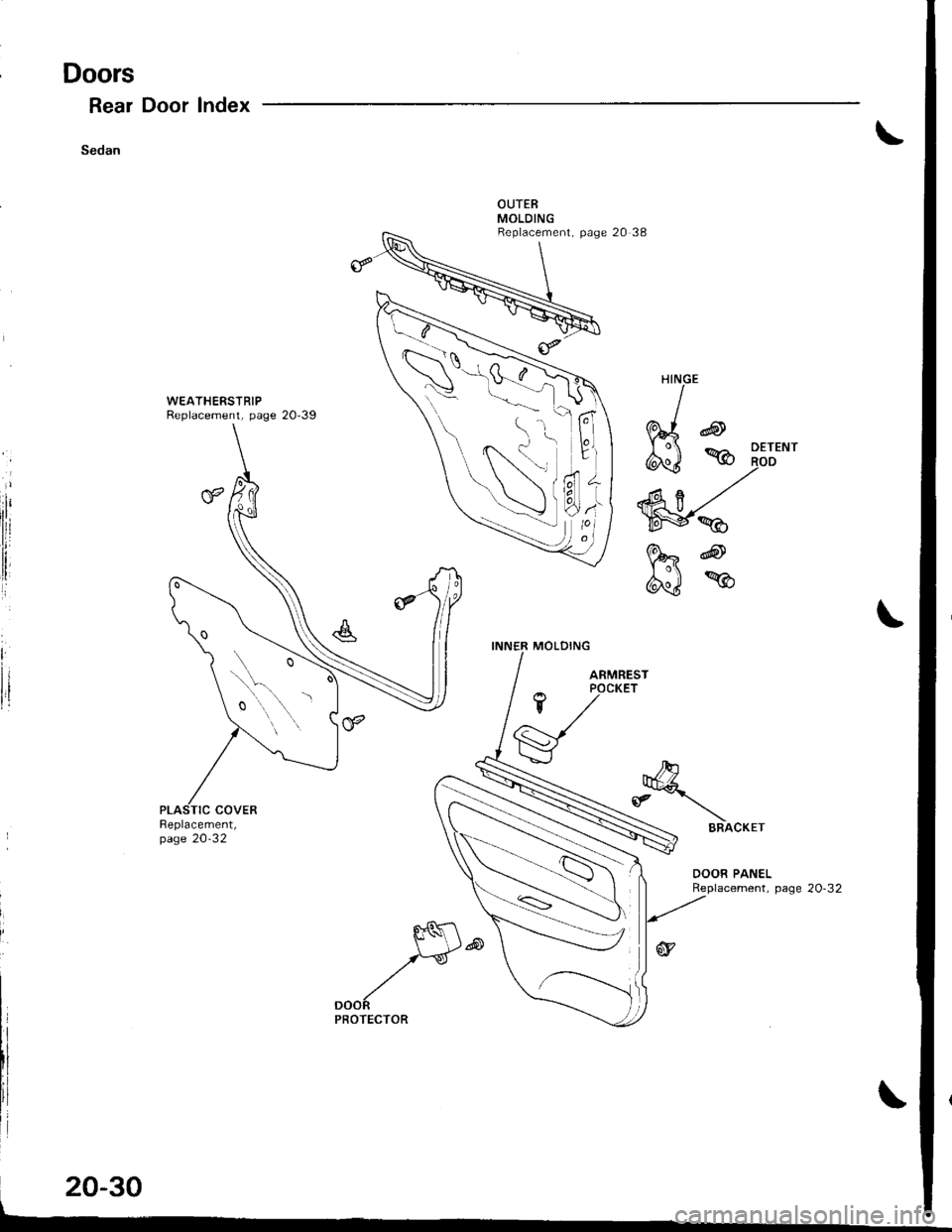

Doors
Rear Door Index
Sedan
HINGE
*/-
6,il % TuJo^'
w<
k@
eil%
WEATHERSTRIPReplacement, page 20-39
Replacement,page 20-32
I
Replacement, page 20 38
)'--
20-30

INSIDESTABILIZER
REGULATORReplacement, page 20-35
@
CENTER GLASSGUIDEBeplacement,page 20'35
INNERHANO
h^1-\7
vLATCHPROTECTOR
Replacement,page 2o-35
\
Sr
20-31

Doors

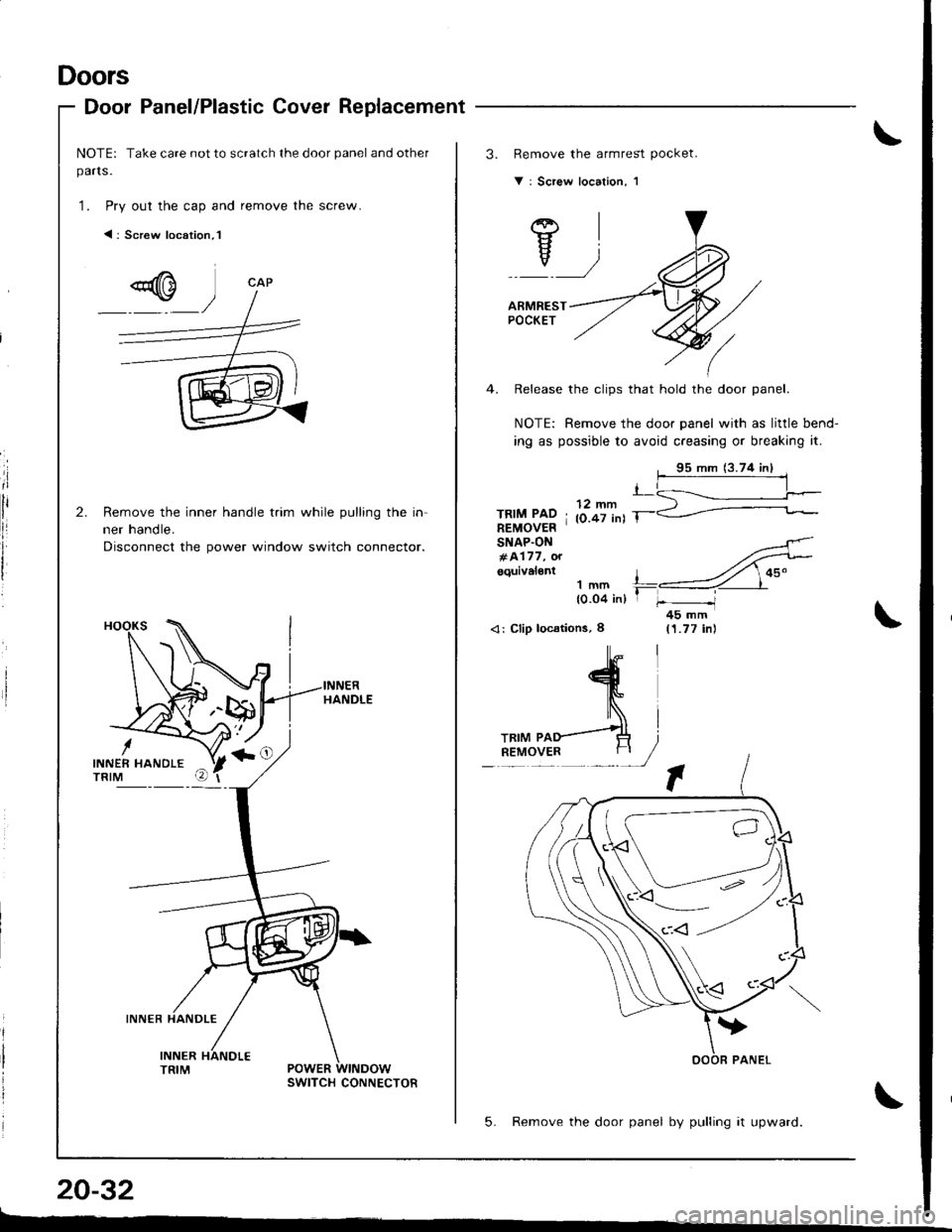

Door Panel/Plastic Cover Replacement
NOTE: Take care not to scratch the door panel and other
parts.
1. Pry out the cap and remove the screw.
< : Screw location, l
Remove the inner handle trim while pulling the in-
ner handle.
Disconnect the power window switch connector.
;
,l
ti
I
I
20-32
L
Remove the armrest Pocket.
V : Scrow location, 1
/qE |
vlv/
ARMRESTPOCKET
4. Release the clips that hold the door panel.
NOTE: Remove the doo. panel with as little bend-
ing as possible to avoid creasing or breaking it.
45 mm(1.77 in)
SNAP-ON _-r'-# A177. ol /4,-.\-oquivafont 1mm +------./// 45"
{0.04 in) I
<: Clip locations, 8
5. Remove the door panel by pulling rt upward.

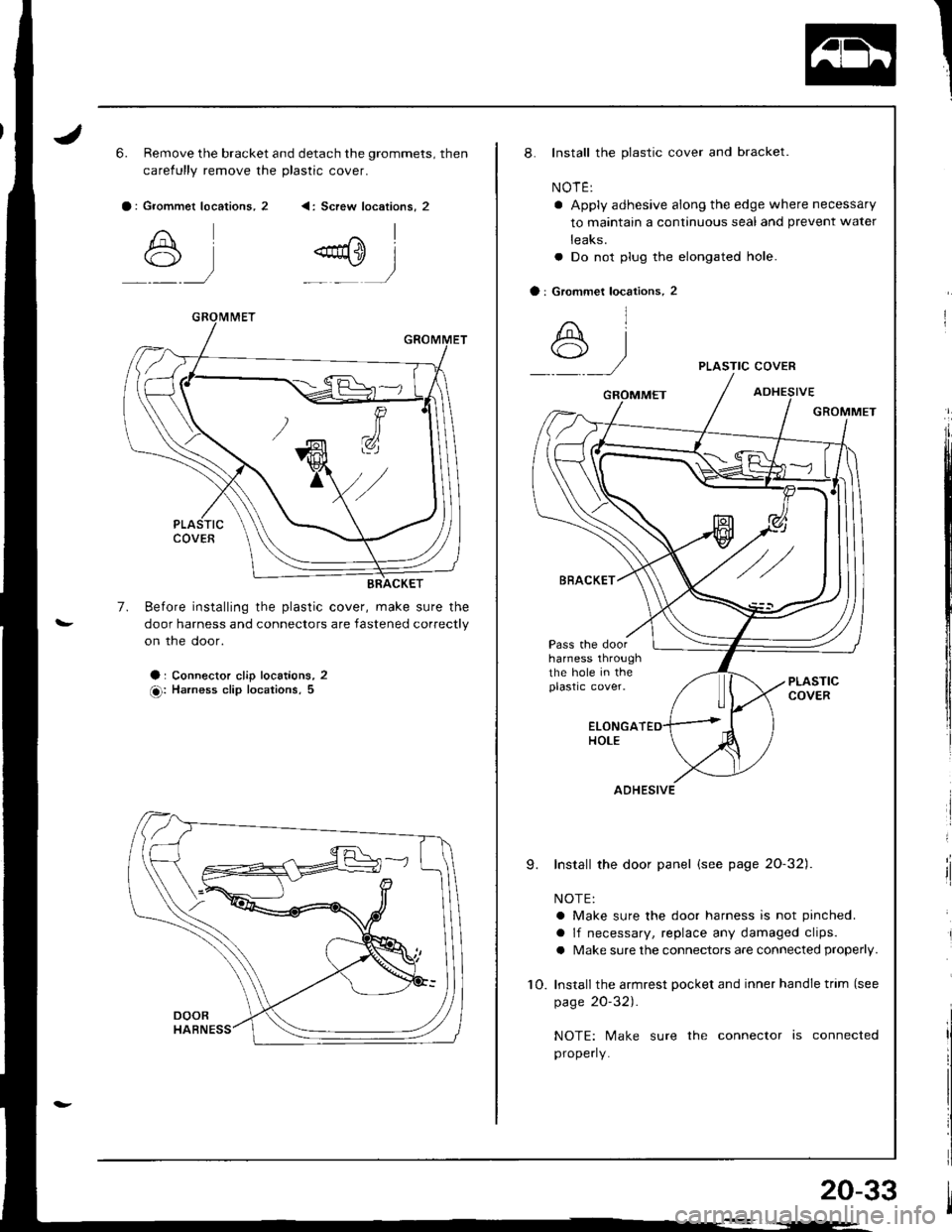

6. Remove the bracket and detach the grommets, then
carefully remove the plastic cover.
a : Grommet locations, 2 <: Screw locations, 2
A
::)
I
@+) i
:)
7. Before installing the plastic cover, make sure the
door harness and connectors are fastened correctly
on the door.
a: Connector clip locations, 2
O: Harness clip locations, 5
,[
,/
BRACKET
8. Install the plastic cover and bracket.
NOTE:
a Apply adhesive along the edge where necessary
to maintain a continuous seal and prevent water
leaks.
a Do not plug the elongated hole.
a : Grommet locations, 2
q)
GROMMET
BBACKET
Pass the doorharness throughthe hole in theplastc cover.
9.
'l o.
ELONGAHOLE
Install the door panel (see page 20-32).
NOTE:
a Make sure the door harness is not pinched.
a lf necessary, replace any damaged clips.
a Make sure the connectors are connected properly.
Install the armrest pocket and inner handle trim (see
page 20-32).
NOTE: Make sure the connector ts connected
properly.
I
PLASTIC COVER
ADHESIVE
7/
20-33

Doors

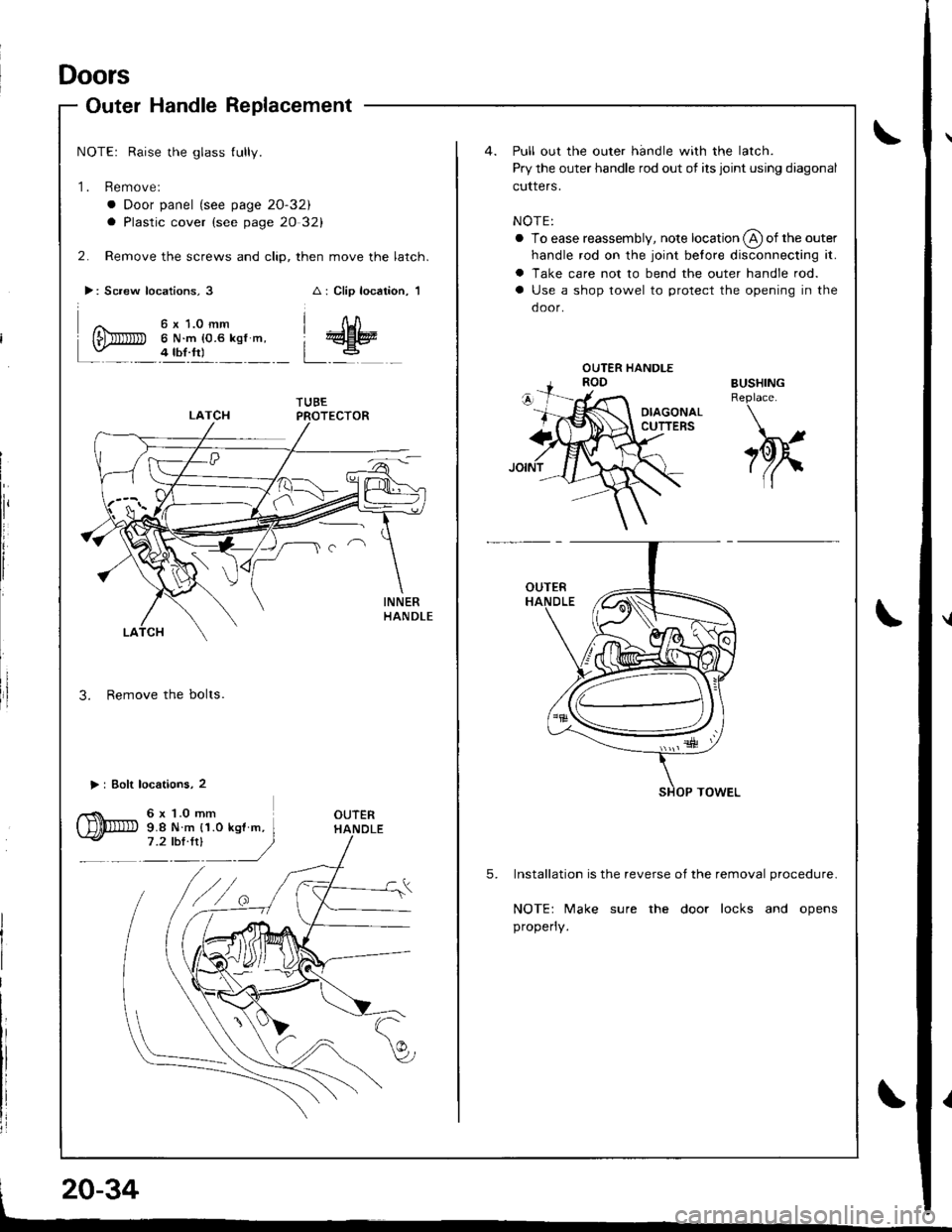

Outer Handle Replacement
NOTE: Raise the glass fully.
'1. Remove:
a Door panel (see page 20-32,
a Plastic cover (see page 20 32)
2. Remove the screws and clip, then move the latch.
^ 6x 1.0mm
[tJM o N.m {0.6 ksr m.
l Y llqr:llle
> : Screw locations, 3
3. Remove the bolts.
>: 8oh locations, 2
6 x 1.0 mm
A : Clip location, 'l
9.8 N.m {1.0 kgl m, I, ,,:otn , __)
TUBE
Pull out the outer hbndle with the latch.
Pry the outer handle rod out of its joint using diagonal
cuners.
NOTE:
a To ease reassembly, note location @ of the outer
handle rod on the joint belore disconnecting it.
a Take care not to bend the outer handle rod.
a Use a shop towel to protect the opening in the
door.
BUSHINGReplace.
h
5. Installation is the reverse of the removal procedure.
NOTE: Make sure the door locks and opens
properly.IaI
I
\
\
\
v
t

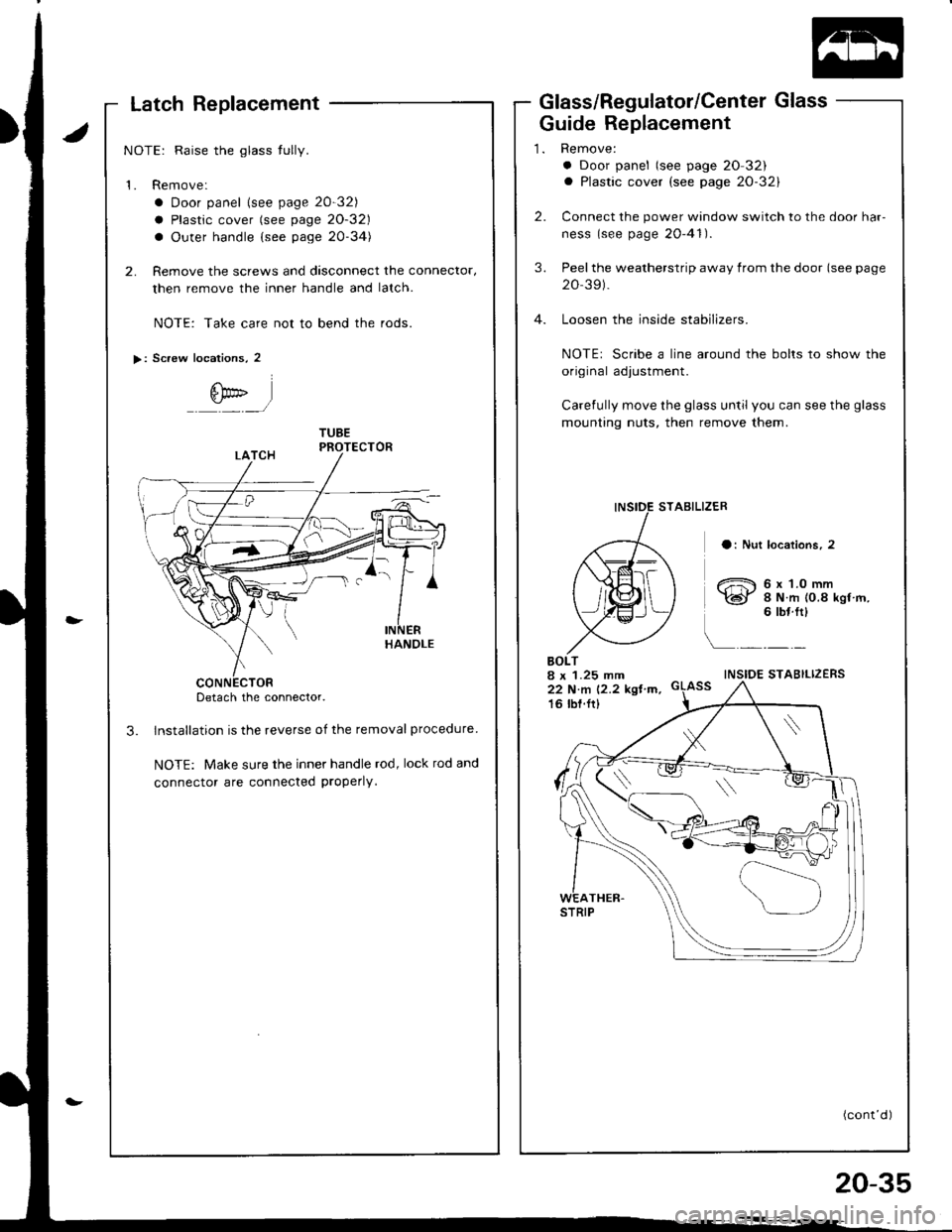

Latch Replacement
NOTE: Raise the glass tully.
1. Remove:
a Door panel lsee page 20-32)
a Plastic cover (see page 20-32)
a Outer handle {see page 20-34)
2. Remove the screws and dasconnect the connector,
then remove the inner handle and lalch.
NOTE: Take care not to bend the rods.
Detach the connector.
Installation is the reverse of the removal procedure
NOTE: Make sure the inner handle rod, lock rod and
connector are connected properly.
Scaew locations, 2
€tr' l-,/
Glass/Regulatol/Center Glass
Guide Replacement
BOLT8 x 1.25 mm22 N.n 12.2 kgl'm.16 lbt.ft)
a Door panel (see page 20 32)a Plastic cover (see page 20-32)
Connect the power window switch to the door har-
ness (see page 20-41).
Peel the weatherstrip away from the door (see page
Loosen the inside stabilizers.
NOTEr Scribe a line around the bolts to show the
original adjustment.
Carefully move the glass until you can see the glass
mounting nuts, then remove them.
STAEILIZER
a: Nut locations, 2
t,h6xl.omm)@[ a ru.m ro.8 ksr'm.
i
6 tbritl
\
INSIDE STABILIZERS
(cont'd )
20-35

Doors

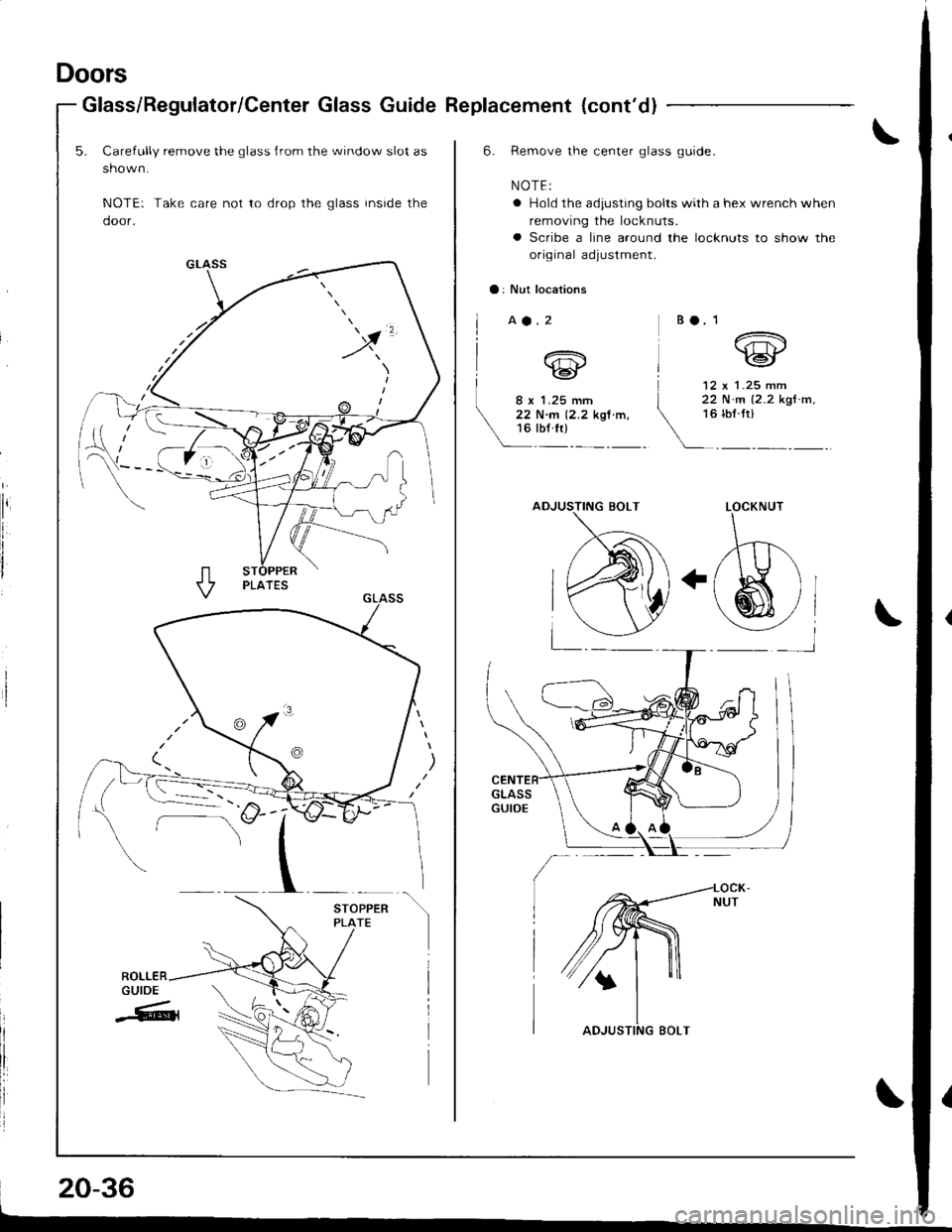

Glass/Regulator/Center Glass Guide Replacement (cont'dl
5. Carefully remove the glass Jrom the window slot as
shown.
NOTE: Take care not to drop the glass inside the
door.
x
ST
20-36
6. Remove the center glass guide.
NOTE:
a Hold the adiusting bolts with a hex wrench when
removing the locknuts.
o Scribe a line around the locknuts to show the
original adjustment.
a: Nut locations
aa.2B O, 1
12 x 1 .25 mm
v1'j-
LOCKNUT
,t^
(S)t
Y-l
[ ,"*.
22 N.m (2.2 ksf.m,
Vuloru,__
