15.
to,
After the clearances have been adjusted properly,
reinstall the weatherstrip.
Check that the glass contacts the weatherstrip
evenry.
NOTEr Measuring points are described on page
20-42.
Center Pillar section:
WEATHERSTRIP
17.Check for water leaks.
NOTE: Do not use high-pressure water.
18. Route the door harness and connectors, and lasten
them to the door (see pages 20'22,331.
'19. Disconnect the power window switch from the door
harness, then install the power window switch on
the door panel (see page 20-41).
20. Attach the plastic cover, then install the door panel
(see pages 2O'2o, 321.
20-47

Doors
Position Adjustment
NOTE: Place the vehicle on a firm, level surface whenadiusting the doors.
After installing rhe door, check {or a flush lir with the
body, then check for equalgaps between the front, rear,
and bottom door edges and the body.
The door and body edges should also be parallel. Adjustat the hinges as shown.
CAUTION: Place a shop towel on the jack to prevenl
damage to the doof when loosening the dool and hinge
mounting bolts for adiustmont.
DOOR MOUTING BOLTSI x 1.25 mm29 N.m (3.0 kgt.m,22 lbtft)Loosen the door mounting boltsslightly to move the door lN or OUTuntil it's flush with the body. lfnecessary, you can install a shim be-hind one hinge to make the dooredges PARALLEL with the bodV.
HINGEHINGE MOUNTING BOLTS8 x 1.25 mm29 N.m (3.0 kgf m, 22 lbt.lt)Loosen the hinge mountingbolts, and move the doorBACKWARD or FORWARD,UP or DOWN as necessaryto equalrze tne gaps,
Lower the g lass.
SHOP TOWEL
Check for water leaks.
.iDOOR
N,4ake sure the door latihes securely without slamming.
lf it needs adjustment:
1. Draw a line around the striker lor reference.
2. Loosen the screws, and move the striker lN or OUT
to make the latch fit tighter or looser. Move the strik-
er UP or DOWN to align it with the latch opening.
Then lightly tighten the screws and recheck.
scBEws8 x '1.25 mm18 N.m {1.8 kgf.m. 13 lbf.tt}
NOTE: Hold the outer handle out, and push the door
against the body to be sure the striker allows a flush
fit.
ll the door latches properly, tighten the screws andrecheck.
3.
20-48
The door and body edges should be parallel.
-"

Mirrors
2.
Power Mirror Replacement
Hatchback
1. Pry out the cover panel with a Ilat tip screwdriver,
then remove it.
CAUTION: When piying with a tlat tip screwdriver,
wrap it with protgctive tape to prevent damage.
Disconnect the connector. Remove the nuts, then
remove the mirror while holding it.
< : Nut locations, 3
(Mirror side)
MIRROR
ocoNNECTOR(Ooor harnessside)
CONNECTOR
3. Installation is the reverse of the removal procedure.
HOOKS
5xo.8mm I
*l.
Sedan
1. Remove the door panel (see page 20-201, and dis-
connect the connector.
2. Pry out the cover panel with a flat tip screwdriver,
then remove rt.
CAUTION: When prying with a tlat tip screwdriver.
wrap it with protective tape to prevent damage.
COVEBPANEL
3. Remove the screws while holding the mirror.
< : Screw locations
A<: Screw, 2
qu
5xO.8mm
5 N.m {O.5 kgf.m, \..'llYJ1l
5x0.8mm5 N.m 10.5 kgl m,...4 tbt.tt)
CONNECTOR
4. Installation is the reverse ot the removal procedure.
B<: Screw, 1
20-49

Mirrors
Mirror Holder Removal
20-50
Mirror Holder Installation
CAUTION: To prevent damage to the mirror, wrap the
end of a flat tip screwdriver with a shop towel.
1, Remove the pivot, then remove the snap ring as
shown.
Remove the joint pin, then remove the mirror holder
as snown.
_.'ta,i
{i'}
l, Install the snap ring.
SNAP RING
Install the pivot.
NOTE: Apply grease to the locations indicated by
the arrows.
JOINT PIN
-6lrPIVOT
-6t1
JOINT PIN
-6tl
3, lnstall the joint pin.

Mirror Visor and Mirror Cover Replacement
Hatchback
1. Remove the mirror holder.
2. Turn the actuator forward, then remove the screws
< : Screw locations, 4
3. Detach the hooks, then remove the mirror visor.
MIRROR VISOR HOOK
4. Turn the actuator to the original position.
Remove the screws, then remove the mirror cover.
<: Screw locations, 3
MIRROR COVER
ACTUATOR
5. Installation is the reverse of the removal procedure.
20-51
Sedan
1. Remove the mirror holder.
2. Turn the mirror base forward, then
screws.
remove the
< : Screw locations
A<: Screw,4B<: Screw, 1
MIRROR BASE
3. Detach the hook, then remove the mirror visor.

Replacement (cont'd)
4. Remove the actuator, then remove the screws.
<: Screw locations
A<: Screw, 3 B<: Screw, 2C { : Screw, 1
.aqm I- r'/
'.0=-l .g}_,,]
5.Turn the mirror base as shown, then remove Ine mtr
ror cover
MIRROR AASE
6. Installation is the reverse oI the removal procedure.
ACTUATOR
MIRROR COVEB
Mirrors
Mirror Visor and Mirror CoverRearview Mirror Replacement
:
rl
rl
I
20-52
L
1. Pry the cover off using the end of a flat tip screw-
drive r.
CAUTION: To prevent damage to the mirror and
cover, wrap the end ol the screwdriver with a shop
towel.
2. Remove the screws, then remove the rearview
mirror.
REARVIEWMIRROR
3. lnstallation is the reverse of the removal orocedure.
SHOP TOWEL

Windshield, Rear Window, Ouarter Glass
lndex
part names show the quantities of the parts Lrsed.
UPPER MOLDINGUPPER RUBBER DAM
CLIP E, 2 White
CLIP F, 2 Lett. WhiteBight. Blue
CLIP A, 8 Red
c
f(
RETAINER, 6 Orange
CLIP B, 2 Orange
CLIP C, 2 Black
LEFT SIDE MOLDING
CLIP D, 2 Green
AINER, 2 Yellow
WINOSHIELDRemoval, page 20,55Installation, page 20 56
REAR
GLASS BRACKET, 2
,^
,r"
A
RET
a
REAR WINDOW MOLDING
UPPER FASTENER, 2(Self-adhesive-type, glass side)
UPPER FASTENER,2(Self adhesive_type, hatch side)
SIDE RUBBERDAM, 2
OUARTER GLASSRemoval, Page 20-73
SPACER,2 Installation, Page 20-73
TAPE B, 2ADHESIVE
/
Ar-/
I
BUSHING SEAL.2
Removal, page 20-61Installation, page 20-62
NOTE: The numbers after the
Hatchback
RIGHT SIDE MOLDING
'l
@q
a
e,

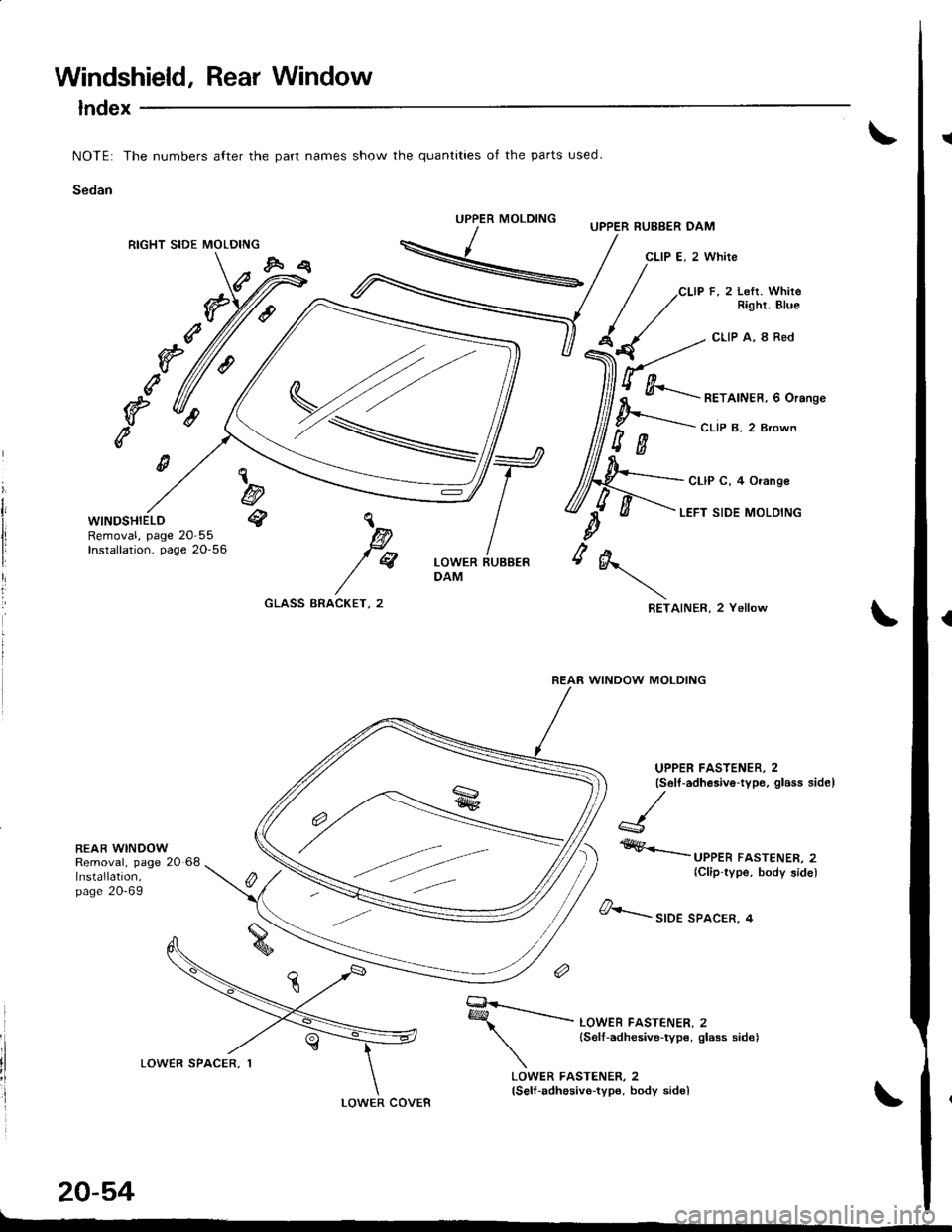

Windshield, Rear Window
lndex
NOTE: The numbers alter the part names show the quantities of the parts used.
Sedan
UPPER MOLDING
RIGHT SIDE MOLDING
g
e
e
WINDSHIELDRemoval, page 20-55Installation, page 20-56
bq
BEAR WINDOWRemoval, page 20 68Installation,page 20-69
UPPER RUBBER DAM
CLIP E, 2 White
cLlP F, 2 Lefr. WhireRight. Elue
CLIP A, 8 Red
\
B)
fqLOWER RUBBERDAM
A
\
RET
g
REAR WINDOW MOLDING
GLASS BRACKET, 2AINER, 2 Yellow
UPPER FASTENER, 2(Self -adhesivo-type, glass side)
#,Krrr*
FA.TENER, 2(Clip-type, body side)
LOWER COVER
20-54
&....-r,o, sPAcER, 4
q*-------..- LowEB FA'TENER, 2

{Self-adhesive-typ€,slasssid€)
LOWER FASTENER, 2(Self-adhosive-type, body sidel

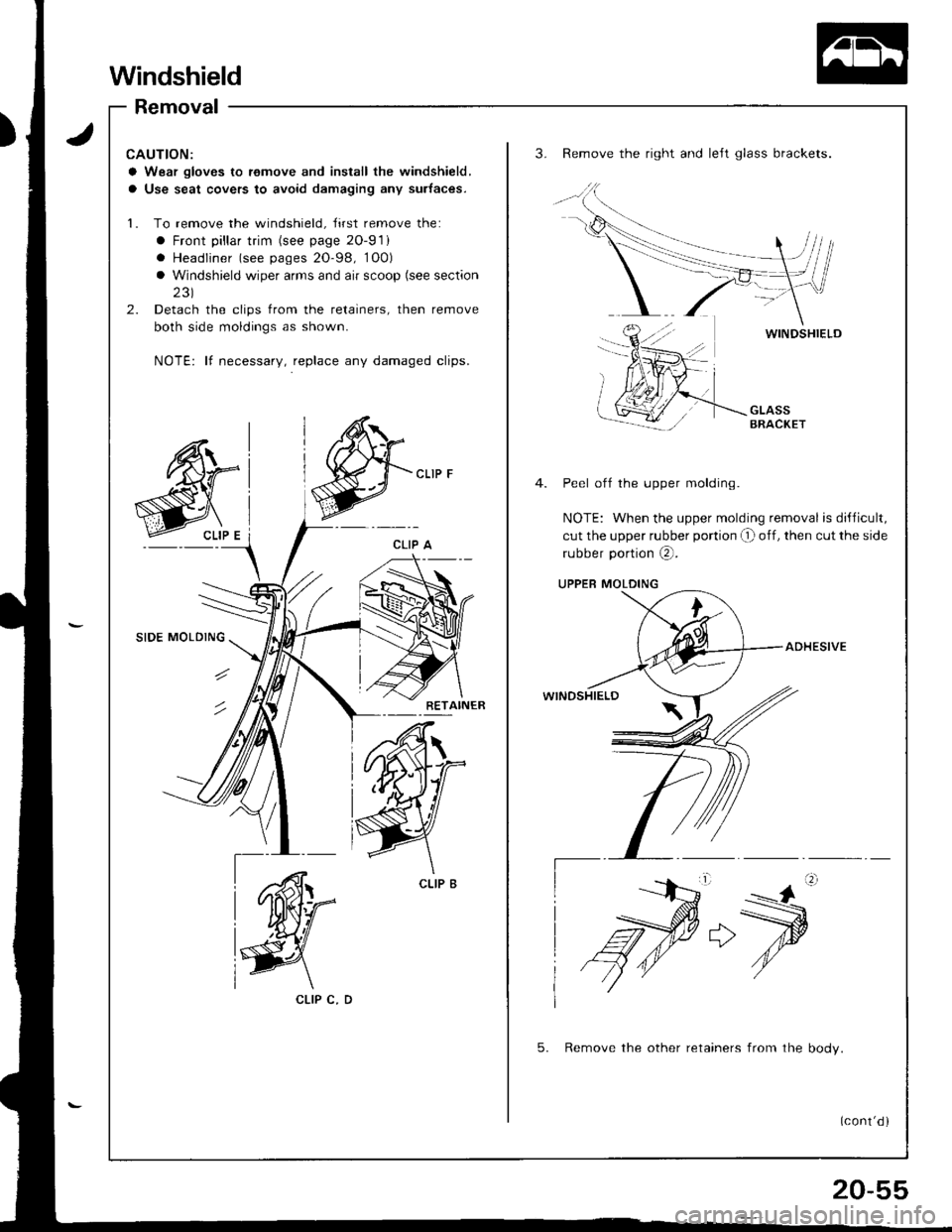

Windshield
Removal
CAUTION:
a Wear gloves to remove and inslall the windshield,
a Use seat covers to avoid damaging any surtaces.
1. To remove the windshield, Jirst remove the:
a Front pillar trim (see page 2O-91)
. Headliner (see pages 20-98, 1O0)
a Windshield wiper arms and air scoop (see section
231
2. Detach the clips from the retainers, then remove
both side moldings as shown.
NOTE: lf necessary, replace any damaged clips.
3. Remove the right and left glass brackets.
WINOSHIELD
Peel off the upper molding.
NOTE: When the upper molding removal is dillicult,
cut the upper rubber portion O off, then cut the side
rubber portion @.
UPPER MOLDING
ADHESIVE
WINDSHIELD
5. Remove the other retainers from the bodv.
CLIP C, D
(cont'd )

Windshield
Removal (cont'd)
Apply protective tape to along the edge ol the dash
board and body as shown.
Using an awl, make a hole through the rubber dam
and adhesive from inside the car' Push the piano wire
through the hole, and wrap each end around a piece
of wood.
PROTECTIVE TAPE
WINDSHIELD
ADHESIVE
WINDSHIELD
PIANO WIRE
ADHESIVE
With a helper on the outside, pull the piano wire back
and forth in a sawing motion, and carelully cut
through the rubber dam and adhesive around the en
tire windshield.
CAUTION: Hold the oiano wire as close to the wind-
shield as possible to plevenl damage to the body and
dashboard.
8. Caretully remove the windshield
lnstallation
Scrape the old adhesive smooth with a knife to a
thickness of about 2 mm (O.08 in) on the bonding
surface around the entire windshield opening flange.
a Do not scrape down to the painted surtace oJ the
body; damaged paint will interfere with proper
bondang.
a Remove the rubber dam from the body.
a Mask off surrounding surfaces before painting.
Clean the body bonding sur,face with a sponge damp-
ened in alcohol.
NOTE: After cleaning, keep oil, grease and water
from getting on the surface.
lf the old windshield is to be reinstalled, use a putty
knile to scrape off all traces oI old adhesive, then
clean the windshield surface with alcohol where new
adhesive is to be applied.
NOTEr N4ake sure the bonding surface is kept free
of water, oil and grease.
CAUTION: Avoid setting the windshield on its
edges; small chips may later develop into cracks.
a Clean the shadowed area.
a Clean area @ as shown.
lnside
+
;
l!
i
1i
il
tl
WINDSHIELD
DAM
WINDSHIELD
,-----'---____/^_-___-/-------\
20-56
\- ,,
