ACURA INTEGRA 2023 Owners Manual

129
uuGauges and Displays uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Meter setup
Language selectionChanges the displayed language.English*1/Français /
Español
Adjust outside temp.
displayAdjusts the temperature r eading by a few degrees.
-5°F ~ ±0°F*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” reset timingChanges the setting of how to reset trip meter A,
average fuel economy A, av erage speed A, and elapsed
time A.When fully refueled/
IGN OFF /Manually reset*1
“Trip B” reset timing
Changes the setting of ho w to reset trip meter B,
average fuel economy B, av erage speed B, and elapsed
time B.When fully refueled/
IGN OFF /Manually reset*1
Adjust alarm volumeChanges the alarm volume, su ch as buzzers, warnings,
turn signal sound, and so on.High /Mid*1/Low
Rear seat reminderTurns the Rear Seat Reminder feature on and off.ON*1/ OFF
Speed/distance unitsSelects the speed/distance units.
km/h∙km /mph∙miles*1
(U.S.)
km/h∙km
*1/ mph∙miles
(Canada)
23 ACURA INTEGRA-313S56000_03.book 129 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

130
uuGauges and Displays uDriver Information Interface (Right Side Area)
Instrument Panel
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Keyless access
setup
Door unlock modeChanges which doors unlock when you grab the driver’s
door handle.Driver door only*1/All
doors
Keyless access light
flashCauses some exterior lights to flash when you unlock/
lock the doors.ON*1/ OFF
Keyless access beepCauses the beeper to soun d when you unlock/lock the
doors.ON*1/ OFF
Remote start system
ON/OFF*Turns the remote engine start feature on and off.ON*1/OFF
Lighting setup
Auto high-beamTurns the auto high-beam on and off.ON*1/OFF
Interior light dimming
timeChanges the length of time the interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight auto off
timerChanges the length of time the exterior lights stay on
after you close the driver’s door.60sec /30sec /15sec*1/0sec
Auto light sensitivity*Changes the timing for the headlights to come on.Max/High/ Mid*1/Low /Min
Auto headlight ON
with wiper ONChanges the settings for th e wiper operation when the
headlights automatically come on while the headlight
switch is in the AUTO position.
ON*1/OFF
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 130 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

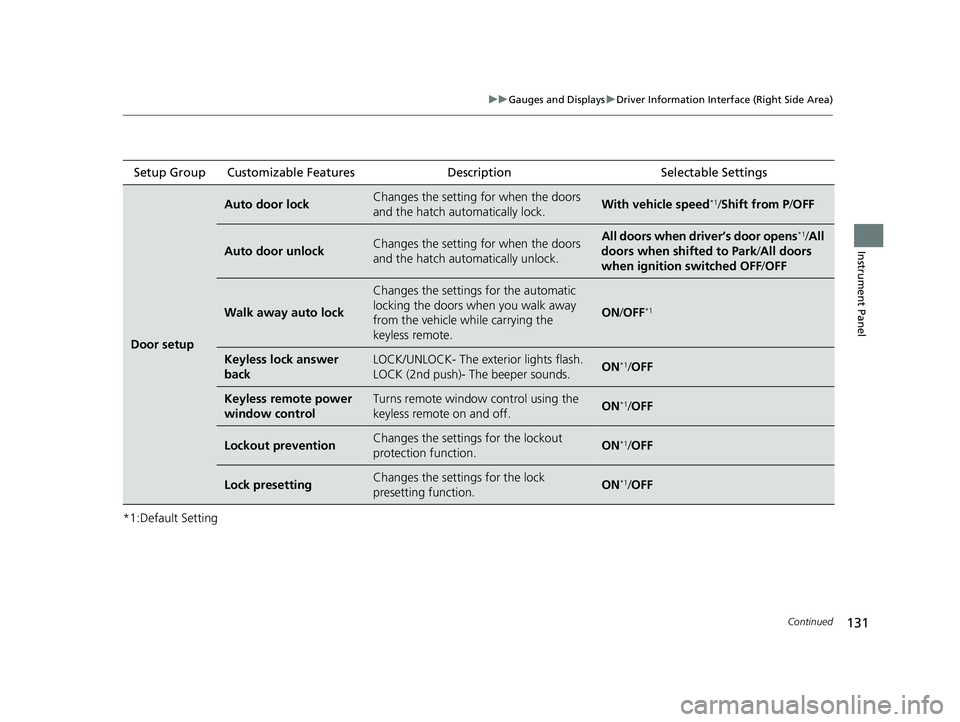

131
uuGauges and Displays uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Door setup
Auto door lockChanges the setting for when the doors
and the hatch automatically lock.With vehicle speed*1/Shift from P/ OFF
Auto door unlockChanges the setting for when the doors
and the hatch automatically unlock.All doors when driver’s door opens*1/All
doors when shifted to Park /All doors
when ignition switched OFF /OFF
Walk away auto lock
Changes the settings for the automatic
locking the doors when you walk away
from the vehicle while carrying the
keyless remote.
ON /OFF*1
Keyless lock answer
backLOCK/UNLOCK- The exte rior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/ OFF
Keyless remote power
window controlTurns remote window control using the
keyless remote on and off.ON*1/ OFF
Lockout preventionChanges the settings for the lockout
protection function.ON*1/OFF
Lock presettingChanges the settings for the lock
presetting function.ON*1/OFF
23 ACURA INTEGRA-313S56000_03.book 131 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

132
uuGauges and Displays uDriver Information Interface (Right Side Area)
Instrument Panel
*1:Default SettingSetup Group Customizabl
e FeaturesDescription Selectable Settings
Maintenance
reset—
Resets the Maintenance MinderTM display
when you have performed the
maintenance service.
(Selects Reset Items)
Default all—
Cancels customized changes you have
made or restores them to their default
setting.
Cancel /Set
23 ACURA INTEGRA-313S56000_03.book 132 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

133
uuGauges and Displays uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
■Example of customization settings
The steps for changing the “Trip A” reset timing setting to When fully refueled
are shown below. The default setting for “Trip A” reset timing is Manually reset .
1. Roll the right selector wheel to select
Vehicle settings , then press the right
selector wheel.
2. Roll the right selector wheel until Meter
setup appears on the display.
3. Press the right selector wheel.
23 ACURA INTEGRA-313S56000_03.book 133 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

134
uuGauges and Displays uDriver Information Interface (Right Side Area)
Instrument Panel
4. Roll the right selector wheel until “Trip A”
reset timing appears on the display, then
press the right selector wheel.
u The display switches to the
customization setup screen, where you
can select When fully refueled , IGN
OFF , Manually reset , or Back.
5. Roll the right selector wheel and select
When fully refueled , then press the right
selector wheel.
u The Selected appears, then the display
returns to the customization menu
screen.
6. Press the right selector wheel after Back
appears on the display.
7. Repeat Step 6 until you return to the
normal screen.
23 ACURA INTEGRA-313S56000_03.book 134 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

135
uuGauges and Displays uHead-Up Display*
Continued
Instrument Panel
Head-Up Display*
Shows the current mode for ACC with Low Speed Follow*, LKAS, and Traffic Jam
Assist*, traffic sign recognition system, or tu rn-by-turn directions along with the
vehicle speed. You can choose which item to be displayed using the driver
information interface. They are displayed when the power mode is in ON.
The display also shows the following
warnings.
•Lane Departure Warning: When your
vehicle is too close to the traffic lane lines,
the lane departure warning appears.
2 Lane Keeping Assist System (LKAS)
P. 545
• Head-up Warning Lights:
Flash when the BRAKE message appears
on the driver information interface.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 481
2 Low Speed Braking Control
P. 493, 499
2 Adaptive Cruise Control (ACC) with
Low Speed Follow
* P. 504
2 Adaptive Cruise Control (ACC)* P. 525
Lane Departure Warning
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 135 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

uuGauges and Displays uHead-Up Display*
136
Instrument Panel
Shows the display for changing the head-up display settings on the driver
information interface.
Roll the right selector wheel to scroll to select Head-Up Display settings, then
press the right selector wheel.
2 Switching the Display P. 112
■Head-Up Display Settings1Head-Up Display Settings
HUD content
2 To change head-up display content P. 137
HUD brightness 2 Adjusting the head-up display brightness
P. 138
HUD height 2 Adjusting the head-up display height
P. 138
23 ACURA INTEGRA-313S56000_03.book 136 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

137
uuGauges and Displays uHead-Up Display*
Continued
Instrument Panel
■To change head-up display content
1. Roll the right selector wheel to scroll to select HUD content, then press the right
selector wheel.
2. Roll the right selector wheel to scroll to select desired item, then press the right
selector wheel. • Speedometer
2 Speedometer P. 139
•Navigation
2 Navigation P. 139
•Driver assist
2 Current Mode for ACC with Low Speed Follow*, LKAS, and Traffic Jam
Assist* P. 139
• OFF
Head-Up Display
Speedometer
Driver assist Navigation
OFF
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 137 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

uuGauges and Displays uHead-Up Display*
138
Instrument Panel
■Adjusting the head-up display brightness
Roll the right selector wheel to scroll to select HUD brightness, then press the right
selector wheel.
Brighten: Roll the right selector wheel up.
Dim : Roll the right selector wheel down.
Press the right selector wheel to exit.
■Adjusting the head-up display height
Roll the right selector wheel to scroll to select HUD height, then press the right
selector wheel.
Raise the head-up display : Roll the right selector wheel up.
Lower the head-up display : Roll the right selector wheel down.
Press the right selector wheel to exit.1 Adjusting the head-up display height
When you unlock and open the driver’s door with a
remote transmitter or keyless access system, the
head-up display adjusts auto matically to one of the
two preset positions.
23 ACURA INTEGRA-313S56000_03.book 138 ページ ２０２２年３月１８日　金曜日　午前１１時４７分
