ACURA INTEGRA 2023 Owners Manual

199
uuSeats uHead Restraints
Controls

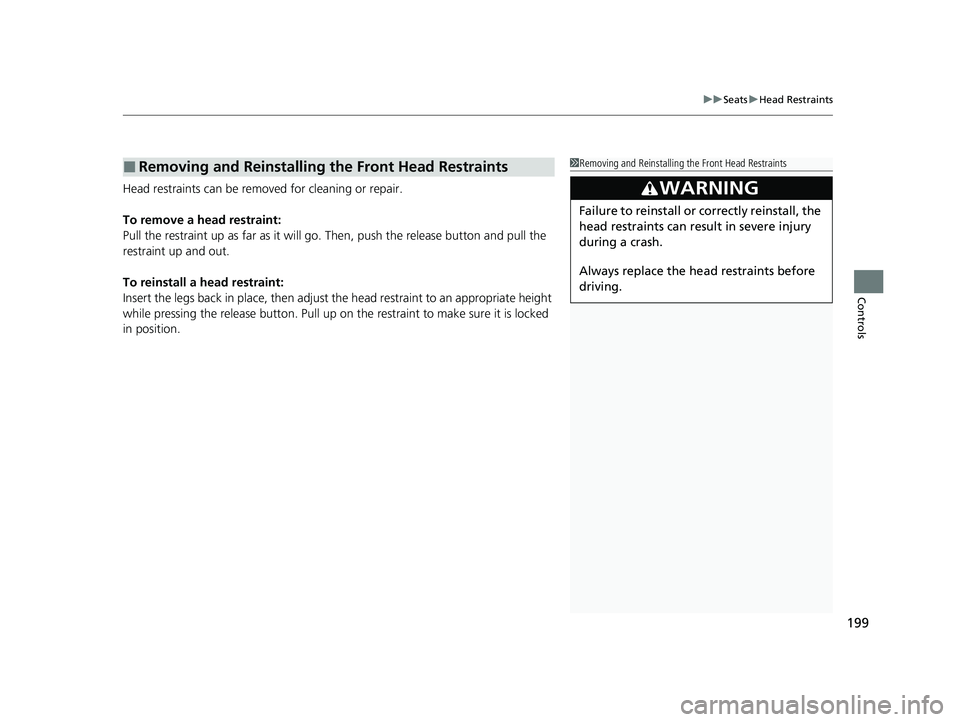

Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then, push the release button and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.
■Removing and Reinstalling the Front Head Restraints1 Removing and Reinstalling the Front Head Restraints
3WARNING
Failure to reinstall or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
23 ACURA INTEGRA-313S56000_03.book 199 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

200
uuSeats uArmrest
Controls
Armrest
The console lid can be used as an armrest.
Pull down the armrest in the center backrest.
■Using the Front Seat Armrest
■Using the Rear Seat Armrest*
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 200 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

201Continued
Controls
Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF.
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF but
do not open a door.
You can change the interi or lights dimming time.
2 Vehicle Settings
* P. 126
2 Customized Features P. 359
The interior lights go off im mediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine is off.
If you leave any of the doors open in VEHICLE OFF
mode, the interior light s go off after about 15
minutes.
Door Activated
Position
Door Activated
Position
ONOFF
ONOFF
Front
Rear
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 201 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

uuInterior Convenience Items uStorage Items
202
Controls
The map lights can be turned on and off by
pressing the switches.
Storage Items
Pull the handle to open the glove box.
■Map Light Switches1Map Light Switches
When the front interior li ght switch is in the door
activated position and any door is open, the map
light will not go off when you press the switches.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
23 ACURA INTEGRA-313S56000_03.book 202 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

203
uuInterior Convenience Items uStorage Items
Continued
Controls
Pull the handle to open the console
compartment.
■Console Compartment
23 ACURA INTEGRA-313S56000_03.book 203 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

uuInterior Convenience Items uStorage Items
204
Controls

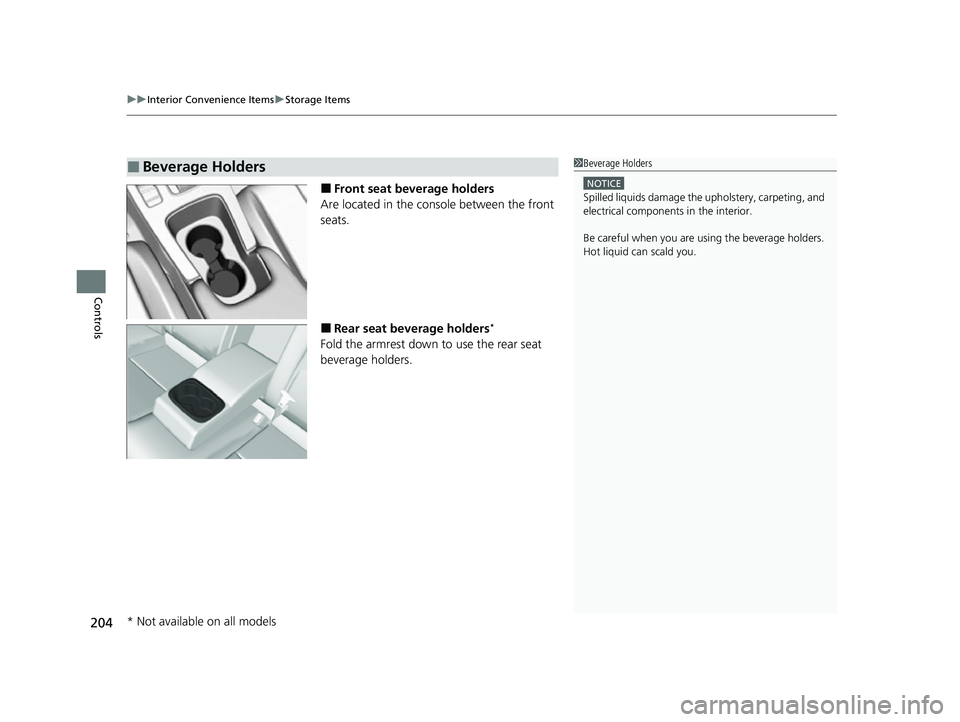

■Front seat beverage holders
Are located in the console between the front
seats.
■Rear seat beverage holders*
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 204 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

205
uuInterior Convenience Items uStorage Items
Continued
Controls

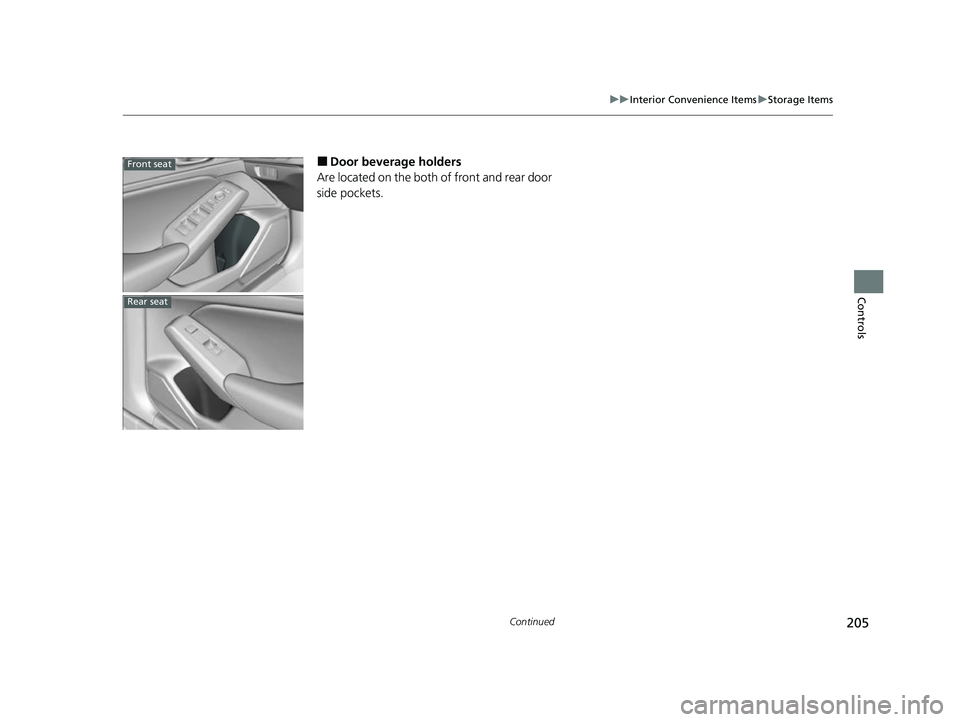

■Door beverage holders
Are located on the both of front and rear door
side pockets.Front seat
Rear seat
23 ACURA INTEGRA-313S56000_03.book 205 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

uuInterior Convenience Items uStorage Items
206
Controls
There is a coat hook on the rear left grab
handle.
To open the sunglasses holder, push and
release the indent. To close, push it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Coat Hook1Coat Hook
The coat hook is not desi gned for large or heavy
items.
■Sunglasses Holder1 Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Push
23 ACURA INTEGRA-313S56000_03.book 206 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

Continued207
uuInterior Convenience Items uStorage Items
Controls
The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
■Tie-down Anchors1Tie-down Anchors
Do not let anyone access items in the cargo area
while driving. Loose items can cause injury if you have
to brake hard.
Anchor
Anchor
23 ACURA INTEGRA-313S56000_03.book 207 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

208
uuInterior Convenience Items uStorage Items
Controls
Pull the strap and open the lid.
■Under-Floor Storage Area
23 ACURA INTEGRA-313S56000_03.book 208 ページ ２０２２年３月１８日　金曜日　午前１１時４７分
