ACURA INTEGRA 2023 Owners Manual

369
uuCustomized Features u
Continued
Features
■Display
■SoundCustomizable Features Description
Selectable Settings
BrightnessChanges the brightness of the audio/information screen.—
ContrastChanges the contrast of the audio/information screen.—
Black LevelChanges the black level of the audio/information screen.—
DefaultResets all customized settings for the brightness,
contrast, and black level.—
Customizable Features Description Selectable Settings
Bass / Treble
Treble
Adjusts the settings of the audio speakers’ sound.
2Adjusting the Sound P. 277—
Midrange
Bass
Audio Zones & Balance / Fader
DTS Neural Surround
Speed Volume Compensation
23 ACURA INTEGRA-313S56000_03.book 369 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

370
uuCustomized Features u
Features
■Camera
*1:Default Setting Customizable Features Desc
ription Selectable Settings
Rear Camera
Fixed Guideline
Shows the guideline that does not move with the
steering wheel.
2 Multi-View Rear Camera P. 606
ON*1/OFF
Dynamic Guideline
Shows the guideline that moves with the steering
wheel.
2 Multi-View Rear Camera P. 606
ON*1/OFF
Cross Traffic Monitor
Shows arrows on the rear camera image to indicate
vehicles approaching from the sides.
2 Cross Traffic Monitor P. 602
ON*1/OFF
23 ACURA INTEGRA-313S56000_03.book 370 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

371
uuCustomized Features u
Continued
Features
With the power mode in ON, press the button, and then select Vehicle Settings
and select a setting item.
■How to Customize the Vehicle Settings
Audio/Information Screen
23 ACURA INTEGRA-313S56000_03.book 371 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

372
uuCustomized Features u
Features
■Customization flow
Press the button.
Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Traffic Sign Recognition System Display Setting
Road Departure Mitigation Setting
Lane Keeping Assist Suspend Beep
Blind Spot Inf–
Traffic Sign Recognition System Speed Limit Warning
Speed Limit Warning Threshold Setting
Driver Attention Monitor
Driver Assist System Setup
Select Vehicle Settings .
Rev Match System*
Rear Sensor Setting
Head-up Warning
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 372 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

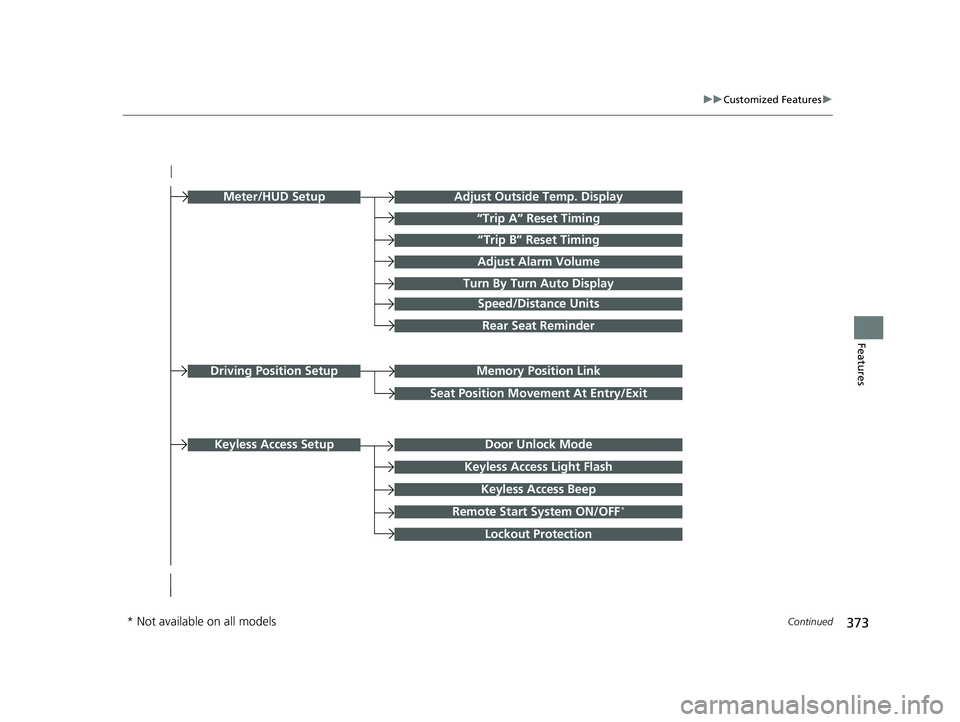

373
uuCustomized Features u
Continued
Features
Turn By Turn Auto Display
Speed/Distance Units
Keyless Access Light Flash
Rear Seat Reminder
Door Unlock Mode
Keyless Access Beep
Remote Start System ON/OFF*
Lockout Protection
Keyless Access Setup
Meter/HUD SetupAdjust Outside Temp. Display
“Trip A” Reset Timing
“Trip B” Reset Timing
Adjust Alarm Volume
Seat Position Movement At Entry/Exit
Memory Position LinkDriving Position Setup
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 373 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

374
uuCustomized Features u
FeaturesAuto Door Unlock
Auto Door Lock
Walk Away Auto Lock
Lock Presetting
Keyless Lock Answer Back
Door/Window Setup
Lighting SetupAuto High Beam
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity*
Auto Headlight On with Wiper On
Select Reset ItemsMaintenance Info.
Remote Window Control
Engine
Steering
Suspension
Idle Stop
Gauge
INDIVIDUAL Settings
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 374 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

375
uuCustomized Features u
Continued
Features
■Driver Assist System Setup
*1:Default Setting
Customizable Features Description Selectable Settings
Forward Collision Warning
DistanceSelects distance for Forward Collision Warning audible and visual
alerts.
2Collision Mitigation Braking SystemTM (CMBSTM) P. 481
Long /Normal*1/Short
Head-up WarningTurn On/Off warning light for head-up flash alert. ON*1/OFF
ACC Forward Vehicle Detect
Beep
Turns On/Off audible notification when vehicle has moved in/out of
Adaptive Cruise Control with Low Speed Follow* range.
2 Adaptive Cruise Control (ACC) with Low Speed Follow* P. 504
2 Adaptive Cruise Control (ACC)* P. 525
ON /OFF*1
Road Departure Mitigation
Setting Selects operating mode of the Ro
ad Departure Mitigation system.
2Road Departure Mitigation System P. 566
Narrow /Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend BeepSelects On/Off the LKAS alert for not detecting road lines.
2Lane Keeping Assist System (LKAS) P. 545ON/OFF*1
Blind Spot Info Selects On/Off the blind spot in
formation system audible alert.2Blind Spot Information System P. 474
Audible And Visual Alert*1/
Visual Alert
Traffic Sign Recognition
System Display SettingDisplays the traffic sign recognition system on instrument panel.
2 Traffic Sign Recognition System P. 574Display*1/None
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 375 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

376
uuCustomized Features u
Features
*1:Default Setting
Customizable Features DescriptionSelectable Settings
Traffic Sign Recognition
System Speed Limit
Warning Enables over speed limit warning when speed limi
t is exceeded.
2Traffic Sign Recognition System P. 574ON*1/OFF
Speed Limit Warning
Threshold SettingSelect speed limit warning threshol d based on personal preference.
2Traffic Sign Recognition System P. 574
Speed Limit*1/
Speed Limit+3mph /
Speed Limit+5mph /
Speed Limit+10mph
(When mph is selected)
Speed Limit
*1/
Speed Limit+5km/h /
Speed Limit+10km/h /
Speed Limit+15km/h
(When km/h is selected)
Driver Attention Monitor Changes the setting for the driver attention monitor.
2
Driver Attention Monitor P. 117
OFF/Tactile Alert /Tactile
And Audible Alert*1
Rev Match System*Selects On/Off the rev match system.
2 Rev Match System P. 445ON*1/OFF
Rear Sensor Setting
Selects to turn ON or OFF the rear Parking Sensor. This selection will
also affect the rear Low Speed Braking Control.
2 Parking Sensor System* P. 598
2 Low Speed Braking Control* P. 493, 499
ON*1/OFF
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 376 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

377
uuCustomized Features u
Continued
Features
■Meter/HUD Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
Adjust Outside Temp.
DisplaySelects to adjust outside temperature reading by a few degrees.
2Outside Temperature P. 106
-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
“Trip A” Reset Timing Selects the timing to reset Trip A.
2
Range/Fuel/Trip Meter P. 113
2 Speed/Time/Trip Meter P. 115When Fully Refueled/IGN OFF /
Manually Reset*1
“Trip B” Reset TimingSelects the timing to reset Trip B.
2 Range/Fuel/Trip Meter P. 113
2 Speed/Time/Trip Meter P. 115When Fully Refueled/IGN OFF /
Manually Reset*1
Adjust Alarm Volume Changes volume level of all system warnings, door opening
warning and indicator.
High
/Mid*1/Low
Turn By Turn Auto Display
Turns on/off the pop-up information in the turn-by-turn
navigation in the driver information interface.
2Turn-by-Turn Directions P. 116
ON*1/OFF
Speed/Distance Units Selects the speed/distance units.
2
Speed/Distance Units P. 123
km/h · km/mph · miles*1
(U.S.)
km/h · km
*1/ mph · miles
(Canada)
Rear Seat ReminderTurns the Rear Seat Reminder feature on and off.ON*1/ OFF
23 ACURA INTEGRA-313S56000_03.book 377 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

378
uuCustomized Features u
Features
■Driving Position Setup
*1:Default Setting
■Keyless Access Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
Memory Position LinkTurns the driving position memory system on and off.ON*1/OFF
Seat Position Movement At
Entry/Exit Moves the seat rearward when you
get in/get out of the vehicle.
Changes the setting for this feature. ON
*1/
OFF
Customizable Features DescriptionSelectable Settings
Door Unlock ModeChanges which doors unlock when you grab the driver’s door
handle.Driver Door Only*1/All
Doors
Keyless Access Light Flash Causes some exterior lights to flash when you unlock/lock the
doors. ON
*1/
OFF
Keyless Access BeepCauses the beeper to sound when you unlock/lock the doors.ON*1/OFF
Remote Start System ON/
OFF
*Turns the remote engine start feature on and off. ON*1/OFF
Lockout ProtectionChanges the settings for the lo ckout protection function.ON*1/OFF
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 378 ページ ２０２２年３月１８日　金曜日　午前１１時４７分
