Page 742 of 766
740
Information
Specifications
■Vehicle Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
■Air Conditioning
*1: 1.5 L engine models
*2: 2.0 L engine models
ModelINTEGRA*1
INTEGRA TYPE-S*2
No. of Passengers:
Front 2
Rear3
Total 5
Front 2
Rear2
Total 4
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 15.3 – 17.1 oz (435 – 485 g)
Lubricant TypeRB100EV-01 (POE)*1
ND-OIL14 (POE)*2
Quantity 6.71 – 7.5 cu-in (110 – 123 cm3)*1
6.41 – 7.32 cu-in (105 – 120 cm3)*2
1.5 L engine models
2.0 L engine models
■
Engine Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
■Fuel
*1: 1.5 L engine models
*2: 2.0 L engine models
■Washer Fluid
*1: 1.5 L engine models
*2: 2.0 L engine models
Displacement91.38 cu-in (1,498 cm3)*1
121.76 cu-in (1,996 cm3)*2
Spark Plugs NGK DILKAR8P8SY*1
ILZKAR8J8SY*2
Type
Unleaded premium gasoline, pump octane
number 91 or higher*1
Unleaded premium gasoline, pump octane
number 93 or higher*2
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.:1.6 US qt (1.5 L)
Canada:4.8 US qt (4.5 L)*1
1.6 US qt (1.5 L)*2
■
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog Lights*LED
Parking/ChicaneTM Daytime Running Lights LEDFront Side Marker LightsLED
Front Turn Signal Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights LED
Rear Turn Signal LightsLED
Rear Side Marker Lights LED
Back-Up LightsLED
Brake/ChicaneTM Taillights LEDHigh-Mount Brake LightLED
Rear License Plate Lights LED
Door Outer Handle Lights*LED
Interior Lights Map Lights LED
Ceiling Light LED
Ambient Lights LED
Vanity Mirror Lights 2 W
Center Console Light LED
Glove Box Light LED
Door Inner Handle Lights
*LED
Foot Lights*LED
Cargo Area Lights LED
* Not available on all models
24 ACURA INTEGRA-313S56100.book 740 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 749 of 766
747
uuEmissions Testing uTesting of Readiness Codes
Continued
Information
7. Select a nearby, lightly trav eled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway
in
(D (continuously variable transmission) or 5th (manual). Do not use cruise
control. When traffic al lows, drive for 90 seconds without moving the
accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do
this for a continuous 90 seconds because of traffic conditions, drive for at least
30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for severa l seconds without using the accelerator
pedal or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the en gine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the acce lerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(N. Increase the engine speed to 2,000 rpm, and hold it
there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
7. Drive in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for severa l seconds without using the accelerator
pedal or the brake pedal.
2.0 L engine models
24 ACURA INTEGRA-313S56100.book 747 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 750 of 766
748
uuEmissions Testing uTesting of Readiness Codes
Information
8. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway
in 5th. Do not use cruise control. Wh en traffic allows, drive for 90 seconds
without moving the accelerator pedal. (Veh icle speed may vary slightly; this is
okay.) If you cannot do this for a continuous 90 seconds because of traffic
conditions, drive for at least 30 seconds, then repeat it two more times (for a
total of 90 seconds). While the vehicle is traveling in this speed range, shift to
6th gear and then accelerate and decelerate 5 times, each time making sure you
do not exceed 60 mph (97 km/h).
9. Park the vehicle and let the engine idle for 1 minute without using the
accelerator pedal.
10. Park the vehicle and leave the engine off for 30 minutes.
24 ACURA INTEGRA-313S56100.book 748 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 753 of 766
751

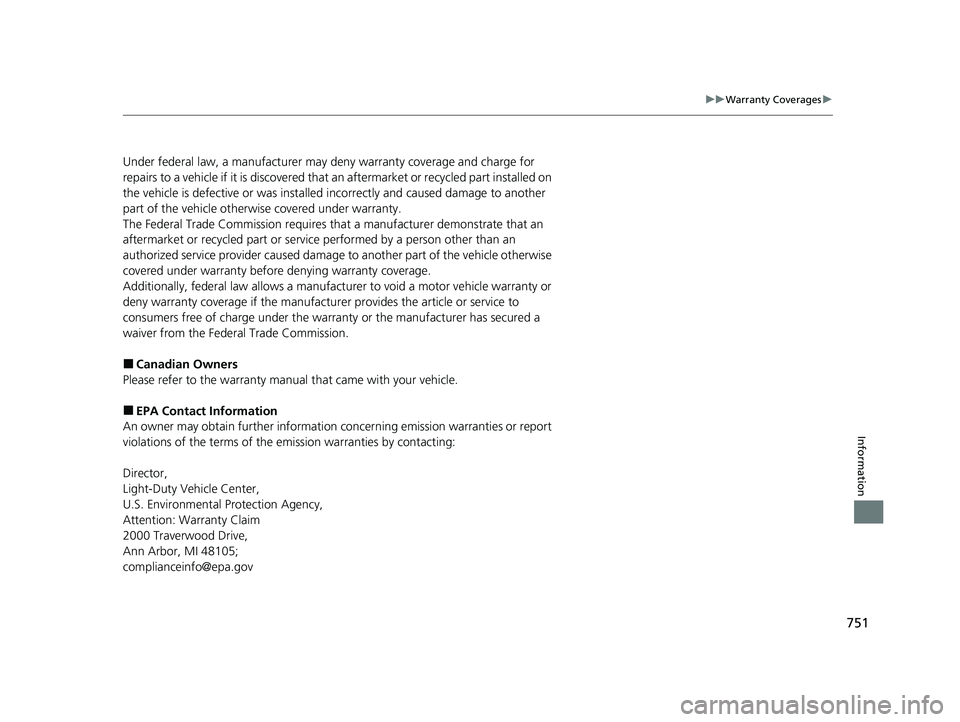

uuWarranty Coverages u
Information
Under federal law, a manufacturer may de ny warranty coverage and charge for
repairs to a vehicle if it is discovered that an aftermarket or recycled part installed on
the vehicle is defective or was installed incorrectly and caused damage to another
part of the vehicle otherwise covered under warranty.
The Federal Trade Commission requires that a manufacturer demonstrate that an
aftermarket or recycled part or service performed by a person other than an
authorized service provider caused damage to another part of the vehicle otherwise
covered under warranty before denying warranty coverage.
Additionally, federal law allows a manufact urer to void a motor vehicle warranty or
deny warranty coverage if the manufacture r provides the article or service to
consumers free of charge under the warranty or the manufacturer has secured a
waiver from the Federal Trade Commission.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further in formation concerning emission warranties or report
violations of the terms of the emission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]
24 ACURA INTEGRA-313S56100.book 751 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 758 of 766
756
Index
Audio/Information Screen........................ 269
Authorized Manuals ................................. 752
Auto Door Locking/Unlocking ................. 169
Auto High-Beam ....................................... 188
Indicator .................................................... 96
Auto Idle Stop ................................... 463, 469
OFF Button ...................................... 464, 470
Automatic Brake Hold .............................. 600
Indicator ............................................ 90, 600
Automatic Brake Hold System Indicator ............................................ 90, 600
Automatic Lighting .................................. 185
Average Fuel Economy ............................. 120
Average Speed .......................................... 122
B
Battery....................................................... 671
Charging System Indicator ................. 91, 723
If the Battery Is Dead ............................... 715
Maintenance (Checking the Battery) ........ 671
Maintenance (Replacing).......................... 673
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 212
Blind Spot Information System ................ 482
Bluetooth ® Audio ............................. 253, 313
Bluetooth ® HandsFreeLink ®........... 385, 405
Booster Seats (For Children) ....................... 82
Brake System ............................................. 594
Anti-lock Brake System (ABS) ................... 605
Automatic Brake Hold.............................. 600 Brake Assist System ................................. 606
Fluid ........................................................ 653
Foot Brake............................................... 599
Indicator (Amber) .............................. 90, 726
Indicator (Red) ..................... 88, 89, 724, 726
Parking Brake .......................................... 594
Braking Pressure Meter ............................ 126
Brightness ................................................. 132
Built-in Key ............................................... 153
Bulb Replacement .................................... 655
Brake, Rear Side Marker, Brake/Chicane
TM
Taillights, Back-Up, and Rear Turn Signal
Lights .................................................. 656
Door Outer Handle Ambient Lights.......... 655
Fog Lights ............................................... 655
Front Turn Signal, Parking/Chicane
TM
Daytime Running, and Front Side Marker
Lights .................................................. 655
Headlights ............................................... 655
High-Mount Brake Light .......................... 656
Rear License Plate Light ........................... 656
Side Turn Signal/Emergency Indicator
Lights .................................................... 655
Bulb Specifications ................................... 740
C
Carbon Monoxide Gas ............................... 83
Cargo Area Cover ..................................... 217
Carrying Cargo ................................. 427, 429
Certification Label .................................... 742 Changing Bulbs
........................................ 655
Charging System Indicator ................ 91, 723
Chicane
TM Daytime Running Lights ......... 187
Child Safety ................................................ 68
Childproof Door Locks ............................ 168
Child Seat ................................................... 68
Booster Seats ............................................ 82
Child Seat for Infants ................................ 70
Child Seat for Small Children .................... 71
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 76
Larger Children ......................................... 81
Rear-facing Child Seat............................... 70
Selecting a Child Seat ............................... 72
Using a Tether .......................................... 78
Childproof Door Locks ............................. 168
Cleaning the Exterior ............................... 679
Cleaning the Interior ............................... 676
Client Service Information ....................... 753
Climate Control System ........................... 226
Changing the Mode........................ 226, 227
Defrosting the Windshield and
Windows .............................................. 228
Dust and Pollen Filter .............................. 675
Recirculation/Fresh Air Mode................... 227
Sensors ................................................... 231
Synchronization Mode ............................ 230
Using Automatic Climate Control............ 226
Clutch Fluid .............................................. 653
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 489
24 ACURA INTEGRA-313S56100.book 756 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 759 of 766
757
Index
Coat Hooks............................................... 214
Cold Weather Driving .............................. 670
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 489
Compact Spare Tire .......................... 704, 741
Console Compartment ............................. 211
Continuously Variable Transmission Creeping................................................. 443
Fluid ....................................................... 652
Kickdown ............................................... 443
Operating the Shift Lever .................. 24, 445
Shift Lever Does Not Move ...................... 718
Shifting ................................................... 444
Controls .................................................... 149
Coolant (Engine) .............................. 648, 650
Adding the Coolant ........................ 648, 651
Overheating ............................................ 719
Creeping (Continuously Variable Transmission) .......................................... 443
Cross Traffic Monitor ............................... 613
Cup Holders .............................................. 212
Customize Display .................................... 114
Customized Features ....................... 362, 367
D
Dead Battery............................................ 715
Defaulting All the Settings .............. 366, 384
Defrosting the Windshield and Windows ................................................. 228
Devices that Emit Radio Waves ............... 743Dimming
Headlights ............................................... 184
Rearview Mirror ....................................... 197
Dipstick (Engine Oil) ................................. 641
Directional Signals (Turn Signal) ............. 183
Display Setup .................................... 244, 286
Door Mirrors ............................................. 198
Doors ......................................................... 152
Auto Door Locking .................................. 169
Auto Door Unlocking ............................... 169
Door Open Message .................................. 39
Keys ........................................................ 152
Locking/Unlocking the Doors from the Inside..................................................... 166
Locking/Unlocking the Doors from the Outside.................................................. 155
DOT Tire Quality Grading ........................ 663
Driver Attention Monitor ........................ 123
Driver Information Interface ........... 111, 117
Switching the Display .............................. 117
Driver’s Knee Airbag .................................. 57
Driving ....................................................... 425
Braking .................................................... 594
Cold Weather Driving .............................. 670
Continuously Variable Transmission ......... 443
Shifting Gear ........................................... 448
Shifting Position ...................................... 444
Starting the Engine .................................. 433
Driving Position Memory System ............. 194
Dust and Pollen Filter ............................... 675
Dynamic Mode Switch .............................. 455
E
Elapsed Time............................................. 122
Electric Power Steering (EPS) System Indicator............................................ 94, 725
Electronic Stability Control (ESC) ............. 474
Emergency ................................................ 734
Emergency Engine Stop ........................... 714
Emergency Hatch Opener ........................ 736
Emissions Testing (Readiness Codes) ....... 746
Engine Coolant ........................................... 648, 650
If the Battery Is Dead ............................... 715
Oil ........................................................... 640
Starting ................................................... 433
Engine Coolant ................................. 648, 650
Adding the Coolant......................... 648, 651
Overheating ............................................ 719
Temperature Gauge ................................ 108
Engine Oil ................................................. 640
Adding .................................................... 643
Checking................................................. 641
Displaying Oil Life .................................... 630
Engine oil pressure low Warning ............. 722
Recommended Engine Oil ....................... 640
Engine oil pressure low Warning ............ 722
ENGINE START/STOP Button .................... 180
Exhaust Gas Hazard (Carbon Monoxide) .. 83
Exterior Care (Cleaning) ........................... 679
Exterior Mirrors ........................................ 198
24 ACURA INTEGRA-313S56100.book 757 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 760 of 766
758
Index
F
Features..................................................... 233
Filters Dust and Pollen ....................................... 675
Oil ........................................................... 644
Flat Tire ..................................................... 688
Floor Mats ................................................. 677
Fluids
Brake ....................................................... 653
Continuously Variable Transmission ......... 652
Engine Coolant ................................ 648, 650
Manual Transmission ............................... 652
Windshield Washer .................................. 654
FM/AM Radio .................................... 245, 292
Fog Light Indicator ..................................... 96
Folding Down the Rear Seats ................... 203
Foot Brake ................................................. 599
Front Airbags (SRS) ..................................... 52
Front Head Restraints ............................... 206
Front Seat Heaters .................................... 224
Front Seats Adjusting ................................................. 199
Front Wide View Camera ......................... 590
Fuel ...................................................... 26, 619
Average Fuel Economy............................. 120
Economy ................................................. 623
Gauge ..................................................... 108
Instant Fuel Economy ............................... 120
Low Fuel Indicator ..................................... 94
Range ...................................................... 120
Recommendation .................................... 619 Refueling......................................... 619, 737
Fuel Economy ........................................... 623
Fuel Fill Door ...................................... 26, 621
Fuses .......................................................... 728
Inspecting and Changing......................... 732
Locations......................................... 728, 730
G
Gasoline (Fuel)
Average Fuel Economy ............................ 120
Economy ................................................. 623
Gauge ..................................................... 108
Information ............................................. 619
Instant Fuel Economy .............................. 120
Low Fuel Indicator ..................................... 94
Refueling......................................... 619, 737
Gauge Display Settings ............................ 133
Gauges ...................................................... 107
Gear Shift Lever Positions Manual Transmission ............................... 448
Glass (care) ........................................ 677, 680
Glove Box .................................................. 210
G-Meter ..................................................... 127
H
Handling the Unexpected ........................ 685
HandsFreeLink ® (HFL) ....................... 385, 405
Automatic Import of Cellular Phonebook and Call History........... 397, 415 Automatic Transferring ................... 395, 414
Favorite Contacts ............................ 398, 416
HFL Buttons .................................... 385, 405
HFL Menus...................................... 388, 408
HFL Status Display ........................... 387, 407
In Case of Emergency ............................. 422
Limitations for Manual Operation .... 387, 407
Making a Call ................................. 400, 418
Options During a Call...................... 404, 421
Phone Setup ................................... 390, 410
Receiving a Call............................... 403, 420
Ringtone ......................................... 395, 414
Hatch ........................................................ 170
Light Bulb ............................................... 740
Unable to Open ...................................... 736
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 293
Headlights ................................................ 184
Aiming.................................................... 655
Auto High-Beam ..................................... 188
Automatic Operation .............................. 185
Dimming................................................. 184
Operating ............................................... 184
Head-Up Display ...................................... 143
Heated Steering Wheel ........................... 223
Heaters (Front Seat) ................................. 224
Heaters (Rear Seat) .................................. 225
HFL (HandsFreeLink ®) ...................... 385, 405
High Beam Indicator .................................. 96
Hill Start Assist System ............................. 439
Honda App License Agreement .............. 343
24 ACURA INTEGRA-313S56100.book 758 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 761 of 766
759
Index
I
Identification NumbersVehicle Identification............................... 742
Immobilizer System .................................. 173
Indicator ................................................... 98
Indicators .................................................... 86
Adaptive Cruise Control (ACC)................ 533
Adaptive Cruise Control (ACC) with
Low Speed Follow ......................... 101, 512
Adaptive Cruise Control (ACC) with Low Speed Follow Interval ............................ 102
Anti-lock Brake System (ABS) .................... 94
Auto High-Beam ....................................... 96
Auto Idle Stop (Green) .............................. 99
Auto Idle Stop OFF .................................... 99
Auto Idle Stop Suspend........................... 100
Auto Idle Stop System (Amber) ................. 99
Automatic Brake Hold ....................... 90, 600
Automatic Brake Hold System ........... 90, 600
Charging System............................... 91, 723
COMFORT Mode ...................................... 97
Cruise Mode ........................................... 102
Electric Power Steering (EPS) System ............................................ 94, 725
Fog Light .................................................. 96
Gear Position ............................................ 92
High Beam ................................................ 96
Immobilizer System ................................... 98
INDIVIDUAL Mode .................................... 97
Lane Keeping Assist System (LKAS) ......... 102
Lights On .................................................. 96 Low Fuel .................................................... 94
Low Tire Pressure/TPMS ............. 95, 480, 727
M (7-speed manual shift mode) Indicator/
Shift ........................................................ 91
Malfunction Indicator Lamp ............... 91, 723
NORMAL Mode ......................................... 97
Parking Brake and Brake System (Amber) ........................................... 90, 726
Parking Brake and Brake System (Red) ...................... 88, 89, 724, 726
Safety Support ................................. 103, 106
Seat Belt Reminder .............................. 42, 93
Security System Alarm ............................... 98
Shift Down ........................................ 92, 450
Shift Position ............................................. 91
Shift Up ............................................. 92, 450
SPORT Mode ............................................. 97
SPORT+ Mode ........................................... 97
Supplemental Restraint System ............ 64, 94
System Message ........................................ 97
Transmission System .................................. 92
Turn Signal and Haza rd Warning ............... 96
Vehicle Stability Assist
TM (VSA ®) OFF ... 95, 475
Vehicle Stability AssistTM (VSA ®)
System............................................. 95, 474
Information ............................................... 739
Instant Fuel Economy ............................... 120
Instrument Panel ........................................ 85
Integrated Dynamics System .................... 454
Dynamic Mode Switch ..................... 455, 456
Interior Lights ........................................... 209 Interior Rearview Mirror
.......................... 197
iPod ................................................... 247, 307
J
Jack (Wheel Nut Wrench) ........................ 707
Jump Starting ........................................... 715
K
Key Number Tag ....................................... 153
Keyless Access System .............................. 155
Keys ........................................................... 152
Number Tag ............................................ 153
Rear Door Won’t Open............................ 168
Remote Transmitter ................................. 161
Two-way Keyless Remote ........................ 162
Types and Functions ................................ 152
Kickdown (Continuously Variable Transmission) .......................................... 443
L
Lane Keeping Assist System (LKAS) ......... 553
LATCH (Child Seats) .................................... 73
24 ACURA INTEGRA-313S56100.book 759 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 762 of 766
760
Index
Lights................................................. 184, 655
Auto High-Beam ...................................... 188
Automatic ............................................... 185
Bulb Replacement .................................... 655
Chicane
TM Daytime Running Lights........... 187
Fog Lights ................................................ 187
High Beam Indicator .................................. 96
Interior .................................................... 209
Light Switches ......................................... 184
Lights On Indicator .................................... 96
Turn Signals ............................................. 183
Limited Slip Differential (LSD) ................. 477
Load Limits ................................................ 429
Locking/Unlocking .................................... 152
Auto Door Locking/Unlocking .................. 169
Childproof Door Locks ............................. 168
From Inside .............................................. 166
From Outside ........................................... 155
Keys ........................................................ 152
Using a Key ............................................. 163
Low Battery Charge .................................. 723
Low Fuel Indicator ...................................... 94
Low Remote Key Signal Strength ............ 154
Low Speed Braking Control ............. 501, 507
Lower Anchors ............................................ 73
Luggage (Maximum Load Limit) .............. 429
Lumbar Support ........................................ 200
M
Maintenance............................................. 625
Adding the Coolant......................... 648, 651
Battery .................................................... 671
Brake Fluid .............................................. 653
Cleaning ......................................... 676, 679
Climate Control System ........................... 675
Coolant ........................................... 648, 650
Maintenance Minder
TM............................ 629
Oil ........................................................... 641
Precautions ............................................. 626
Remote Transmitter ......................... 673, 674
Replacing Light Bulbs .............................. 655
Safety...................................................... 627
Service Items ........................................... 633
Tires ........................................................ 659
Transmission Fluid ................................... 652
Under the Hood ...................................... 637
Malfunction Indicator Lamp .............. 91, 723
Manual Transmission ............................... 448
Map Lights ................................................ 210
Maximum Load Limit ............................... 429
Meters, Gauges ......................................... 107
Mirrors ...................................................... 197
Adjusting ................................................ 197
Door ....................................................... 198
Exterior ................................................... 198
Interior Rearview ..................................... 197
Modifications (and Accessories) .............. 682
Moonroof ................................................. 179
Multi-View Rear Camera .......................... 617
N
Navigation................................................ 122
Numbers (Identification) ......................... 742
O
Odometer................................................. 108
Oil (Engine) .............................................. 640
Adding ................................................... 643
Checking ................................................ 641
Displaying Oil Life ................................... 630
Engine oil pressure low Warning ............. 722
Recommended Engine Oil ....................... 640
Viscosity.................................................. 640
Open Source Licenses ...................... 357, 754
Opening
Hatch...................................................... 736
Hood ...................................................... 639
Opening/Closing Hatch...................................................... 170
Moonroof ............................................... 179
Power Windows...................................... 176
Outside Temperature Display ................. 109
Overheating ............................................. 719
P
Paddle Shifters (7-Speed Manual Shift
Mode) ..................................................... 446
Panic Mode ............................................... 175
Parking ..................................................... 607
24 ACURA INTEGRA-313S56100.book 760 ページ ２０２３年２月１３日 月曜日 午後２時４１分
