Page 161 of 766

Continued159
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driv er’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds, and the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicl e without using the auto lock
function.
• With the keyless remote on you, move out
of the auto lock function operation range.
• Open any door.1Locking the doors and hatch (Walk away auto lock ®)
The auto lock function does not operate when any of
the following conditions are met.
•The keyless remote is inside the vehicle.
•A door or the hood is not closed.•The power mode is set to any mode other than
OFF.
•The keyless remote is not located within a radius of
about 5 feet (1.5 m) from the vehicle when you get
out of the vehicle and close the doors.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The keyless remote is put inside the vehicle through
a window.
•You are located too close to the vehicle.
•The keyless remote is put inside the hatch.
If the warning beeper sounds, check that you are
carrying the keyless remote. Then, open/close a door
and confirm the auto lock activation beeper sounds
once.
24 ACURA INTEGRA-313S56100.book 159 ページ 2023年2月13日 月曜日 午後2時41分
Page 162 of 766

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
160
Controls
The vehicle will automatically lock after you
lock the doors in advance then close the
doors.
Activate lock presetting after closing the
driver’s door.
1. Touch the door lock sensor or press the lock
button on the remote transmitter.
u Alert sounds and lock presetting is
activated.
2. Close all the doors.
u Some exterior lights flash and a beeper
sounds when vehicle locks.
Make sure the doors are locked before
moving away from the vehicle.
■Lock Presetting1 Lock Presetting
Lock presetting will be re set if a door is opened
before the vehicle ha s locked completely.
Before locking a door, make sure that the key is not
inside the vehicle.
You can turn this function on and off. 2 Vehicle Settings
* P. 134
2 Customized Features P. 367Door Lock
Sensor
* Not available on all models
24 ACURA INTEGRA-313S56100.book 160 ページ 2023年2月13日 月曜日 午後2時41分
Page 163 of 766

Continued161
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors and hatch
Press the lock button.
Once: u Some exterior lights flash, all the doors,
hatch, and fuel fill door lock, and the
security system sets.
Twice (within five se conds after the first
push): u Some exterior lights flash, the beeper
sounds, and verifies th e security system is
set.
■Unlocking the doors and hatch
Press the unlock button.
Once: u Some exterior lights flash twice, and the
driver’s door and fuel fill door unlock.
Twice: u The remaining doors and hatch unlock.
*1 : Checking Door Lock Status* P. 162
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door or the hatch within 30
seconds of unlocking the vehicle with the remote
transmitter, the doors and hatch will automatically
relock.
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Remote Battery P. 673
LED
Unlock
Button
Lock
Button
Lock
Button
Unlock
Button
LED*1
* Not available on all models
24 ACURA INTEGRA-313S56100.book 161 ページ 2023年2月13日 月曜日 午後2時41分
Page 164 of 766

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
162
Controls
You can remotely check if your vehicle’s doors
are all locked or any are unlocked using the
keyless remote from extended distances.
Press the lock button, the Amber (LEFT) LED blinks once. After three seconds, one of
the following feedback will come:
• Green (center) comes on: Acknowle dges that the doors are locked.
• Red (right) comes on: Acknowledges that doors are not locked, or any door is not
completely closed.
• Red (right) blinks three times: The remote does not receive the door lock status
from the vehicle.
■Checking Door Lock Status*1 Checking Door Lock Status*
Operate the remote in an open space. If there are
buildings or other obstacl es between your vehicle
and the remote, the remote may not work even
within the operable range. However, the range
required for unlocking the ha tch and all the doors as
well as activating the pani c function is the same as
that required for operating the standard keyless
remote.
When checking the door lock status, you can also
start or stop the engine.
2 Remote Engine Start
* P. 435
Red
Green
Amber
Lock Button
* Not available on all models
24 ACURA INTEGRA-313S56100.book 162 ページ 2023年2月13日 月曜日 午後2時41分
Page 165 of 766

Continued163
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
If the unlock button of the keyless remo te does not work, use the built-in key
instead. The keyhole is be hind the door handle.
Pull and hold the outer handle.
Insert the built-in key into the key cylinder
from below the handle and then turn it.
■Unlocking the Doors Using a Key1 Unlocking the Doors Using a Key
When unlocking, the driver’s door and fuel fill door
unlock first. Turn the key a second time within a few
seconds to unlock the remaining doors and the
hatch.
If the lock button of th e keyless remote does not
work, refer to the following. 2 Locking a Door Without Using a Key P. 164
24 ACURA INTEGRA-313S56100.book 163 ページ 2023年2月13日 月曜日 午後2時41分
Page 166 of 766

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
164
Controls

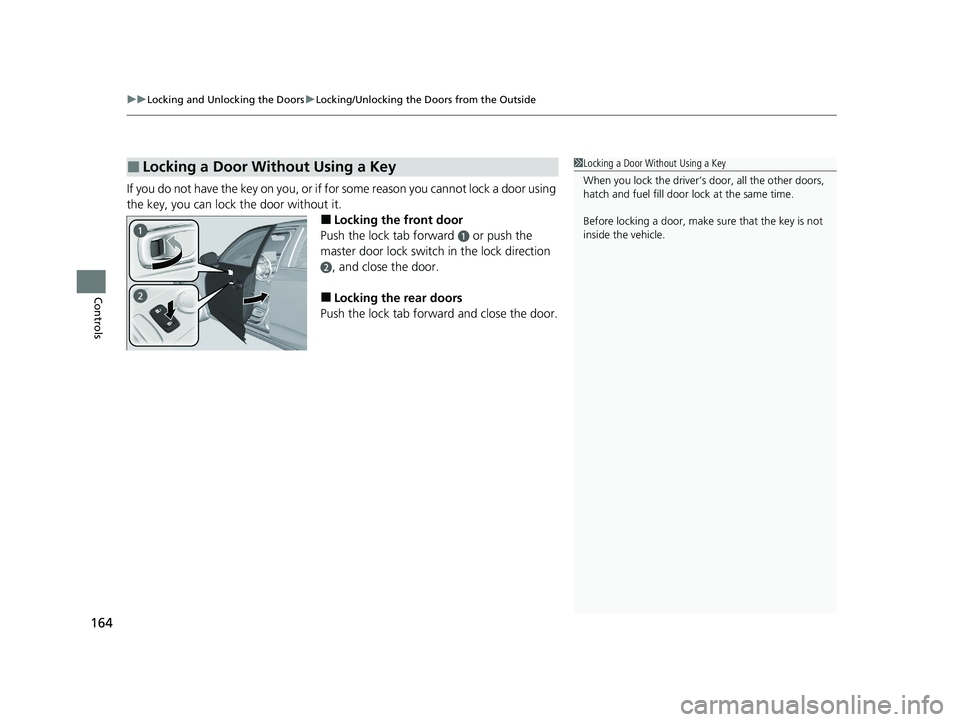

If you do not have the key on you, or if fo r some reason you cannot lock a door using
the key, you can lock the door without it.
■Locking the front door
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors,
hatch and fuel fill door lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
24 ACURA INTEGRA-313S56100.book 164 ページ 2023年2月13日 月曜日 午後2時41分
Page 167 of 766

165
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Lockout protection function
If the vehicle cannot detect the keyless
remote, lockout prot ection activates.
u A beeper sounds, some exterior lights
flash, the doors unlock, and a message
appears on the dr iver information
interface.
u This allows you to open a door in case
the keyless remote is still inside the
vehicle.
If you do not open a door, all doors relock
after 15 seconds.
To avoid non-detection, make sure to keep
the keyless remote away from cell phones and
other devices that may cause signal
interference.1 Locking a Door Without Using a Key
You can change the lockout protection operation
setting.
2 Vehicle Settings
* P. 134
2 Customized Features P. 367
* Not available on all models
24 ACURA INTEGRA-313S56100.book 165 ページ 2023年2月13日 月曜日 午後2時41分
Page 168 of 766

166
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the othe r doors, hatch and fuel fill
door lock at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driver ’s door and fuel fill door
will unlock.
To unlock
Lock TabTo lock
24 ACURA INTEGRA-313S56100.book 166 ページ 2023年2月13日 月曜日 午後2時41分
Page 169 of 766

Continued167
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors unlocking, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only.
If you do not want all the doors to be unlocked all the time, customize the
Auto Door Unlock
*1/Auto door unlock*2 setting to OFF using the driver
information interface or audio/information screen.
2 Vehicle Settings* P. 134
2 Customized Features P. 367
*1: Models with 9-in. Color Touchscreen
*2: Models with 7-in. Color Touchscreen
■Unlocking Using the Front Door Inner Handle1 Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to ope n the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 168
Inner Handle
* Not available on all models
24 ACURA INTEGRA-313S56100.book 167 ページ 2023年2月13日 月曜日 午後2時41分
Page 170 of 766

uuLocking and Unlocking the Doors uChildproof Door Locks
168
Controls

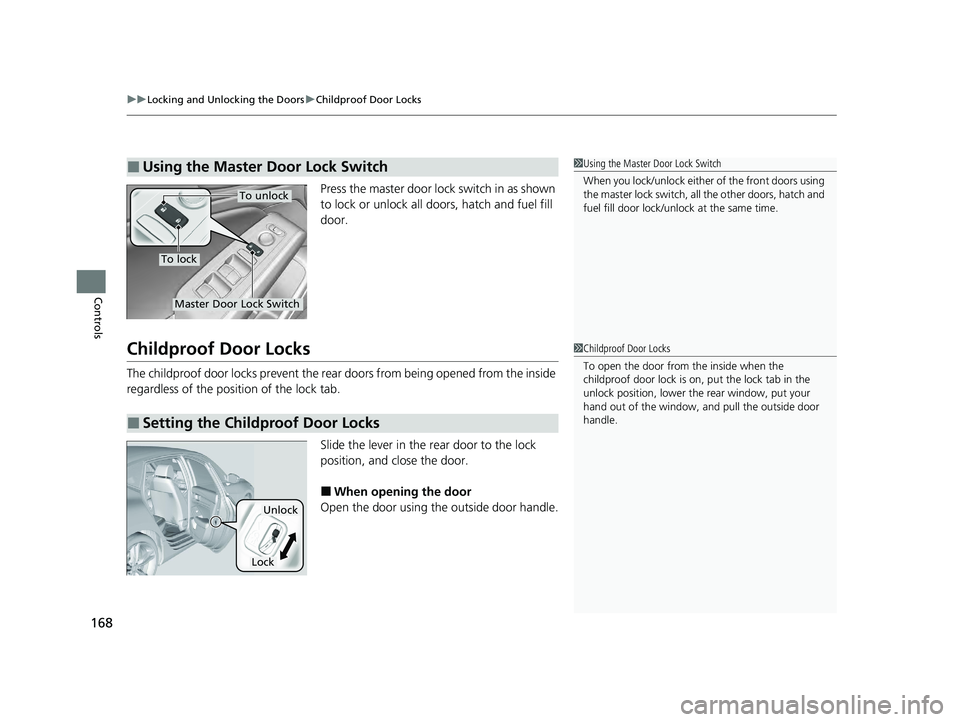

Press the master door lock switch in as shown
to lock or unlock all doors, hatch and fuel fill
door.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock either of the front doors using
the master lock switch, al l the other doors, hatch and
fuel fill door lock/unl ock at the same time.
To unlock
Master Door Lock Switch
To lock
■Setting the Childproof Door Locks
1Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock
Unlock
