ACURA INTEGRA 2024 Owners Manual

369
uuCustomized Features u
Continued
Features
*1:Default SettingCustomizable Features
DescriptionSelectable Settings
LanguageChanges the driver information interface and audio/
information screen language separately.English*1/ Español /
Français
Touch Panel
SensitivitySets the sensitivity of the touch panel screen.High /Normal*1
System Volumes
System SoundsSets the system sound volume level.—
Text-to-SpeechSets the text-to-speech volume level.—
Navigation
GuidanceSets the navigation guidance volume level.—
Phone CallsSets the phone call volume level.—
DefaultResets all System Volumes settings to default values.
Data Sharing
SettingTurns the data sharing setting on and off.
2Start Up P. 268ON*1/OFF
24 ACURA INTEGRA-313S56100.book 369 ページ ２０２３年２月１３日　月曜日　午後２時４１分

370
uuCustomized Features u
Features
Customizable FeaturesDescriptionSelectable Settings
About Status
Displays the Android setting items. —
Legal Information
Model Number
Android Version
Kernel Version
Build Number
Factory Data
ResetResets all the settings to their factory default.
2
Defaulting All the Settings P. 384Continue /Cancel
Detail
Information App Manager
Displays the Android system memory and apps
information. —
24 ACURA INTEGRA-313S56100.book 370 ページ ２０２３年２月１３日　月曜日　午後２時４１分

371
uuCustomized Features u
Continued
Features
■Smartphone Connection
Customizable Features Descri ption Selectable Settings
Apple CarPlay
+ Connect New DevicePairs a new phone to Apple CarPlay.
2Phone Setup P. 410—
(Saved Devices)Connects, disconnects, or deletes a paired phone.
2Phone Setup P. 410—
Android Auto + Connect New Device
Pairs a new phone to Android Auto.
2
Phone Setup P. 410—
(Saved Devices) Connects, disconnects, or deletes a paired phone.
2
Phone Setup P. 410—
24 ACURA INTEGRA-313S56100.book 371 ページ ２０２３年２月１３日　月曜日　午後２時４１分

372
uuCustomized Features u
Features
■Connections
*1:Default Setting
*2:Appears only when Apple CarPlay or Android Auto is connected wirelessly. Customizable Features Description Selectable Settings
Wi-Fi
Change ModeChanges the Wi-Fi mode.Network*1/
Smartphone*2/ OFF
(Available Networks/Connected
Devices)Displays the available network(s) or current connected
device(s).—
OptionsAdd NetworkAdds a new network to connect Wi-Fi.—
Saved NetworksSaves the connected network.—
Setup
Network SSIDSets the network name.—
SecurityDisplays the network security.—
PasswordSets password for require entering password when
connecting Wi-Fi device to the network.—
Wi-Fi BandDisplays the Wi-Fi band.—
Bluetooth
OptionsBluetoothTurns the Bluetooth® on and off.ON*1/OFF
Priority DeviceDisplays the priority device.—
+ Connect New DevicePairs a new phone to HFL.
2 Phone Setup P. 410—
(Saved Devices)Connects, disconnects, or deletes a paired phone.
2Phone Setup P. 410—
24 ACURA INTEGRA-313S56100.book 372 ページ ２０２３年２月１３日　月曜日　午後２時４１分

373
uuCustomized Features u
Continued
Features
■Display
■SoundCustomizable Features Description
Selectable Settings
BrightnessChanges the brightness of the audio/information screen.—
ContrastChanges the contrast of the audio/information screen.—
Black LevelChanges the black level of the audio/information screen.—
DefaultResets all customized settings for the brightness,
contrast, and black level.—
Customizable Features Description Selectable Settings
Bass / Treble
Treble
Adjusts the settings of the audio speakers’ sound.
2Adjusting the Sound P. 285—
Midrange
Bass
Audio Zones & Balance / Fader
DTS Neural Surround
Speed Volume Compensation
24 ACURA INTEGRA-313S56100.book 373 ページ ２０２３年２月１３日　月曜日　午後２時４１分

374
uuCustomized Features u
Features
■Camera
*1:Default Setting
■Voice Control*
*1:Default Setting Customizable Features Desc
riptionSelectable Settings
Rear Camera
Fixed Guideline
Shows the guideline that does not move with the
steering wheel.
2 Multi-View Rear Camera P. 617
ON*1/OFF
Dynamic Guideline
Shows the guideline that moves with the steering
wheel.
2 Multi-View Rear Camera P. 617
ON*1/OFF
Cross Traffic Monitor
Shows arrows on the rear camera image to indicate
vehicles approaching from the sides.
2 Cross Traffic Monitor P. 613
ON*1/OFF
Customizable Features Desc riptionSelectable Settings
Voice Control ModeSelects a mode of the voice portal screen.
2Voice Control Operation* P. 288Normal*1/Assist
* Not available on all models
24 ACURA INTEGRA-313S56100.book 374 ページ ２０２３年２月１３日　月曜日　午後２時４１分

375
uuCustomized Features u
Continued
Features

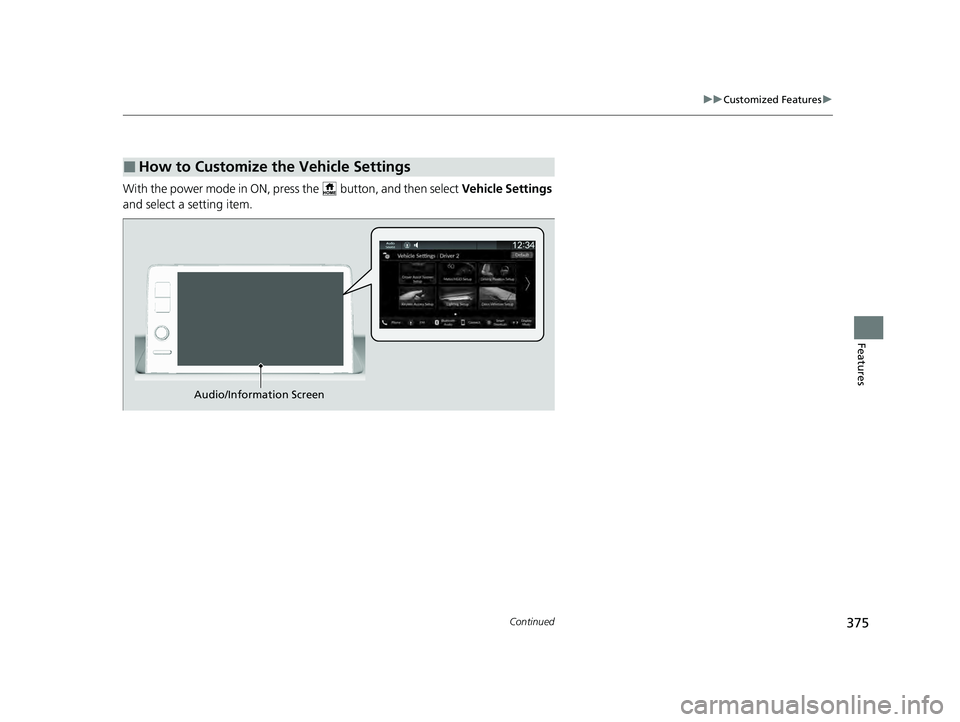

With the power mode in ON, press the button, and then select Vehicle Settings
and select a setting item.
■How to Customize the Vehicle Settings
Audio/Information Screen
24 ACURA INTEGRA-313S56100.book 375 ページ ２０２３年２月１３日　月曜日　午後２時４１分

376
uuCustomized Features u
Features
■Driver Assist System Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
Forward Collision Warning
DistanceChanges the distance at which Collision Mitigation Braking System
(CMBS) alerts.
2Collision Mitigation Braking SystemTM (CMBSTM) P. 489
Long/ Normal*1/Short
Head-up WarningToggles warning light for head-up flash alert. ON*1/OFF
ACC Forward Vehicle Detect
Beep
Toggles audible notification when vehicle has moved in/out of
Adaptive Cruise Control with Low Speed Follow* range.
2 Adaptive Cruise Control (ACC) with Low Speed Follow* P. 512
2 Adaptive Cruise Control (ACC)* P. 533
ON /OFF*1
Road Departure Mitigation
Setting Selects operating mode of the Ro
ad Departure Mitigation system.
2Road Departure Mitigation System P. 574
Narrow/Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend BeepToggles the LKAS alert for not detecting road lines.
2 Lane Keeping Assist System (LKAS) P. 553ON /OFF*1
Blind Spot Info Toggles the blind spot inform
ation system audible alert.2Blind Spot Information System P. 482
Audible And Visual Alert*1/
Visual Alert
Traffic Sign Recognition
System Display SettingDisplays the traffic sign recognit ion system on instrument panel.
2Traffic Sign Recognition System P. 583Display*1/None
* Not available on all models
24 ACURA INTEGRA-313S56100.book 376 ページ ２０２３年２月１３日　月曜日　午後２時４１分

377
uuCustomized Features u
Continued
Features
*1:Default Setting
Customizable Features Description Selectable Settings
Traffic Sign Recognition
System Speed Limit
Warning Enables over speed limit warning
when speed limit is exceeded.
2Traffic Sign Recognition System P. 583ON*1/OFF
Speed Limit Warning
Threshold SettingSelect speed limit warning threshol d based on personal preference.
2Traffic Sign Recognition System P. 583
Speed Limit*1/
Speed Limit+3mph /
Speed Limit+5mph /
Speed Limit+10mph
(When mph is selected)
Speed Limit
*1/
Speed Limit+5km/h /
Speed Limit+10km/h /
Speed Limit+15km/h
(When km/h is selected)
Driver Attention Monitor Changes the setting for the
driver attention monitor.
2Driver Attention Monitor P. 123
OFF/Tactile Alert/ Tactile
And Audible Alert*1
Rev Match System*Toggles the rev match system.
2 Rev Match System P. 449ON*1/OFF
Rear Sensor Setting
Toggles the rear Parking Sensor. This selection will also affect the
rear Low Speed Braking Control.
2 Parking Sensor System* P. 609
2 Low Speed Braking Control* P. 501, 507
ON*1/OFF
* Not available on all models
24 ACURA INTEGRA-313S56100.book 377 ページ ２０２３年２月１３日　月曜日　午後２時４１分

378
uuCustomized Features u
Features
■Meter/HUD Setup
*1:Default Setting
Customizable Features Description Selectable Settings
Adjust Outside Temp.
DisplayAdjusts outside temperature reading by a few degrees.
2Outside Temperature P. 109
-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
Gear Position Display
*Turns the gear position display feature on and off. ON*1/OFF
“Trip A” Reset Timing
Selects the timing to reset Trip A.
2 Range/Fuel/Trip Meter P. 119
2 Speed/Time/Trip Meter P. 121When Fully Refueled/IGN OFF /
Manually Reset*1
“Trip B” Reset Timing Selects the timing to reset Trip B. 2
Range/Fuel/Trip Meter P. 119
2 Speed/Time/Trip Meter P. 121When Fully Refueled/IGN OFF /
Manually Reset*1
Adjust Alarm VolumeChanges volume level of all system warnings, door opening
warning, and indicator.High /Mid*1/Low
Turn By Turn Auto Display Toggles the pop-up information in
the turn-by-turn navigation
in the driver information interface.
2 Turn-by-Turn Directions P. 122
ON*1/OFF
Speed/Distance UnitsSelects the speed/distance units.
2 Speed/Distance Units P. 131
km/h · km/mph · miles*1
(U.S.)
km/h · km
*1/ mph · miles
(Canada)
Rear Seat Reminder Turns the Rear Seat Reminder feature on and off. ON
*1/OFF
* Not available on all models
24 ACURA INTEGRA-313S56100.book 378 ページ ２０２３年２月１３日　月曜日　午後２時４１分
