Adjust Outside Temp. DisplayIf you sometimes find that the
temperature reading is a few degrees
above or below the actual
temperature, you can adjust it by
following these instructions:
You can choose this customizable
item from‘‘METER SETUP’’by
pressing the INFO (
/
) button
repeatedly.
Adjust the outside temperature value
by pressing the INFO (
/
) button
repeatedly. Press the SEL/RESET
button to set the desired value.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘ADJUST OUTSIDE TEMP.
DISPLAY’’and repeat the procedure
again.
U.S. models
Canadian models
Canadian models U.S. models
CONTINUED
Multi-Information Display
101
Instruments and Controls

Trip A & Avg. Fuel Reset With RefuelTo cause Trip A and AVG. FUEL to
reset every time you refuel your
vehicle, follow these instructions:
You can choose this customizable
item from‘‘METER SETUP’’by
pressing the INFO (
/
) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (
/
) button, then enter your
selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, go back to‘‘TRIP A
& AVG. FUEL RESET with
REFUEL’’and repeat the procedure
again.
Multi-Information Display102

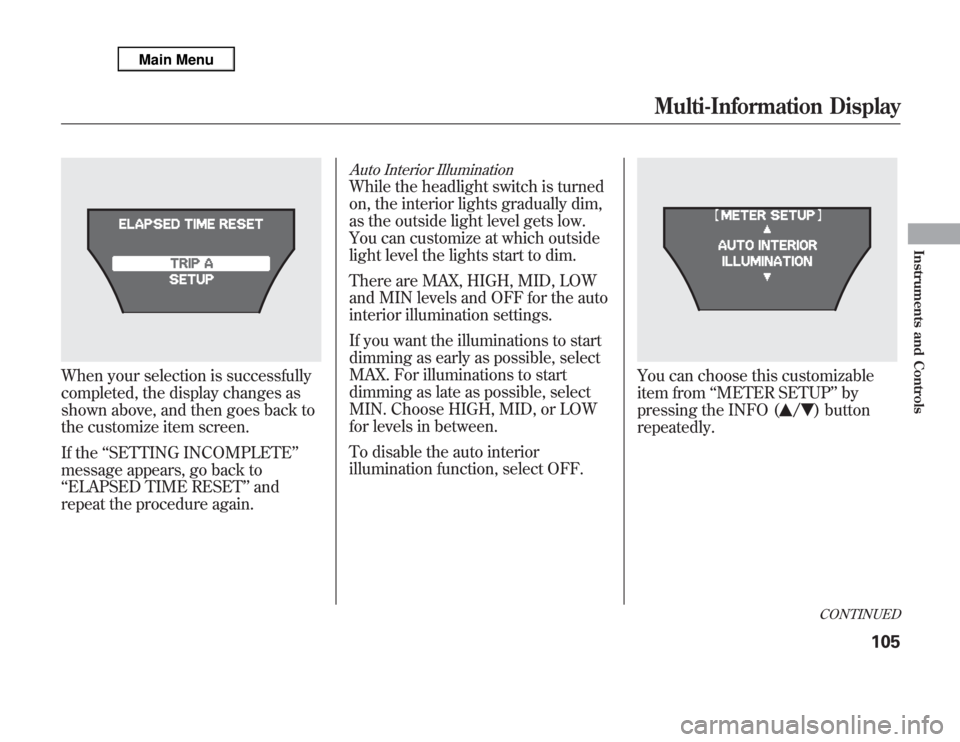

When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘ELAPSED TIME RESET’’and
repeat the procedure again.
Auto Interior IlluminationWhile the headlight switch is turned
on, the interior lights gradually dim,
as the outside light level gets low.
You can customize at which outside
light level the lights start to dim.
There are MAX, HIGH, MID, LOW
and MIN levels and OFF for the auto
interior illumination settings.
If you want the illuminations to start
dimming as early as possible, select
MAX. For illuminations to start
dimming as late as possible, select
MIN. Choose HIGH, MID, or LOW
for levels in between.
To disable the auto interior
illumination function, select OFF.
You can choose this customizable
item from‘‘METER SETUP’’by
pressing the INFO (
/
) button
repeatedly.CONTINUED
Multi-Information Display
105
Instruments and Controls

Position Setup
Here are the two custom settings for
the position setup:●
MEMORY POSITION LINK
●
AUTO TILT & TELESCOPE
STEERING WHEEL
While‘‘POSITION SETUP’’is
shown, press the SEL/RESET button
to enter the customize mode.
Each time you press the INFO
(/
) button, the screen changes as
shown in the illustration. Press the
INFO (
/
) button until you see the
setting you want to customize, then
press the SEL/RESET button to
enter your selection.
SEL/RESET
BUTTON
INFO (▲or▼)
BUTTON
CONTINUED
Multi-Information Display
107
Instruments and Controls

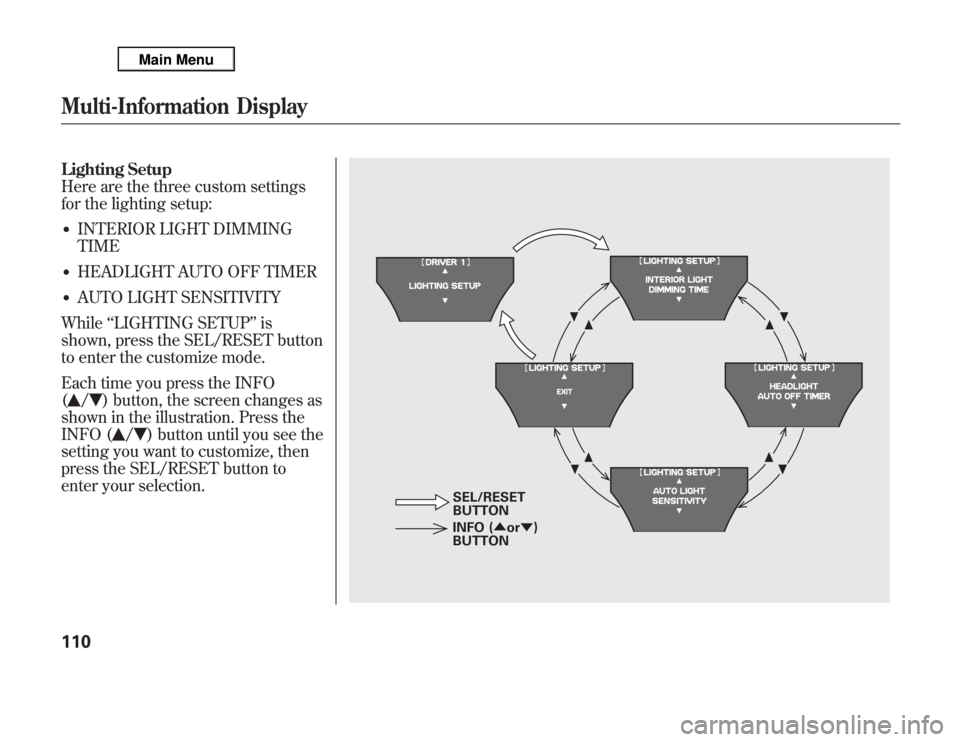

Lighting Setup
Here are the three custom settings
for the lighting setup:●
INTERIOR LIGHT DIMMING
TIME
●
HEADLIGHT AUTO OFF TIMER
●
AUTO LIGHT SENSITIVITY
While‘‘LIGHTING SETUP’’is
shown, press the SEL/RESET button
to enter the customize mode.
Each time you press the INFO
(/
) button, the screen changes as
shown in the illustration. Press the
INFO (
/
) button until you see the
setting you want to customize, then
press the SEL/RESET button to
enter your selection.
SEL/RESET
BUTTON
INFO (▲or▼)
BUTTON
Multi-Information Display110

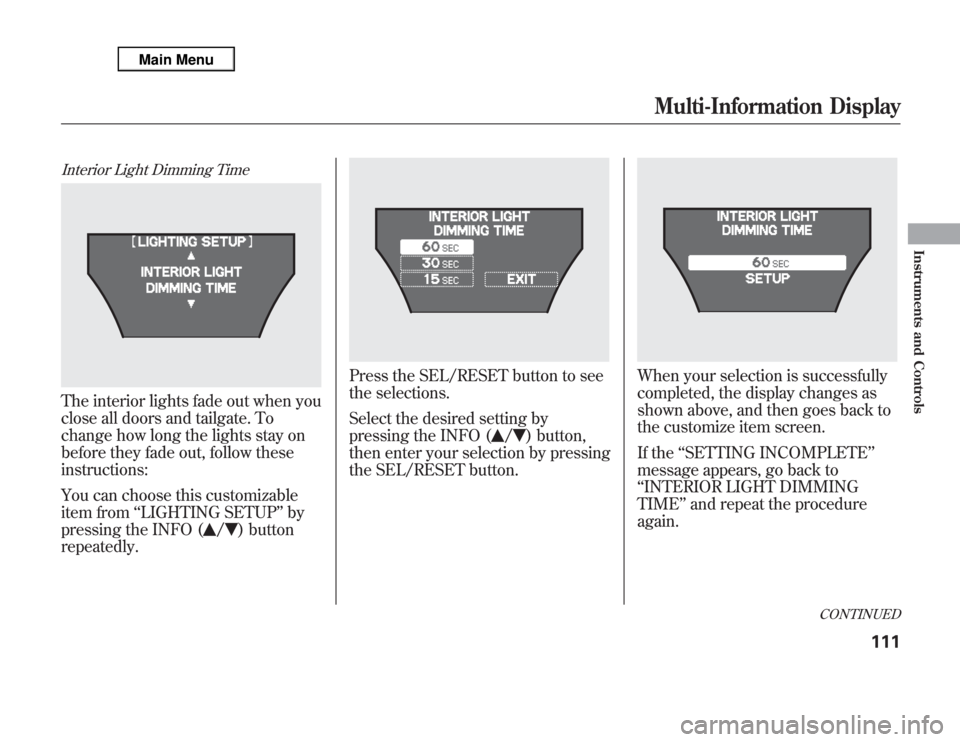

Interior Light Dimming TimeThe interior lights fade out when you
close all doors and tailgate. To
change how long the lights stay on
before they fade out, follow these
instructions:
You can choose this customizable
item from‘‘LIGHTING SETUP’’by
pressing the INFO (
/
) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO (
/
) button,
then enter your selection by pressing
the SEL/RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘INTERIOR LIGHT DIMMING
TIME’’and repeat the procedure
again.
CONTINUED
Multi-Information Display
111
Instruments and Controls

Headlight Auto Off TimerThe headlights, parking lights, side
marker lights, taillights, and license
plate lights go off after the selected
time when you remove the key from
the ignition switch and close the
driver's door. To change how long
the lights stay on before they go off,
follow these instructions:
You can choose this customizable
item from‘‘LIGHTING SETUP’’by
pressing the INFO (
/
) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO (
/
) button,
then enter your selection by pressing
the SEL/RESET button.
Multi-Information Display112

When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘HEADLIGHT AUTO OFF TIMER’’
and repeat the procedure again.
Auto Light SensitivityThe headlights automatically come
on when the headlight switch is in
the AUTO position and the ambient
light reaches a changeable level. You
can select the auto light sensitivity
from the following five levels:
MAX－
The headlights come on when it is
bright.
HIGH－
The headlights come on when it is
somewhat bright.
MID－
The headlights come on when it is as
bright as sunset or sunrise.
LOW－
The headlights come on when it is
somewhat dark.
MIN－
The headlights come on when it is
dark.
You can choose this customizable
item from‘‘LIGHTING SETUP’’by
pressing the INFO (
/
) button
repeatedly.CONTINUED
Multi-Information Display
113
Instruments and Controls

Door/Window Setup
Here are the five custom settings for
the door/window setup:●
AUTO DOOR LOCK
●
AUTO DOOR UNLOCK
●
KEY AND REMOTE UNLOCK
MODE
●
KEYLESS LOCK
ACKNOWLEDGMENT
●
SECURITY RELOCK TIMER
While‘‘DOOR/WINDOW SETUP’’is
shown, press the SEL/RESET button
to enter the customize mode.
Each time you press the INFO
(/
) button, the screen changes as
shown in the illustration. Press the
INFO (
/
) button until you see the
setting you want to customize, then
press the SEL/RESET button to
enter your selection.
SEL/RESET
BUTTON
INFO (▲or▼)
BUTTON
CONTINUED
Multi-Information Display
115
Instruments and Controls

When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, go back to‘‘AUTO
DOOR LOCK’’and repeat the
procedure again.
Auto Door UnlockThere are three settings you can
choose from:
SHIFT TO P－The driver's door or
all the doors, depending on the door
lock mode setting (see page 116),
unlock when you move the shift lever
to Park with the brake pedal
depressed.
IGN OFF－The driver's door or all
the doors, depending on the door
lock mode setting (see page 116),
unlock when you turn the ignition
switch to the LOCK (0) position.
OFF－The auto door unlock is
deactivated all the time. This is the
factory default setting.
You can choose this customizable
item from‘‘DOOR/WINDOW
SETUP’’by pressing the INFO (
/
) button repeatedly.
CONTINUED
Multi-Information Display
117
Instruments and Controls
