Acura MDX 2012 Repair Manual

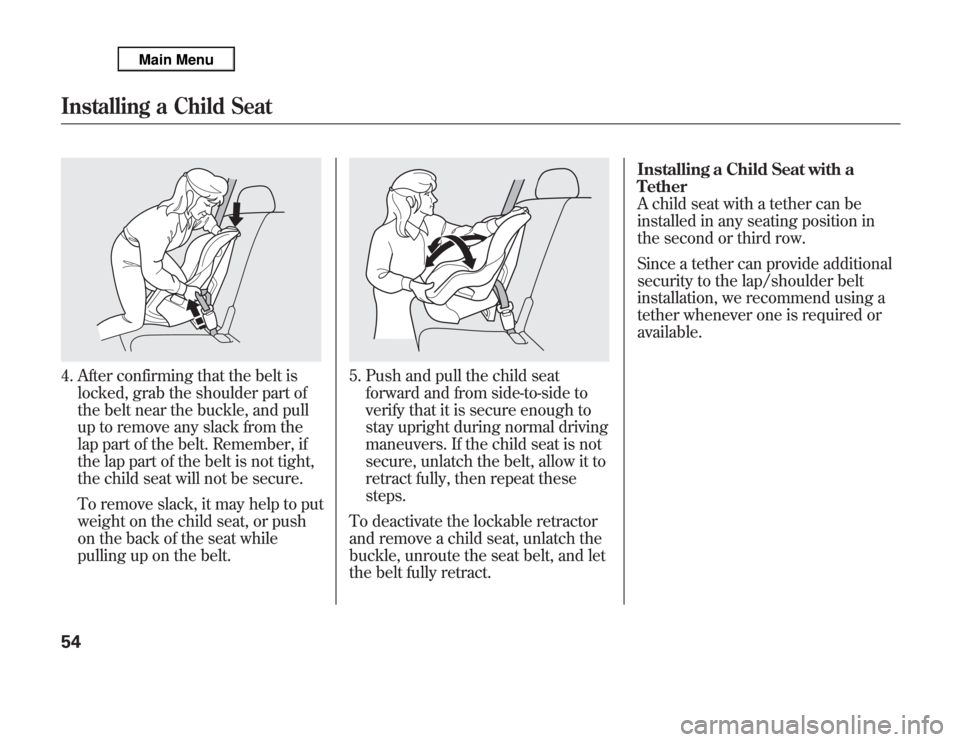

4. After confirming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
To remove slack, it may help to put
weight on the child seat, or push
on the back of the seat while
pulling up on the belt.
5. Push and pull the child seat
forward and from side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract fully, then repeat these
steps.
To deactivate the lockable retractor
and remove a child seat, unlatch the
buckle, unroute the seat belt, and let
the belt fully retract.Installing a Child Seat with a
Tether
A child seat with a tether can be
installed in any seating position in
the second or third row.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.
Installing a Child Seat54

Second Row InstallationEach second row seat has a tether
anchorage point behind the seat-
back.
1. After properly securing the child
seat (see page 53), lift the head
restraint, then route the tether
strap over the seat-back and
through the head restraint legs.
For the center seat, lower the head
restraint, then route the tether strap
over the head restraint and seat-back.
TETHER ANCHORAGE POINT
TETHER STRAP
Outer Seating Position
CONTINUED
Installing a Child Seat
55
Driver and Passenger Safety

2. Attach the tether strap hook to the
anchor, making sure the tether
strap is not twisted.
3. Tighten the strap according to the
seat maker's instructions.
If the tether strap is too long and
cannot be tightened firmly, find a
route where the strap can be
tightened securely.
Third Row InstallationEach third row seat has a tether
anchorage point on the tailgate sill.
1. Select the anchor point you want to
use. Then open the anchor cover
with a small flat-tip screwdriver.
2. Secure the child seat in the
desired position (see page 53).
3. Remove the head restraint, then
attach the tether strap hook to the
anchor, making sure the strap is
not twisted.
Make sure the removed head
restraint is secured in a safe place.
4. Tighten the strap according to the
seat maker's instructions.
If the tether strap is too long and
cannot be tightened firmly, find a
route where the strap can be
tightened securely.
Installing a Child Seat56

When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear the lap/
shoulder belt.
The following pages give instructions
on how to check proper seat belt fit,
what kind of booster seat to use if
one is needed, and important
precautions for a child who must sit
in front.
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger's front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.Checking Seat Belt Fit
To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt, then ask
yourself:
1. Does the child sit all the way back
against the seat?
2. Do the child's knees bend
comfortably over the edge of the
seat?
CONTINUED
Protecting Larger Children
57
Driver and Passenger Safety

3. Does the shoulder belt cross
between the child's neck and arm?
4. Is the lap part of the belt as low as
possible, touching the child's
thighs?
5. Will the child be able to stay
seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat.Using a Booster Seat
A child who has outgrown a forward-
facing child seat should ride in a
back seat and use a booster seat until
the lap/shoulder belt fits them
properly without the booster.Some states, Canadian provinces and
territories also require children to
use a booster seat until they reach a
given age or weight (e.g., 6 years or
60 lbs). Be sure to check current
laws in the states, provinces or
territories where you intend to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
federal safety standards (see page
48) and that you follow the booster
seat maker's instructions.
Protecting Larger Children58

If a child who uses a booster seat
must ride in front, move the vehicle
seat as far back as possible and be
sure the child is wearing the seat belt
properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle's or
booster's seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.When Can a Larger Child Sit in
Front
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in a back seat.
If the passenger's front airbag
inflates in a moderate to severe
frontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child's body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.Of course, children vary widely. And
while age may be one indicator of
when a child can safely ride in front,
there are other important factors you
should consider.
Physical SizePhysically, a child must be large
enough for the lap/shoulder belt to
properly fit (see pages 16 and 57). If
the seat belt does not fit properly,
with or without the child sitting on a
booster seat, the child should not sit
in front.MaturityTo safely ride in front, a child must
be able to follow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
CONTINUED
Protecting Larger Children
59
Driver and Passenger Safety

If you decide that a child can safely
ride up front, be sure to:●
Carefully read the owner's manual,
and make sure you understand all
seat belt instructions and all safety
information.
●
Move the vehicle seat to the rear-
most position.
●
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
●
Check that the child's seat belt is
properly and securely positioned.
●
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.Additional Safety Precautions
●
Do not let a child wear a seat belt
across the neck.
This could result
in serious neck injuries during a
crash.
●
Do not let a child put the shoulder
part of a seat belt behind the back
or under the arm.
This could cause
very serious injuries during a
crash. It also increases the chance
that the child will slide under the
belt in a crash and be injured.
●
Two children should never use the
same seat belt.
If they do, they
could be very seriously injured in a
crash.
●
Do not put any accessories on a
seat belt.
Devices intended to
improve a child's comfort or
reposition the shoulder part of a
seat belt can make the belt less
effective and increase the chance
of serious injury in a crash.
Protecting Larger Children60

Your vehicle's exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
follow the information on this page.
Have the exhaust system inspected
for leaks whenever:●
The vehicle is raised for an oil
change.
●
You notice a change in the sound
of the exhaust.
●
The vehicle was in a crash that
may have damaged the underside.
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.With the tailgate open, airflow can
pull exhaust gas into your vehicle's
interior and create a hazardous
condition. If you must drive with the
tailgate open, open all the windows,
and set the climate control system as
shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconfined area, adjust the climate
control system as follows:
1. Select the fresh air mode.
2. Select the
mode.
3. Turn the fan on high speed.
4. Set the temperature control to a
comfortable setting.
Carbon Monoxide Hazard
61
Driver and Passenger Safety

RADIATOR CAPDASHBOARD
BATTERY LABEL
U.S. models only
These labels are in the locations shown. They warn
you of potential hazards that could cause serious
injury or death. Read these labels carefully.
If a label comes off or becomes hard to read (except
for the U.S. dashboard label which may be removed
by the owner), contact your dealer for a replacement.Safety Labels62

SUN VISORU.S. models
U.S. models
DOORJAMBSU.S. models Canadian models
Canadian models
Safety Labels
63
Driver and Passenger Safety
