Acura MDX 2012 Owner's Manual

Customize Settings
You can customize some of the
vehicle control settings to your
preference. Here are the settings you
can customize:●
ADAPTIVE CRUISE CONTROL
SETUP
●
METER SETUP
●
POSITION SETUP
●
LIGHTING SETUP
●
DOOR/WINDOW SETUP
●
WIPER SETUP
When you want to change the
vehicle control settings, press the
INFO (
/
) button to select CHG
SETTING, then press the SEL/
RESET button.Each time you press the INFO (
/
) button, the screen changes as
shown on the next page. Press the
INFO (
/
) button, until you see
the setup you want to customize,
then press the SEL/RESET button to
enter your selection.
Multi-Information Display94

SEL/RESET BUTTON
INFO (▲/▼) BUTTONMETER SETUP
see page 99
POSITION SETUP
see page 107
LIGHTING SETUP
see page 110 Select‘‘EXIT’’
Select‘‘CANCEL’’
DOOR/WINDOW
SETUP
see page 115
WIPER SETUP
see page 123 Select
‘‘DEFAULT ALL’’ADAPTIVE CRUISE
CONTROL SETUP
see page 96
CONTINUED
Multi-Information Display
95
Instruments and Controls

Adaptive Cruise Control SetupIf equippedThere are two custom settings for
adaptive cruise control (ACC):●
PRE-RUNNING CAR DETECT
BEEP
●
ACC DISPLAY SPEED UNIT
To enter customize mode, press the
SEL/RESET button while‘‘ACC
SETUP’’is displayed.
Each time you press the INFO (
/
) button, the screen changes as
shown in the illustration. Press the
INFO (
/
) button until you see the
setting you want to customize, then
press the SEL/RESET button to
enter your selection.
SEL/RESET
BUTTON
INFO (▲/▼)
BUTTON
Multi-Information Display96

Pre-Running Car Detect BeepWhen PRE-RUNNING CAR
DETECT BEEP is set to ON, one
beep sounds when the ACC detects a
vehicle in front of you. A beep also
sounds when that vehicle passes out
of the range of your vehicle's radar
sensor.
Select this item from‘‘ACC SETUP’’
by pressing the INFO (
/
) button
repeatedly until‘‘PRE-RUNNING
CAR DETECT BEEP’’is displayed.
Press the SEL/RESET button to
display the selections. Select ON or
OFF by pressing the INFO (
/
)
button, then press the SEL/RESET
button to enter your selection.
When your selection is successfully
completed, the display changes as
shown above, and then returns to the
customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, return to‘‘PRE-
RUNNING CAR DETECT BEEP’’
and repeat the procedure again.
CONTINUED
Multi-Information Display
97
Instruments and Controls

Adaptive Cruise Control Display Speed
UnitTo change the unit of measurement
from mph to km/h, follow these
instructions:
Select this item from‘‘ACC SETUP’’
by pressing the INFO (
/
) button
repeatedly until‘‘ACC DISPLAY
SPEED UNIT’’is displayed.
Press the SEL/RESET button to
display the selections. The
highlighted unit, mph or km/h, is
the current setting. To change the
setting, press the INFO (
/
)
button until the unit you want is
highlighted, then press the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then returns to the
customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, return to‘‘ACC
DISPLAY SPEED UNIT’’and repeat
the procedure again.
Multi-Information Display98

Meter Setup
Here are the six custom settings for
the meter setup:●
LANGUAGE SELECTION
●
ADJUST OUTSIDE TEMP.
DISPLAY
●
TRIP A & AVG. FUEL RESET with
REFUEL
●
ADJUST ALARM VOLUME
●
ELAPSED TIME RESET
●
AUTO INTERIOR
ILLUMINATION
While METER SETUP is shown,
press the SEL/RESET button to
enter the customize mode.
Each time you press the INFO (
/
) button, the screen changes as
shown in the illustration. Press the
INFO (
/
) button until you see the
setting you want to customize, then
press the SEL/RESET button to
enter your selection.
INFO (▲/▼)
BUTTON SEL/RESET
BUTTON
CONTINUED
Multi-Information Display
99
Instruments and Controls

Language SelectionThere are three language selections
you can make: English, French, and
Spanish. To choose the language you
want, follow these instructions:
You can choose this customizable
item from‘‘METER SETUP’’by
pressing the INFO (
/
) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired language by
pressing the INFO (
/
) button,
then enter your selection by pressing
the SEL/RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘LANGUAGE SELECTION’’and
repeat the procedure again.
Multi-Information Display100

Adjust Outside Temp. DisplayIf you sometimes find that the
temperature reading is a few degrees
above or below the actual
temperature, you can adjust it by
following these instructions:
You can choose this customizable
item from‘‘METER SETUP’’by
pressing the INFO (
/
) button
repeatedly.
Adjust the outside temperature value
by pressing the INFO (
/
) button
repeatedly. Press the SEL/RESET
button to set the desired value.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘ADJUST OUTSIDE TEMP.
DISPLAY’’and repeat the procedure
again.
U.S. models
Canadian models
Canadian models U.S. models
CONTINUED
Multi-Information Display
101
Instruments and Controls

Trip A & Avg. Fuel Reset With RefuelTo cause Trip A and AVG. FUEL to
reset every time you refuel your
vehicle, follow these instructions:
You can choose this customizable
item from‘‘METER SETUP’’by
pressing the INFO (
/
) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (
/
) button, then enter your
selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, go back to‘‘TRIP A
& AVG. FUEL RESET with
REFUEL’’and repeat the procedure
again.
Multi-Information Display102

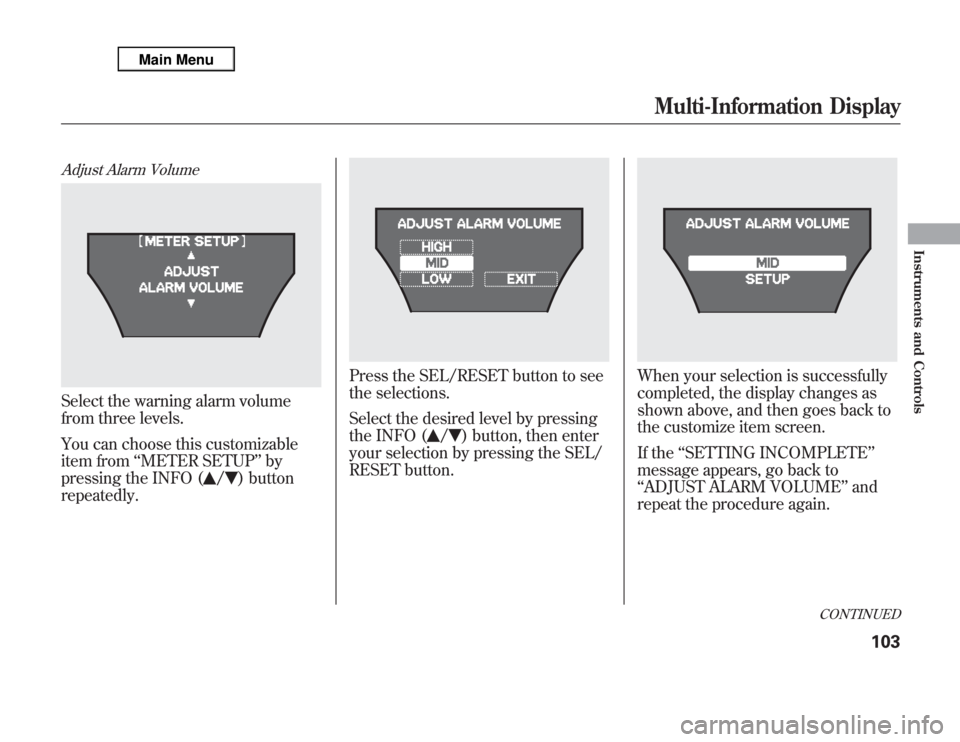

Adjust Alarm VolumeSelect the warning alarm volume
from three levels.
You can choose this customizable
item from‘‘METER SETUP’’by
pressing the INFO (
/
) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired level by pressing
the INFO (
/
) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘ADJUST ALARM VOLUME’’and
repeat the procedure again.
CONTINUED
Multi-Information Display
103
Instruments and Controls
