480Information
Specifications■Vehicle Specifications*1: 2WD models
*2: AWD modelsModel
Acura MDX
No. of Passengers:
Front 2
Rear 2nd Row 3
3rd Row 2
Total 7
Weights:Gross Vehicle
Weight Rating
U.S.:
5,368 lbs (2,435 kg)
*1
5,677 lbs (2,575 kg)
*2
Canada:
2,575 kg
Gross Axle Weight
Rating (Front)
U.S.:
2,811 lbs (1,275 kg)
*1
2,910 lbs (1,320 kg)
*2
Canada:
1,320 kg
Gross Axle Weight
Rating (Rear)
U.S.:
2,734 lbs (1,240 kg)
*1
2,965 lbs (1,345 kg)
*2
Canada:
1,345 kg
Gross Combined Weight
RatingU.S.: 8,036 lbs (3,645 kg)
*1
9,833 lbs (4,460 kg)
*2
Canada:
4,460 kg
Air Conditioning:Refrigerant Type
HFC-134a (R-134a)
Charge Quantity
23.8 – 25.6 oz (675 – 725 g)
Lubricant Type
RL897PAG
■Engine Specifications
■Fuel
■Washer FluidDisplacement
211.8 cu-in (3,471 cm
3)
Spark Plugs NGK DILZKR7B11G
Type
Unleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 19.5 US gal (74 ℓ)
Tank Capacity
U.S.: 4 US qt (3.8 ℓ)
Canada: 6.3 US qt (6.0 ℓ)
■Light Bulbs
■Brake FluidHeadlights (High/Low Beam)
LED
Front Turn Signal/Side Marker/
Parking Lights28/8W (Amber)
Daytime Running Lights
LED
Side Turn Signal Lights (on Door
Mirrors)LED
Brake Lights
21W
Rear Side Marker Lights LED
Taillights
LED
Back-Up Lights 21W
Rear Turn Signal Lights
21W
High-Mount Brake Light LED
Rear License Plate Light
LED
LED Puddle Lights LED
Interior Lights
Front, Second Row and Third
Row Lights
LED
Front and Rear Ambient Lights
LED
Vanity Mirror Lights
1.4W
Door Courtesy Lights
3.4W
Console Compartment Light
1.4W
Glove Box Light
1.4W
Foot Lights
5W
Cargo Area Lights
5W
Specified
Acura Heavy Duty Brake Fluid DOT 3

481
uuSpecificationsu
Information
■Automatic Transmission Fluid
■Rear Differential Fluid
*
■Transfer Assembly Fluid
*
Specified
Acura ATF DW-1(automatic transmission fluid)
Capacity Change 3.3 US qt (3.1 ℓ)
Specified
Acura All Wheel Drive Fluid (DPSF)
Capacity Change 2.7 US qt (2.5 ℓ)
Specified
Acura HGO-Type1 to be applied.
Capacity Change 0.45 US qt (0.43 ℓ)
■Engine Oil
■Engine CoolantRecommended
·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
CapacityChange 5.4 US qt (5.1 ℓ)
Change
including
filter5.7 US qt (5.4 ℓ)
Specified
Acura Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity
1.93 US gal (7.3 ℓ)
(change including the remaining 0.19 US gal
(0.72 ℓ) in the reserve tank)
■Tire*1: BASE models
*2: Except BASE modelsRegular
Size
245/60R18 105H
*1
245/55R19 103H
*2
Pressure
psi (kPa [kgf/cm
2])
35 (240 [2.4])
Compact
Spare
*
Size T165/80D17 104M
Pressure
psi (kPa [kgf/cm
2])60 (420 [4.2])
Wheel Size
Regular
18 x 8J
*1
19 x 8J
*2
Compact Spare
*
17 x 4T
* Not available on all models

482Information

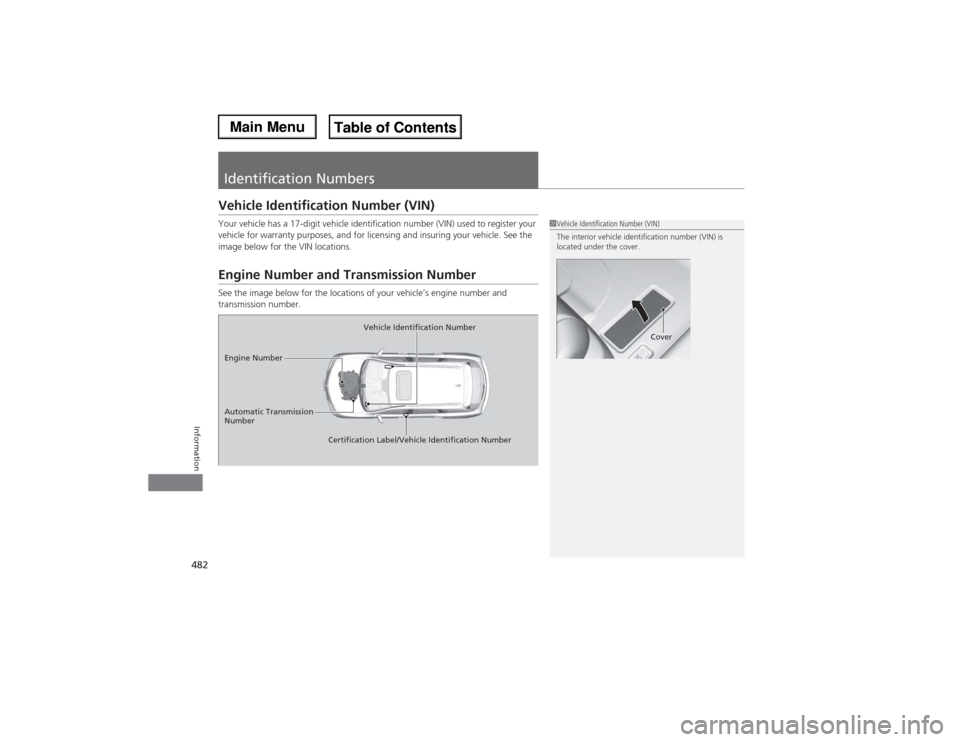

Identification NumbersVehicle Identification Number (VIN)Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.Engine Number and Transmission NumberSee the image below for the locations of your vehicle’s engine number and
transmission number.
1Vehicle Identification Number (VIN)
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/Vehicle Identification Number Automatic Transmission
Number

483Information
Devices that Emit Radio WavesThe following products and systems on your vehicle emit radio waves when in operation.Each of the above complies with the appropriate requirements or the required standards of
FCC (Federal Communications Commission) and Industry Canada Standard, described below:As required by the FCC:This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.AcuraLinkAudio SystemBlind Spot Information SystemBluetooth® AudioBluetooth® HandsFreeLink®HomeLink® Universal TransceiverCollision Mitigation Braking System
TM
Immobilizer SystemRemote TransmitterKeyless Access SystemTire Pressure Monitoring System (TPMS)

484Information
Reporting Safety DefectsIn the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov.
In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety.

485
Continued
Information
Emissions TestingTesting of Readiness CodesYour vehicle uses “readiness codes,” as part of its onboard self diagnostic system.
Some states refer to these codes during testing to see if your vehicle’s emissions
components are working properly.
The codes may not be read if you go through the testing just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1.Fill the gas tank to approximately 3/4 full.
2.Park the vehicle and leave the engine off for 6 hours or more.
3.Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4.Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5.Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6.Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.

486
uuEmissions TestinguTesting of Readiness Codes
Information
7.Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in (D. Do not use cruise control. When traffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8.Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.
9.Park the vehicle and leave the engine off for 30 minutes.

487
Continued
Information
Warranty Coverages■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessories, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your vehicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.
Accessory Limited Warranty – Acura accessories are covered under this warranty.
Time and mileage limits depend on the type of accessory and other factors. Please
read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Acura replacement parts
against defects in materials and workmanship.

488
uuWarranty Coveragesu
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Lifetime Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all these warranties. Please read the Acura
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.■Canadian Owners
Please refer to the warranty manual that came with your vehicle.

489Information
Authorized Manuals■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.■For U.S. Owners:
Manuals be purchased from Helm Incorporated. You can order a manual by phone
at (800) 782-4356 (credit card orders only), or online at www.helminc.com.
1Authorized Manuals
For Canadian Owners:
Please contact a dealer to order any manuals that you
may require.
