warning Acura MDX 2019 Owner's Manual

673
Handling the Unexpected

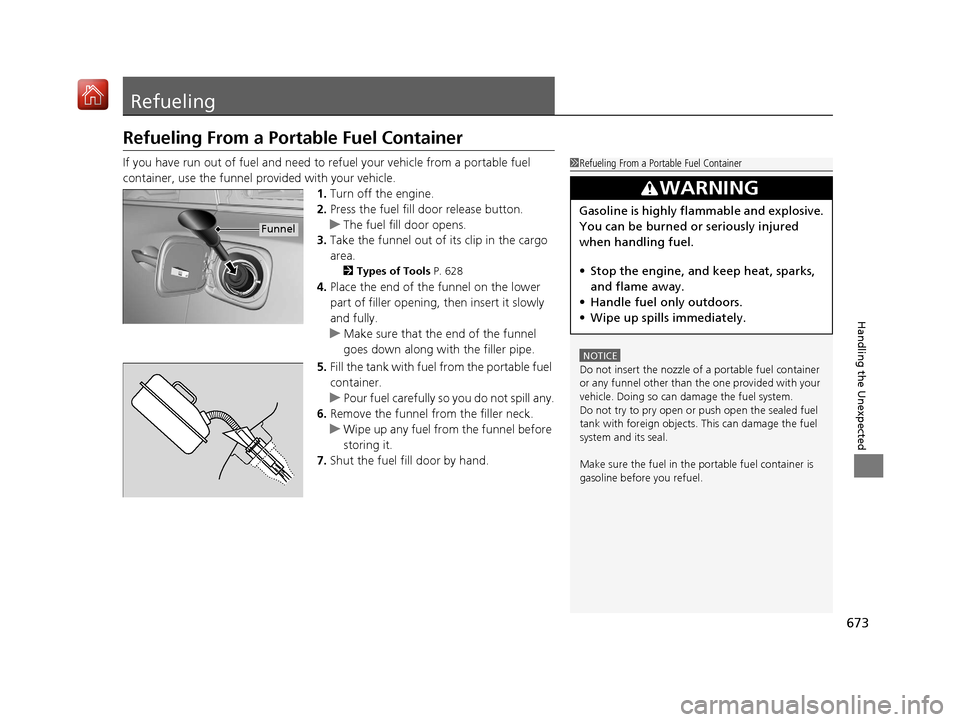

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Take the funnel out of its clip in the cargo
area.
2 Types of Tools P. 628
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
19 ACURA MDX-31TZ56510.book 673 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

693
Index
Flat Tire............................................. 629, 636
Floor Mats ................................................ 621
Fluids Automatic Transmission .......................... 593
Brake ...................................................... 594
Engine Coolant ....................................... 591
Windshield Washer ................................. 594
Fog Lights ................................................. 176
Folding Down the Second Row Seat ...... 198
Folding Down the Third Row Seat .......... 204
Foot Brake ................................................ 534
Front Airbags (SRS) .................................... 44
Front Seats ................................................ 192
Adjusting ................................................ 192
Front Sensor Camera ............................... 490
Fuel ..................................................... 20, 571
Fuel Economy and CO
2 Emissions ............ 574
Gauge .................................................... 119
Instant Fuel Economy .............................. 123
Low Fuel Indicator..................................... 85
Range ..................................................... 123
Recommendation.................................... 571
Refueling ................................................ 571
Fuel Economy and CO
2 Emissions ............ 574
Fuel Fill Cap ................................................ 20
Fuel Fill Door ...................................... 20, 572
Unable to Unlock .................................... 671
Fuses ......................................................... 662
Inspecting and Changing ........................ 669
Locations ........................ 662, 665, 667, 668
G
Gasoline (Fuel) Economy ................................................. 574
Gauge ..................................................... 119
Information ............................................. 571
Low Fuel Indicator ..................................... 85
Refueling ................................................. 571
Gauges ...................................................... 119
Gear Position Indicator ...................... 83, 477
Gear Shift Positions Automatic Transmission ........................... 475
Glass (care) ................................................ 623
Glove Box .................................................. 209
H
Handling the Unexpected ........................ 627
HandsFreeLink ® (HFL) ............................... 395
Auto Answer ........................................... 412
Automatic Import of Cellular Phonebook
and Call History ..................................... 414
Automatic Transferring ............................ 412
Displaying Messages ................................ 432
HFL Buttons ............................................. 395
HFL Menus .............................................. 398
HFL Status Display ................................... 396
Limitations for Manua l Operation ............ 397
Making a Call .......................................... 423
Options During a Call .............................. 429
Phone Setup ............................................ 403
Phonebook Phonetic M odification ........... 418 Receiving a Call ....................................... 428
Receiving a Text/E-mail Message.............. 430
Ring Tone................................................ 413
Roadside Assistance ................................ 436
Selecting a Mail Account ......................... 431
Speed Dial ............................................... 415
To Create a Security PIN .......................... 410
To Set Up a Text/E-mail Message
Option................................................... 408
Use Contact Photo .................................. 413
Hard Disk Drive (HDD) Audio .................. 273
Hazard Warning Button .............................. 4
HDMI
TM Port .............................................. 339
Head Restraints ........................ 199, 201, 202
Headlight Washers ................................... 183
Headlights ................................................. 173
Aiming .................................................... 595
Auto High-Beam System.......................... 177
Automatic Operation............................... 174
Dimming ......................................... 173, 176
Operating................................................ 173
Heated Door Mirrors ................................ 185
Heated Steering Wheel ............................ 217
Heated Windshield ................................... 185
Heater (Steering Wheel) .......................... 217
Heaters (Seat) ................................... 218, 219
HFL (HandsFreeLink ®)............................... 395
High Beam Indicator .................................. 88
Hill Start Assist System ............................. 472
HomeLink ® Universal Transceiver ............ 392
Honda App License Agreement .............. 321
19 ACURA MDX-31TZ56510.book 693 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

696
Index
Parking Brake and Brake System Indicator ............................................ 78, 659
Parking Sensor System .............................. 550
Passenger Front Airbag Off Indicator ....... 54
Passing Indicators ..................................... 173
Power Tailgate .......................................... 157
Power Windows ........................................ 166
Precautions While Driving ........................ 473
Driving Guidelines for Your Utility Vehicle................................................... 473
Rain ......................................................... 473
Pregnant Women ....................................... 39
Puncture (Tire) .................................. 629, 636
R
Radiator..................................................... 592
Radio (AM/FM) .......................................... 256
Radio (SiriusXM ®)...................................... 259
Radio Data System (RDS) .......................... 257
Range ........................................................ 123
RDS (Radio Data System) .......................... 257
Readiness Codes (Emissions Testing) ....... 681
Rear Climate Control System ................... 227
From the Front Panel ............................... 227
From the Rear Panel................................. 230
Rear Defogger/Heated Door Mirror
Button ...................................................... 185
Rear Entertainment System (RES) ............ 337
Auxiliary Console Panel ............................ 338
Front Control Panel Operation ................. 354 HDMI
TM Port ............................................ 339
Operating the System .............................. 341
Overhead Screen ..................................... 340
Playable Discs .......................................... 359
Rear Control Panel Operation .................. 342
Wireless Headphones .............................. 337
Rear Seats ................................................. 204
Second Row Seat ............................ 197, 198
Third Row Seat ........................................ 204
Rearview Mirror ....................................... 189
Refueling .................................................. 571
Fuel Gauge.............................................. 119
Gasoline .......................................... 571, 676
Low Fuel Indicator ..................................... 85
Regulations ............................... 529, 607, 679
Remote Engine Start with Vehicle Feedback ................................................. 469
Checking Door Lock Status...................... 150
Remote Transmitter ................................. 147
Replacement Battery ............................ 615, 616, 617, 618
Bulbs ....................................................... 595
Front Wiper Blade Rubber ....................... 600
Fuses ............................... 662, 665, 667, 668
Rear Wiper Blade Rubber......................... 602
Tires ........................................................ 610
Reporting Safety Defects ......................... 680
Resetting a Trip Meter ............................. 122
Reverse Tilt Door Mirror .......................... 190
Right Selector Wheel ....................... 120, 126 Road Departure Mitigation (RDM)
......... 507
On and Off ............................................. 509
S
Safe Driving ................................................ 27
Safety Checklist .......................................... 32
Safety Labels .............................................. 75
Safety Message ............................................ 1
Seat Belts .................................................... 33
Adjusting the Shoulder Anchor ................. 37
Automatic Seat Belt Tensioners ................. 35
Checking .................................................. 40
Detachable Anchor ................................... 38
Fastening .................................................. 36
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 66
Pregnant Women...................................... 39
Reminder .................................................. 34
Warning Indicator ............................... 34, 85
Seat Heaters ..................................... 218, 219
Seat Ventilation ....................................... 218
Seats .......................................................... 192
Adjusting ................................................ 192
Driver’s Seat Lumbar Support .................. 192
Front Seats.............................................. 192
Rear Seats ............................................... 204
Seat Heaters ................................... 218, 219
Seat Ventilation ...................................... 218
Second Row Seat ............................ 197, 198
Third Row Seat ....................................... 204
19 ACURA MDX-31TZ56510.book 696 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

698
Index
Tires........................................................... 604
Air Pressure ..................................... 605, 677
Checking and Maintaining ....................... 604
Inspection ................................................ 604
Labeling................................................... 605
Puncture (Flat Tire) ........................... 629, 636
Regulations.............................................. 607
Rotation .................................................. 611
Spare Tire ........................................ 629, 677
Summer................................................... 612
Temporary Tire Repair Kit......................... 637
Tire Chains .............................................. 612
Tire Repair Kit .......................................... 636
Wear Indicators ....................................... 609
Winter ..................................................... 612
Tools .......................................................... 628
Towing a Trailer ........................................ 454
Equipment and Accessories...................... 458
Load Limits .............................................. 454
Towing Your Vehicle ................................ 464
Emergency............................................... 670
TPMS (Tire Pressure Monitoring
System) .................................................... 527
Indicator ............................................ 88, 661
Trailer Stability Assist ............................... 462
Transmission ........................................ 18, 475
Automatic ......................................... 18, 475
Fluid ........................................................ 593
Gear Position Indicator....................... 83, 477
Indicator ............................................ 84, 661
Number ................................................... 678 Sequential Mode ..................................... 481
TRIP Button ............................................... 121
Trip Meter ................................................. 122
Troubleshooting ....................................... 627
Blown Fuse...................... 662, 665, 667, 668
Brake Pedal Vibrates .................................. 24
Buzzer Sounds When Opening Door.......... 25
Emergency Towing .................................. 670
Engine Won’t Start .................................. 650
Noise When Braking .................................. 26
Overheating ............................................ 655
Puncture/Flat Tire ............................ 629, 636
Rear Door Won’t Open...................... 24, 153
Warning Indicators .................................... 78
Turn Signals .............................................. 172
Indicators (Instrument Panel) ..................... 88
Turn-by-Turn Directions ........................... 124
U
Under-floor Storage Area ........................ 211
Unlocking the Doors ................................ 142
Unlocking the Front Doors from the Inside ................................................. 13, 151
USB Flash Drives ....................................... 320
USB Port .................................................... 235
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 678Vehicle Stability Assist
® (VSA ®) ............... 520
Off Button .............................................. 521
Off Indicator ............................................. 87
System Indicator ............................... 87, 520
Viscosity (Oil) ............................................ 677
Voice Control Operation ......................... 253
Voice Portal Screen ................................. 254
Voice Recognition ................................... 253
VSA ® (Vehicle Stability Assist ®) ............... 520
W
Wallpaper ................................................. 249
Warning and Information Messages ...... 100
Warning Indicator On/Blinking ............... 657
Warning Labels .......................................... 75
Warranties (Warranty Manual provided separately) .............................................. 683
Watts ........................................................ 676
Wear Indicators (Tire) .............................. 609
Wheel Nut Wrench (Jack Handle) ........... 633
Window Washers ..................................... 180
Adding/Refilling Fluid .............................. 594
Switch .................................................... 180
Windows (Opening and Closing) ............ 166
Windshield ............................................... 180
Cleaning ................................................. 623
Defrosting/Defogging ............................. 226
Washer Fluid ........................................... 594
Wiper Blades........................................... 600
Wipers and Washers ............................... 180
19 ACURA MDX-31TZ56510.book 698 ページ ２０１８年１２月１１日　火曜日　午後４時４７分
