6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Steering Wheel Adjustments (P186)
❚ENGINE START/STOP Button (P166)
❚Audio System (P238)
❚System Indicators (P84)
❚Gauges (P104)
❚Driver Information
Interface
(P108)
❚ (Vehicle Stability AssistTM (VSA®)
System OFF) Button
(P464)
❚Parking Sensor System Button* (P563)
❚Safety Support Switch (P473, 483, 493, 538)
❚Brightness Control (P181)
❚Heated Windshield Button* (P180)
❚Hazard Warning Button
❚Rear Defogger/Heated Door Mirror
Button
(P180)
❚Front Seat Heater Buttons (P227)
❚Front Seat Ventilation Buttons* (P227)
❚Climate Control System (P229)
❚True Touchpad Interface (P245)
❚Head-Up Display Buttons* (P122)
❚Audio/Information Screen (P248)
❚Navigation System*
() See the Navigation System Manual
❚Electric Parking Brake Switch (P551)
22 ACURA MDX-31TYA6000_02.book 6 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

7
Quick Reference Guide
❚Paddle Shifter (Shift down) (P449)
❚Paddle Shifter (Shift up) (P449)
❚Voice Control Buttons (P274)
❚Bluetooth® HandsFreeLink ® System Voice Control Buttons (P376)
❚Heated Steering Wheel Button* (P226)
❚Headlights/Turn Signals (P169, 170)
❚Fog Lights* (P173)
❚ Button (P497)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P496)
❚Right Selector Wheel (P109)
❚Lane Keeping Assist System (LKAS) Button
(P516)
❚Horn (Press an area around .)
❚Interval Button (P507)
❚Wipers/Washers (P177)
❚Camera Button* (P574)
❚Audio Remote Controls (P242)
❚Left Selector Wheel (P124)
* Not available on all models
22 ACURA MDX-31TYA6000_02.book 7 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

Visual Index
8
Quick Reference Guide❚Power Window Switches (P161)
❚Hood Release Handle (P596)
❚Driver’s Side Interior Fuse Box (P679, 680)
❚Driver’s Knee Airbag (P53)
❚Memory Buttons (P184)
❚SET Button (P184)
❚Rearview Mirror (P187)
❚Driver’s Front Airbag (P48)
❚Passenger’s Side Interior Fuse
Box
(P681)
❚Door Mirror Controls (P188)
❚Master Door Lock Switch (P145)
❚Power Tailgate Button (P153)
❚Passenger’s Knee Airbag (P53)
❚HomeLink® Buttons (P374)
❚USB Ports (P239)
❚Accessory Power Socket (P219)
❚USB Port (P239)
❚Wireless Charger (P222)
❚Glove Box (P211)
❚Shift Button
Electronic Gear Selector
(P442)
❚Dynamic Mode Switch (P450)
❚Automatic Brake Hold Button (P556)
❚Auto Idle Stop OFF Button (P458)
❚Passenger’s Front Airbag (P48)
22 ACURA MDX-31TYA6000_02.book 8 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

18
Quick Reference Guide
Climate Control System (P229)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Floor and windshield defroster
vents Floor vents Dashboard and floor vents, and
back of the console
compartment Dashboard vents and back of the
console compartment
AUTO Button Passenger’s Side
Temperature
Control Switch
(ON/OFF)
Button (Windshield
Defroster) Button
SYNC (Synchronization)
Button
Fan Control Buttons Driver’s Side
Temperature
Control Switch
MODE Control Button
A/C (Air Conditioning) Button
(Recirculation)
Button
REAR LOCK Button
REAR SETTINGS Button
Rear Climate Control (P233)●Press the rear AUTO button to activate
the rear climate control system.
●Press the button to turn the system
on or off.
Rear Temperature
Control Buttons Rear Fan
Control Buttons
Rear AUTO
Button (ON/OFF)
Button
MODE Control
Button
Rear floor vents Back of the console compartment
and floor vents Back of the console compartment
vents
22 ACURA MDX-31TYA6000_02.book 18 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

83
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 84
Gauges and Displays Gauges ............................................ 104
Driver Information Interface (Left Side Area) ............................................. 108
Driver Information Interface (Right Side Area) ............................................. 108
Head-Up Display
*............................ 122
* Not available on all models
22 ACURA MDX-31TYA6000_02.book 83 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

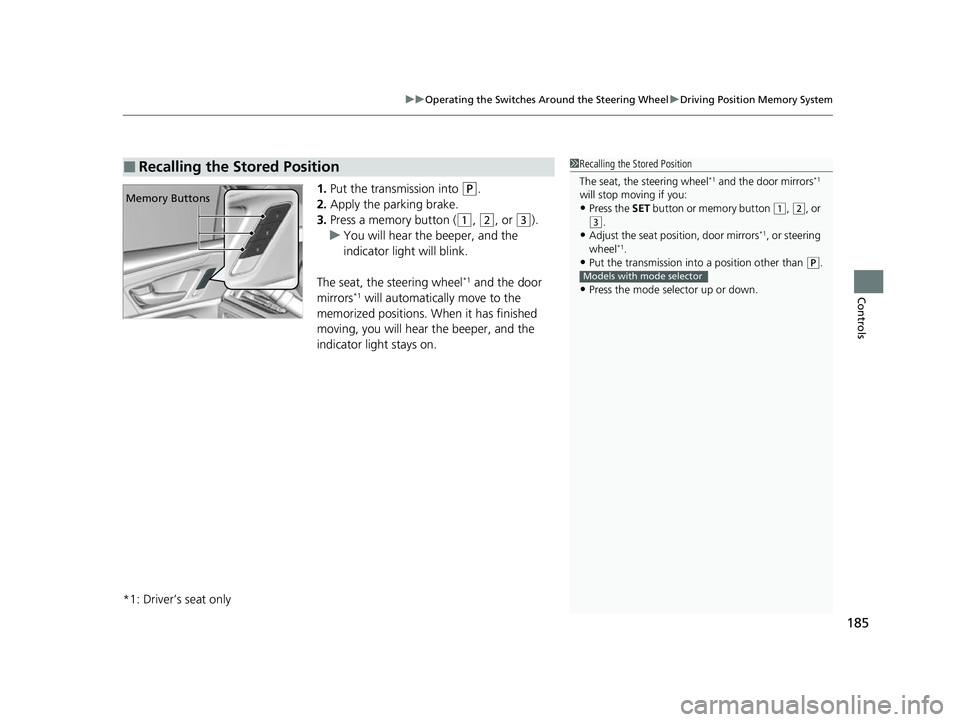

185
uuOperating the Switches Around the Steering Wheel uDriving Position Memory System
Controls
1. Put the transmission into (P.
2. Apply the parking brake.
3. Press a memory button (
(1, (2, or (3).
u You will hear the beeper, and the
indicator light will blink.
The seat, the steering wheel
*1 and the door
mirrors*1 will automatically move to the
memorized positions. When it has finished
moving, you will hear the beeper, and the
indicator light stays on.
*1: Driver’s seat only
■Recalling the Stored Position1 Recalling the Stored Position
The seat, the steering wheel
*1 and the door mirrors*1
will stop moving if you:
•Press the SET button or memory button ( 1, (2, or
( 3.
•Adjust the seat position, door mirrors*1, or steering
wheel*1.
•Put the transmission into a position other than ( P.
•Press the mode selector up or down.
Models with mode selector
Memory Buttons
22 ACURA MDX-31TYA6000_02.book 185 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

204
uuSeats uHead Restraints
Controls
A passenger sitting in the second row center seating position should adjust the
height of their head restraint to an appr opriate position before the vehicle begins
moving.
To raise the head restraint:
Pull it upward while pressing the both release
buttons.
To lower the head restraint:
Push it down while pressing the right release
button.
■Changing the Second Row Center Seat Head Restraint
Position
22 ACURA MDX-31TYA6000_02.book 204 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

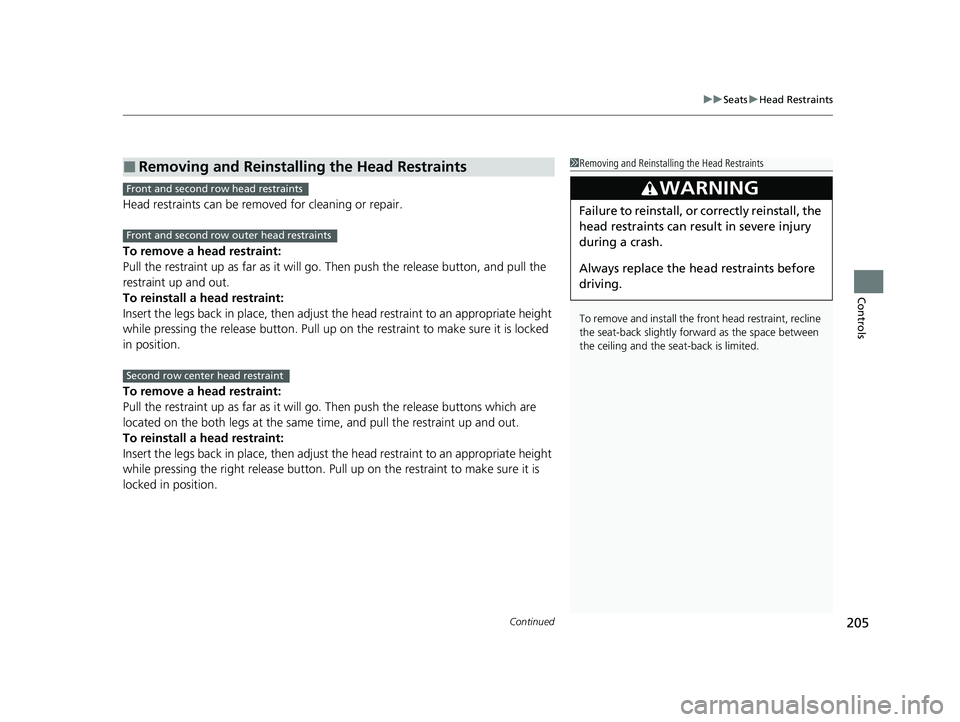

Continued205
uuSeats uHead Restraints
Controls
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.
To remove a head restraint:
Pull the restraint up as far as it will go . Then push the release buttons which are
located on the both legs at the same time, and pull the restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the right release button. Pull up on the restraint to make sure it is
locked in position.
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
To remove and install the fr ont head restraint, recline
the seat-back slightly forward as the space between
the ceiling and the seat-back is limited.
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
Front and second row head restraints
Front and second row outer head restraints
Second row center head restraint
22 ACURA MDX-31TYA6000_02.book 205 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

229Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
temperature control switch.
3. Press the (ON/OFF) button to cancel.1Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button th at was pressed will be
controlled automatically.
During idle-stops, air-conditioning is suspended, and
only the blower remains active.
If you do not want air-cond itioning suspended, press
the Auto Idle Stop OFF button to cancel idle-stop.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
Floor and
windshield
defroster
vents
Floor vents
Dashboard and
floor vents, and
back of the console
compartment
Dashboard
vents and back
of the console
compartment
Driver’s Side
Temperature
Control Switch Passenger’s
Side
Temperature
Control Switch
A/C (Air Conditioning)
Button
(ON/OFF) Button
Fan Control Buttons
(Recirculation)
Button
(Windshield
Defroster) Button
AUTO Button
SYNC (Synchronization)
Button
22 ACURA MDX-31TYA6000_02.book 229 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

uuClimate Control System uRear Climate Control System
234
Controls
Use the system when the engine is running
1. Press the rear AUTO button.
2. Adjust the interior temperature using the rear temperature control button.
3. To turn off the rear climate con trol system, press (ON/OFF) button.
■Using the Rear Climate Control System From the Rear Panel1Using the Rear Climate Control System From the Rear Panel
When the rear lock mode is off, the temperature of
the rear passenger compar tment can be controlled
independently.
Rear floor
vents
Back of the
console
compartment
vents Rear Fan Control
Buttons
(ON/OFF) Button
Rear Temperature
Control Buttons
Rear AUTO Button
Back of the
console
compartment
and floor vents
