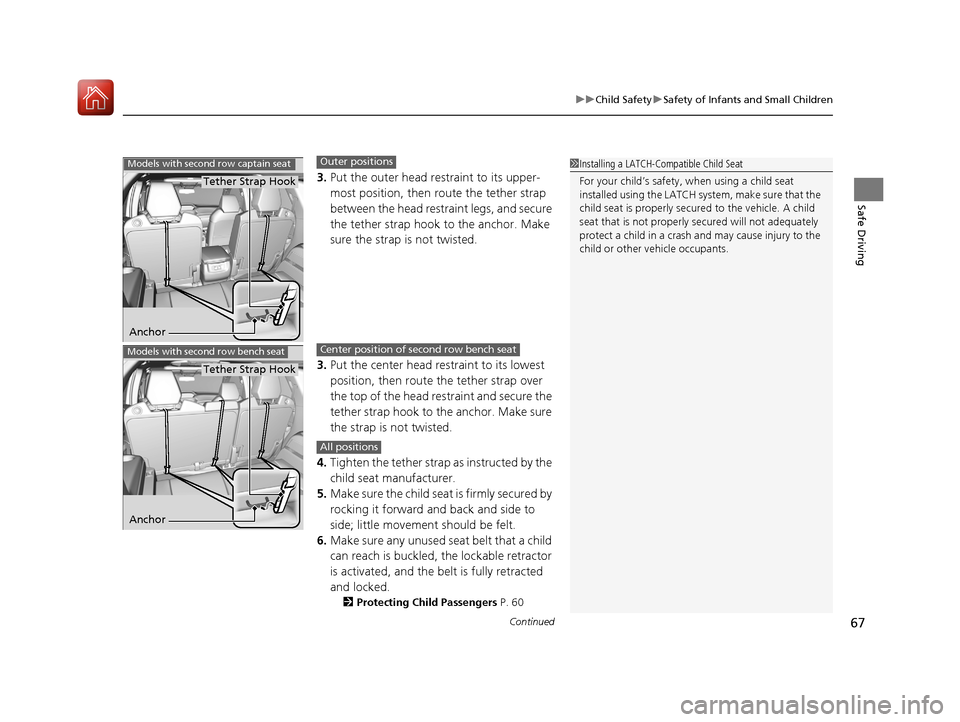

Continued67
uuChild Safety uSafety of Infants and Small Children
Safe Driving
3. Put the outer head restraint to its upper-
most position, then route the tether strap
between the head restraint legs, and secure
the tether strap hook to the anchor. Make
sure the strap is not twisted.
3. Put the center head restraint to its lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook to the anchor. Make sure
the strap is not twisted.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
6. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 60
Models with second row captain seat
Tether Strap Hook
Anchor
Outer positions1 Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
Tether Strap Hook
Anchor
Models with second row bench seatCenter position of second row bench seat
All positions
17 ACURA MDX E-AWD-31TRX6000.book 67 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

uuChild Safety uSafety of Infants and Small Children
70
Safe DrivingA tether anchorage point is provided behind
each second and third row seating position. If
you have a child restraint system that comes
with a tether but can be installed with a seat
belt, the tether may be used for additional
security.
■Adding Security with a Tether1 Adding Security with a Tether
Always use a tether for forward facing child seats
when using the seat be lt or lower anchors.
Models with second row captain seat
Tether Anchorage Points
Tether Anchorage Points
Models with second row bench seat
Tether Anchorage Points
Third row seat
17 ACURA MDX E-AWD-31TRX6000.book 70 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

71
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
■Using a second row anchor
1. Put the outer head restraint to its upper-
most position, then route the tether strap
between the head restraint legs, and secure
the tether strap hook to the anchor. Make
sure the strap is not twisted.
1. Put the center head restraint to its lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook to the anchor. Make sure
the strap is not twisted.
2. Tighten the tether strap as instructed by the
child seat manufacturer.Models with second row captain seat
Anchor
Tether Strap Hook
Outer positions
Anchor
Models with second row bench seat
Tether Strap Hook
Center position of second row bench seat
All positions
17 ACURA MDX E-AWD-31TRX6000.book 71 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

76
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Sun Visor
U.S. models Canadian models
Radiator Cap
U.S. models only
Dashboard U.S. models only
Sun Visor
Radiator Cap
17 ACURA MDX E-AWD-31TRX6000.book 76 ページ ２０１７年１月２０日　金曜日　午後２時５
３分

78
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Brake System
Indicator (Red)
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●Comes on while driving - Check the brake
fluid level.
2 What to do when the indicator comes on
while driving P. 414
●Comes on along with the brake system
indicator (amber) - Immediately stop in a
safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you normally
do.
●Comes on along with the ABS indicator -
Have your vehicle checked by a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 414
U.S.
Canada
(Red)
17 ACURA MDX E-AWD-31TRX6000.book 78 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

79
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Brake System
Indicator (Amber)
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if there is a problem
with a system related to braking
other than the conventional
brake system.
●Comes on if there is a problem
with the electric parking brake
system.
●Comes on if there is a problem
with the cooperat ive control with
regenerative braking, the electric
servo brake system, or the hill
start assist system.
●Comes on while driving - Have your vehicle
checked by a dealer.
●Stays on constantly - Avoid high speeds and
sudden braking. Take the vehicle to a dealer
immediately.
●With this indicator on, your vehicle still has
normal braking ability.
●Comes on if there is a problem
with the automatic brake hold
system.
2 Automatic Brake Hold P. 303
U.S.
Canada
(Amber)
U.S.
Canada
U.S.
Canada
17 ACURA MDX E-AWD-31TRX6000.book 79 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

80
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Electric Parking
Brake Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when the parking
brake is applied, and goes off
when it is released.
●Comes on for about 15 seconds
then goes off when you push the
electric parking brake switch with
the power mode in OFF.
●Comes on for about 15 seconds
then goes off when you set the
power mode to OFF with the
parking brake applied.
●Blinks and the electric parking brake
system indicator comes on at the same
time - There is a problem with the electric
parking brake system. The parking brake may
not be set.
●Comes on when you pull the
electric parking brake switch
without depressing the brake
pedal.●Depress the brake pedal to release the parking
brake.
2Parking Brake P. 299
Electric Parking
Brake System
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if there is a problem
with the electric parking brake
system.
●Comes on while driving - Avoid using the
parking brake and have your vehicle checked
by a dealer immediately.
2 If the Electric Parking Brake System
Indicator Comes On P. 415
U.S.
Canada
17 ACURA MDX E-AWD-31TRX6000.book 80 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

81
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Automatic Brake
Hold System
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 303
Automatic Brake
Hold Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when the automatic
brake hold is activated.2Automatic Brake Hold P. 303—
U.S.
Canada
17 ACURA MDX E-AWD-31TRX6000.book 81 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Oil Pressure
Indicator
●Comes on when you set the
power mode to ON, and goes off
when the power system starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately stop
in a safe place.
2 If the Low Oil Pressure Indicator Comes
On P. 412
Malfunction
Indicator Lamp
●Comes on when you set the
power mode to ON, and goes off
either when the power system is
on or after several seconds if the
power system did not start. If
“readiness codes” have not been
set, it blinks five times before it
goes off.
●Comes on if there is a problem
with the emissions control
systems.
●Blinks when a misfire in the
engine’s cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emis sions control systems.
2Testing of Readiness Codes P. 437●Comes on while driving - Have your vehicle
checked by a dealer.
●Blinks while driving - Stop in a safe place
where there are no flammable objects. Stop
the power system for 10 minutes or more, and
wait for it to cool down. Then, take your
vehicle to a dealer.
2 If the Malfunction Indicator Lamp Comes
On or Blinks P. 413
12-Volt Battery
Charging System
Indicator
●Comes on when you set the
power mode to ON, and goes off
when the power system is on.
●Comes on when the 12-volt
battery is not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger in
order to reduce electricity consumption.
2 If the 12-Volt Battery Charging System
Indicator Comes On P. 412
17 ACURA MDX E-AWD-31TRX6000.book 82 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you set the power mode to
ON.
●If the front passenger is not
wearing a seat belt, the indicator
comes on about a few seconds
later.
●Blinks while driving if either you
or the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes off
when you and the front passenger fasten their
seat belts.
●Stays on after you or the front passenger
has fastened the seat belt - A detection
error may have occurred in the sensor. Have
your vehicle checked by a dealer.
2 Seat Belt Reminder P. 39
Low Fuel Indicator
●Comes on when the fuel reserve
is running low (approximately 2.5
U.S. gal./9.5 Liter left).
●Blinks if there is a problem with
the fuel gauge.
●Comes on - Refuel your vehicle as soon as
possible.
●Blinks - Have your vehicle checked by a
dealer.
POWER SYSTEM
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if there is a problem
with the electric vehicle system.
●Comes on while driving - Have your vehicle
checked by a dealer immediately.
2 If the Power System Indicator Comes On
P. 417
17 ACURA MDX E-AWD-31TRX6000.book 85 ページ ２０１７年１月２０日　金曜日　午後２時５ ３分
