lock Acura MDX HYBRID 2020 Owner's Manual

uuCleaning uInterior Care
606
Maintenance
Wipe using a glass cleaner.
The front and second row passenger’s floor
mats hook over floor anchors, which keep
them from sliding forward. To remove a mat
for cleaning, turn the anchor knobs to the
unlock position. When reinstalling the mat
after cleaning, turn the knobs to the lock
position.
Do not put additional floor mats on top of
the anchored mats.
To properly clean leather:
1. Use a vacuum or soft dry cloth first to remove any dirt or dust.
2. Clean the leather with a soft cloth dampen ed with a solution comprised of 90%
water and 10% neutral soap.
3. Wipe away any soap residu e with a clean damp cloth.
4. Wipe away residual water and allow leather to air dry in the shade.
■Cleaning the Window
■Floor Mats
1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor.
2 Automatic Operation (automatic lighting
control) P. 176
2 Automatic Intermittent Wipers P. 183
2 Front Sensor Camera P. 475
1Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear seat floor mat properly. If they are
not properly positioned, th e floor mat can interfere
with the front seat functions.
Lock
Unlock
■Maintaining Genuine Leather1
Maintaining Genuine Leather
It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust ca n cause abrasions in the
leather. In addition, pl ease note that some dark
colored clothing can rub onto the leather seats
resulting in discol oration or stains.
20 ACURA MDX E-AWD-31TRX6302.book 606 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

613
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 614
If a Tire Goes Flat
Changing a Flat Tire ......................... 615
Temporarily Repairi ng a Flat Tire....... 623
Power System Won’t Start ............... 635
Checking the Procedure ................... 635
If the Keyless Access Remote Battery is Weak ............................................. 636
Emergency Power System Off........... 637
Jump Starting .................................... 638
Models with a compact spare tire
Models with temporary tire repair kit
Overheating
How to Handle Overheating............. 640
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On ... 642If the 12-Volt Battery Charging System Indicator Comes On ....................... 642
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 643
If the Brake System Indicator (Red) Comes On ................................................... 644
If the Speed-Sensitive Electric Power Steering (EPS) System Indicator Comes On ..........644
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks........................ 646 If the Transmission System Indicator Blinks
along with the Warning Message ...... 646
If the Power System Indicator Comes On .. 647Fuses Fuse Locations ................................. 648
Inspecting and Changing Fuses ........ 656
Emergency Towing ........................... 657
When You Cannot Unlock the Fuel Fill
Door ................................................. 658
When You Cannot Open the Tailgate.. 659Refueling ........................................... 660Refueling From a Portable Fuel
Container ................................... 660
20 ACURA MDX E-AWD-31TRX6302.book 613 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

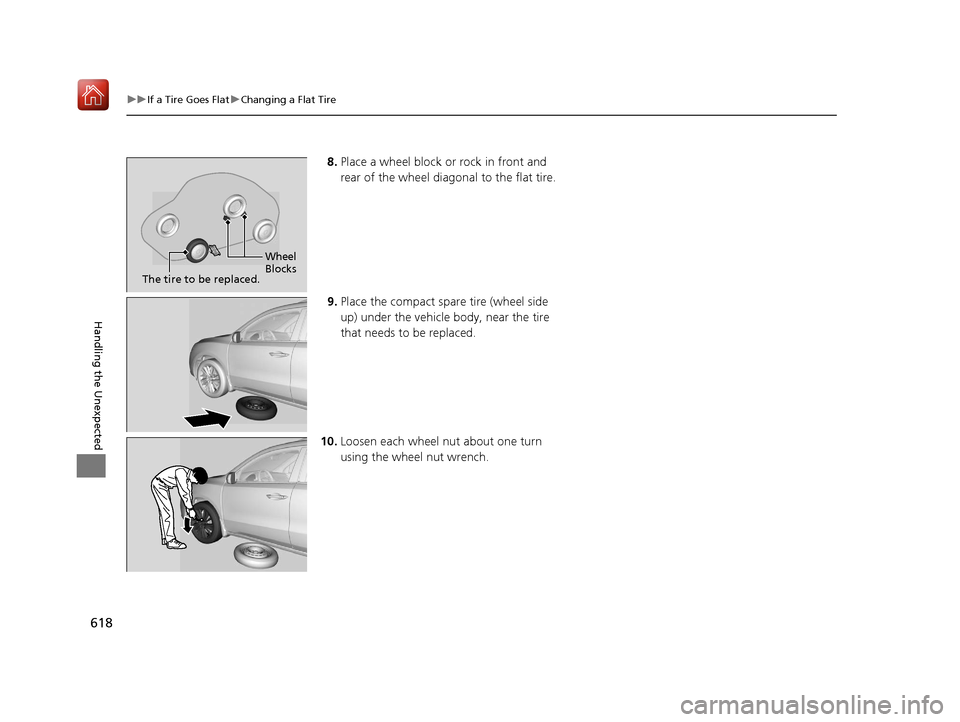

618
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
8. Place a wheel block or rock in front and
rear of the wheel diagonal to the flat tire.
9. Place the compact spare tire (wheel side
up) under the vehicle body, near the tire
that needs to be replaced.
10. Loosen each wheel nut about one turn
using the wheel nut wrench.
Wheel
Blocks
The tire to be replaced.
20 ACURA MDX E-AWD-31TRX6302.book 618 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

Continued621
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face up under the hoist.
3. Insert the hoist bracke t into the center hole
of the flat tire.
4. Slowly turn the wheel nut wrench clockwise
to take up the hoist cable slack. Make sure
the bracket is seated in the center hole of
the flat tire.
5. Turn the wheel nut wrench with the jack
handle bar (clockwise) un til the flat tire rests
against the underbody of the vehicle, and
you hear the hoist click.
6. Securely store the jack, wheel nut wrench,
and jack handle bar back in the tool case.
Store the case in the cargo area.
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the jack and tools securely before
driving.
Center Cap
Wheel Nut Wrench Jack Handle Bar
20 ACURA MDX E-AWD-31TRX6302.book 621 ページ ２０２０年２月１１日　火曜日　午後１時
４５分

637
uuPower System Won’t Start uEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the power system off due to an emergency
situation even while driving. If you must tu rn the power system off, do either of the
following operations:
• Press and hold the POWER button about for two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The transmission automa tically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the POWER button while driving unless
it is absolutely necessary for the power system to be
turned off.
If you press the POWER button while driving, the
beeper sounds.
20 ACURA MDX E-AWD-31TRX6302.book 637 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

651
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1AS Door Lock10 A
2RR DR Door Lock7.5 A
3DR Door Lock7.5 A
4FR AS Door Unlock10 A
5RR DR Door Unlock7.5 A
6DR Door Unlock(7.5 A)
7D/L Main20 A
8−−
9ETS TELE20 A
10 IG1 RR 15 A
11Meter7.5 A
12 IG1 FR 20 A
13ACC7.5 A
14 − −
15DR P/Seat (SLI)20 A
16 S/R 20 A
17RR DR P/W20 A
18 Smart 10 A
19FR DR P/W20 A
20 − −
21Fuel Pump20 A
22 IG1 AS 15 A
23ABS/VSA7.5 A
24 ACG AS 7.5 A
25STRLD7.5 A
26 IG2 HAC 7.5 A
27DRL7.5 A
28 ACC Key Lock 7.5 A
29DR P/Seat (LUM)7.5 A
30 INT Lights 7.5 A
31ETS TILT20 A
32 DR P/Seat (REC) 20 A
33−−
34−−
Circuit ProtectedAmps
20 ACURA MDX E-AWD-31TRX6302.book 651 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

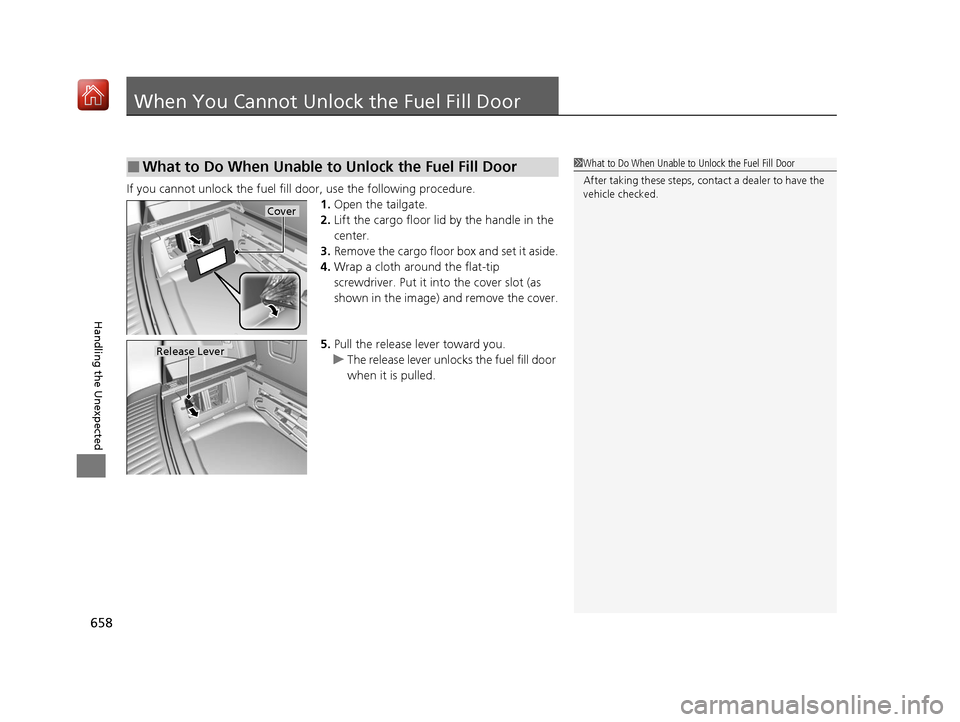

658
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate.
2. Lift the cargo floor lid by the handle in the
center.
3. Remove the cargo floor box and set it aside.
4. Wrap a cloth around the flat-tip
screwdriver. Put it in to the cover slot (as
shown in the image) and remove the cover.
5. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Lever
20 ACURA MDX E-AWD-31TRX6302.book 658 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

Index
675
Index
Index
A
AAC................................................... 275, 300
ABS (Anti-lock Brake System) .................. 524
AC Power Outlet ...................................... 217
Accessories and Modifications ................ 611
Accessory Power Sockets ......................... 216
Acoustic Vehicle Alerting System ............ 473
AcuraLink® .............................................. 438
AcuraWatch
TM............................................ 26
Adaptive Cruise Control (ACC) with Low Speed Follow .......................................... 477
Indicator ................................................. 100
Additives Coolant .................................................. 577
Engine Oil ............................................... 572
Washer ................................................... 581
Additives, Engine Oil ............................... 572
Adjusting Armrest .................................................. 207
Front Seats.............................................. 194
Head Restraints ....................... 201, 203, 204
Headlights .............................................. 582
Mirrors.................................................... 191
Second Row Seats................................... 197
Steering Wheel ....................................... 190
Temperature ........................................... 127
Agile Handling Assist ............................... 508
Air Conditioning System (Climate Control
System) .................................................... 222
Changing the Mode................................ 225 Defrosting the Windshield and
Windows ............................................... 228
Dust and Pollen Filter ............................... 604
Rear Climate Control System ................... 229
Sensors .................................................... 233
Synchronized Mode ................................. 226
Using Automatic Climate Control ............ 222
Air Pressure ....................................... 592, 663
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
After a Collision ......................................... 51
Airbag Care ............................................... 61
Driver’s Knee Airbag .................................. 54
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Indicator .............................................. 59, 93
Passenger Front Airbag Off Indicator ......... 60
Sensors ...................................................... 47
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
AM/FM Radio ............................................ 261
Android Auto ............................................ 310
Anti-lock Brake System (ABS) .................. 524
Indicator .................................................... 93
Apple CarPlay ........................................... 306
Armrest ..................................................... 207
Audio Remote Controls ............................ 241
Audio System ............................................ 236
Adjusting the Sound ................................ 256
Auxiliary Input Jack .................................. 240
Error Messages ........................................ 315 General Information ................................ 323
HDD ........................................................ 278
iPhone............................................. 298, 325
iPod ........................................................ 291
MP3/WMA/AAC .............................. 275, 300
Pandora
®............................................... 298
Reactivating ............................................ 240
Recommended CDs ................................. 324
Recommended Devices............................ 325
Remote Controls ..................................... 241
Security Code .......................................... 240
Theft Protection ...................................... 240
USB Flash Drives .............................. 300, 325
USB Port.................................................. 237
Authorized Manuals ................................ 670
Auto Door Locking/Unlocking ................. 157
Customize ....................................... 137, 378
Auto Engine Stop/Start .............................. 13
Auto High-Beam ....................................... 179
Indicator.................................................... 93
Automatic Brake Hold ............................. 522
Indicator.................................................... 87
Automatic Folding Door Mirror .............. 193
Automatic Intermittent Wipers ............... 183
Automatic Lighting .................................. 176
Auxiliary Console Panel ........................... 343
Auxiliary Input Jack .................................. 240
Average Fuel Economy ............................ 127
Average Speed ......................................... 128
20 ACURA MDX E-AWD-31TRX6302.book 675 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

676
Index
B
Back-Up Light............................................ 585
Battery ....................................................... 600
12-Volt .................................................... 600
12-Volt Battery Charging System
Indicator .......................................... 88, 642
High Voltage ........................................... 517
Jump Starting .......................................... 638
Maintenance (Checking the 12-Volt Battery) ..................................... 600
Maintenance (Replacing).......................... 601
Battery Types .............................................. 12
Belts (Seat) .................................................. 39
Beverage Holders ...................................... 214
Blind spot information System ................ 510
Indicator .................................................. 104
Bluetooth ® Audio ..................................... 303
Bluetooth ® HandsFreeLink ®................... 397
Booster Seats (For Children) ....................... 79
Brake System ............................................. 518
Anti-lock Brake System (ABS) ................... 524
Automatic Brake Hold.............................. 522
Brake Assist System ................................. 525
Fluid ........................................................ 581
Foot Brake ............................................... 521
Indicator ...................................... 84, 85, 644
Parking Brake .......................................... 518
Brake System (Amber)
Indicator .................................................... 85
Brake System (Red) Indicator ............................................ 84, 644 Brightness Control
(Instrument Panel).... 186
Bulb Replacement .................................... 582
Back-Up Light.......................................... 585
Brake Light and Rear Turn Signal Light .... 583
Fog Lights ............................................... 582
Front Turn Signal/Parking, Daytime Running and Front Side Marker Lights ... 582
Headlights ............................................... 582
High-Mount Brake Light .......................... 586
Puddle Lights........................................... 586
Rear License Plate Lights .......................... 586
Side Turn Signal/Emergency Indicator Lights .................................................... 582
Taillights.................................................. 585
Taillights/Rear Side Maker Lights.............. 584
Bulb Specifications ................................... 662
C
CAMERA Button....................................... 548
Car Wash Mode ........................................ 469
Carbon Monoxide Gas ............................... 80
Carrying Cargo ................................. 449, 451
CD Player ................................................... 275
Center Pocket ........................................... 213
Certification Label .................................... 664
Changing Bulbs ........................................ 582
Charging System Indicator ................. 88, 642
Child Safety ................................................. 62
Childproof Door Locks............................. 156 Child Seat
................................................... 62
Booster Seats ............................................ 79
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 72
Larger Children ......................................... 78
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Childproof Door Locks ............................. 156
Cleaning the Exterior ............................... 607
Cleaning the Interior ............................... 605
Client Service Information ....................... 671
Climate Control System ........................... 222
Changing the Mode................................ 225
Defrosting the Windshield and Windows .............................................. 228
Dust and Pollen Filter .............................. 604
Rear Climate Control System................... 229
Sensors ................................................... 233
Synchronized Mode ................................ 226
Using Automatic Climate Control............ 222
Clock ......................................................... 142
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 526
Coat Hook ................................................ 218
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 526
Compact Spare Tire .......................... 615, 663
Console Compartment ............................. 212
Controls .................................................... 141
20 ACURA MDX E-AWD-31TRX6302.book 676 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

677
Index
Coolant (Engine)...................................... 577
Adding to the Radiator ........................... 578
Adding to the Reserve Tank .................... 577
Overheating ............................................ 640
Coolant (Inverter) .................................... 579
Creeping (Dual Clutch Transmission) ...... 464
Cross Traffic Monitor ............................... 541
Cup Holders .............................................. 214
Customized Features ....................... 131, 362
D
Daytime Running Lights .......................... 178
Dead Battery ............................................ 638
Defrosting the Windshield and Windows ................................................. 228
Detachable Anchor .................................... 44
Devices that Emit Radio Waves ............... 665
Dimming Headlights .............................................. 175
Rearview Mirror ...................................... 191
Dipstick (Engine Oil) ................................ 573
Directional Signals (Turn Signal) ............. 174
Door Mirrors ............................................. 192
Doors ........................................................ 143
Auto Door Locking.................................. 157
Auto Door Unlocking .............................. 157
Door Open Message ................................. 38
Keys........................................................ 143
Locking/Unlocking the Doors from the
Inside .............................................. 18, 154 Locking/Unlocking the Doors from the
Outside.................................................. 145
Lockout Prevention System ...................... 152
DOT Tire Quality Grading ........................ 594
Driver’s Knee Airbag .................................. 54
Driving ....................................................... 447
Braking .................................................... 518
Dual Clutch Transmission ......................... 464
Off-Highway Driving Guidelines ............... 455
Shifting Gear ........................................... 465
Turning on the Power .............................. 457
Driving Position Memory System ............. 188
Dual Clutch Transmission ......................... 464
Creeping ................................................. 464
Fluid ........................................................ 580
Kickdown ................................................ 464
Operating the Shift Button ................ 23, 467
Shifting ................................................... 465
Dust and Pollen Filter ............................... 604
Dynamic Mode button ............................. 474
E
Elapsed Time............................................. 128
Electric Parking Brake Indicator .................................................... 86
Switch ..................................................... 518
Electric Parking Brake System Indicator .................................................... 86
Electric Power Steering (EPS)
System ............................................... 95, 644 Electronic Stability Control (ESC)
............. 506
Emergency ................................................ 657
Emissions Testing (Readiness Codes) ....... 667
Energy Efficiency ........................................ 12
Engine ....................................................... 664
Coolant ................................................... 577
Jump Starting .......................................... 638
Oil ........................................................... 572
Remote Engine Start................................ 459
Starting ................................................... 457
Engine Compartment Cover .................... 571
Engine Coolant ......................................... 577
Adding to the Radiator ............................ 578
Adding to the Reserve Tank..................... 577
Overheating ............................................ 640
Engine Oil ................................................. 572
Adding .................................................... 574
Checking................................................. 573
Displaying Oil Life .................................... 565
Low Oil Pressure Indicator ................. 88, 642
Recommended Engine Oil ....................... 572
EPS (Electric Power Steering)
System ............................................... 95, 644
Exhaust Gas Hazard (Carbon Monoxide) .. 80
Exterior Care (Cleaning) ........................... 607
Exterior Mirrors ........................................ 192
F
Features.................................................... 235
20 ACURA MDX E-AWD-31TRX6302.book 677 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分
