ACURA NSX 2020 Owners Manual

139
uuOperating the Switches Around the Steering WheeluDriving Position Memory System*
Controls
1.
Set the power mode to ON. Adjust the
driver’s seat and the door mirrors to the
desired position.
2. Press the SET button.
uYou will hear the beeper, and the
memory button indicator light will blink.
3. Press memory button
(1 or (2 within five
seconds of pressing the SET button.
uOnce the seat and the outside mirrors position have been memorized, you will
hear the beeper twic e, and the indicator
light on the button you pressed stays on.
1. Put the transmission into
(P .
2. Apply the parking brake.
3. Press a memory button (
(1 or (2).
uYou will hear the beep, and the indicator
light will blink.
The seat and the door mirrors will
automatically move to the memorized
positions. When it has finished moving, you
will hear the beeper tw ice, and the indicator
light stays on.
■Storing a Position in Memory1Storing a Position in Memory
After you press the SET button, the storing operation
will be canceled when:
• You do not press the memory button within five
seconds.
• You readjust the seat or the outside mirror position
before the double-beep.
• You set the power mode to any position except ON.
SET Button
Memory
Button 1
Memory
Button 2
■Recalling the Stored Position1Recalling the Stored Position
The seat and door mirror s will stop moving if you:
• Press the SET button, or a memory button (
(1 or (2).
• Adjust the seat position or door mirrors.
• Put the transmission into a position other than
(P .
Memory Buttons
20 ACURA NSX PMC-31T6N6300.book 139 ページ ２０１９年９月１１日　水曜日　午後４時５１分

140
uuOperating the Switches Around the Steering WheeluAdjusting the Steering Wheel
Controls

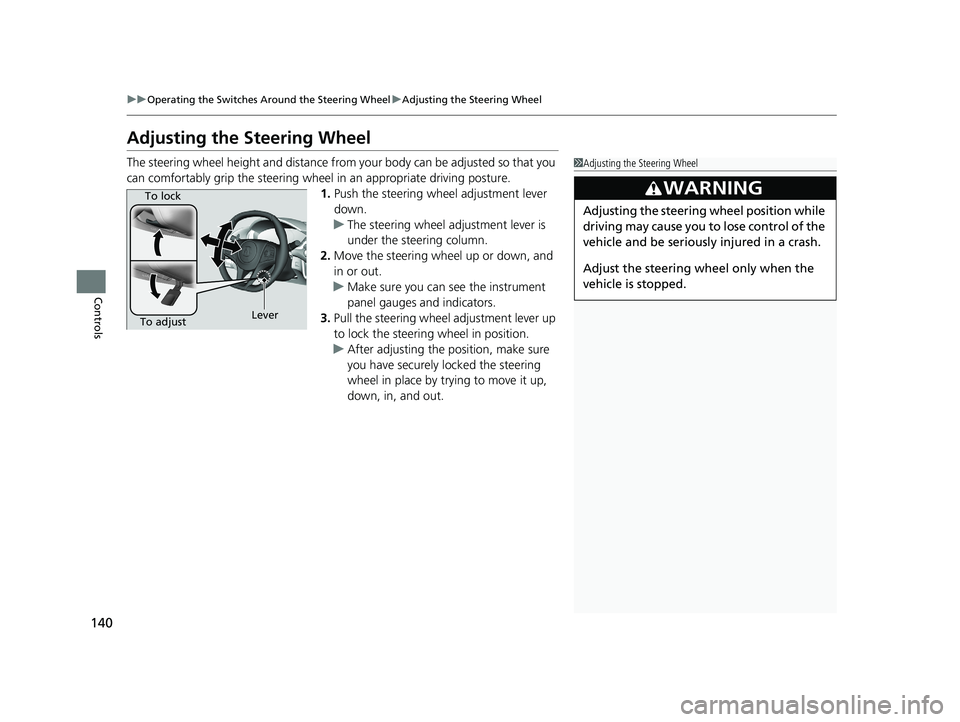

Adjusting the Steering Wheel
The steering wheel height and distance from your body can be adjusted so that you
can comfortably grip the steering wheel in an appropriate driving posture.1.Push the steering wheel adjustment lever
down.
uThe steering wheel adjustment lever is
under the steering column.
2. Move the steering wheel up or down, and
in or out.
uMake sure you can see the instrument
panel gauges and indicators.
3. Pull the steering wheel adjustment lever up
to lock the steerin g wheel in position.
uAfter adjusting the position, make sure
you have securely locked the steering
wheel in place by trying to move it up,
down, in, and out.
1Adjusting the Steering Wheel
3WARNING
Adjusting the steering wheel position while
driving may cause you to lose control of the
vehicle and be seriously injured in a crash.
Adjust the steering wheel only when the
vehicle is stopped.
To adjustTo lock
Lever
20 ACURA NSX PMC-31T6N6300.book 140 ページ ２０１９年９月１１日　水曜日　午後４時５１分

141
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headlights behind you, based
in inputs from the mirro r sensor. This feature
is always active.
■Automatic Dimming Rearview Mirror
1Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Adjusting the Seat Positions P. 144
1Automatic Dimming Rearview Mirror
The auto dimming function cancels when the
transmission is in
(R.
20 ACURA NSX PMC-31T6N6300.book 141 ページ ２０１９年９月１１日　水曜日　午後４時５１分

142
uuAdjusting the MirrorsuPower Door Mirrors
Controls
Power Door MirrorsYou can adjust the door mirrors when the
power mode is in ON. ■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the mirror.
Selector Switch
Adjustment
Switch
20 ACURA NSX PMC-31T6N6300.book 142 ページ ２０１９年９月１１日　水曜日　午後４時５１分

143
uuAdjusting the MirrorsuPower Door Mirrors
Controls
If activated, either side door mirror
automatically tilts downward when you press back the
(R button; this improves close-in
visibility on the selected side of the vehicle
when backing up. The mirror automatically
returns to its original position when you take
the transmission out of
(R .
To activate this feature, set the power mode
to ON and slide the sele ctor switch to the left
or right side.
If activated, passenger side door mirror
automatically tilts downward when you press back the
(R button; this improves close-in
visibility on the passenger side of the vehicle
when backing up. The mirror automatically
returns to its original position when you take
the transmission out of
(R .
To activate this feature, set the power mode
to ON and slide the selector switch to the
passenger side.
■Reverse Tilt Door Mirror
Slide the selector switch to left
or right to tilt down either side
door mirror.
Models with driving position memory system
Selector Switch
Models without driving position memory system
20 ACURA NSX PMC-31T6N6300.book 143 ページ ２０１９年９月１１日　水曜日　午後４時５１分

144
Controls
Adjusting the Seats
Adjust the driver’s seat as far back as possible
while allowing you to maintain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately depress the pedals without leaning forward, and grip the steering wheel
comfortably. The passenger’s seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.
■ Adjusting the power seats *1Adjusting the Seats
The National Highway Traffic Safety Administration
and Transport Cana
da recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.
Always make seat adjustments before driving.
3WARNING
Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.
Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.
Move back.
Allow sufficient
space.
■Adjusting the Seat Positions
Horizontal Position
Adjustment
Seat-back Angle Adjustment
Driver’s seat is shown.
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 144 ページ ２０１９年９月１１日　水曜日　午後４時５１分

145
uuAdjusting the Seatsu
Continued
Controls
■Lumbar Support Adjustment Switch *
Press the top: To move the lumbar support
up. Press the bottom: To move the lumbar
support down.
Press the front: To increase the entire
lumbar support.
Press the rear: To decrease the entire lumbar
support.Lumbar
Support
Adjustment
Switch
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 145 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuAdjusting the Seatsu
146
Controls
■Adjusting the manual seats *1Adjusting the manual seats
*
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
Horizontal Position
Adjustment
Pull up on the bar to move the
seat, then release the bar. Seat-back Angle
Adjustment
Pull up the lever to
change the angle.
Driver’s seat is shown.
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 146 ページ ２０１９年９月１１日　水曜日　午後４時５１分

147
uuAdjusting the Seatsu
Controls
Adjust the driver’s seat-back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.
The passenger should also adjust their seat-
back to a comfortable, upright position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant’s chest reduces the protective capa bility of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the gr eater the risk of injury.
■Adjusting the Seat-Backs1Adjusting the Seat-Backs
Do not put a cushion, or other object, between the
seat-back and your back. Do ing so may interfere with
proper seat belt or airbag operation.
If you cannot get far e nough away from the steering
wheel and still reach th e controls, we recommend
that you investigate whether some type of adaptive
equipment may help.
3WARNING
Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.
20 ACURA NSX PMC-31T6N6300.book 147 ページ ２０１９年９月１１日　水曜日　午後４時５１分

148
uuAdjusting the SeatsuMaintain a Sitting Proper Position
Controls
Maintain a Sitting Proper Position
After all occupants have adjusted their seat s and put on their seat belts, it is very
important that they continue to sit upright, well back in their seats, with their feet
on the floor, until the vehicle is safe ly parked and the power system is off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.
In addition, an occupant who is out of position in the seat can be seriously or fatally
injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
1Maintain a Sitting Proper Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
