ACURA NSX 2020 Owners Manual

129
uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button
Controls
When the power mode is set to any mode
other than OFF and you remove the keyless
access remote from the vehicle and shut the
door, an alarm will sound. If the alarm
continues to sound, place the keyless access
remote in another location. ■ When the power mode is in
ACCESSORY
The alarm will sound from outside the vehicle. ■ When the power mode is in ON
An alarm will sound both inside and outside the vehicle. In additi on, a warning indicator
will appear on the instrument panel.
■Keyless Access Remote Reminder1Keyless Access Remote Reminder
When the keyless access remote is within the
system’s operational range, and both doors are
closed, the warni ng function cancels.
If the keyless access remote is taken out of the vehicle
after the power system has been turned on, you can
no longer change the ENGINE START/STOP button
mode or restart the power system. Always make sure
if the remote is in your vehicle when you operate the
ENGINE START/STOP button.
Removing the keyless access remote from the vehicle through a window does not activate the warning
buzzer.
Do not put the keyless access remote on the
dashboard or in the glove box. It may cause the
warning buzzer to go of f. Under some other
conditions that can prevent the vehicle from locating
the remote, the warning buzzer may also go off even
if the remote is within the system’s operational range.
20 ACURA NSX PMC-31T6N6300.book 129 ページ ２０１９年９月１１日　水曜日　午後４時５１分

130
uuOperating the Switches Around the Steering WheeluTurn Signals
Controls

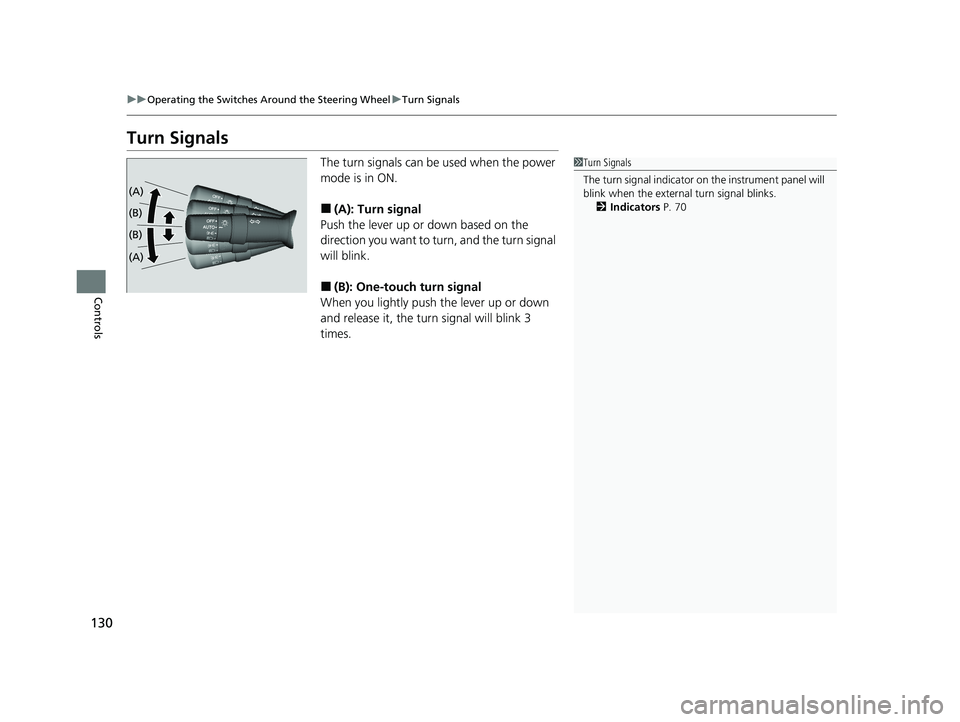

Turn SignalsThe turn signals can be used when the power
mode is in ON. ■ (A): Turn signal
Push the lever up or down based on the
direction you want to turn, and the turn signal
will blink. ■ (B): One-touc h turn signal
When you lightly push the lever up or down
and release it, the turn signal will blink 3 times.
1Turn Signals
The turn signal indicator on the instrument panel will
blink when the external turn signal blinks. 2 Indicators P. 70
(A)
(B)
(B)
(A)
20 ACURA NSX PMC-31T6N6300.book 130 ページ ２０１９年９月１１日　水曜日　午後４時５１分

131
uuOperating the Switches Around the Steering WheeluLight Switches
Continued
Controls
Light SwitchesRotating the light switch turns the lights on
and off, regardless of the power mode setting. ■High beams
Push the lever forward until you hear a click.■ Low beams
When in high beams, pull the lever back to
return to low beams. ■ Flashing the high beams
Pull the lever back, and release it.■ Lights off
Turn the lever to OFF either when:
• The transmission is in
(P .
• The parking brake is applied.
To turn the light s on again, turn the lever to
OFF to cancel the lights off mode. Even if you
do not cancel the lights off mode, the lights
come on automatically when:• The gear position is changed out of
(P .
• The parking brake is released.
• The vehicle starts to move.
■Manual Operation1Light Switches
If you leave the power mode in VEHICLE OFF while
the lights are on, a chime sounds when the driver’s door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 81
If you sense that the le vel of the headlights is
abnormal, have your vehicle inspected by an
authorized Acura NSX dealer.
Do not leave the lights on when the power system is
off because it will caus e the 12-volt battery to
discharge.
High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail, and rear license plate lights
Turns on headlights, parking,
side marker, tail, and rear license
plate lights
20 ACURA NSX PMC-31T6N6300.book 131 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuOperating the Switches Around the Steering WheeluLight Switches
132
Controls
Automatic lighting control can be used when
the power mode is in ON.
When the light switch is in AUTO, the
headlights and other exteri or lights will switch
on and off automatically depending on the
ambient brightness.
The headlights come on when you unlock a
door in dark areas with the headlight switch in
AUTO .
uOnce you lock the door, the headlights
will go off.
■Automatic Operation (automatic lighting control)1Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a de nse fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Adjust the auto light sensitivity as follows:
2 Customized Features P. 244
SettingThe exterior lights come on
when the ambient light is at
MAX
HIGH
MID
LOW
MIN
Light Sensor
U.S. models
Bright Dark
20 ACURA NSX PMC-31T6N6300.book 132 ページ ２０１９年９月１１日　水曜日　午後４時５１分

133
uuOperating the Switches Around the Steering WheeluLight Switches
Controls
The headlights automatically come on when the wipers are used several times within
a certain interval with the headlight switch in AUTO.
The headlights automatically go off a few mi nutes later if the wipers are stopped.
The headlights, all other exterior lights, and the instrument panel lights turn off 15
seconds after you set the power mode to VEHICLE OFF, take the remote with you,
and close the driver’s door.
If you set the power mode to VEHICLE OFF with the headlight switch on, but do not
open the door, the lights turn off after 10 minu tes (3 minutes, if the switch is in the
AUTO position).
The lights turn on again when you unlock or open the driver’s door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver’s door, you will hear a lights on reminder chime.
■Headlight Integration with Wipers
■Automatic Lighting Off Feature
1Headlight Integration with Wipers
This feature activates when the headlights are off in AUTO .
The instrument panel br ightness does not change
when the headlights come on.
At dark ambient light leve ls, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.
You can turn the headlight integration with wipers
function on and off.
2 Customized Features P. 244
1Automatic Lighting Off Feature
You can change the headli ght auto off timer setting.
2 Customized Features P. 244
20 ACURA NSX PMC-31T6N6300.book 133 ページ ２０１９年９月１１日　水曜日　午後４時５１分

134
uuOperating the Switches Around the Steering WheeluDaytime Running Lights
Controls
Daytime Running Lights
The daytime running lights come on when the following conditions have been met:
• The power mode is in ON.
• The headlight switch is in AUTO.
• The parking brake is released.
The daytime running lights are off the headli ght switch is turned on, or when the
headlight switch is in AUTO and it is getting darker outside.
1Daytime Running Lights The brightness of the dayt ime running lights is lower
when the headlight switch is in than when it is
in AUTO . When it is in AUTO, the low-beam
headlights come on once the le vel of ambient light is
very low.
U.S. models
20 ACURA NSX PMC-31T6N6300.book 134 ページ ２０１９年９月１１日　水曜日　午後４時５１分

135
uuOperating the Switches Around the Steering WheeluWipers and Washers
Controls
Wipers and WashersThe windshield wipers and washers can be
used when the power mode is in ON. ■MIST
The wipers run at high speed until you release
the lever. ■ Wiper switch (OFF, INT, LO, HI)
Change the wiper switch setting according to the amount of rain. ■ Adjusting wiper operation
Turn the adjustment ring to adjust wiper
operation. ■ Washer
Sprays while you pull the lever toward you. When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
■Windshield Wiper/Washer1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the windshield.
Operating the wipers in th is condition may damage
wipers. Use the de froster to warm the windshield,
then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the wipers stop operating due to any obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF, then remove
the obstacle.
MIST
OFF LO : Low speed wipe
HI : High speed wipe Pull to
use
washer.
INT : Low speed with
intermittent
Lower speed, fewer sweeps
Higher speed, more sweeps
20 ACURA NSX PMC-31T6N6300.book 135 ページ ２０１９年９月１１日　水曜日　午後４時５１分

136
uuOperating the Switches Around the Steering WheeluRear Defogger/Heated Door Mirror Button
Controls
Rear Defogger/Heated Door Mirror Button
Press the rear defogger and heated door
mirror button to defog the rear window and
mirrors when the power mode is in ON.
The rear defogger and heated door mirrors
automatically switch off after 10-30 minutes
depending on the outside temperature.
However, if the outside temperature is 32°F
(0°C) or below, they do not automatically
switch off.
1Rear Defogger/Heated Door Mirror Button
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long time while the
power system is stopped. This may weaken the 12-
volt battery, making it di fficult to turn the power
system on.
When the outside temperature is below 41°F (5°C),
the heated door mirror may activate automatically for
10 minutes when you set the power mode to ON.
20 ACURA NSX PMC-31T6N6300.book 136 ページ ２０１９年９月１１日　水曜日　午後４時５１分

137
uuOperating the Switches Around the Steering WheeluBrightness Control
Controls

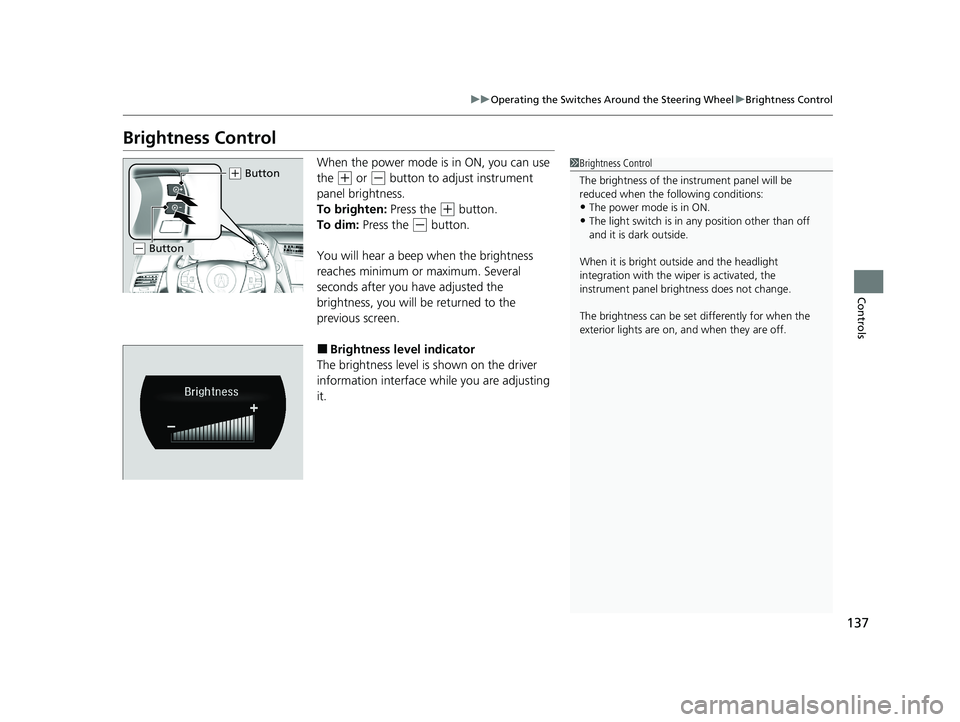

Brightness ControlWhen the power mode is in ON, you can use the
(+ or (- button to adjust instrument
panel brightness.
To brighten: Press the
(+ button.
To dim: Press the
(- button.
You will hear a beep when the brightness
reaches minimum or maximum. Several
seconds after you have adjusted the
brightness, you will be returned to the
previous screen. ■ Brightness level indicator
The brightness level is shown on the driver
information interface wh ile you are adjusting
it.
1Brightness Control
The brightness of the in strument panel will be
reduced when the following conditions: • The power mode is in ON.
• The light switch is in any position other than off and it is da rk outside.
When it is bright out side and the headlight
integration with the wiper is activated, the
instrument panel bri ghtness does not change.
The brightness can be set differently for when the
exterior lights are on, and when they are off.(+ Button
(- Button
20 ACURA NSX PMC-31T6N6300.book 137 ページ ２０１９年９月１１日　水曜日　午後４時５１分

138
uuOperating the Switches Around the Steering WheeluDriving Position Memory System*
Controls
Driving Position Memory System *
You can store two driver’s seat (except for power lumbar) and outside door mirrors
position with the driving position memory system.
When you unlock and open the driver’s doo r with a remote transmitter, or keyless
access system, door mirrors adjust to one of the two preset positions and the seat
adjusts to retracted positions of one of the two preset positions automatically.
The seat will move to th e stored position when you set the power mode to
ACCESSORY.
When you enter the vehicle, the driver in formation interface briefly shows you which
remote transmitter you used to unlock the vehicle.
• DRIVER 1 transmitter is linked to memory button 1.
• DRIVER 2 transmitter is linked to memory button 2.
The driver’s seat moves rearward depending
on the set seating position once you •Stop the vehicle.
• Put the transmission in
(P .
• Set the power mode to VEHICLE OFF.
• Then open the driver’s door.
Once the power mode is in the ACCESSORY
position, the driver’s seat moves to the DRIVER 1 or 2 preset position.
1Driving Position Memory System *
Using the audio/informati on screen, you can disable
the automatic seat and d oor mirrors adjustment
function. 2 Customized Features P. 244
The driver’s seat easy exit feature: • Will tilt slightly forward and then move rearward to
allow you to more easily exit the vehicle.
• Can be turned ON/OFF.
2Customized Features P. 244
System Operation
The system will not operate if:
• The vehicle speed is above 3 mph (5 km/h).
• Either memory position but ton is pressed while the
seat or the outside mirror is in motion.
• The seat or the outside mi rror position is adjusted
while in operation.
• The memory 1 or 2 position is set fully to the rear.
DRIVER 1 DRIVER 2
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 138 ページ ２０１９年９月１１日　水曜日　午後４時５１分
