ACURA NSX 2020 Owners Manual

149
Continued
Controls
Interior Convenience Items

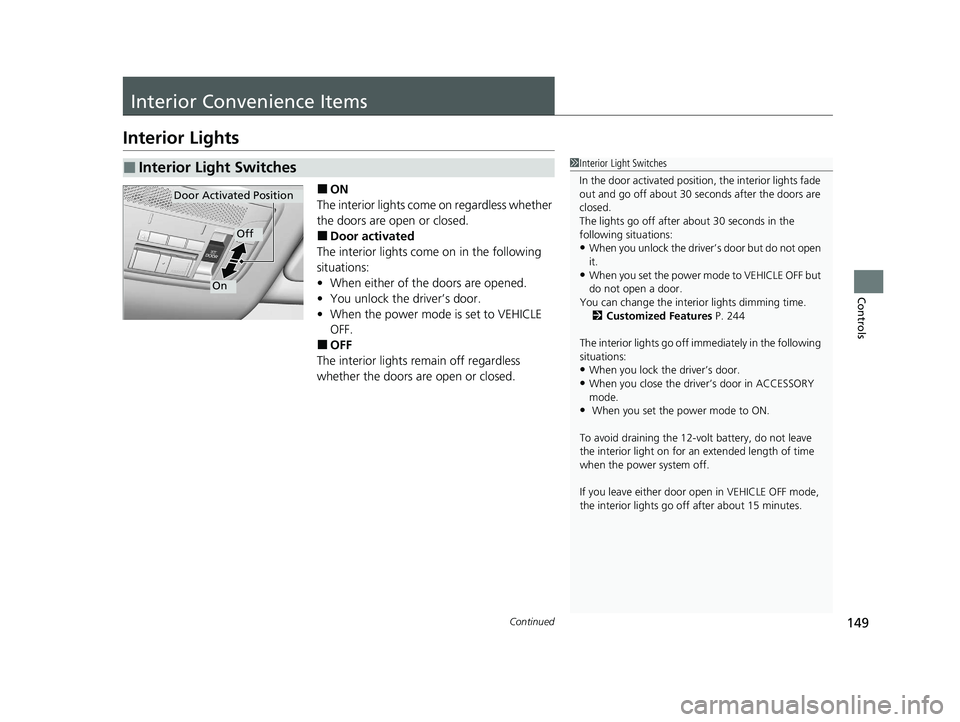

Interior Lights
■ON
The interior lights come on regardless whether
the doors are open or closed. ■ Door activated
The interior lights come on in the following situations: • When either of the doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE OFF.
■ OFF
The interior lights remain off regardless
whether the doors are open or closed.
■Interior Light Switches1Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations: • When you unlock the driver’s door but do not open
it.
• When you set the power mode to VEHICLE OFF but
do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 244
The interior lights go off im mediately in the following
situations:
• When you lock the driver’s door.
• When you close the driver’s door in ACCESSORY mode.
• When you set the power mode to ON.
To avoid draining the 12-vo lt battery, do not leave
the interior light on for an extended length of time
when the power system off.
If you leave either door open in VEHICLE OFF mode,
the interior lights go of f after about 15 minutes.
Door Activated Position
Off
On
20 ACURA NSX PMC-31T6N6300.book 149 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuInterior Convenience ItemsuInterior Lights
150
Controls

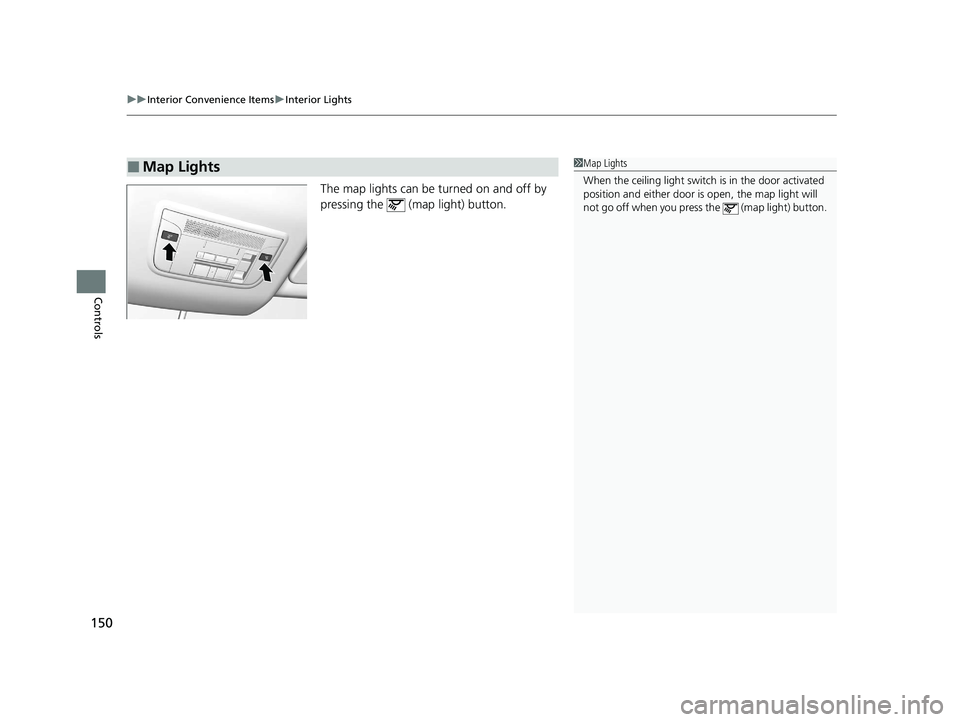

The map lights can be turned on and off by
pressing the (map light) button.
■Map Lights1Map Lights
When the ceiling light switch is in the door activated
position and either door is open, the map light will
not go off when you press the (map light) button.
20 ACURA NSX PMC-31T6N6300.book 150 ページ ２０１９年９月１１日　水曜日　午後４時５１分

151
uuInterior Convenience ItemsuStorage Items
Continued
Controls

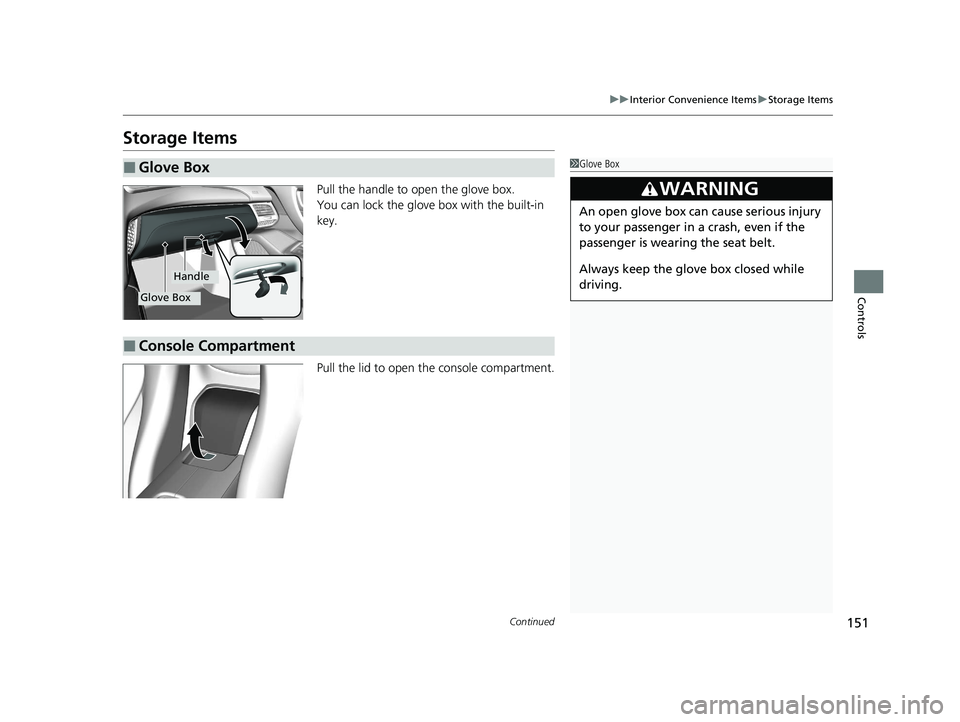

Storage ItemsPull the handle to open the glove box.
You can lock the glove box with the built-in
key.
Pull the lid to open the console compartment.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
Handle
■Console Compartment
20 ACURA NSX PMC-31T6N6300.book 151 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuInterior Convenience ItemsuStorage Items
152
Controls

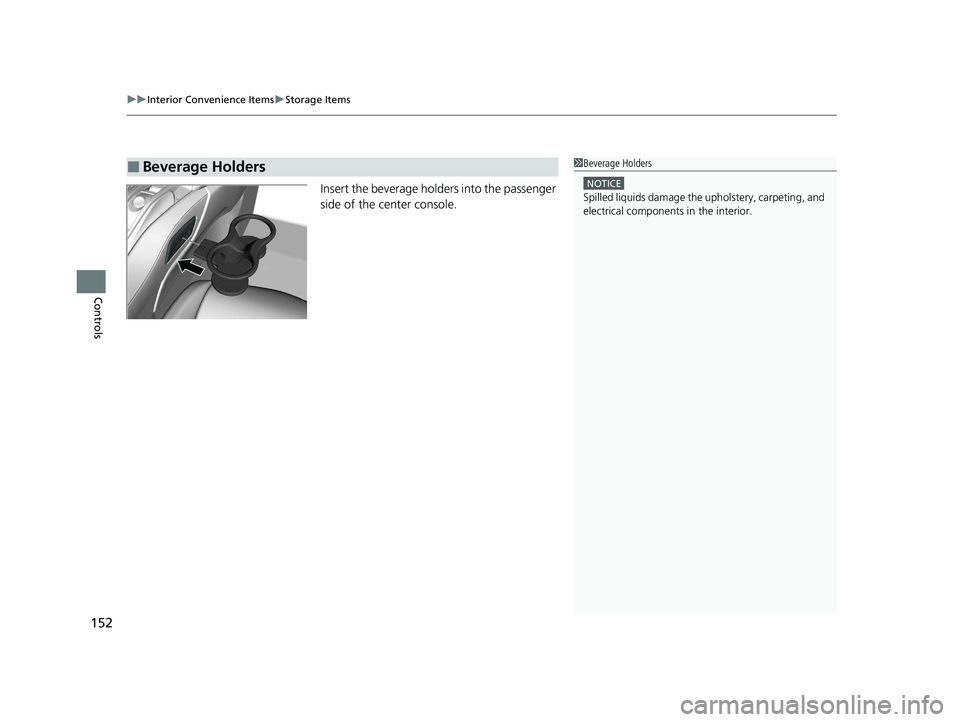

Insert the beverage holders into the passenger
side of the center console.
■Beverage Holders1Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
20 ACURA NSX PMC-31T6N6300.book 152 ページ ２０１９年９月１１日　水曜日　午後４時５１分

153
uuInterior Convenience ItemsuOther Interior Convenience Items
Continued
Controls
Other Interior Convenience Items

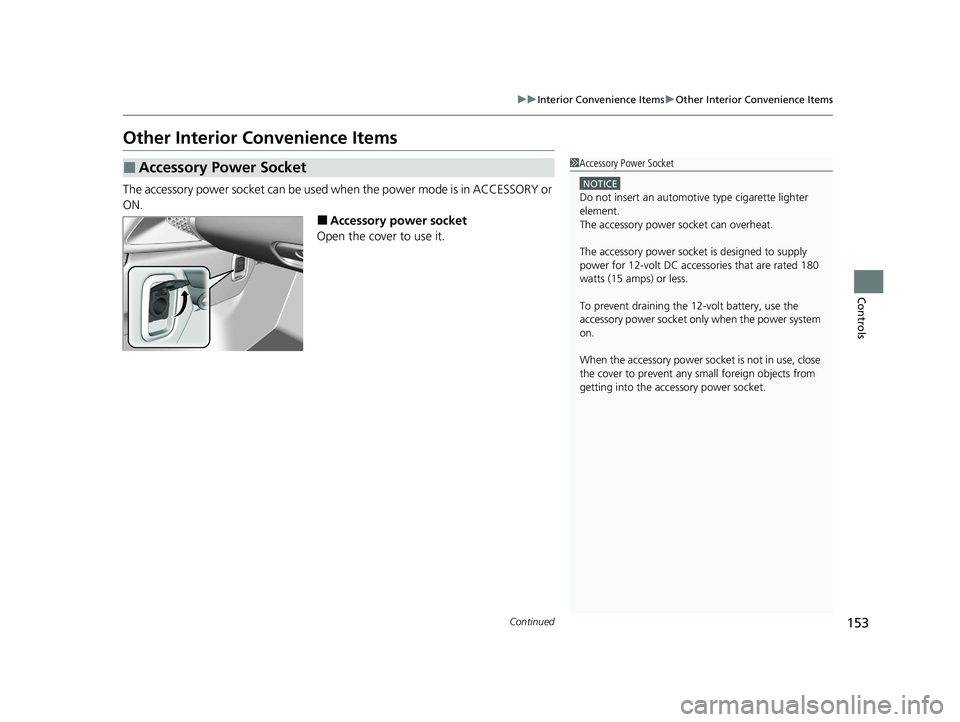

The accessory power socket can be used when the power mode is in ACCESSORY or
ON. ■Accessory power socket
Open the cover to use it.
■Accessory Power Socket1Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element.
The accessory power socket can overheat.
The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent draining the 12-volt battery, use the
accessory power socket only when the power system on.
When the accessory power soc ket is not in use, close
the cover to prevent any small foreign objects from
getting into the accessory power socket.
20 ACURA NSX PMC-31T6N6300.book 153 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuInterior Convenience ItemsuOther Interior Convenience Items
154
Controls

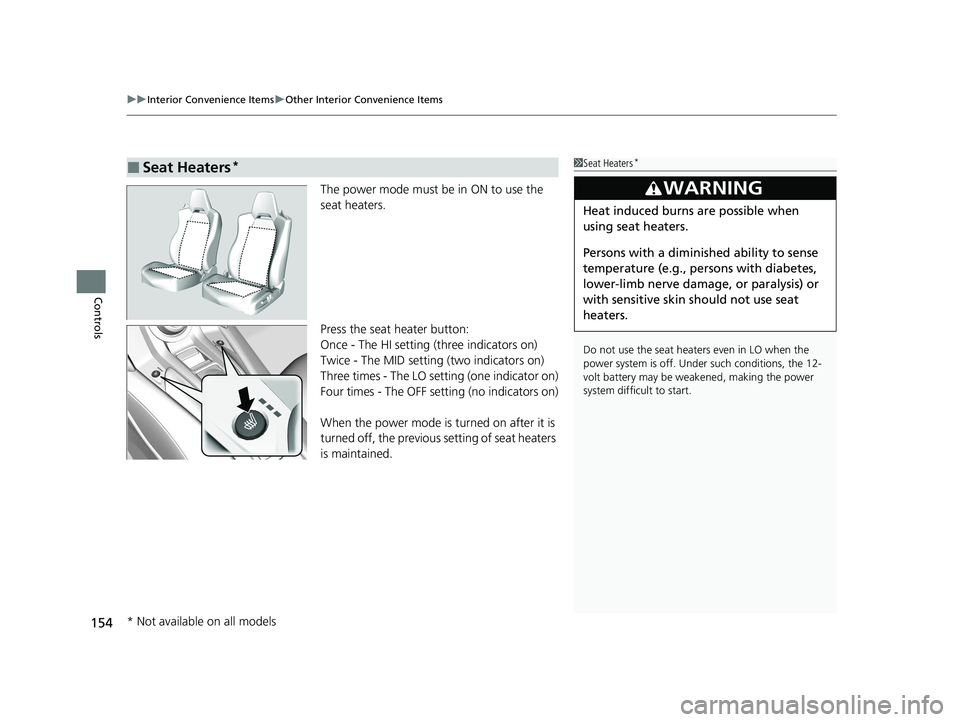

The power mode must be in ON to use the
seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
When the power mode is turned on after it is
turned off, the previous setting of seat heaters
is maintained.
■Seat Heaters *1Seat Heaters
*
Do not use the seat heaters even in LO when the power system is off. U nder such conditions, the 12-
volt battery may be weakened, making the power
system difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 154 ページ ２０１９年９月１１日　水曜日　午後４時５１分

155
Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control
system maintains the interior temperature you select.
The system also selects the proper mix of h eated or cooled air to raise or lower the
interior temperature to your pr eference as quickly as possible.
Use the system when the power mode is ON. 1. Press the AUTO button.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
buttons.
3. Press the button to cancel.
1Using Automatic Climate Control
Press the CLIMATE button to display A/C, MODE, fan
control information on the audio/information screen
for several seconds. Select icon to turn on or off A/C, change the vent mode, or change the fan speed.
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button th at was pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system to AUTO, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switch es the climate control
system on or off. When tu rned on, the system returns
to your last selection.
*1: MID vents provide supple mental air to the lower
body of the occupant(s). MID vents can be used
together with any other vent mode.
Dashboard
ventsDashboard
and floor
vents Floor vents Floor and
defroster
ventsMID vents
*1
SYNC Button
AUTO
Button
CLIMATE Button
Driver Side Temperature Con
trol
Buttons Passenger Side Temperature
Control
Buttons
(
ON/ OFF
)
Button
(Recirculation) Button
Audio/ Information
Touch Screen
20 ACURA NSX PMC-31T6N6300.book 155 ページ ２０１９年９月１１日　水曜日　午後４時５１分

156
uuClimate Control SystemuUsing Automatic Climate Control
Controls
■Switching between the recirc ulation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains out side ventilation. Keep the system in
fresh air mode in normal situations.
20 ACURA NSX PMC-31T6N6300.book 156 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued157
uuClimate Control SystemuUsing Automatic Climate Control
Controls
Pressing the (windshield defroster) button
turns the air conditioning system on and
automatically switches the system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.
■ To rapidly defrost the windows
1.Press the button.
2. Press the button.
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
20 ACURA NSX PMC-31T6N6300.book 157 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuClimate Control SystemuUsing Automatic Climate Control
158
Controls
You can set the temperature synchronously fo r the driver’s side and the passenger’s
side in synchronization mode. 1. Press the SYNC button.
uThe system switches to synchronization mode.
2. Adjust the temperature using the driver ’s side temperature control buttons.
Press the SYNC button to return to dual mode.
■Synchronization Mode1Synchronization Mode
When the system is in dua l mode, the driver’s side
temperature and the passe nger’s side temperature
can be set separately.
SYNC Button
Driver’s Side Te
mperature
Control
Buttons Passenger’s
Side
Temperature Control
Buttons
20 ACURA NSX PMC-31T6N6300.book 158 ページ ２０１９年９月１１日　水曜日　午後４時５１分
