Continued111
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls
By switching the auto pop-out main switch to OFF, you can disable the auto pop-out
function. For the purpose of safety and to prevent damaging the vehicle, disable this
function and manually operate the handle, especially when the vehicle is: • being shipped by train, truck, or boat.
• going through a car wash.
• having maintenance performed on it.
■ To temporarily deactivate the auto pop-out function:
Turn off the auto pop-out main switch in the
glove box.
■Auto Pop-Out Main Switch1Auto Pop-Out Main Switch
The auto pop-out function is deactivated in the following situations:• The auto pop-out main sw itch is turned off.
• The keyless access remote is not within a 6-foot
(2m) radius of the outside door handle.
• The keyless access remote is in the vehicle.
• The power mode is in ACCESSORY or ON.
Main Switch
ON
OFF
20 ACURA NSX PMC-31T6N6300.book 111 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
112
Controls
■ Locking the doors
Press the lock button.
Once:
uSome exterior lights flash, both doors
lock, both outer door handles pop in,
and the security system sets.
Twice (within five seco nds after the first
push):
uThe beeper sounds and verifies the
security system is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automaticall y relock and the outer
handles of the doors will au tomatically pop back in.
You can change the relock timer setting.
2 Customized Features P. 244
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately.
2 Interior Lights P. 149
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
LED
Unlock Button Lock
Button
20 ACURA NSX PMC-31T6N6300.book 112 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued113
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls
■Unlocking the doors
Press the unlock button.
Once:
uSome exterior lights flash twice, the driv er’s door unlocks and the driver’s outer
door handle pops out.
Twice:
uThe passenger’s door unlocks and the passenger’s outer door handle pops out.
1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 418
You can customize the door unlock mode setting. 2 Customized Features P. 244
If the passenger’s door is not opened, the outer
handle of the passenger’s door will pop back in 30
seconds after the dr iver’s door is closed or when the
gear position is moved out of
(P.
To pop out the outer handle of the passenger’s door
when the gear position is in
(P , press the unlock
button on the remote transmit ter or press the master
door unlock switch.
20 ACURA NSX PMC-31T6N6300.book 113 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
114
Controls
If the lock or unlock button of the remote does not work, use the key instead. Fully insert the key and turn it.
If you do not have the key on you, or if for
some reason you cannot lock a door using the
key, you can lock the door without it.
■ Locking the doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■ Lockout prevention system
The doors cannot be locked when the keyless access remote is inside the vehicle.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, the
passenger’s door locks at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
passenger’s door.
If you unlock the doors with the key, the alarm goes
off when you open the hood or select other than
(P
before the power mode is set to ON.
You can customize the door unlock mode setting. 2 Customized Features P. 244
Lock
Unlock
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driv er’s door, the passenger’s
door locks at the same time. Before locking a door, make sure that the key is not
inside the vehicle.
20 ACURA NSX PMC-31T6N6300.book 114 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuOpening and Closing the HatchuUsing the Remote Transmitter
120
Controls
Push the release button on the hatch after the
doors are unlocked. 2 When You Cannot Open the Hatch P. 464
Even if the hatch is locked, you can open the
hatch if you carry the keyless access remote.
uThe beeper sounds.
Using the Remote Transmitter
Press the hatch release button for
approximately one second to unlock and open the hatch.
1Using the Hatch Release Button• If you forget the remote inside, the beeper will
sound and the hatch will not close.
• A person who is not carryi ng the keyless access
remote can unlock the hatch if a person who is
carrying it is within range.
• If the beeper sounds after close the hatch, move
the keyless access remote away from the trunk and
close again.
• The keyless access remote may not operate if it is
too close to the hatch.
Hatch
Release
Button
20 ACURA NSX PMC-31T6N6300.book 120 ページ ２０１９年９月１１日　水曜日　午後４時５１分

121
uuOpening and Closing the HatchuHatch Main Switch
Controls
Hatch Main SwitchThe hatch main switch disables the hatch
release button on the remote transmitter, the
hatch release button on the hatch and the
hatch release button on the driver’s door to
protect luggage in the trunk. 1.Turn off the hatch main switch in the glove
box.
2. Lock the glove box.
Emergency Hatch Opener
The hatch release lever allows you to open the
hatch from inside for your safety.
Slide the release lever in the direction of the
arrow.
1Hatch Main Switch
If you need to give the key to someone else, remove
the built-in key from the keyless access remote by
sliding the release knob, and give the remote as a
valet key.Main Switch
ON
OFF
1Emergency Hatch Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
20 ACURA NSX PMC-31T6N6300.book 121 ページ ２０１９年９月１１日　水曜日　午後４時５１分

122
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the power system. Each key cont ains electronic transmitters that use
electronic signals to verify the key.
Pay attention to the follo wing when pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ENGINE START/
STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehi cle’s immobilizer system near the ENGINE
START/STOP button.
• Do not put the key near magnetic items. Electronic devices, such as a televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the hood, hatch or doors are forcibly
opened. The alarm does not go off if the hatch or doors are opened with the key,
remote transmitter or keyless access system.
However, the alarm goes off when a door is opened with the key, then select other
than
(P or the hood is opened before the power mode is set to ON.
■ When the security sy stem alarm activates
The horn sounds intermittently, and some exterior lights flash. ■ To deactivate the security system alarm
Unlock the vehicle using the remote transm itter or keyless access system, or the
power mode is set to ON. The system, along with the horn and flashing lights, is
deactivated.
1Immobilizer System
NOTICE
Leaving the keyless access re mote in the vehicle can
result in theft or accident al movement of the vehicle.
Always take the remote with you whenever you leave the vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1Security System Alarm
The security alarm continues for a maximum of two
minutes until the security system deactivates.
20 ACURA NSX PMC-31T6N6300.book 122 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued123
uuSecurity SystemuSecurity System Alarm
Controls
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met: • The power mode is set to VEHICLE OFF.
• The hood and hatch are closed.
• Both doors are locked from outside with the key, remote transmitter or keyless
access system.
■ When the security system alarm sets
The security system indicator in the in strument panel blinks. When the blinking
interval changes after about 15 seconds, the security system is set. ■ To cancel the security system alarm
The security system is canc eled when the vehicle is unlocked using the remote
transmitter, keyless access system, or when the power mode is set to ON. The
security system indicator go es off at the same time.1Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when: • The door is unlocked with the lock tab.
• The hatch is opened with the hatch release button
on the driver’s door or wi th the emergency hatch
opener.
• The gear position is shifted out of
(P .
• The hood is opened with the hood release.
If the 12-volt battery goes dead after you have set the
security system alarm, the security alarm may go off
once the 12-volt battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the remote transmitter or
keyless access system.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Do not open the hatch with the key unless it is an
emergency.
Opening the hatch with th e key will trigger the
security system. 2 When You Cannot Open the Hatch P. 464
20 ACURA NSX PMC-31T6N6300.book 123 ページ ２０１９年９月１１日　水曜日　午後４時５１分

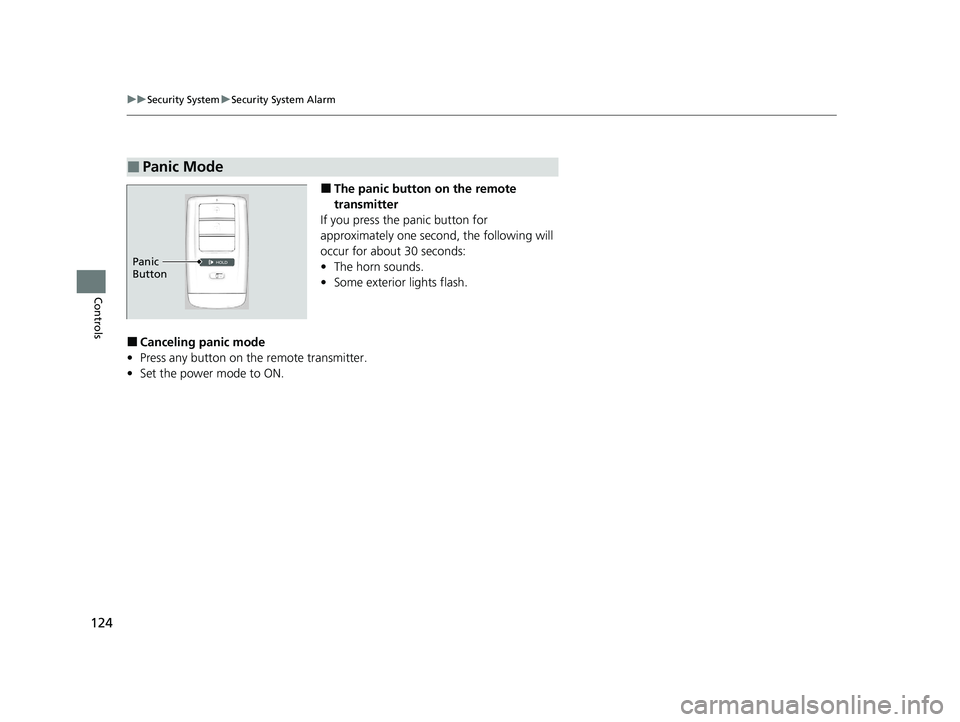

124
uuSecurity SystemuSecurity System Alarm
Controls
■The panic button on the remote
transmitter
If you press the panic button for
approximately one seco nd, the following will
occur for about 30 seconds: • The horn sounds.
• Some exterior lights flash.
■ Canceling panic mode
• Press any button on the remote transmitter.
• Set the power mode to ON.
■Panic Mode
Panic Button
20 ACURA NSX PMC-31T6N6300.book 124 ページ ２０１９年９月１１日　水曜日　午後４時５１分

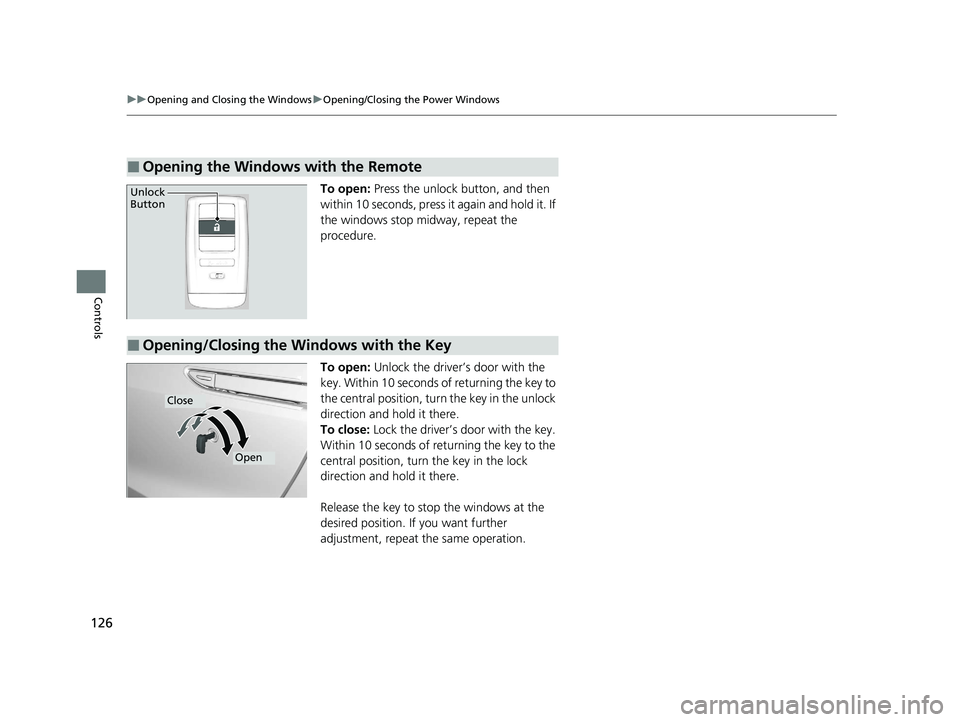

126
uuOpening and Closing the WindowsuOpening/Closing the Power Windows
Controls
To open: Press the unlock button, and then
within 10 seconds, press it again and hold it. If
the windows stop midway, repeat the
procedure.
To open: Unlock the driver’s door with the
key. Within 10 seconds of returning the key to
the central position, turn the key in the unlock
direction and hold it there.
To close: Lock the driver’s door with the key.
Within 10 seconds of re turning the key to the
central position, turn the key in the lock
direction and hold it there.
Release the key to stop the windows at the
desired position. If you want further
adjustment, repeat the same operation.
■Opening the Windows with the Remote
Unlock Button
■Opening/Closing the Windows with the Key
Close
Open
20 ACURA NSX PMC-31T6N6300.book 126 ページ ２０１９年９月１１日　水曜日　午後４時５１分
