ACURA NSX 2020 Owners Manual

349
uuWhen DrivinguVehicle Stability AssistTM
(VSA ®), aka Electronic Stability Control (ESC), System
Driving
To completely disable VSA ®, the VSA ® must be
in TRACK mode (it cannot be in Stuck
Vehicle Assist mode). Press and hold the
VSA ® OFF button until you hear a single beep,
then later two more beeps.
uThis message appears on the driver
information interface.
To resume VSA ® full function, press the VSA ®
OFF button until a single beep is heard. The VSA ® will return to Track Mode.
uThis message appears on the driver
information interface.
If VSA ® OFF mode is selected, and Integrated
Dynamics System is changed to a mode other than TRACK , VSA® full function will resume,
and the VSA ® OFF indicator will go off.
20 ACURA NSX PMC-31T6N6300.book 349 ページ ２０１９年９月１１日　水曜日　午後４時５１分

350
uuWhen DrivinguAgile Handling Assist
Driving
Agile Handling Assist
Lightly brakes each of the front and rear wheels, as needed, when you turn the
steering wheel, and helps support the vehicle’s stability and performance during
cornering.
1Agile Handling Assist
The agile handling assist ca nnot enhance stability in
all driving situations. You still need to drive and corner at speeds appropriate for the conditions and
always leave a sufficient margin of safety.
When the VSA ® system indicator comes on and stays
on while driving, the agil e handling assist does not
activate.
You may hear a sound coming from the front of the car while the agile handling assi st is activated. This is
normal.
20 ACURA NSX PMC-31T6N6300.book 350 ページ ２０１９年９月１１日　水曜日　午後４時５１分

351
uuWhen DrivinguSPORT HYBRID Super Handling All-Wheel-DriveTM
(SPORT HYBRID SH-AWD ®)
Driving
SPORT HYBRID Super Handling All-Wheel-Drive TM

(SPORT HYBRID SH-AWD ®)
The system controls and transfers varying amounts of motor and/or engine torque
to each wheel in accordance with the driving conditions.
SPORT HYBRID SH-AWD ® helps to enhance driving stability, and lets you handle
situations like slippery surf aces better than when drivi ng with standard two wheel
drive. However, the system does not help to enhance braking. Be cautious about the
following:• It is still your responsibility to drive sa fely when you steer, accelerate, and apply
brakes.
• Leave a sufficient margin when braking on slippery surfaces.1SPORT HYBRID Super Handling All-Wheel-Drive TM
(SPORT
HYBRID SH-AWD ®)
Do not drive through deep water.
The SPORT HYBRID SH-AWD ® system may not
function properly if tire type and size are mixed.
Make sure to use the same size and type of tire, and
the air pressures as specified.
2 Tire and Wheel Replacement P. 413
20 ACURA NSX PMC-31T6N6300.book 351 ページ ２０１９年９月１１日　水曜日　午後４時５１分

352

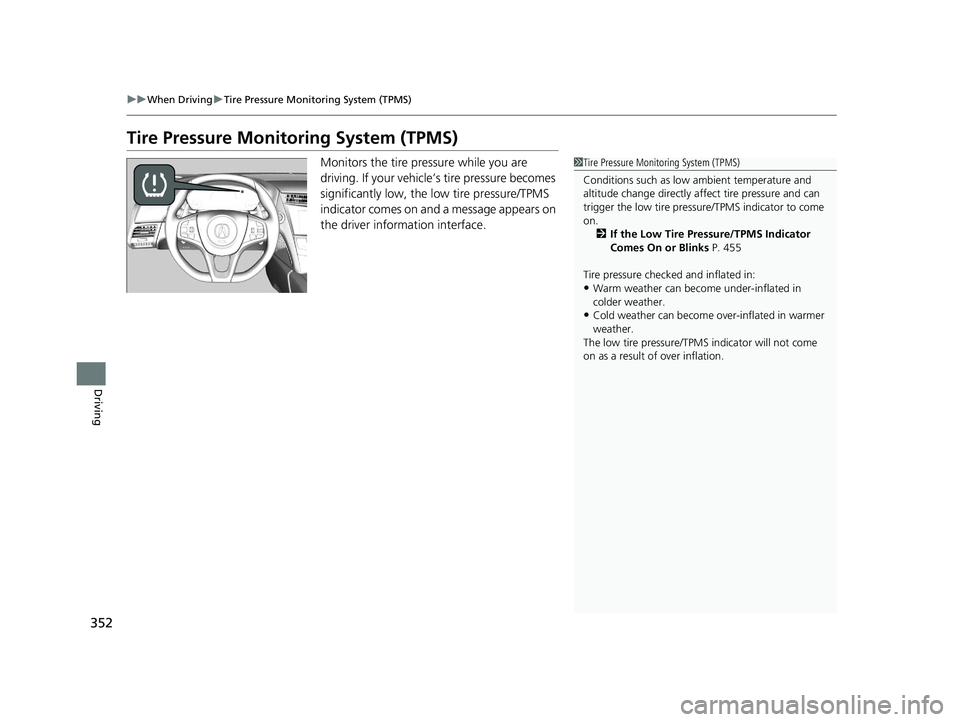

uuWhen DrivinguTire Pressure Monitoring System (TPMS)
Driving
Tire Pressure Monitoring System (TPMS)Monitors the tire pressure while you are
driving. If your vehicle’s tire pressure becomes
significantly low, the low tire pressure/TPMS
indicator comes on and a message appears on
the driver information interface.
1Tire Pressure Monitoring System (TPMS)
Conditions such as low ambient temperature and
altitude change directly affect tire pressure and can
trigger the low tire pressure/TPMS indicator to come on. 2 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks P. 455
Tire pressure checked and inflated in: • Warm weather can beco me under-inflated in
colder weather.
• Cold weather can become over-inflated in warmer
weather.
The low tire pressure/TPMS indicator will not come
on as a result of over inflation.
20 ACURA NSX PMC-31T6N6300.book 352 ページ ２０１９年９月１１日　水曜日　午後４時５１分

353
uuWhen DrivinguTire Pressure Monitoring System (TPMS)
Driving
To select the tire pressure monitor, set the
power mode to ON, and roll the right selector
wheel until you see the tire pressure screen.
The pressure for each tire is displayed in PSI
(U.S.) or kPa (Canada).
Tire Pressures Low is displayed when a tire
has significantly low pressure. The specific tire
is displayed on the screen.
Tire Pressure Too Low For High Speed
Driving is displayed when driving at an
extremely high speed and one or more tires
are underinflated.
uDecelerate and drive your vehicle until
the message disappears.
■Tire Pressure Monitor1Tire Pressure Monitor The pressure displayed on the driver information
interface can be slightly different from the actual
pressure as measured by a gauge. If there is a significant di fference between the two values, or if
the low tire pressure/TPMS indicator and the message
on the driver information in terface do not go off after
you have inflated the tire to the specified pressure,
have the system checked by an authorized Acura NSX
dealer.
Tire Pressure Monitor Problem may appear on the
driver information interface if there is a problem with
the TPMS. Please have the system checked by an
authorized Acura NSX dealer.
20 ACURA NSX PMC-31T6N6300.book 353 ページ ２０１９年９月１１日　水曜日　午後４時５１分

354
uuWhen DrivinguTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Tire Pressure Monitoring System (TPMS) - Required
Federal Explanation
Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure
recommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label.
(If your vehicle has tires of a diff erent size than the size indicated
on the vehicle placard or tire infl ation pressure label, you should
determine the proper tire inflat ion pressure for those tires.)
As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale
when one or more of your tire s is significantly under-inflated.
Accordingly, when the low tire pr essure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate
them to the proper pressure.
Driving on a significantly under-in flated tire causes the tire to
overheat and can lead to tire fail ure. Under-inflation also reduces
fuel efficiency and tire tread li fe, and may affect the vehicle’s
handling and stopping ability.
20 ACURA NSX PMC-31T6N6300.book 354 ページ ２０１９年９月１１日　水曜日　午後４時５１分

355
uuWhen DrivinguTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver ’s responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumination of th e TPMS low tire pressure telltale.
Your vehicle has also been equi pped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the syst em detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illumina ted. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
20 ACURA NSX PMC-31T6N6300.book 355 ページ ２０１９年９月１１日　水曜日　午後４時５１分

356
uuWhen DrivinguHigh Voltage Battery
Driving
High Voltage Battery
The High Voltage battery gradually discharges when the vehicle is not in use. As a
result, if your vehicle is parked for an ex tended period of time, the battery level may
get low. Keeping the High Vo ltage battery’s charge level low can shorten its life.
To maintain the High Voltage battery, driv e your vehicle for more than 30 minutes
to recharge it at least once every three months. Also, try to park in shaded areas
instead of direct sunlight. 2 Storage P. 428
20 ACURA NSX PMC-31T6N6300.book 356 ページ ２０１９年９月１１日　水曜日　午後４時５１分

357
Continued
Driving
Braking
Brake System
Use the parking brake to keep the vehicl
e stationary when parked. When the
parking brake is applied, you can manu ally or automatically release it.
■ To apply
The electric parking brake can be applied any
time the vehicle has battery, no matter which
power mode the vehicle is in.
Pull the electric parking brake switch up gently
and securely.
uThe parking brake indicator comes on.
■ To release
The power mode must be in the ON position
to release the electric parking brake. 1. Depress the brake pedal.
2. Press the electric parking brake switch.
uThe parking brake indicator goes off.
Manually releasing the parking brake using
the switch helps your vehicle start slowly and
smoothly when facing downhill on steep hills.
■Parking Brake1Brake System
When you depress the brak e pedal, you may hear a
whirring sound from the engine compartment. This is
because the brake system is in operation, and it is
normal.
1Parking Brake
You may hear the electric parking brake system
motor operating from the re ar wheel area when you
apply or release the parking brake.
You cannot apply or release the parking brake if the
12-volt battery goes dead.
2 Jump Starting P. 448
If you pull up and hold the electric parking brake
switch while driving, the brakes on all four
wheels are applied by the electric servo brake
system until the vehicle comes to a stop. The
electric parking brake then applies, and the
switch should be released .
Electric Parking
Brake Switch
Electric Parking
Brake Switch
20 ACURA NSX PMC-31T6N6300.book 357 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuBrakinguBrake System
358
Driving
■ To release automatically
Depressing the accelerator pedal releases the parking brake.
Use the accelerator pedal to release th e brake when you are starting the vehicle
facing uphill, or in a traffic jam.
Gently depress the accelerator pedal.
When on a hill, it may require more
accelerator input to release.
uThe electric parking brake indicator goes off.
You can release the parki ng brake automatically when:
• You are wearing the driver’s seat belt.
• The power system is on.
• The transmission is not in
(P or (N.
1Parking Brake
In the following situations, the parking brake
automatically operates.
• When the vehicle stops with the automatic brake
hold system activated for more than 10 minutes.
• When the driver’s seat belt is unfastened while
your vehicle is stopped and brake hold is applied.
• When the power system is turned off while brake hold is applied.
• When there is a problem with the Brake Hold
System.
If the parking brake cannot be released
automatically, release it manually.
The parking brake cannot be released automatically
while the following indicators are on:
• Malfunction indicator lamp
• Transmission system indicator
The parking brake may not be released automatically
while the following indicators are on:
• Electric parking brak e system indicator
• VSA ® system indicator
• ABS indicator
• Supplemental restraint system indicator
Accelerator Pedal
