ACURA NSX 2020 Owners Manual

319
uuBefore DrivinguHigh-Performance Driving
Driving
AFTER DRIVING •Check your NSX, and each of its relevant components, to make sure that it still is
in a safe operating condition (example: wh eel lug bolt torque, tire pressure, etc.).
We recommend repeating the BEFORE DRIV ING protocol, and if any item shows
excessive wear or appears to be in an unusual condition, have it replaced, or
exercise appropriate caution when driv ing and see your authorized Acura NSX
dealer
For more information, please contact your authorized Acura NSX dealer, and/or
Acura Client Relations. 2 Client Service Information P. 478
20 ACURA NSX PMC-31T6N6300.book 319 ページ ２０１９年９月１１日　水曜日　午後４時５１分

320
Driving
Towing a Trailer
Your vehicle is not designed to tow a trailer. Attempting to do so can void your warranties.
Towing Your Vehicle
Your vehicle is not designed to be towed behind a motor home. If your vehicle needs
to be towed in an emergency, refe r to the emergency towing information.
2 Emergency Towing P. 462
20 ACURA NSX PMC-31T6N6300.book 320 ページ ２０１９年９月１１日　水曜日　午後４時５１分

321
Continued
Driving
When Driving
Turning on the Power
1.Make sure the parkin g brake is applied.
uThe electric parking brake indicator
comes on for 15 seconds when you pull
up the electric parking brake switch.
2. Depress the brake pedal.
1Turning on the Power
Keep your foot firmly on the brake pedal when
starting the power system.
The engine is harder to st art in cold weather and in
thinner air found at altit udes above 8,000 feet (2,400
meters).
When turning on the power system in cold weather,
turn off all electrical accessories such as the lights, climate control system, and rear defogger in order to
reduce 12-volt battery drain.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by an authorized Acura NSX dealer. There
may be a problem with the engine or exhaust system.
Electric Parking
Brake Switch
Brake Pedal
20 ACURA NSX PMC-31T6N6300.book 321 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuWhen DrivinguTurning on the Power
322
Driving
3. Press the ENGINE START/STOP button
without depressing the accelerator pedal.
uThe Ready To Drive message appears
on the driver information interface.
uWhen the ambient temperature is
extremely low, the ve hicle does not move
until certain conditions are met.
A warning message appears instead of
Ready To Drive .
2 Driver Information Interface
Warning and Information Messages
P. 90
uIf the High Voltage battery is fully ch arged, the gasoline engine may not start.
uThe gasoline engine starts either accordi ng to the temperature of the engine or
when the High Voltage batte ry charge level is low.
uRegardless of the High Voltage battery char ge level, the gasoline engine always
starts.
uGasoline engine starts with a louder sound than QUIET mode.
When engine temperature or High Volt age battery temperature are low, or
when High Voltage battery charge level is low, gasoline engine starts at the
same sound level as QUIET mode.
You can turn the power system off when the vehicle is completely stopped.
1. Select
(P .
2. Press the ENGINE START/STOP button.
1Turning on the Power
The immobilizer system pr otects your vehicle from
theft. If an improperly code d key (or other device) is
used, the power system does not activate.
2 Immobilizer System P. 122
Bring the keyless access remote close to the ENGINE
START/STOP button if the batte ry in the keyless
access remote is weak.
2 If the Keyless Access Remote Battery is Weak P. 446
The power system may not activate if the keyless
access remote is subjecte d to strong radio waves.
Do not hold the ENGINE START/STOP button to
start the power system. If the power system does not start, wait at least 30
seconds before trying again.
You can set the Integrated Dynamics System mode to
be selected when you set the power mode to ON.
2 Customized Features P. 244
■Stopping the Power System
When the Integrated Dynamics System is in QUIET mode
When the Integrated Dynamics System is in SPORT mode
20 ACURA NSX PMC-31T6N6300.book 322 ページ ２０１９年９月１１日　水曜日　午後４時５１分

323
uuWhen DrivinguTurning on the Power
Driving
1.Change the gear position to . Select (R when reversing.
2. With the parking brake applied, release the brake pedal and gently depress the
accelerator pedal.
uMake sure the electric parki ng brake indicator goes off.
3. Gradually release the brake pedal and gently depress the accelerator pedal to pull
away.
■ Hill Start Assist System
Hill start assist keeps the brake engaged br iefly to help prevent the vehicle from
rolling on inclines as you move your foot from the brake pedal to the accelerator.
Change to when facing uphill, or
(R when facing downhill, then release the
brake pedal.
■Starting to Drive1Starting to Drive
You can also release the parking brake by pressing
the electric parking brake sw itch while depressing the
brake pedal.
When facing downhill, you can start your vehicle
more smoothly by manually releasing it with the electric parking brake switch than by releasing it with
the accelerator pedal.
D/M
1Hill Start Assist System
Hill start assist may not prevent the vehicle from
rolling downhill on a very st eep or slippery slope, and
does not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
D/M
20 ACURA NSX PMC-31T6N6300.book 323 ページ ２０１９年９月１１日　水曜日　午後４時５１分

324
uuWhen DrivinguPrecautions While Driving
Driving
Precautions While Driving
Avoid driving in deep water and on flooded roads. This can damage the power
system or driveline, or cause electrical component failure.
The vehicle is equipped with ultra high performance summer tires that, due to their
decreased tread depth, are at greater risk of hydroplaning on wet roads compared
to regular tires. Exercise caution when driving on wet surfaces.
The vehicle is equipped with ultra high performance summer tires. These tires are
designed for optimum performance and handling in warm climates, and are not
suitable for below freezing, snowy or ic y weather conditions. If you drive under
these circumstances, use of winter tires is recommended and may be mandatory,
depending on your region, province or territory. 2 Winter Tires P. 415
2 Cold Weather Driving P. 416
Due to limitations of the Lithium-ion Hi gh Voltage battery, the minimum starting
temperature for the vehicle is -4°F (-20°C).
Inability to start the vehicle and/or decrea sed performance is expected if the vehicle
is operated at temperatures below -4°F (-20°C).
■In Rain
■In Snow and Ice
1Precautions While Driving
NOTICE
Do not select a shift button while pressing the
accelerator pedal.
NOTICE
The following can damage the under spoiler, under
covers, front bumper, rear diffuser, brake cooling
components, and side sill: • Parking the vehicle by a parking block
• Parallel pa rking along the road shoulder
• Driving toward the bottom of a hill
• Driving up or down to a different surface level
(such as a road shoulder)
• Driving on a rutted or bumpy road
• Driving on a road with potholes
• Driving over speed bump
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored. Repeated operation under these conditions can
eventually damage the system.
If the power mode is set to ACCESSORY while
driving, the power system will shut down and all
steering and brake power a ssist functions will stop,
making it difficult to control the vehicle.
Driving in snow or icy c onditions may accumulate ice
on the brake disk surface, reducing braking power.
20 ACURA NSX PMC-31T6N6300.book 324 ページ ２０１９年９月１１日　水曜日　午後４時５１分

325
uuWhen DrivinguDual Clutch Transmission
Driving
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
If any of these components are damaged or loose, the stability, handling, and
powertrain cooling performance of the vehicle may be adversely affected.
Dual Clutch Transmission
As with a conventional gasoline-powered ve hicle with an automatic transmission,
this vehicle will creep.
Keep the brake pedal firmly depressed when stopped.
The accelerator pedal features a kick down switch. Quickly depressing the
accelerator pedal while driving may cause the transmission to drop to a lower gear,
subsequently increasing vehicle speed. De press the accelerator pedal carefully,
especially when driving uphill, on slippery roads, and curves.
■Other Precautions
■Creeping
■Kickdown
1Precautions While Driving
Do not press the
(N button, as you will lose
regenerative braking (and ac celeration) performance.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this recommendation when
the brake pads are replaced.
Models with iron brake discs
1Dual Clutch Transmission
The DCT will not operate when it is extremely cold. If the vehicle has been park ed in extremely cold
conditions, after you start th e engine, wait until it
gets warm. Keep your vehicle parked until the
READY indicator comes on.
20 ACURA NSX PMC-31T6N6300.book 325 ページ ２０１９年９月１１日　水曜日　午後４時５１分

326
uuWhen DrivinguShifting
Driving

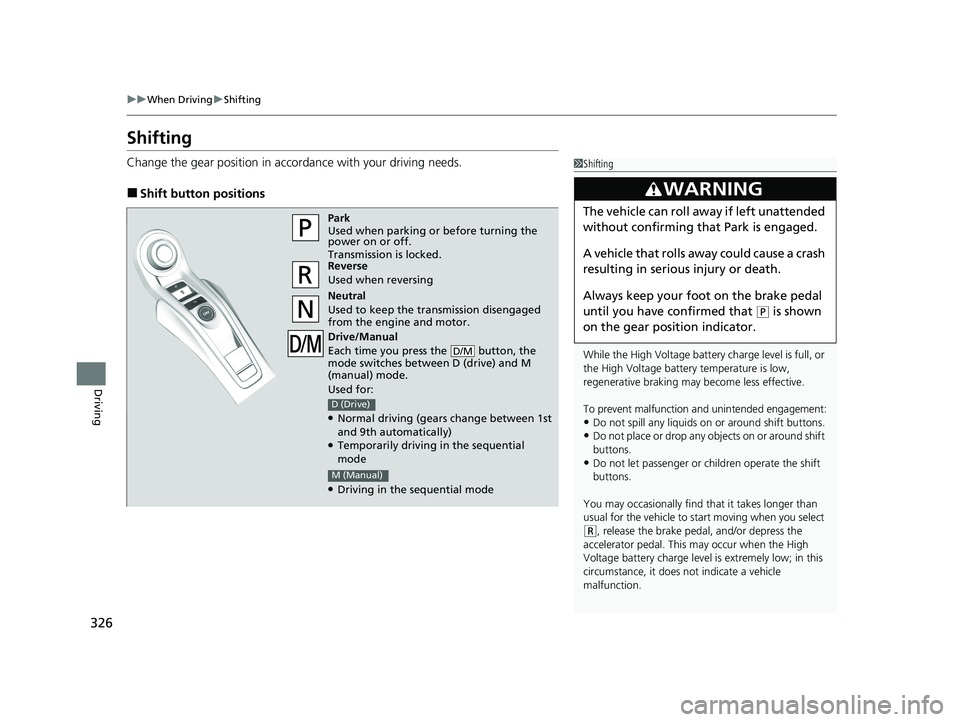

Shifting
Change the gear position in accordance with your driving needs.
■ Shift button positions
1Shifting
While the High Voltage battery charge level is full, or
the High Voltage battery temperature is low,
regenerative braking ma y become less effective.
To prevent malfunction an d unintended engagement:
• Do not spill any liquids on or around shift buttons.
• Do not place or drop any objects on or around shift
buttons.
• Do not let passenger or children operate the shift
buttons.
You may occasionally find th at it takes longer than
usual for the vehicle to st art moving when you select
(R, release the brake peda l, and/or depress the
accelerator pedal. This may occur when the High
Voltage battery charge level is extremely low; in this circumstance, it does not indicate a vehicle
malfunction.
3WARNING
The vehicle can roll aw ay if left unattended
without confirming that Park is engaged.
A vehicle that rolls away could cause a crash
resulting in seriou s injury or death.
Always keep your foot on the brake pedal
until you have confirmed that
(P is shown
on the gear position indicator.
Park
Used when parking or before turning the
power on or off.
Transmission is locked.
Reverse
Used when reversing
Neutral
Used to keep the transmission disengaged
from the engine and motor.
Drive/Manual
Each time you press the button, the
mode switches between D (drive) and M
(manual) mode.
Used for: ● Normal driving (gears change between 1st
and 9th automatically)
● Temporarily driving in the sequential
mode
● Driving in the sequential mode
D/M
D (Drive)
M (Manual)
20 ACURA NSX PMC-31T6N6300.book 326 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued327
uuWhen DrivinguShifting
Driving
■(P (park) button
The gear position changes to
(P when you
press the
(P button while the vehicle is
parked with the power mode in ON.
The indicators on the sides of the
(P button
come on.
1Shifting
The beeper sounds when you depress the accelerator
pedal with the gear position in
(N while in EV mode
or while gear position changed to
(N without direct
shifter selecti on in any mode.
Change the gear position to or
(R with the
brake pedal depressed.
When shifting gears in extremely low temperatures
(-22°F/-30°C), there may be a short delay before the shift is indicated in the di splay. Always confirm you
are in the correct gear before driving.D/M
(P Button
20 ACURA NSX PMC-31T6N6300.book 327 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuWhen DrivinguShifting
328
Driving
■Shift Operation1Shift Operation
NOTICE
Before you change to (R and vice versa, come
to a complete stop and keep the brake pedal
depressed.
Operating the shift button before the vehicle has
come to a complete standstill may damage the
transmission.
Use the gear position indicator and the shift button
indicator to check the gear position before selecting
a shift button.
If the indicator of the currently selected gear position, or all gear position in dicators, are blinking
simultaneously, there is a problem with the
transmission.
Avoid sudden acceleration and have the transmission
checked by an authorized Acura NSX dealer as soon
as possible.
The fuel supply may be cut of f if you drive at engine
speeds in or over the tac hometer’s red zone (engine
speed limit). If this happe ns, you may experience a
slight jolt.
When the engine speed is increased while the
transmission is in
(N , (P or (R, the fuel supply may
be cut off even without the engine speed entering
the tachometer’s red zone.
The beeper sounds once when you change to
(R .
D/M
Gear Position Indicator
Tachometer’s red zone
Press the (P
button.
Press back the (R button.
Press the
(N button.
Press the button.
Each time you press the
button, the mode switches between
D (drive) and M (manual) mode.
D/M
D/M
Shift Button
Indicator Gear Selection Indicator
Gear Position Indicator
Gear Selection Indicator
Gear Position Indicator
Gear Selection IndicatorEV
D (Drive)
D-Paddle
M (Manual)
20 ACURA NSX PMC-31T6N6300.book 328 ページ ２０１９年９月１１日　水曜日　午後４時５１分
