tow ACURA NSX 2021 Owners Manual

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
The Navigation Manual is available online at owners.acura.com
(U.S.) or acura.ca (Canada). If you are the firs t registered owner
of your vehicle, you may request a complimentary printed
copy of the Navigation Manual within the first six months of
vehicle purchase. To request a copy, visit owners.acura.com. In
Canada, please request a copy from your Acura dealer.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 38 Airbags P. 45
2Instrument Panel P. 73
Indicators P. 74 Gauges and Displays P. 99
2Controls P. 107
Clock P. 108 Locking and Unlocking the Doors P. 109
Operating the Switches Ar ound the Steering Wheel P. 131
Climate Control System P. 159
2 Features P. 165
Audio System P. 166 Audio System Basic Operation P. 170
Customized Features P. 248 HomeLink® Universal Transceiver P. 271
2 Driving P. 313
Before Driving P. 314 Towing a Trailer P. 324
Multi-View Rear Camera P. 373
2Maintenance P. 379
Before Performing Maintenance P. 380 Maintenance MinderTM P. 383
Checking and Maintaining Wiper Blades P. 408
Climate Control System Maintenance P. 423
2Handling the Unexpected P. 435
Tools P. 436 If a Tire Goes Flat P. 437
Overheating P. 454 Indicator, Coming On/Blinking P. 456
If You Cannot Open the Hatch P. 468 Refueling P. 469
2Information P. 471
Specifications P. 472 Identification Numbers P. 474
Emissions Testing P. 477 Warranty Coverages P. 479
21 ACURA NSX PMC-31T6N6400.book 4 ページ ２０２０年１０月８日　木曜日　午後３時７分

Contents
Child Safety P. 61Exhaust Gas Hazard P. 70Safety Labels P. 71
Opening and Closing the Hatch P. 123 Security System P. 126 Opening and Closing the Windows P. 129
Adjusting the Mirrors P. 145 Adjusting the Seats P. 148 Interior Convenience Items P. 153
Audio Error Messages P. 227General Information on the Audio System P. 230
Bluetooth ® HandsFreeLink ® P. 274 AcuraLink ®* P. 308
When Driving P. 325 Braking P. 361Parking Your Vehicle P. 368
Refueling P. 375 Fuel Economy and CO
2 Emissions P. 377
Maintenance Under the Hood and Hatch P. 389 Replacing Light Bulbs P. 405
Checking and Maintaining Tires P. 411 12-Volt Battery P. 421 Remote Transmitter Care P. 422
Cleaning P. 424 Accessories and Modifications P. 431 Storage P. 433
Power System Won’t Start P. 449 If th e 12-Volt Battery Is Dead P. 452
Fuses P. 461 Emergency Towing P. 466 If You Cannot Unlock the Fuel Fill Door P. 467
Devices that Emit Radio Waves P. 475 Reporting Safety Defects P. 476
Authorized Manuals P. 482 Client Service Information P. 483
Quick Reference GuideP. 6
Safe DrivingP. 33
Instrument PanelP. 73
ControlsP. 107
FeaturesP. 165
DrivingP. 313
MaintenanceP. 379
Handling the UnexpectedP. 435
InformationP. 471
IndexP. 484
21 ACURA NSX PMC-31T6N6400.book 5 ページ ２０２０年１０月８日　木曜日　午後３時７分

20
Quick Reference Guide
Wipers and Washers
(P 139)
Wiper/Washer Control LeverAdjustment Ring: Lower speed, fewer sweeps
: Higher speed, more sweeps
MIST
OFF
INT: Low speed with intermittent
LO : Low speed wipe
HI: High speed wipe Pull
toward
you to
spray
washer
fluid.
Steering Wheel (P 144)
To adjust, push the adjustment lever down,
adjust to the desired po sition, then lock the
lever back in place.
Unlocking the Doors
from the Inside
(P 119)
●Pull either inner door handle to unlock
and open it in one motion.
●Unlocking and opening the driver’s door
from the inner handle unlocks the
passenger’s door.
To adjust To lock
Hatch (P 123)
●To unlock and open the hatch:
•
Press the hatch release button on the
driver’s door.
• Press the hatch release button on the
keyless access remote.
• Press the hatch release button on the
hatch.
Hatch Release Button
21 ACURA NSX PMC-31T6N6400.book 20 ページ ２０２０年１０月８日　木曜日　午後３時７分

30
Quick Reference Guide
Handling the Unexpected (P 435)
Flat Tire (P 437)
●Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Indicators Come On
(P 456)
●Identify the indicator and consult the
owner’s manual.
Power System Won’t Start
(P 449)
●If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse

(P 461)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P 454)
●Park in a safe location. If you do not see
steam under the hatch, open the hatch,
and let the power system and the engine
cool down.
Emergency Towing
(P 466)
●Call a professional towing service if you
need to tow your vehicle.
21 ACURA NSX PMC-31T6N6400.book 30 ページ ２０２０年１０月８日　木曜日　午後３時７分

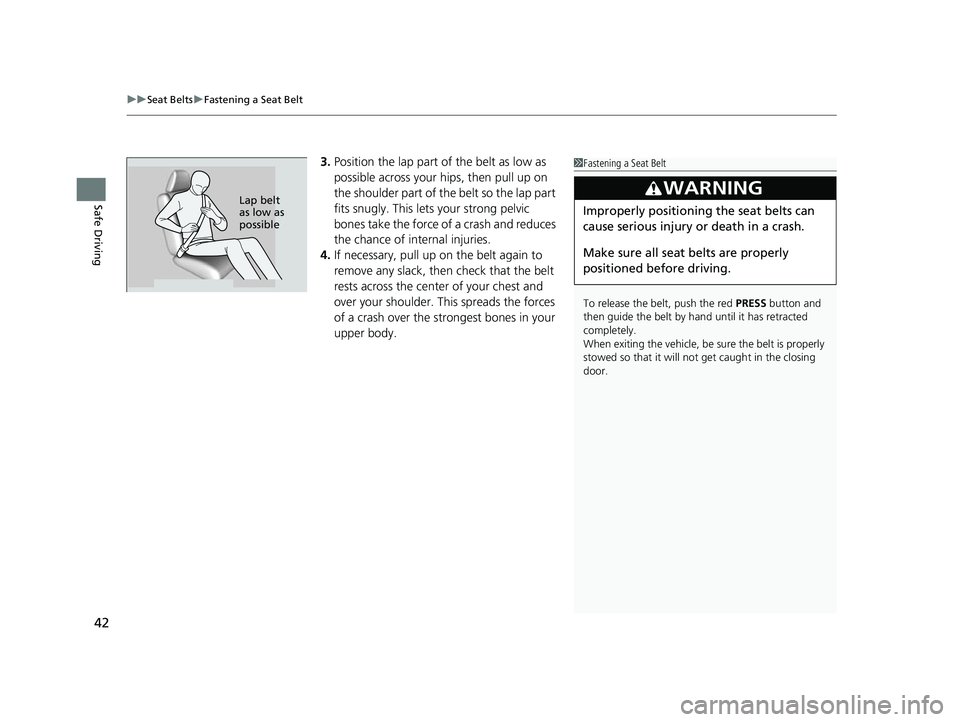

uuSeat Belts uFastening a Seat Belt
42
Safe Driving
3. Position the lap part of the belt as low as
possible across your hips, then pull up on
the shoulder part of the belt so the lap part
fits snugly. This lets your strong pelvic
bones take the force of a crash and reduces
the chance of internal injuries.
4. If necessary, pull up on the belt again to
remove any slack, then check that the belt
rests across the center of your chest and
over your shoulder. Th is spreads the forces
of a crash over the strongest bones in your
upper body.1 Fastening a Seat Belt
To release the belt, push the red PRESS button and
then guide the belt by hand until it has retracted
completely.
When exiting the vehicle, be sure the belt is properly
stowed so that it will not get caught in the closing
door.
3WARNING
Improperly positioning the seat belts can
cause serious injury or death in a crash.
Make sure all seat belts are properly
positioned before driving.Lap belt
as low as
possible
21 ACURA NSX PMC-31T6N6400.book 42 ページ ２０２０年１０月８日　木曜日　午後３時７分

50
uuAirbags uFront Airbags (SRS)
Safe Driving
■When front airbags should not deploy
Minor frontal crashes: Front airbags were designed to supplement seat belts and
help save lives, not to prevent minor scrape s, or even broken bones that might occur
during a less than moderate-to-severe frontal crash.
Side impacts: Front airbags can provide protection when a sudden deceleration
causes a driver or passenger to move towa rd the front of the vehicle. Side airbags
and side curtain airbags have been specifically designed to help reduce the severity
of injuries that can occur during a moderate-to-severe side impact which can cause
the driver or passenger to move toward the side of the vehicle.
Rear impacts: Head restraints and seat belts are your best protection during a rear
impact. Front airbags cannot provide any significant protection and are not designed
to deploy in such collisions.
Rollovers: In a rollover, your best form of protection is a seat belt or, if your vehicle
is equipped with a rollover sensor, both a se at belt and a side curtain airbag. Front
airbags, however, are not designed to deploy in a rollover as they would provide
little if any protection.
■When front airbags deploy with little or no visible damage
Because the airbag system senses sudden deceleration, a strong impact to the
vehicle framework or suspension might caus e one or more of the airbags to deploy.
Examples include running into a curb, the edge of a hole, or other low fixed object
that causes a sudden deceleration in th e vehicle chassis. Since the impact is
underneath the vehicle, damage may not be readily apparent.
■When front airbags may not deploy, even though exterior damage
appears severe
Since crushable body parts absorb crash energy during an impact, the amount of
visible damage does not always indicate proper airbag operation. In fact, some
collisions can result in severe damage but no airbag deployment because the airbags
would not have been needed or would not have provided protection even if they
had deployed.
21 ACURA NSX PMC-31T6N6400.book 50 ページ ２０２０年１０月８日　木曜日　午後３時７分

55
uuAirbags uSide Airbags
Safe Driving
■When a side airbag deploys with little or no visible damage
Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle’s framework can cause a side airbag to deploy. In such cases, there
may be little or no damage, but the side impact sensors detected a severe enough
impact to deploy the airbag.
■When a side airbag may not deploy, even though visible damage appears
severe
It is possible for a side airbag not to deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was toward the
far front or rear of the vehicle, or when the vehicle’s crushable body parts absorbed
most of the crash energy. In either case , the side airbag would not have been
needed nor provided protection even if it had deployed.
21 ACURA NSX PMC-31T6N6400.book 55 ページ ２０２０年１０月８日　木曜日　午後３時７分

80
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Gear Position
Indicator•Indicates the current gear selection.
2 Shifting P. 330—
Transmission
System Indicator
•The indicated current gear selection
blinks if there is a problem with the
transmission system.• Avoid sudden start an d acceleration, and
stop in a safe place immediately.
Have your vehicle checked by an
authorized Acura NSX dealer.
• All the gear positions may light for
several seconds, and go off.• When all the gear positions light,
immediately stop your vehicle in a safe
place.
• Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to an authorized Acura NSX dealer
for inspection.
—
•The indicated current gear selection
or all the gear positions blink if
there is a problem with the
transmission system.• Immediately stop in a safe place.2 Emergency Towing P. 466
•Have your vehicle checked by an
authorized Acura NSX dealer.
•The indicated current gear selection
or all the gear positions blink if you
cannot select
(P due to the
transmission system failure.
• The power system can be activated as a
temporary measure.
2 If the Transmission System Indicator
Blinks along with the Warning
Message P. 460
•Set the parking brake when parking.
• Have your vehicle checked by an
authorized Acura NSX dealer immediately.
21 ACURA NSX PMC-31T6N6400.book 80 ページ ２０２０年１０月８日　木曜日　午後３時７分

139
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT, LO, HI)
Change the wiper switch setting according to
the amount of rain.
■Adjusting wiper operation
Turn the adjustment ring to adjust wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
■Windshield Wiper/Washer1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
wipers. Use the de froster to warm the windshield,
then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the wipers stop operating due to any obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF, then remove
the obstacle.
MIST
OFF
LO : Low speed wipe
HI: High speed wipe Pull to
use
washer.
INT: Low speed with
intermittent
Lower speed, fewer sweeps
Higher speed, more sweeps
21 ACURA NSX PMC-31T6N6400.book 139 ページ ２０２０年１０月８日　木曜日　午後３時７分

313
Driving
This chapter discusses driving and refueling.
Before DrivingDriving Preparation .......................... 314
Maximum Load Limit........................ 317
High-Performance Driving ................ 319
Towing a Trailer Towing Behind a Motorhome .......... 324
When Driving Turning on the Power ...................... 325
Precautions While Driving................. 328
Dual Clutch Transmission ................. 329
Shifting ............................................ 330
Acoustic Vehicle Al erting System ...... 339 Integrated Dynamics System ............ 340
Launch Control ................................ 345
Cruise Control ................................. 347
Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System .............. 350
Agile Handling Assist ....................... 354
SPORT HYBRID Super Handling All-Wheel- DriveTM (SPORT HYBRID SH-AWD®) .... 355
Tire Pressure Monitoring System (TPMS) ...... 356
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 358
High Voltage Battery ........................ 360 Braking
Brake System ................................... 361
Anti-lock Brake System (ABS) ........... 366
Brake Assist System ......................... 367
Parking Your Vehicle When Stopped ................................ 368
Parking Sensor System
*................... 369
Multi-View Rear Camera .................. 373
Refueling
Fuel Information .............................. 375
How to Refuel ................................. 376
Fuel Economy and CO
2 Emissions .... 377
Turbo Engine Vehicle ....................... 378
* Not available on all models
21 ACURA NSX PMC-31T6N6400.book 313 ページ ２０２０年１０月８日　木曜日　午後３時７分
