TPMS ACURA NSX 2022 User Guide

353
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver ’s responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumination of th e TPMS low tire pressure telltale.
Your vehicle has also been equi pped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the syst em detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illumina ted. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
22 ACURA NSX PMC-31T6N6500.book 353 ページ ２０２１年９月２８日　火曜日　午後４時７分

413
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance
Tire and Wheel Replacement
Replace your tires with radials of the same size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stability Assist
TM (VSA ®) system to work incorrectly.
It is best to replace all four tires at the same time.
If you replace a wheel, only use TPMS spec ified wheels approved for your vehicle.
Make sure that the wheel’s specifications match those of the original wheels.
1 Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
22 ACURA NSX PMC-31T6N6500.book 413 ページ ２０２１年９月２８日　火曜日　午後４時７分

433
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 434
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 435
Handling of the Jack ......................... 446
Power System Won’t Start
Checking the Procedure ................... 447
If the Keyless Access Remote Battery is Weak ............................................. 448
Emergency Power System Off........... 449
If the 12-Volt Battery Is Dead .......... 450
Overheating
How to Handle Overheating ............. 452 Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator Comes On ....................... 454
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 454
If the Brake System Indicator (Red) Comes
On ................................................. 455
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 455
If the Electric Parking Brake System Indicator Comes On ....................... 456
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks........................ 457 If the Transmission System Indicator Blinks
along with the Warning Message... 458
If the Check Engine Oil Level Warning Appears .............................................459
Fuses Fuse Locations ................................. 460
Inspecting and Changing Fuses ........ 464
Emergency Towing ........................... 465
If You Cannot Unlock the Fuel Fill Door.... 466
If You Cannot Open the Hatch............467
Refueling
Refueling from a Portable Fuel Container .... 468
22 ACURA NSX PMC-31T6N6500.book 433 ページ ２０２１年９月２８日　火曜日　午後４時７分

457
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

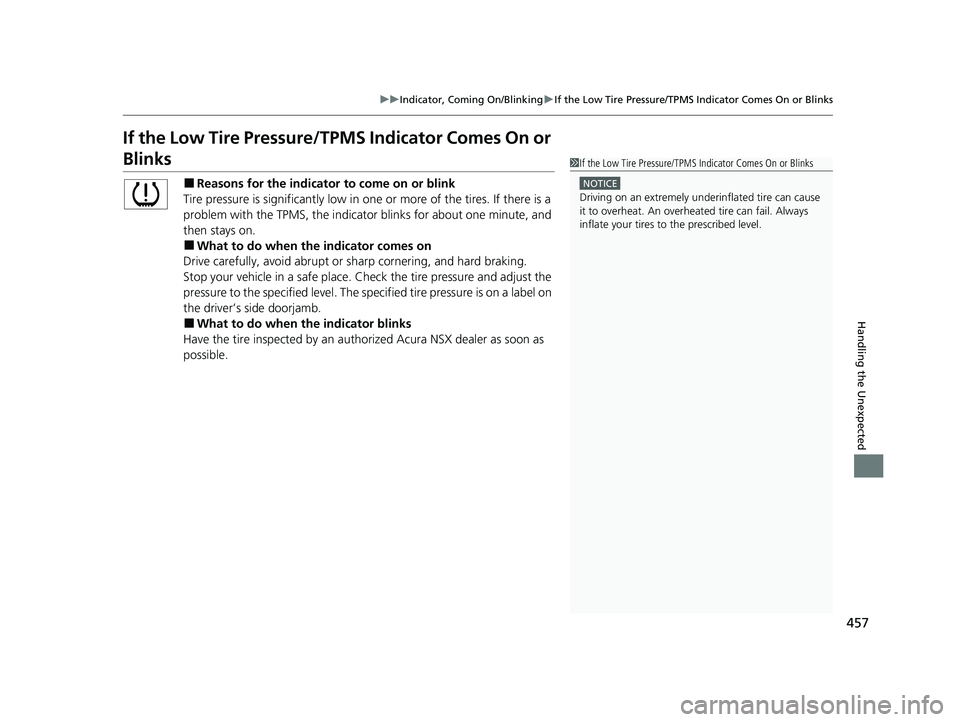

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
Tire pressure is significantly low in one or more of the tires. If there is a
problem with the TPMS, the indicato r blinks for about one minute, and
then stays on.
■What to do when th e indicator comes on
Drive carefully, avoid abrupt or sharp cornering, and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver’s side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by an author ized Acura NSX dealer as soon as
possible.
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed levelM
22 ACURA NSX PMC-31T6N6500.book 457 ページ ２０２１年９月２８日　火曜日　午後４時７分

486
Index
Lights On ................................................... 85
Low Fuel .................................................... 81
Low Oil Pressure ........................................ 74
Low Tire Pressure/TPMS ..... 84, 350, 352, 457
Malfunction Indicator Lamp ............... 79, 454
POWER SYSTEM ........................................ 78
READY....................................................... 78
Seat Belt Reminder .............................. 39, 81
Security System Alarm ............................... 86
Supplemental Restraint System ............ 57, 82
System Message ........................................ 84
Transmission System .................................. 80
Turn Signal ................................................ 85
Vehicle Stability Assist
TM (VSA®)
System ............................................. 83, 344
VSA ® OFF .......................................... 83, 345
Information ............................................... 469
Instant Fuel Economy ............................... 105
Instrument Panel ........................................ 73
Integrated Dynamics System .................... 334
QUIET Mode ............................................ 337
SPORT Mode ........................................... 337
SPORT+ Mode ......................................... 338
TRACK Mode........................................... 338
Interior Lights ........................................... 150
Interior Rearview Mirror .......................... 144
Inverter Coolant ................................ 398, 471
K
Key Number Tag ....................................... 110 Keyless Access System
.............................. 111
Keyless Lockout Prevention ..................... 117
Keys ........................................................... 109
Lockout Prevention.................................. 117
Number Tag ............................................ 110
Remote Transmitter ................................. 115
Kickdown (Dual Clutch Transmission) ..... 323
L
Launch Control......................................... 339
Lights ................................................. 134, 401
Automatic Operation (automatic lighting
control) ................................................. 135
Bulb Replacement ................................... 401
Daytime Running Lights........................... 137
High Beam Indicator .................................. 85
Interior .................................................... 150
Light Switches ......................................... 134
Lights On Indicator .................................... 85
Turn Signals ............................................ 133
Load Limits ................................................ 311
Locking/Unlocking .................................... 109
Auto Door Locking/Unlocking.................. 121
From Inside ............................................. 118
From Outside .......................................... 111
Keys ........................................................ 109
Using a Key ............................................. 117
Lockout Prevention System ..................... 117
Low Battery Charge (12-Volt) .................. 454
Low Fuel Indicator ...................................... 81 Low Keyless Access Remote Signal
Strength .................................................. 110
Low Oil Level ............................................ 459
Low Oil Pressure Indicator ......................... 74
Luggage (Maximum Load Limit) ............. 311
Lumbar Support ....................................... 147
M
Maintenance............................................ 375
12-Volt Battery ....................................... 417
Brake Fluid .............................................. 400
Cleaning ................................................. 420
Climate Control System .......................... 419
Coolant .......................................... 396, 398
Cooling System ....................................... 396
Inverter Coolant ...................................... 398
Maintenance Minder
TM............................ 379
Oil .......................................................... 391
Precautions ............................................. 376
Remote Transmitter ................................ 418
Replacing Light Bulbs .............................. 401
Safety ..................................................... 377
Service Items ........................................... 382
Tires........................................................ 407
Transmission Fluids ................................. 399
Under the Hood and Hatch ..................... 385
Malfunction Indicator Lamp ............. 79, 454
Map Lights ................................................ 151
Maximum Load Limit ............................... 311
Meters, Gauges .......................................... 99
22 ACURA NSX PMC-31T6N6500.book 486 ページ ２０２１年９月２８日　火曜日　午後４時７分

488
Index
Safety Message............................................. 3
Seat Belts ..................................................... 38
Automatic Seat Belt Tensioners .................. 40
Checking ................................................... 44
Fastening ................................................... 41
Installing a Child Seat ................................ 66
Pregnant Women ...................................... 43
Reminder ............................................. 39, 81
Warning Indicator ................................ 39, 81
Seat Heaters .............................................. 155
Seats .......................................................... 146
Adjusting ................................................. 146
Seat Heaters ............................................ 155
Security System ......................................... 125
Immobilizer System Indicator ..................... 85
Security System Alarm Indicator ................. 86
Selecting a Forward-facing Child Seat ...... 65
Sequential Mode ...................................... 329
Sequential Mode Operation .................... 332
Setting the Clock ...................................... 108
Shift Button......................................... 25, 324 Operation ................................................ 326
Shifting (Transmission) ....................... 25, 324
Side Airbags ................................................ 54
Side Curtain Airbags ................................... 56
Siri ® Eyes Free ............................................ 214
SiriusXM ® Radio ........................................ 192
Snow Tires ................................................. 415
Sounds Unique to the SPORT HYBRID SH- AWD® System ............................................ 15
Spark Plugs ................................................ 470 Specifications
............................................ 470
Specified Fuel ................................... 369, 470
SPORT HYBRID Super Handling All-Wheel- Drive
TM (SPORT HYBRID SH-AWD® )....... 349
SRS Airbags (Airbags) ................................. 48
Steering Wheel Adjusting ................................................ 143
Stopping ................................................... 362
Storage ...................................................... 430
Summer Tires ............................................ 415
Supplemental Restraint System (SRS) ........ 48
Switches (Around the Steering Wheel) ............................................. 6, 7, 130
System Message Indicator .......................... 84
T
Temperature
Gauge ..................................................... 100
Temperature Sensor ................................. 160
Temporary Tire Repair Kit ....................... 435
Time (Setting) ........................................... 108
Tire Pressure Monitoring System (TPMS) ..................................................... 350
Indicator............................................ 84, 457
Tires ........................................................... 407
Air Pressure ..................................... 408, 471
Chains..................................................... 415
Checking and Maintaining ...................... 407
Flat Tire (Puncture) .................................. 435
Inspection ............................................... 407 Labeling .................................................. 408
Regulations ............................................. 410
Rotation.................................................. 414
Summer .................................................. 415
Temporary Tire Repair Kit ........................ 435
Wear Indicators....................................... 412
Winter .................................................... 415
Tools ......................................................... 434
Towing a Trailer ....................................... 318
Towing Behind a Motorhome ................. 318
Towing Your Vehicle
Emergency .............................................. 465
TPMS (Tire Pressure Monitoring System) .................................................... 350
Transmission ....................................... 25, 324
Dual Clutch............................... 25, 323, 324
Fluids .............................................. 399, 471
Gear Position Indicator ...................... 80, 326
Number .................................................. 472
Sequential Mode..................................... 329
TRIP Button .............................................. 103
Trip Meter ................................................ 104
Troubleshooting ...................................... 433
Blown Fuse ............................. 460, 462, 463
Buzzer Sounds When Opening Door ......... 31
Emergency Towing ................................. 465
Flat Tire/Puncture .................................... 435
Noise When Braking ................................. 31
Overheating ............................................ 452
Power System Won’t Start ...................... 447
Premium Gasoline ........................... 369, 470
22 ACURA NSX PMC-31T6N6500.book 488 ページ ２０２１年９月２８日　火曜日　午後４時７分
