ACURA RDX 2010 Owners Manual

To make a call using the navigationdisplay (on models with navigation
system):1. Press the INFO button, and the INFO screen will be shown.
2. From the INFO screen, select‘‘Cellular Phone,’’ then select
‘‘ Dial. ’’
3. The navigation display will change
as shown above. Enter a phone
number.
4. To make a call, press the selector on the interface dial to the right.
5. To end the call, press the HFL Back button.
CONTINUED
Bluetooth
®HandsFreeLink
®
317
Features
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

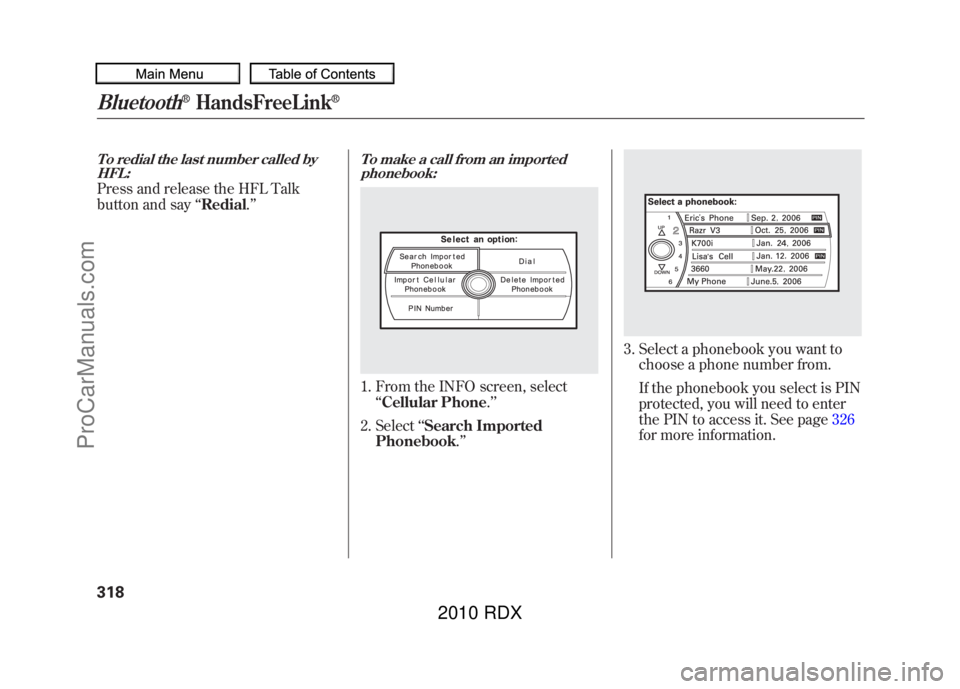

To redial the last number called byHFL:Press and release the HFL Talk
button and say ‘‘Redial .’’
To make a call from an imported
phonebook:1. From the INFO screen, select
‘‘Cellular Phone .’’
2. Select ‘‘Search Imported
Phonebook .’’
3. Select a phonebook you want to
choose a phone number from.
If the phonebook you select is PIN
protected, you will need to enter
the PIN to access it. See page 326
for more information.
Bluetooth
®HandsFreeLink
®
31809/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

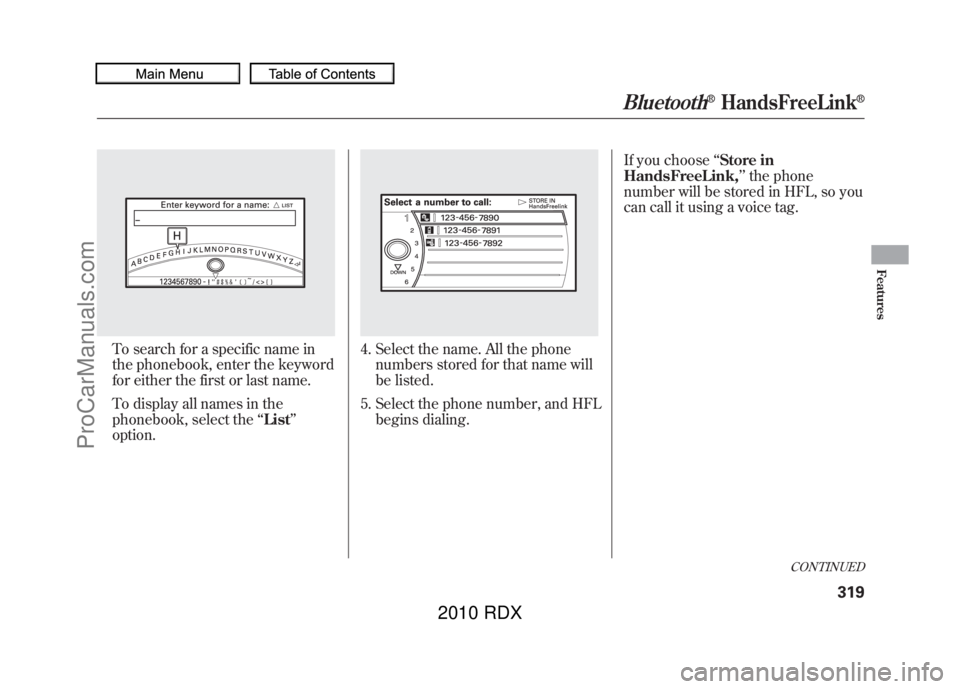

To search for a specific name in
the phonebook, enter the keyword
for either the first or last name.
To display all names in the
phonebook, select the‘‘List ’’
option.
4. Select the name. All the phone numbers stored for that name will
be listed.
5. Select the phone number, and HFL begins dialing. If you choose
‘‘Store in
HandsFreeLink, ’’the phone
number will be stored in HFL, so you
can call it using a voice tag.
CONTINUED
Bluetooth
®HandsFreeLink
®
319
Features
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

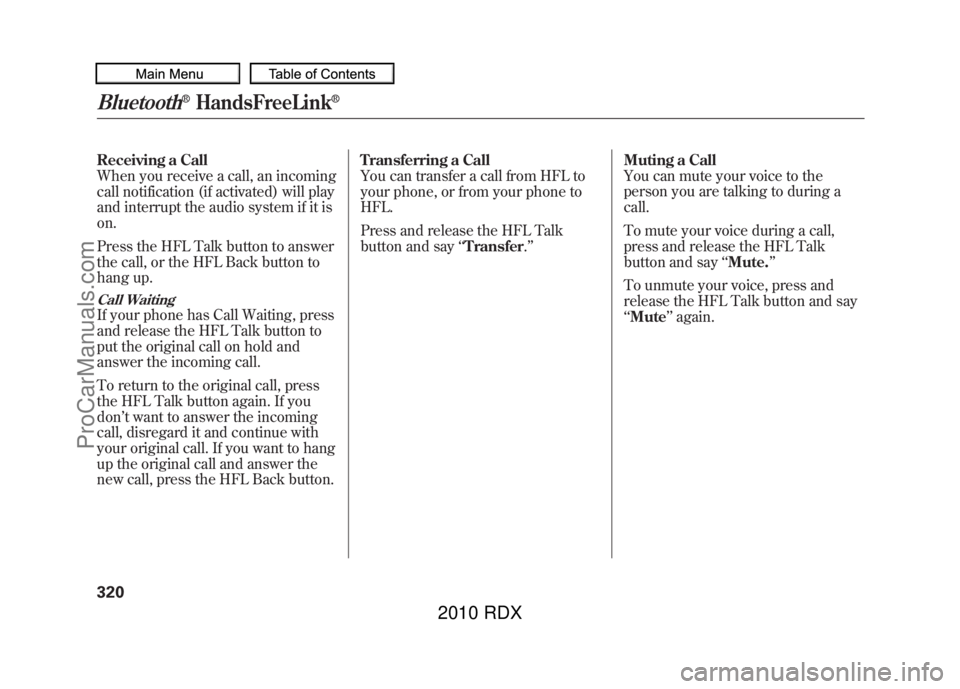

Receiving a Call
When you receive a call, an incoming
call notification (if activated) will play
and interrupt the audio system if it is
on.
Press the HFL Talk button to answer
the call, or the HFL Back button to
hang up.Call WaitingIf your phone has Call Waiting, press
and release the HFL Talk button to
put the original call on hold and
answer the incoming call.
To return to the original call, press
the HFL Talk button again. If you
don’t want to answer the incoming
call, disregard it and continue with
your original call. If you want to hang
up the original call and answer the
new call, press the HFL Back button. Transferring a Call
You can transfer a call from HFL to
your phone, or from your phone to
HFL.
Press and release the HFL Talk
button and say
‘‘Transfer .’’ Muting a Call
You can mute your voice to the
person you are talking to during a
call.
To mute your voice during a call,
press and release the HFL Talk
button and say
‘‘Mute. ’’
To unmute your voice, press and
release the HFL Talk button and say
‘‘ Mute ’’again.Bluetooth
®HandsFreeLink
®
32009/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

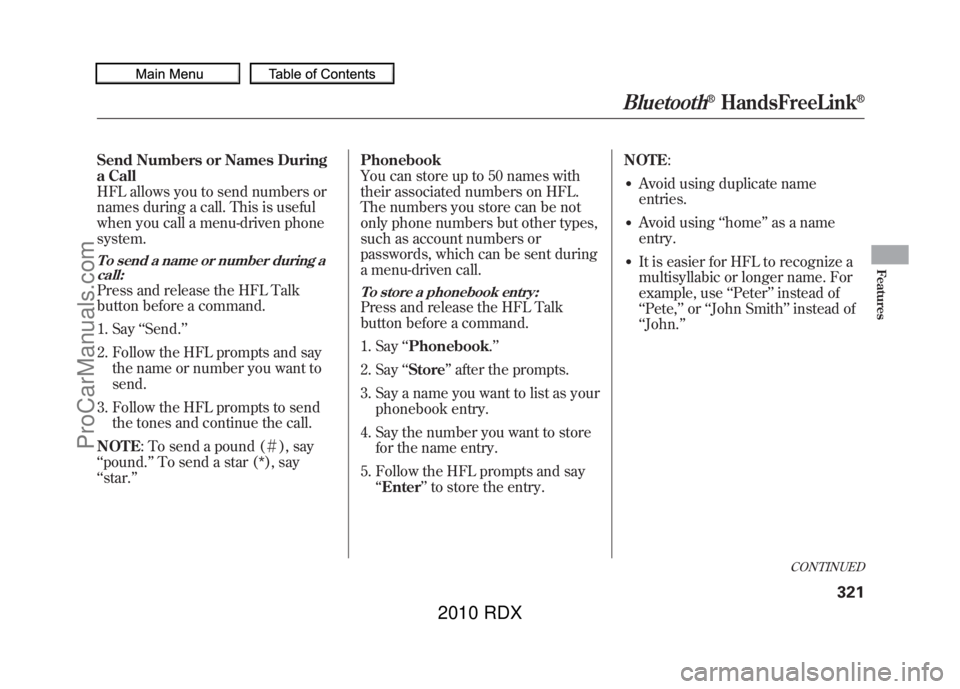

Send Numbers or Names During
a Call
HFL allows you to send numbers or
names during a call. This is useful
when you call a menu-driven phone
system.To send a name or number during acall:Press and release the HFL Talk
button before a command.
1. Say ‘‘Send.’’
2. Follow the HFL prompts and say the name or number you want to
send.
3. Follow the HFL prompts to send the tones and continue the call.
NOTE : To send a pound (＃ ), say
‘‘ pound.’’ To send a star (*), say
‘‘ star. ’’ Phonebook
You can store up to 50 names with
their associated numbers on HFL.
The numbers you store can be not
only phone numbers but other types,
such as account numbers or
passwords, which can be sent during
a menu-driven call.
To store a phonebook entry:Press and release the HFL Talk
button before a command.
1. Say
‘‘Phonebook .’’
2. Say ‘‘Store ’’after the prompts.
3. Say a name you want to list as your phonebook entry.
4. Say the number you want to store for the name entry.
5. Follow the HFL prompts and say ‘‘Enter ’’to store the entry. NOTE
:
●Avoid using duplicate name
entries.●Avoid using ‘‘home ’’as a name
entry.●It is easier for HFL to recognize a
multisyllabic or longer name. For
example, use ‘‘Peter’’ instead of
‘‘ Pete, ’’or ‘‘John Smith ’’instead of
‘‘ John. ’’
CONTINUED
Bluetooth
®HandsFreeLink
®
321
Features
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

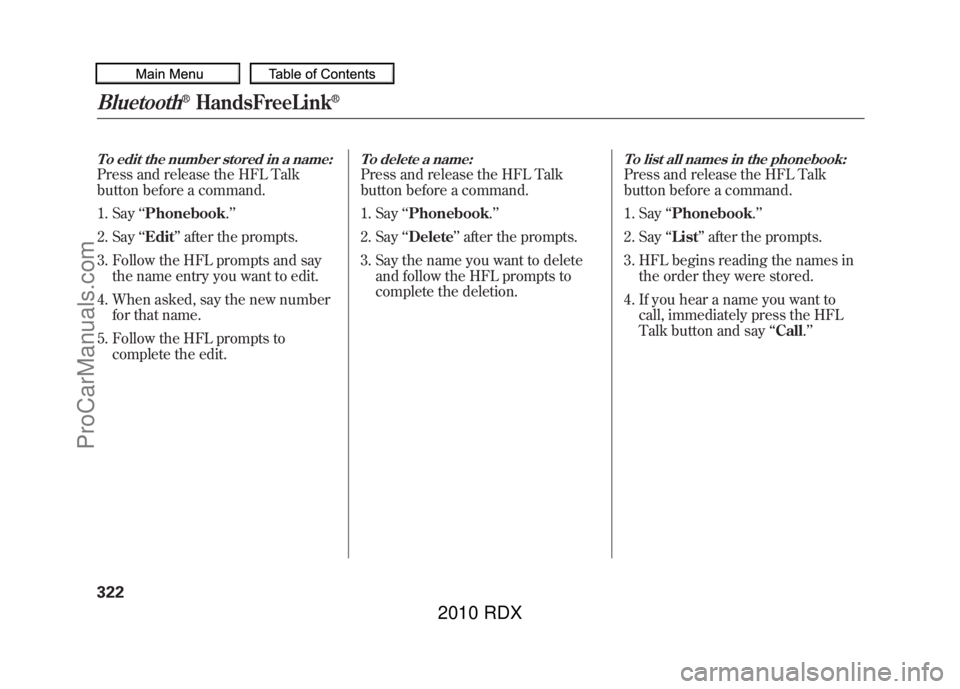

To edit the number stored in a name:Press and release the HFL Talk
button before a command.1. Say ‘‘Phonebook .’’
2. Say ‘‘Edit’’ after the prompts.
3. Follow the HFL prompts and say the name entry you want to edit.
4. When asked, say the new number for that name.
5. Follow the HFL prompts to complete the edit.
To delete a name:Press and release the HFL Talk
button before a command.
1. Say ‘‘Phonebook .’’
2. Say ‘‘Delete ’’after the prompts.
3. Say the name you want to delete and follow the HFL prompts to
complete the deletion.
To list all names in the phonebook:Press and release the HFL Talk
button before a command.
1. Say ‘‘Phonebook .’’
2. Say ‘‘List ’’after the prompts.
3. HFL begins reading the names in the order they were stored.
4. If you hear a name you want to call, immediately press the HFL
Talk button and say ‘‘Call .’’
Bluetooth
®HandsFreeLink
®
32209/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

To store a specific phone numberfrom your cell phone directly to the
HFL phonebook (available on somephones):Press and release the HFL Talk
button before a command.
1. Say ‘‘Phonebook .’’
2. Say ‘‘Receive contact’’ after the
prompts.
3. Follow the HFL prompts, select a number from your cell phone, and
send it to HFL.
4. Follow the HFL prompts and name the number, or say ‘‘Discard ’’if it
is not the number you want to
store.
5. Follow the HFL prompts if you want to store another number.
On models with navigation systemCellular Phone Options(available on some phones)If you select Cellular Phone from
the INFO screen menu, you will see
five HFL options.
For a list of cell phones that are
compatible with this feature:
In the U.S., visit
www.acura.com/
handsfreelink,or call (888) 528-7876.
In Canada, visitwww.acura.ca,
or call
(888) 9-ACURA-9.
Import Cellular Phonebook:The entire phonebook data of the cell
phone that is linked to HFL can be
imported to the navigation system.Select ‘‘Import Cellular
Phonebook, ’’and HFL will begin
importing the phonebook. Select
‘‘ OK’’ after the import is completed.
CONTINUED
Bluetooth
®HandsFreeLink
®
323
Features
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

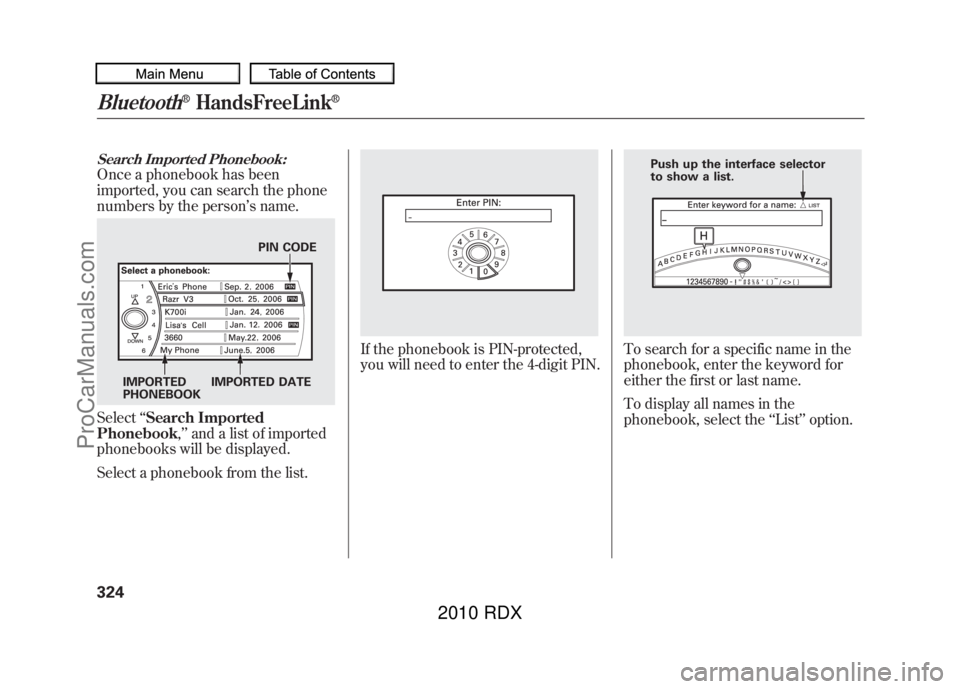

Search Imported Phonebook:Once a phonebook has been
imported, you can search the phone
numbers by the person’s name.Select ‘‘Search Imported
Phonebook ,’’ and a list of imported
phonebooks will be displayed.
Select a phonebook from the list.
If the phonebook is PIN-protected,
you will need to enter the 4-digit PIN.
To search for a specific name in the
phonebook, enter the keyword for
either the first or last name.
To display all names in the
phonebook, select the ‘‘List ’’option.
PIN CODE
IMPORTED
PHONEBOOK IMPORTED DATE
Push up the interface selector
to show a list.
Bluetooth
®HandsFreeLink
®
32409/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

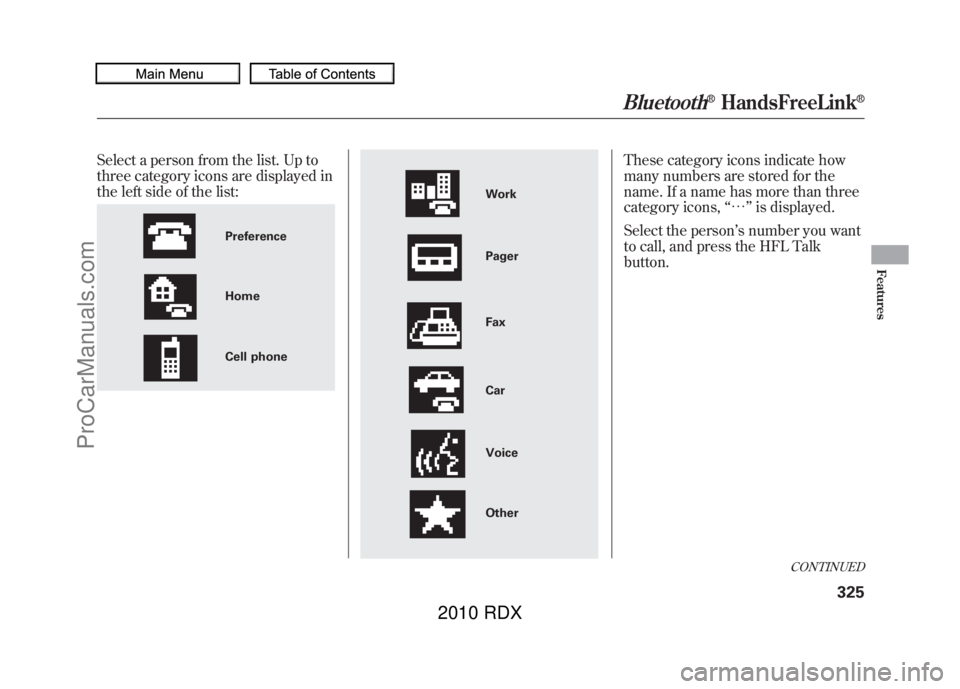

Select a person from the list. Up to
three category icons are displayed in
the left side of the list:
These category icons indicate how
many numbers are stored for the
name. If a name has more than three
category icons,‘‘… ’’is displayed.
Select the person ’s number you want
to call, and press the HFL Talk
button.
Preference
Home
Cell phone
Work
Pager
Car
Voice
Other Fax
CONTINUED
Bluetooth
®HandsFreeLink
®
325
Features
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

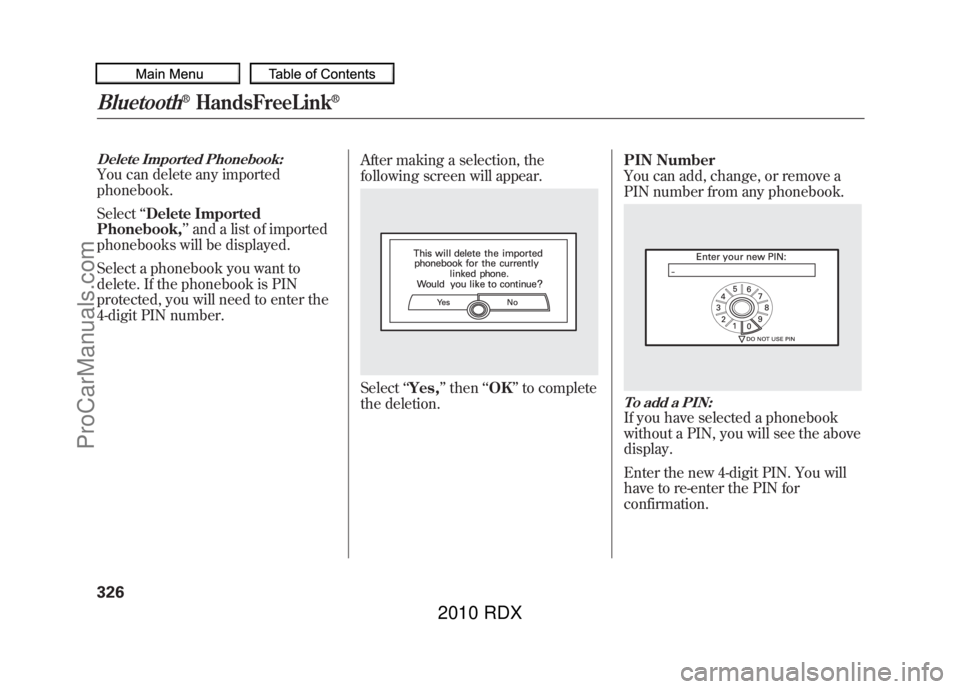

Delete Imported Phonebook:You can delete any imported
phonebook.
Select‘‘Delete Imported
Phonebook, ’’and a list of imported
phonebooks will be displayed.
Select a phonebook you want to
delete. If the phonebook is PIN
protected, you will need to enter the
4-digit PIN number. After making a selection, the
following screen will appear.
Select
‘‘Yes, ’’then ‘‘OK’’ to complete
the deletion. PIN Number
You can add, change, or remove a
PIN number from any phonebook.
To add a PIN:If you have selected a phonebook
without a PIN, you will see the above
display.
Enter the new 4-digit PIN. You will
have to re-enter the PIN for
confirmation.
Bluetooth
®HandsFreeLink
®
32609/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX
