Acura RDX 2012 Owner's Manual

Elap. Time Reset ConditionThere are three elapsed time reset
choices you can make:
IGN RESET－The elapsed time is
reset when you turn the ignition
switch to the LOCK (0) position.
TRIP A －The elapsed time is reset
when Trip A is reset.
TRIP B －The elapsed time is reset
when Trip B is reset.
While ‘‘METER SETUP ’’is shown in
the ‘‘CUSTOMIZE GROUP ’’of the
multi-information display, press the
SEL/RESET button. The screen
changes to ‘‘CUSTOMIZE MENU. ’’
Press the INFO (
/
) button until
you see the above display.
Press the SEL/RESET button. The
screen changes as shown above.
Select the desired setting by
pressing the INFO (
/
) button,
then press the SEL/RESET button to
enter your selection.CONTINUED
Multi-Information Display
95
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to‘‘CUSTOMIZE MENU.’’
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to ‘‘CUSTOMIZE MENU. ’’If this
happens, you need to repeat the
same procedure.
To exit ‘‘ELAP. TIME RESET
CONDITION ’’without changing the
current setting, select ‘‘EXIT ’’by
pressing the INFO (
/
) button,
then press the SEL/RESET button.
The display goes back to
‘‘ CUSTOMIZE MENU. ’’
Multi-Information Display9611/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

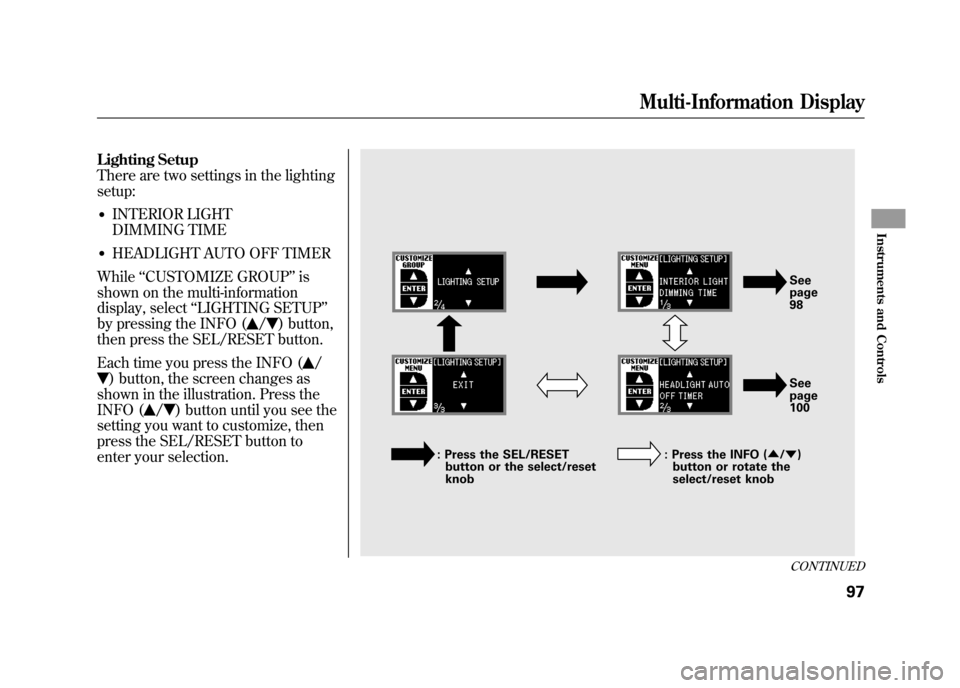

Lighting Setup
There are two settings in the lighting
setup:●INTERIOR LIGHT
DIMMING TIME●HEADLIGHT AUTO OFF TIMER
While ‘‘CUSTOMIZE GROUP ’’is
shown on the multi-information
display, select ‘‘LIGHTING SETUP ’’
by pressing the INFO (
/
) button,
then press the SEL/RESET button.
Each time you press the INFO (
/
) button, the screen changes as
shown in the illustration. Press the
INFO (
/
) button until you see the
setting you want to customize, then
press the SEL/RESET button to
enter your selection.
See
page
98
See
page
100
: Press the SEL/RESET button or the select/reset
knob : Press the INFO (
▲/▼ )
button or rotate the
select/reset knobCONTINUED
Multi-Information Display
97
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

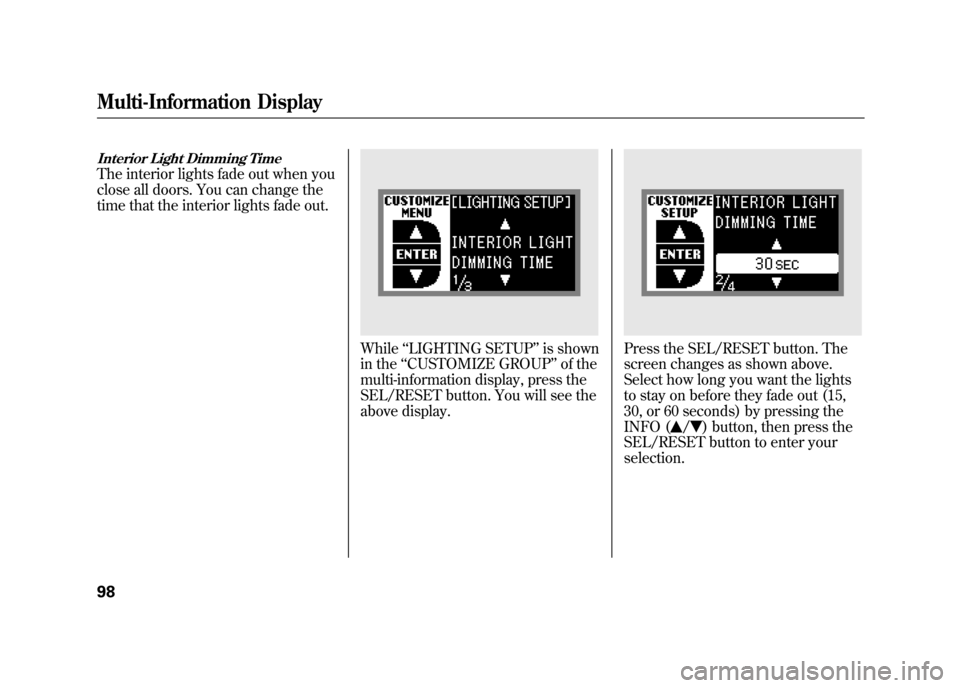

Interior Light Dimming TimeThe interior lights fade out when you
close all doors. You can change the
time that the interior lights fade out.
While‘‘LIGHTING SETUP ’’is shown
in the ‘‘CUSTOMIZE GROUP ’’of the
multi-information display, press the
SEL/RESET button. You will see the
above display.
Press the SEL/RESET button. The
screen changes as shown above.
Select how long you want the lights
to stay on before they fade out (15,
30, or 60 seconds) by pressing the
INFO (
/
) button, then press the
SEL/RESET button to enter your
selection.
Multi-Information Display9811/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to‘‘CUSTOMIZE MENU.’’
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to ‘‘CUSTOMIZE MENU. ’’If this
happens, you need to repeat the
same procedure.
To exit ‘‘INTERIOR LIGHT
DIMMING TIME’’ without changing
the current setting, select ‘‘EXIT’’ by
pressing the INFO (
/
) button,
then press the SEL/RESET button.
The screen goes back to
‘‘ CUSTOMIZE MENU. ’’CONTINUED
Multi-Information Display
99
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Headlight Auto Off TimerThe headlights, parking lights, side
marker lights, taillights, and license
plate lights go off after the selected
time when you close the driver's
door and take the remote with you.
To change how long the lights stay
on before they go off, follow these
instructions:
While‘‘LIGHTING SETUP ’’is shown
in the ‘‘CUSTOMIZE GROUP ’’of the
multi-information display, press the
SEL/RESET button. The screen
changes to ‘‘CUSTOMIZE MENU. ’’
Press the INFO (
/
) button until
you see the above display.
Press the SEL/RESET button. The
screen changes as shown above.
Select how long you want the lights
to stay on before they go off (0, 15,
30, or 60 seconds) by pressing the
INFO (
/
) button, then press the
SEL/RESET button to enter your
selection.
Multi-Information Display10011/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to‘‘CUSTOMIZE MENU.’’
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to ‘‘CUSTOMIZE MENU. ’’If this
happens, you need to repeat the
same procedure.
To exit ‘‘HEADLIGHT AUTO OFF
TIMER ’’without changing the
current setting, select ‘‘EXIT ’’by
pressing the INFO (
/
) button,
then press the SEL/RESET button.
The screen goes back to
‘‘ CUSTOMIZE MENU. ’’CONTINUED
Multi-Information Display
101
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Door Setup
Here are the five custom settings for
the door setup:●AUTO DOOR LOCK●DOOR LOCK MODE●KEYLESS LOCK
ACKNOWLEDGEMENT●SECURITY RELOCK TIMER●AUTO DOOR UNLOCK
While ‘‘CUSTOMIZE GROUP ’’is
shown on the multi-information
display, select ‘‘DOOR SETUP ’’by
pressing INFO (
/
) button, then
press the SEL/RESET button.
Each time you press the INFO (
/
) button, the screen changes as
shown in the illustration. Press the
INFO (
/
) button until you see the
setting you want to customize, then
press the SEL/RESET button to
enter your selection.
: Press the SEL/ RESET button
or the select/
reset knob
: Press the INFO (▲ /▼ ) button or
rotate the
select/reset knob See page 103
See page 105
See page 107
See page 109
See page 111
Multi-Information Display10211/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Auto Door LockThere are three settings you can
choose from:
OFF－
The auto door lock is deactivated all
the time.
WITH VEH SPD －
The doors lock when the vehicle
speed reaches about 9 mph (about 15
km/h).
SHIFT FROM P －
The doors lock whenever you move
the shift lever out of Park.
While ‘‘DOOR SETUP ’’is shown in
the ‘‘CUSTOMIZE GROUP ’’of the
multi-information display, press the
SEL/RESET button. You will see the
above display.
Press the SEL/RESET button. The
screen changes as shown above.
Select the desired setting by
pressing the INFO (
/
) button,
then press the SEL/RESET button to
enter your selection.CONTINUED
Multi-Information Display
103
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to‘‘CUSTOMIZE MENU.’’
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to ‘‘CUSTOMIZE MENU. ’’If this
happens, you need to repeat the
same procedure.
To exit ‘‘AUTO DOOR LOCK ’’
without changing the current setting,
select ‘‘EXIT ’’by pressing the INFO (/
) button, then press the SEL/
RESET button. The screen goes back
to ‘‘CUSTOMIZE MENU.’’
