Acura RDX 2012 Owner's Manual

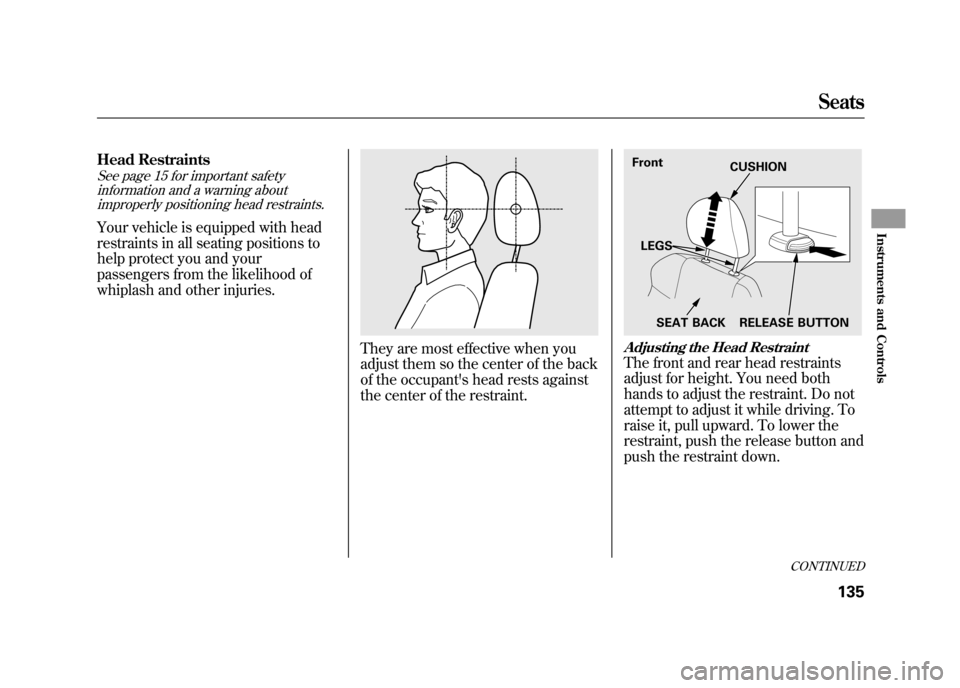

Head RestraintsSee page 15 for important safetyinformation and a warning aboutimproperly positioning head restraints.Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers from the likelihood of
whiplash and other injuries.
They are most effective when you
adjust them so the center of the back
of the occupant's head rests against
the center of the restraint.
Adjusting the Head RestraintThe front and rear head restraints
adjust for height. You need both
hands to adjust the restraint. Do not
attempt to adjust it while driving. To
raise it, pull upward. To lower the
restraint, push the release button and
push the restraint down.Front CUSHION
LEGS SEAT BACK RELEASE BUTTON
CONTINUED
Seats
135
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

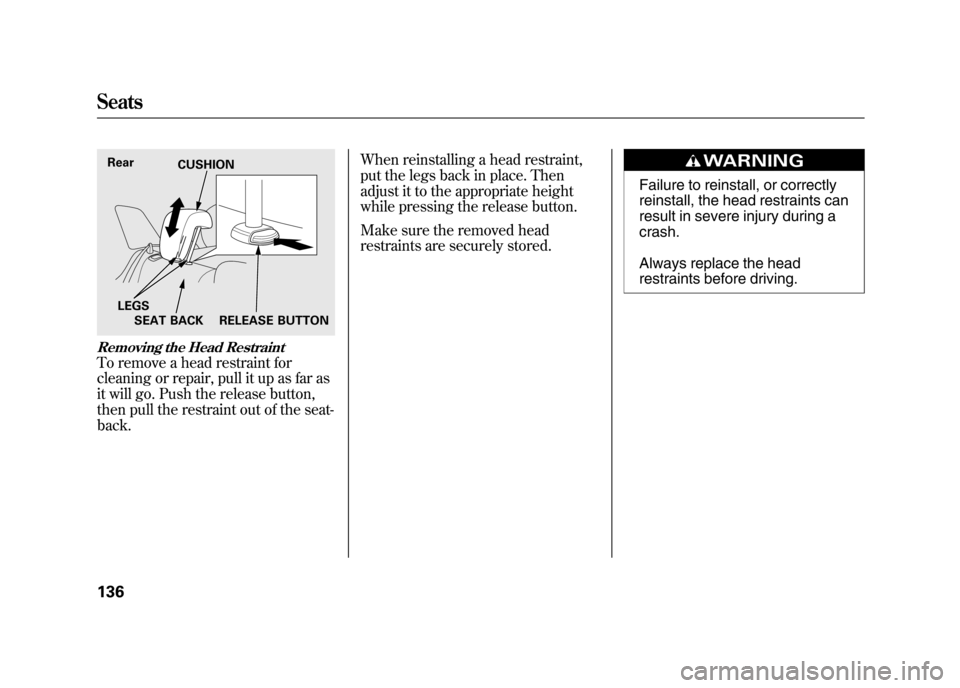

Removing the Head RestraintTo remove a head restraint for
cleaning or repair, pull it up as far as
it will go. Push the release button,
then pull the restraint out of the seat-
back.When reinstalling a head restraint,
put the legs back in place. Then
adjust it to the appropriate height
while pressing the release button.
Make sure the removed head
restraints are securely stored.
Failure to reinstall, or correctly
reinstall, the head restraints can
result in severe injury during a
crash.
Always replace the head
restraints before driving.
Rear
CUSHION
SEAT BACK RELEASE BUTTON
LEGSSeats13611/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

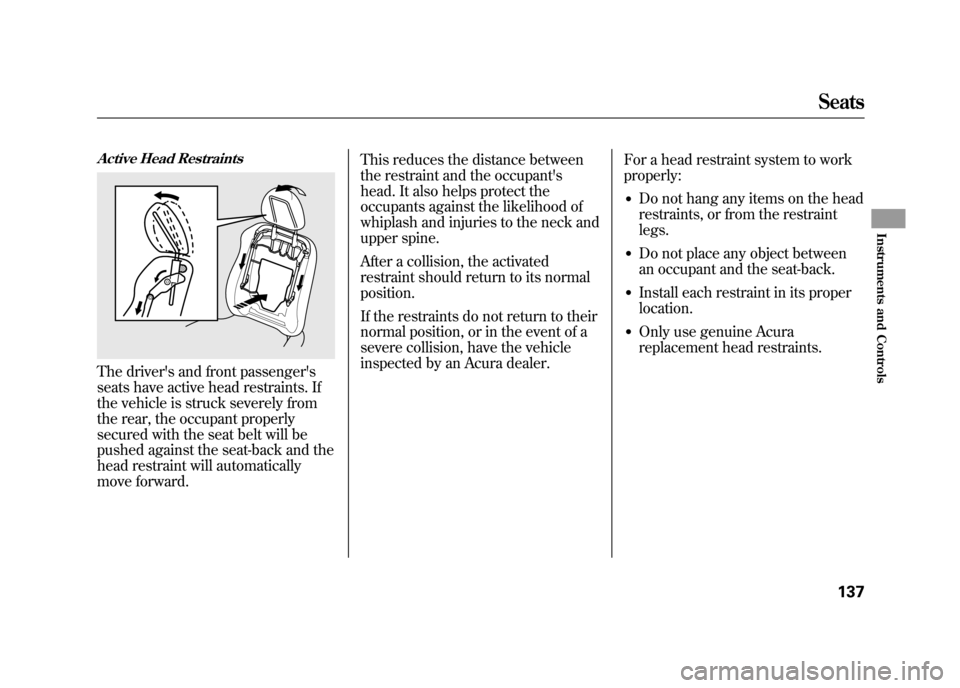

Active Head RestraintsThe driver's and front passenger's
seats have active head restraints. If
the vehicle is struck severely from
the rear, the occupant properly
secured with the seat belt will be
pushed against the seat-back and the
head restraint will automatically
move forward.This reduces the distance between
the restraint and the occupant's
head. It also helps protect the
occupants against the likelihood of
whiplash and injuries to the neck and
upper spine.
After a collision, the activated
restraint should return to its normal
position.
If the restraints do not return to their
normal position, or in the event of a
severe collision, have the vehicle
inspected by an Acura dealer.
For a head restraint system to work
properly:
●Do not hang any items on the head
restraints, or from the restraint
legs.●Do not place any object between
an occupant and the seat-back.●Install each restraint in its proper
location.●Only use genuine Acura
replacement head restraints.
Seats
137
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

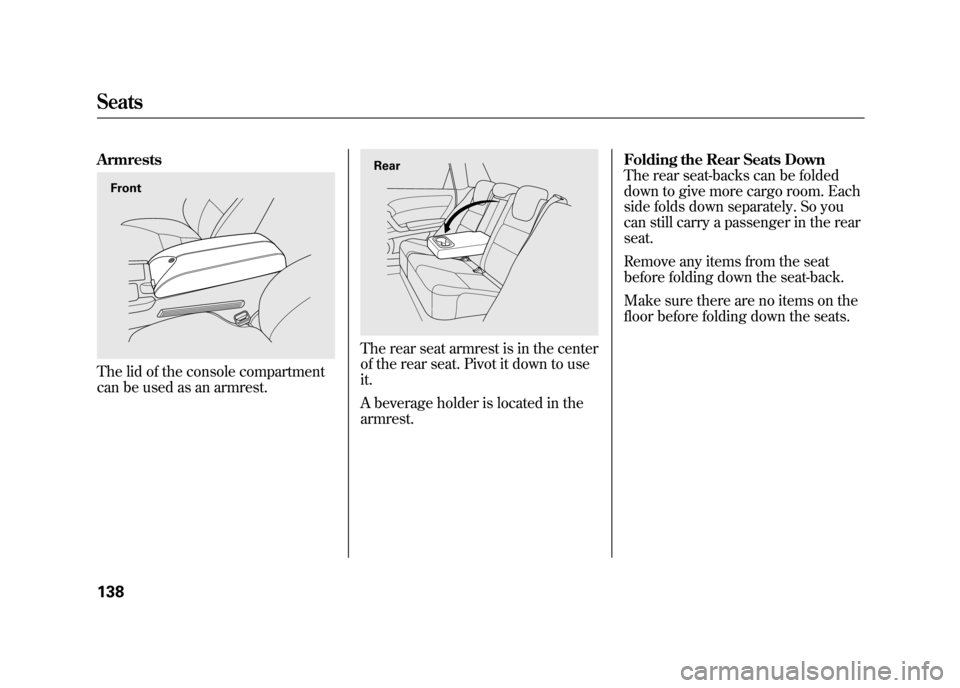

ArmrestsThe lid of the console compartment
can be used as an armrest.
The rear seat armrest is in the center
of the rear seat. Pivot it down to use
it.
A beverage holder is located in the
armrest.Folding the Rear Seats Down
The rear seat-backs can be folded
down to give more cargo room. Each
side folds down separately. So you
can still carry a passenger in the rear
seat.
Remove any items from the seat
before folding down the seat-back.
Make sure there are no items on the
floor before folding down the seats.
Front
Rear
Seats13811/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

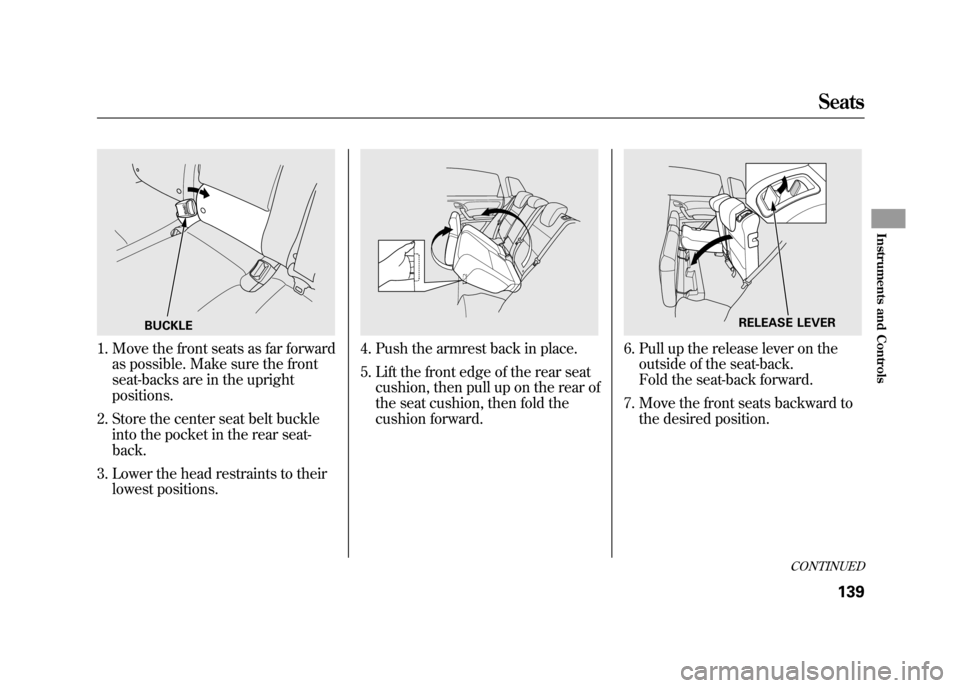

1. Move the front seats as far forwardas possible. Make sure the front
seat-backs are in the upright
positions.
2. Store the center seat belt buckle into the pocket in the rear seat-
back.
3. Lower the head restraints to their lowest positions.
4. Push the armrest back in place.
5. Lift the front edge of the rear seatcushion, then pull up on the rear of
the seat cushion, then fold the
cushion forward.
6. Pull up the release lever on theoutside of the seat-back.
Fold the seat-back forward.
7. Move the front seats backward to the desired position.
BUCKLE
RELEASE LEVER
CONTINUED
Seats
139
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Do not put any heavy items on the
seat-back when it is folded down.
Make sure all items in the cargo area
are secured. Loose items can fly
forward and cause injury if you have
to brake hard (SeeCarrying Cargo
on page 365).
Make sure that the folded down rear
seat does not interfere with the front
passenger's seat-back. This will
cause the front passenger's weight
sensors and the front passenger's
seat belt reminder indicator to work
improperly (see pages 21 and 33).
Also check the passenger airbag off
indicator to assure proper operation
of the passenger's front airbag.
After returning the seat-back to the
upright position, tug on the seat-back
to make sure it is latched. If the seat-
back is not latched fully, the seat belt
will not work properly and you will
see the red indicator behind the
release lever as shown. To return the seat cushion to its
original position, lift up the seat
cushion, then place the rear of the
seat cushion at the base of the seat-
back. Use the seat buckles as guides.
Lower the front of the seat cushion
until it locks into place.
Make sure the seat-back and seat
cushion are locked securely and all
rear shoulder belts are positioned in
front of the rear seat-backs.
RELEASE
LEVER
INDICATOR
Seats14011/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

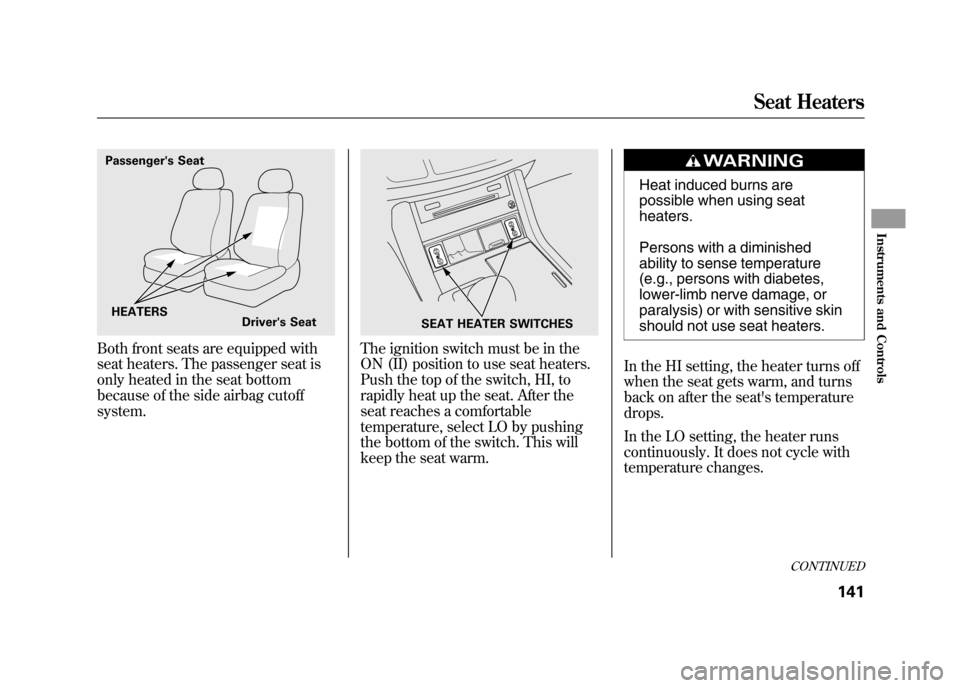

Both front seats are equipped with
seat heaters. The passenger seat is
only heated in the seat bottom
because of the side airbag cutoff
system.
The ignition switch must be in the
ON (II) position to use seat heaters.
Push the top of the switch, HI, to
rapidly heat up the seat. After the
seat reaches a comfortable
temperature, select LO by pushing
the bottom of the switch. This will
keep the seat warm.
Heat induced burns are
possible when using seat
heaters.
Persons with a diminished
ability to sense temperature
(e.g., persons with diabetes,
lower-limb nerve damage, or
paralysis) or with sensitive skin
should not use seat heaters.
In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat's temperature
drops.
In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes.
Passenger's Seat
HEATERS Driver's Seat
SEAT HEATER SWITCHES
CONTINUED
Seat Heaters
141
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Follow these precautions whenever
you use the seat heaters:●Do not use the seat heater in the
HI setting for an extended period,
because it draws large amounts of
current from the battery.●If the engine is left idling for an
extended period, do not use the
seat heaters, even on the LO
setting. It can weaken the battery,
causing hard starting.Power Windows
Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open the window, push
the switch down and hold it. Release
the switch when you want to stop the
window. To close the window, pull
back on the switch and hold it. The windows will operate for up to 10
minutes after you turn off the ignition
switch. Opening either front door
cancels this function.
Closing a power window on
someone's hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
When you push the MAIN switch in,
the switch is off, and the passenger
windows cannot be raised or
lowered. To cancel this feature, push
on the switch again to get it to pop
out. Keep the MAIN switch off when
you have children in the vehicle so
they do not injure themselves by
operating the windows
unintentionally.
DRIVER'S WINDOW
SWITCH
MAIN SWITCH
Seat Heaters, Power Windows14211/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

AUTO－To open or close either
front window fully, push or pull the
window switch firmly down or up to
the second detent, and release it.
The window will automatically go up
or down all the way. To stop the
window, pull or push the window
switch briefly.
To open or close either front window
partially, push down or pull back on
the window switch lightly to the first
detent and hold it. The window will
stop when you release the switch. AUTO REVERSE
－If either front
window senses any obstacle while it
is closing automatically, it will
reverse direction and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
before closing it. NOTE:
The driver's window auto
reverse function is disabled when
you continuously pull up the switch.
Power Windows
143
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

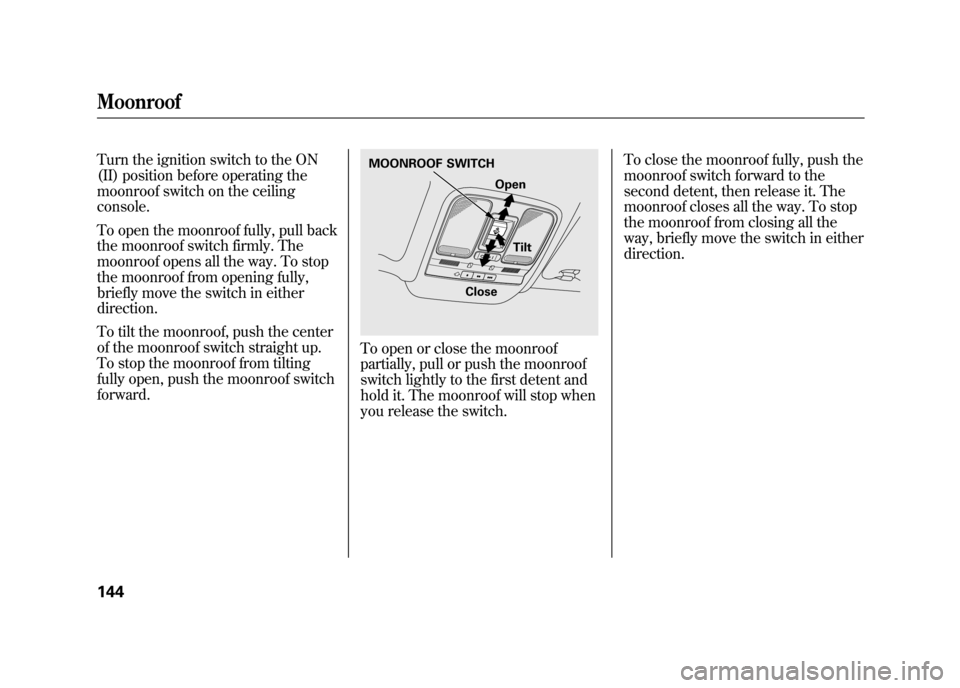

Turn the ignition switch to the ON
(II) position before operating the
moonroof switch on the ceiling
console.
To open the moonroof fully, pull back
the moonroof switch firmly. The
moonroof opens all the way. To stop
the moonroof from opening fully,
briefly move the switch in either
direction.
To tilt the moonroof, push the center
of the moonroof switch straight up.
To stop the moonroof from tilting
fully open, push the moonroof switch
forward.
To open or close the moonroof
partially, pull or push the moonroof
switch lightly to the first detent and
hold it. The moonroof will stop when
you release the switch.To close the moonroof fully, push the
moonroof switch forward to the
second detent, then release it. The
moonroof closes all the way. To stop
the moonroof from closing all the
way, briefly move the switch in either
direction.MOONROOF SWITCH
Open
Tilt
Close
Moonroof14411/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu
