Acura RDX 2012 Owner's Manual

The ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III).
LOCK (0)－You can insert or
remove the key only in this position.
To turn the key, the shift lever must
be in Park, and you must push the
key in slightly. If the front wheels are turned, the
anti-theft lock may make it difficult to
turn the key. Firmly turn the steering
wheel to the left or right as you turn
the key.
ACCESSORY (I)
－You can operate
the audio system and the accessory
power sockets in this position.
ON (II) －This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from the
ACCESSORY (I) to the ON (II)
position.
START (III) －Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key. You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or the
ACCESSORY (I) position and open
the driver's door. Remove the key to
turn off the beeper.
You will also see a
‘‘REMOVE KEY ’’
message on the multi-information
display (see page 80).
The shift lever must be in Park
before you can remove the key from
the ignition switch.
Ignition Switch
125
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Power Door LocksEach front door has a master door
lock switch. Either switch locks and
unlocks all doors and the tailgate.
Push the top of the switch to lock all
doors and the tailgate; push the
bottom to unlock them.
Each door has a lock tab next to the
inside door handle. When you pull
backward on the lock tab on the
driver's door, all the doors and the
tailgate lock. Pushing forward on the
lock tab on the driver's door unlocks
only that door. The lock tab on each
passenger's door locks and unlocks
only that door.When the door is unlocked, you can
see the red indicator on the lock tab
next to the inside door handle.
All doors and the tailgate can be
locked from the outside by using the
key in the driver's door lock. To
unlock only the driver's door, insert
the key, turn the key, and release it.
The remaining doors and the tailgate
unlock when you turn the key a
second time within a few seconds.
You can change the
‘‘DOOR LOCK
MODE ’’setting on the multi-
information display (see page 105).
MASTER DOOR
LOCK SWITCH
Passenger's Side Driver's Side
To unlock
To lock
LOCK TAB
Door Locks12611/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

When the vehicle speed reaches
about 9 mph (about 15 km/h) or
more, all the doors lock
automatically.
You can change the‘‘AUTO DOOR
LOCK ’’setting on the multi-
information display (see page 103).
When you shift to P after driving, the
driver's door unlocks.
You can change the ‘‘AUTO DOOR
UNLOCK ’’setting on the multi-
information display (see page 111). To lock any passenger's door when
getting out of the vehicle, pull
backward on the lock tab and close
the door. To lock the driver's door,
remove the key from the ignition
switch and pull backward on the lock
tab. Then close the door.
Lockout PreventionWith the driver's door open and the
key in the ignition, both master door
lock switches are disabled. They are
not disabled if the driver's door is
closed. Pushing the switch down on
the open front passenger's door will
lock all doors and the tailgate.Childproof Door Locks
The childproof door locks are
designed to prevent children seated
in the rear from accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position (lever is
down), the door cannot be opened
from the inside regardless of the
position of the lock tab. To open the
door, push the lock tab forward and
use the outside door handle.
LEVER
LockDoor Locks
127
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

The tailgate will lock when you lock
the driver's door, and will unlock
when you unlock all doors.
You can change the‘‘DOOR LOCK
MODE ’’setting on the multi-
information display (see page 105).
To open the tailgate, press and hold
the switch, then lift up.
To close the tailgate, use the tailgate
handle or the pull pockets to lower
the tailgate, then press down on the
back edge.
Keep the tailgate closed at all times
while driving to avoid damaging the
tailgate and to prevent exhaust gas
from getting into the interior. See
Carbon Monoxide Hazard on page
57.
SWITCH
HANDLE PULL POCKET
Tailgate12811/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

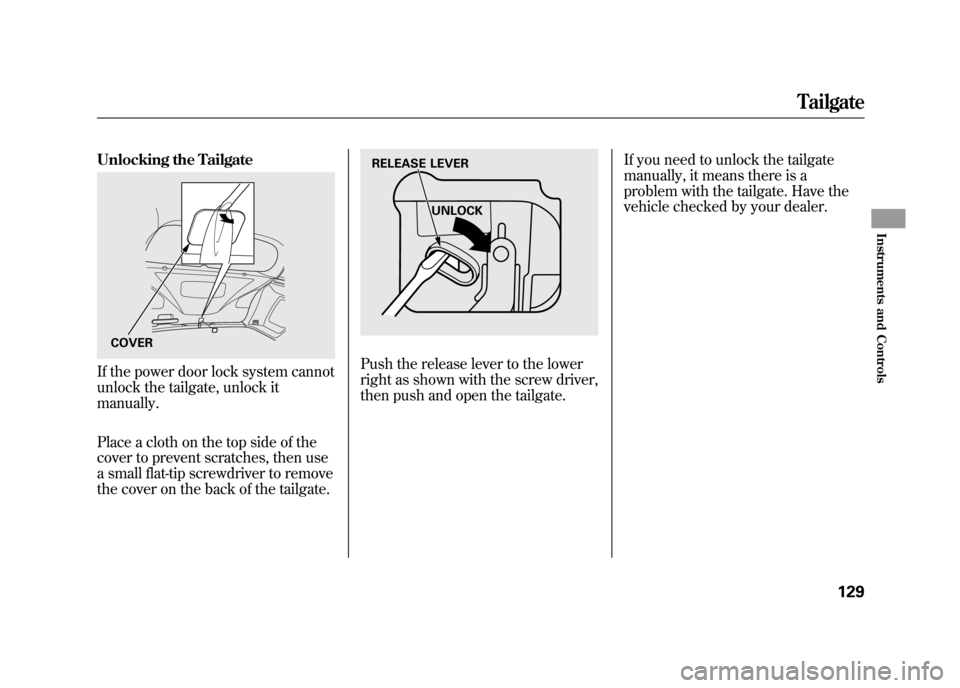

Unlocking the TailgateIf the power door lock system cannot
unlock the tailgate, unlock it
manually.
Place a cloth on the top side of the
cover to prevent scratches, then use
a small flat-tip screwdriver to remove
the cover on the back of the tailgate.
Push the release lever to the lower
right as shown with the screw driver,
then push and open the tailgate.If you need to unlock the tailgate
manually, it means there is a
problem with the tailgate. Have the
vehicle checked by your dealer.
COVER
UNLOCK
RELEASE LEVER
Tailgate
129
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

LOCK－Press this button once to
lock all doors and the tailgate. Some
exterior lights will flash. When you
push LOCK twice within 5 seconds,
you will hear a beep to verify that the
doors and tailgate are locked and the
security system has set. This button
does not work if any door or tailgate
is not fully closed.
To change the ‘‘KEYLESS LOCK
ACKNOWLEDGEMENT ’’setting,
see page 107. UNLOCK
－Press this button once
to unlock the driver's door. Push it
twice to unlock the other doors.
Some exterior lights will flash twice
when you push the button. If you do
not open any door or the tailgate
within 30 seconds, they will
automatically relock.
To change the ‘‘DOOR LOCK
MODE ’’setting, see page 105.
To change the ‘‘SECURITY RELOCK
TIMER ’’setting, see page 109. When you press the UNLOCK
button, the ceiling lights (if the front
and rear ceiling light switches are in
the door activated position) will come
on. If you do not open any door, the
lights stay on for about 30 seconds,
then fade out. If you relock the doors
with the remote transmitter before 30
seconds have elapsed, the lights go
off immediately.
To change the
‘‘INTERIOR LIGHT
DIMMING TIME’’ setting, see page
98.
PANIC －Press this button for
about 1 second to attract attention;
the horn will sound, and the exterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
button on the remote transmitter, or
turn the ignition switch to the ON
(II) position.
UNLOCK
BUTTON LOCK
BUTTON
PANIC
BUTTON
Remote Transmitter13011/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Remote Transmitter Care●Avoid dropping or throwing the
transmitter.●Protect the transmitter from
extreme temperatures.●Do not immerse the transmitter in
any liquid.●If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.Replacing the Transmitter Battery
If it takes several pushes on the
button to lock or unlock the doors
and the tailgate, replace the battery
as soon as possible.
Battery type: CR1616
To replace the battery:
1. Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
NOTE: Be careful when removing
this screw as the head of the screw
can strip out.
2. Separate the keypad from the transmitter by pushing any button
from outside.
SCREW KEYPAD
CONTINUED
Remote Transmitter
131
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

3. Place a cloth on the edge of thekeypad to prevent scratches, and
remove the upper half by carefully
prying on the edge with a small
flat-tip screwdriver. 4. Remove the old battery and note
the polarity. Make sure the
polarity of the new battery is the
same (－ side facing up), then
insert it in the keypad.
An improperly disposed of battery
can hurt the environment.
Always confirm local regulations
for battery disposal.
5. Snap the two halves of the keypad, then install the parts in reverse
order.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to the
following two conditions: (1) This devicemay not cause harmful interference, and(2) this device must accept any
interference received, includinginterference that may cause undesiredoperation.
Changes or modifications not expresslyapproved by the party responsible for
compliance could void the user'sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.
Operation is subject to the following twoconditions: (1) this device may not causeinterference, and (2) this device mustaccept any interference that may cause
undesired operating of the device.
BATTERYRemote Transmitter13211/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Recalling a Memorized Driving
PositionWhen you unlock the driver's door
with your remote, each remote
activates the keyless memory
settings related to that remote. The
driver's ID (MEMORY 1 or
MEMORY 2) is shown on the back of
each remote.Here is the setting activated with the
remote;
●Driving position memory
(see page 148).
When you unlock and open the
driver's door with the remote
transmitter, the driver's seat (except
the power lumbar feature) and
outside mirrors start to move to the
positions stored in memory. The
indicator in the related memory
button to the remote comes on. To turn off this feature, press and
hold the LOCK and UNLOCK
buttons at the same time. Once the
remote LED blinks twice, release the
buttons. Keyless memory settings for
that remote are canceled.
To turn the keyless memory settings
back on, repeat this procedure. The
LED blinks once to indicate the
feature has been turned on.
Remote Transmitter
133
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Front Seat Power AdjustmentsSee pages 13－14 for important safety
information and warnings about how to
properly position the seats and seat-backs.The controls for the power adjustable
front seats are on the outside edge of
each seat bottom. You can adjust the
seats with the ignition switch in any
position. Make all seat adjustments
before you start driving.
The passenger seat has the same
adjustments as the driver's seat but
without any height and lumbar
adjustments.
Moves the seat forward
and backward.
Moves the front of the seat
up or down. (Driver's seat
only)
Raises or lowers the seat.
(Driver's seat only)
Moves the whole seat up
and forward, or down and
backward. The front of the
seat also tilts up or down at
the same time. (Driver's
seat only)
Adjusts the seat-back angle
forward or backward.
Increases or decreases the
lumbar support. (Driver's
seat only)
DRIVER'S SEAT
PASSENGER'S SEAT
Seats13411/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu
