Acura RDX 2019 Owner's Manual

130
uuGauges and Displays uMulti-Information Display
Instrument Panel
Move the right selector wheel to the right or left to switch between trip computer A
and trip computer B.
■Trip meter
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, pr ess and hold the right selector wheel.
u The trip meter is reset to 0.0.
■Trip Computer
Trip Computer A Trip Meter
Range Average Fuel Economy
Instant Fuel Economy
19 ACURA RDX-31TJB6000.book 130 ページ ２０１８年４月２６日　木曜日　午後４時５１分

Continued131
uuGauges and Displays uMulti-Information Display
Instrument Panel
■Average fuel economy (Avg. Fuel)
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
1 Average fuel economy (Avg. Fuel)
You can change when the average fuel economy is
reset.
2 Customized Features P. 332
19 ACURA RDX-31TJB6000.book 131 ページ ２０１８年４月２６日　木曜日　午後４時５１分

uuGauges and Displays uMulti-Information Display
132
Instrument Panel
Display Audio shows you turn-by-turn
directions to your destination.
When the navigation system is not providing
driving guidance, an image of a compass
appears in the multi-information display.
2 Refer to the navigation system
■Navigation*1Navigation*
You can cancel the drivin g guidance by pressing and
holding the right selector wheel.
A confirmation screen appe ars when Apple CarPlay
navigation route is active.
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 332
2 To Change Head-Up Display Content P. 140
Compass
Turn-By-Turn Driving Directions
* Not available on all models
19 ACURA RDX-31TJB6000.book 132 ページ ２０１８年４月２６日　木曜日　午後４時５１分

Continued133
uuGauges and Displays uMulti-Information Display
Instrument Panel
2 Indicators P. 74
■Oil Life
Shows the remaining oil life and Maintenance
Minder
TM.
2 Maintenance MinderTM P. 525
■Warning1Warning
If there are multiple warnings, you can move the right
selector wheel to the right or left to see other
warnings.
(Example)
■Maintenance
19 ACURA RDX-31TJB6000.book 133 ページ ２０１８年４月２６日　木曜日　午後４時５１分

uuGauges and Displays uMulti-Information Display
134
Instrument Panel
Shows each tire’s pressure.
2 Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist P. 441
Enables you to show another unit on the
multi-information display, head-up display*
and audio/information screen and set the
displayed measurements to read in either
miles and km, mph and km/h.
Press the right selector wheel when you select
the Speed/Distance Units on the multi-
information display. Roll the right selector
wheel to select the unit and press it. After this,
a confirmation screen will appear for a few
seconds.
■Tire Pressure Monitor1 Tire Pressure Monitor
The following colors indicate the state of tire
pressure:
•Green: Within tire pressure regulation.
•Amber: Above or Below ti re pressure regulation.•Gray: There is a problem with the system.
■Speed/Distance Units
* Not available on all models
19 ACURA RDX-31TJB6000.book 134 ページ ２０１８年４月２６日　木曜日　午後４時５１分

135
uuGauges and Displays uMulti-Information Display
Continued
Instrument Panel
Press the right selector wheel when you select
the Sport Gauge Settings on the multi-
information display.
Roll the right selector wheel to select the
setting and press it.
■Turbo Meter
When the turbo charger is producing boost,
this meter shows the boost pressure.
■Sport Gauge Settings
19 ACURA RDX-31TJB6000.book 135 ページ ２０１８年４月２６日　木曜日　午後４時５１分

uuGauges and Displays uMulti-Information Display
136
Instrument Panel
■G-meter
A red circle moves around to indicate wh ere your vehicle is currently receiving a
fictitious force while driving.1 G-meter
The meter does not display a fictitious force larger
than 1.2 G.
If there is a problem with the VSA® system, the G-
meter will not track the fictitious force acting on the
vehicle.
When decelerated while moving forward
When accelerated while reversing
When accelerated wh ile moving forward
When decelerated while reversing
Real-time fictitious
force (red)
When steering
to the right
When steering
to the left
Fictitious forces of the past
three seconds (white)
19 ACURA RDX-31TJB6000.book 136 ページ ２０１８年４月２６日　木曜日　午後４時５１分

137
uuGauges and Displays uMulti-Information Display
Instrument Panel
The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Super Handling-All Wheel DriveTM (SH-
AWD ®)* P. 437
■SH-AWD ® Torque Distribution Monitor*
* Not available on all models
19 ACURA RDX-31TJB6000.book 137 ページ ２０１８年４月２６日　木曜日　午後４時５１分

138
uuGauges and Displays uHead-Up Display*
Instrument Panel

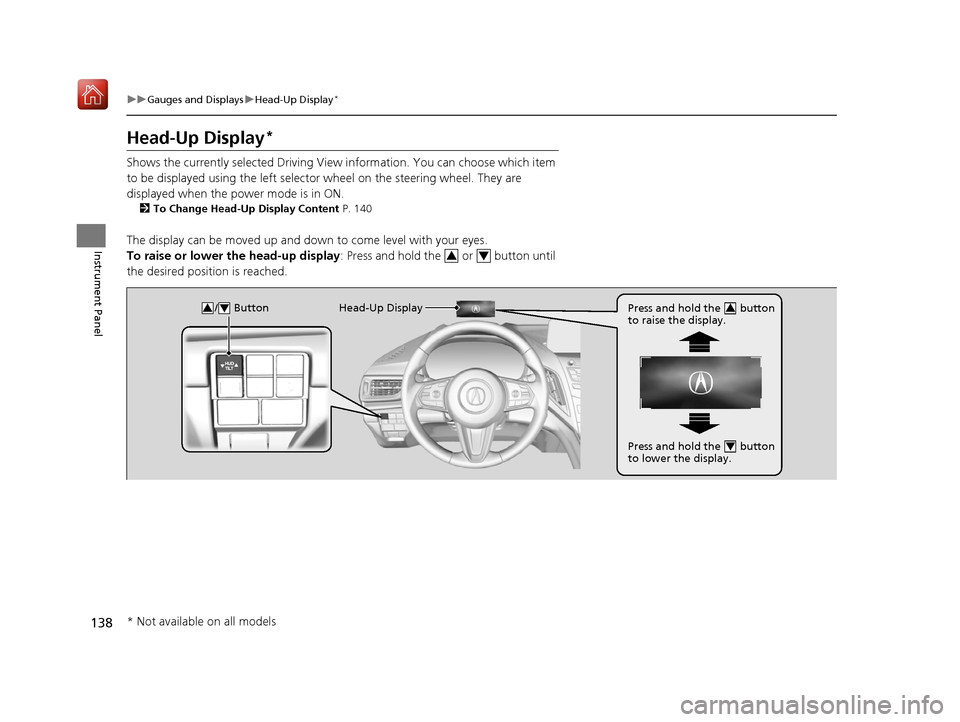

Head-Up Display*
Shows the currently selected Driving View information. You can choose which item
to be displayed using the left selector wheel on the steering wheel. They are
displayed when the power mode is in ON.
2 To Change Head-Up Display Content P. 140
The display can be moved up and down to come level with your eyes.
To raise or lower the head-up display : Press and hold the or button until
the desired position is reached.
34
/ Button34Head-Up Display Press and hold the button
to raise the display.3
Press and hold the button
to lower the display.4
* Not available on all models
19 ACURA RDX-31TJB6000.book 138 ページ ２０１８年４月２６日　木曜日　午後４時５１分

139
uuGauges and Displays uHead-Up Display*
Continued
Instrument Panel
The display also shows the following
warnings.
• Lane Departure Warning: When your
vehicle is too close to the traffic lane lines,
the lane departure warning appears.
2 Lane Keeping Assist System (LKAS)
P. 471
•Head-Up Warning Lights:
Flash when the BRAKE message appears
on the multi-information display.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 446
2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) P. 455
Lane Departure Warning
19 ACURA RDX-31TJB6000.book 139 ページ ２０１８年４月２６日　木曜日　午後４時５１分
