89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

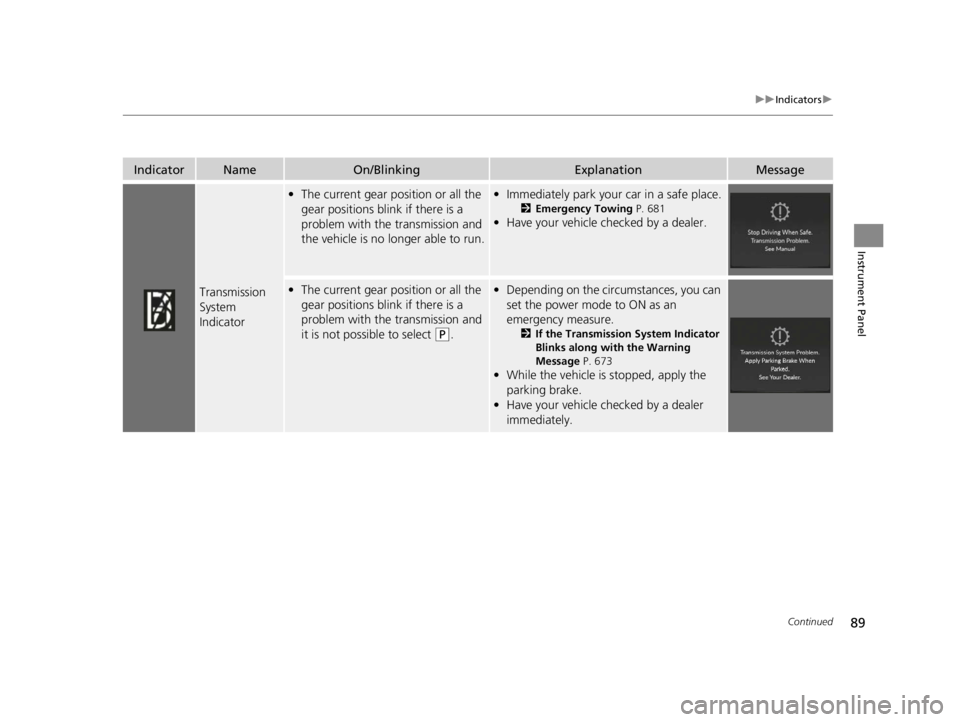

Transmission
System
Indicator
•The current gear position or all the
gear positions blink if there is a
problem with the transmission and
the vehicle is no longer able to run.•Immediately park your car in a safe place.
2 Emergency Towing P. 681
•Have your vehicle checked by a dealer.
•The current gear position or all the
gear positions blink if there is a
problem with the transmission and
it is not possible to select
(P.
•Depending on the circumstances, you can
set the power mode to ON as an
emergency measure.
2 If the Transmission System Indicator
Blinks along with the Warning
Message P. 673
•While the vehicle is stopped, apply the
parking brake.
• Have your vehicle checked by a dealer
immediately.
22 ACURA RDX-31TJB6300.book 89 ページ ２０２１年８月２日　月曜日　午前１１時０分

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Indicator
(Green)●Comes on when Auto Idle Stop is in
operation. The engine automatically
shuts off.
2Auto Idle Stop P. 464—
Auto Idle Stop
OFF Indicator
●Comes on when the Auto Idle Stop
system has been turned off by the
Auto Idle Stop system OFF button.
2Auto Idle Stop System ON/OFF P. 466
Auto Idle Stop
System
Indicator
(Amber)
●Blinks if there is a problem with the
Auto Idle Stop system.●Blinks - Have your vehicle checked by a
dealer.
Auto Idle Stop
Suspend
Indicator
●Comes on while Auto Idle Stop is
temporarily suspended in the
following situations.
——
- Brake pedal is not fully pressed●Depress the brake pedal firmly.
22 ACURA RDX-31TJB6300.book 90 ページ ２０２１年８月２日　月曜日　午前１１時０分

91
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

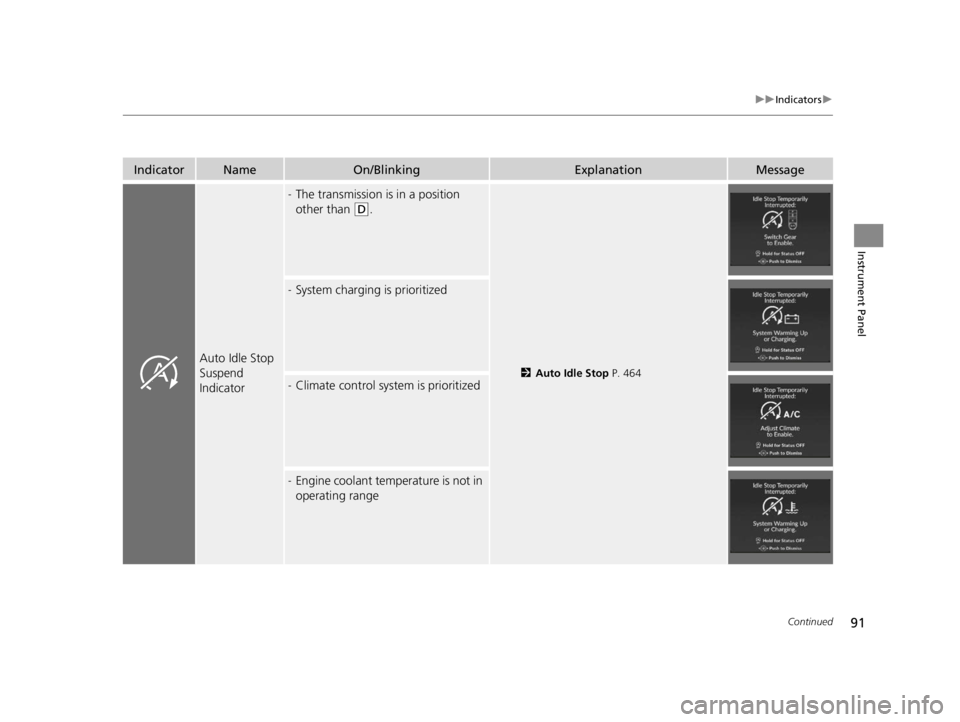

Auto Idle Stop
Suspend
Indicator
-The transmission is in a position
other than
(D.
2 Auto Idle Stop P. 464
-System charging is prioritized
-Climate control system is prioritized
-Engine coolant temperature is not in
operating range
22 ACURA RDX-31TJB6300.book 91 ページ ２０２１年８月２日　月曜日　午前１１時０分

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Suspend
Indicator
-The Integrated Dynamics System
mode is in SPORT or SNOW .
2Auto Idle Stop P. 464-The battery temperature is too low.
- Auto Idle Stop does not activate for
some reason.
—
●If you press and hold the Auto Idle Stop
OFF button, you can select whether to
display the status messages or not.
22 ACURA RDX-31TJB6300.book 92 ページ ２０２１年８月２日　月曜日　午前１１時０分

93
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Seat Belt
Reminder
Indicator
•Blinks and the beep er sounds for a
few seconds if you are not wearing
a seat belt when you set the power
mode to ON, then the indicator
comes on.
• If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
• Comes on for a while when the rear
seat belt is unfastened while the
power mode in ON.
• Blinks while driving if you and/or
any passenger has not fastened a
seat belt. The beeper sounds and
the indicator blinks at regular
intervals.•The beeper stops and the indicator goes
off when you and the passengers fasten
their seat belts.
• Stays on after you and/or the
passengers have fastened the seat
belt(s) - A detection error may have
occurred in the sensor. Have your vehicle
checked by a dealer.
2 Seat Belt Reminder P. 39
22 ACURA RDX-31TJB6300.book 93 ページ ２０２１年８月２日　月曜日　午前１１時０分

94
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Fuel
Indicator
(Amber)
•Comes on when the fuel reserve is
running low (approximately 2.4
U.S. gal./9.1 Liter left).• Comes on - Refuel your vehicle as soon
as possible.
●Blinks if there is a problem with the
fuel gauge.●Blinks - Have your vehicle checked by a
dealer.
Anti-lock Brake
System ( ABS)
Indicator
• Comes on if there is a problem with
the ABS.• Stays on constantly - Have your vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function.
2 Anti-lock Brake System (ABS) P. 552
22 ACURA RDX-31TJB6300.book 94 ページ ２０２１年８月２日　月曜日　午前１１時０分

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Supplemental
Restraint
System
Indicator
•Comes on if a problem with any of
the following is detected:
- Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner• Stays on constantly - Have your vehicle
checked by a dealer.
Electric Power
Steering (EPS)
System
Indicator
• Comes on if there is a problem with
the EPS system.•Stays on constantly - Have your vehicle
checked by a dealer.
• Do Not Drive displays on the multi-
information display - Immediately stop
in a safe place and contact a dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 670
22 ACURA RDX-31TJB6300.book 95 ページ ２０２１年８月２日　月曜日　午前１１時０分

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
AssistTM (VSA®)
System
Indicator
●Blinks when VSA ® is active.●Comes on if there is a problem with
the VSA® system, brake assist
system, hill start assist system,
starting assist brake function or
agile handling assist.
●Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability AssistTM (VSA® ), aka
Electronic Stability Control (ESC),
System P. 471
Vehicle Stability
AssistTM (VSA®)
OFF Indicator
●Comes on when you partially
disable VSA ®.
2VSA ® On and Off P. 472
22 ACURA RDX-31TJB6300.book 96 ページ ２０２１年８月２日　月曜日　午前１１時０分

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire
Pressure/TPMS
Indicator
●Comes on if the tire pressure of any
of the tires becomes low.●Comes on while driving - Stop in a safe
place, check tire pres sures, and inflate the
tire(s) if necessary.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS with Tire Fill Assist,
or when a compact spare tire
* is
temporarily installed.
●Blinks and remains on - Have your
vehicle checked by a dealer. If the vehicle
is fitted with a compact spare tire, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
* Not available on all models
22 ACURA RDX-31TJB6300.book 97 ページ ２０２１年８月２日　月曜日　午前１１時０分

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard
Warning
Indicators•Blinks when you operate the turn
signal lever.
• Blink along with all turn signals
when you press the hazard warning
button.• Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 603
—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
Lights On
Indicator•Comes on when the parking, tail,
and other external lights are on.2 Light Switches P. 197—
Fog Light
Indicator*
•Comes on when the fog lights are
on.2 Fog Lights* P. 200—
Auto High-
Beam Indicator•Comes on when all the operating
conditions of the auto high-beam
are met.
2 Auto High-Beam P. 201—
* Not available on all models
