ACURA RDX 2022 Owners Manual

459
uuWhen Driving uAcura Integrated Dynamics System
Continued
Driving
Acura Integrated Dynamics System
Modifies the dynamic character of the vehicl e. There are four modes to select from:
COMFORT , NORMAL , SPORT, and SNOW .
Turn the Dynamic Mode switch to select a mode. The mode you have selected
appears on the audio/information screen.1 Acura Integrated Dynamics System
The mode may not be able to be change when:
•The vehicle is turning
•The VSA ® system is activating
•There is a problem with the engine, transmission,
the brake system, the VSA® , the EPS, the Active
Damper System
*, and the SH-AWD ®*
* Not available on all models
22 ACURA RDX-31TJB6300.book 459 ページ ２０２１年８月２日　月曜日　午前１１時０分

460
uuWhen Driving uAcura Integrated Dynamics System
Driving

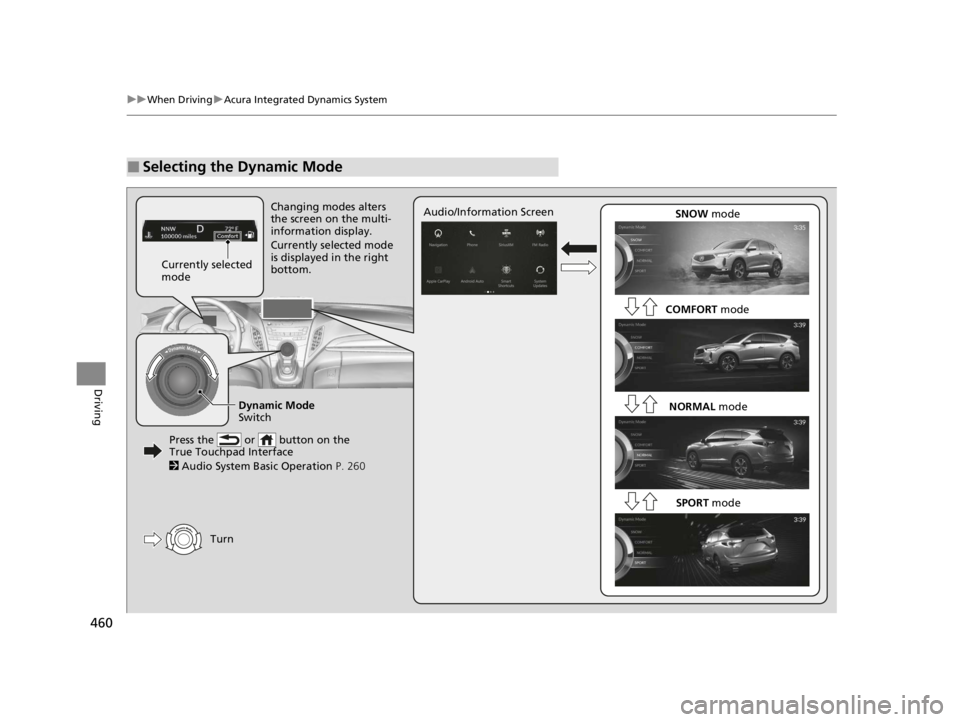

■Selecting the Dynamic Mode
SNOW mode
COMFORT mode
NORMAL mode
Changing modes alters
the screen on the multi-
information display.
Currently selected mode
is displayed in the right
bottom.
Audio/Information Screen
Turn
Currently selected
mode
Press the or button on the
True Touchpad Interface
2 Audio System Basic Operation P. 260
SPORT mode
Dynamic Mode

Switch
22 ACURA RDX-31TJB6300.book 460 ページ ２０２１年８月２日　月曜日　午前１１時０分

461
uuWhen Driving uAcura Integrated Dynamics System
Continued
Driving
■Mode descriptions
Each mode has been crafted for different driv ing styles according to the following chart.
*1:Interior accent light only available if eq uipped. Interior accent light changes with Dynamic Mode only when Accent Light Theme is
set to Dynamic Mode .
2Customized Features P. 359
2 Lighting area of the accent light P. 463
ModeFunctionAccent Light Color*1
SNOWMaximizes controllability through reduced throttle response
When in SNOW, the Auto Idle Stop System will stay disabled regardless of
the Auto Idle Stop OFF button
2Auto Idle Stop P. 464
White
COMFORTMaximizes driver comfort through decrease d steering effort and reduced ride
firmness (if Active Damp er System is equipped)Blue
NORMALBalanced response for everyday useWhite
SPORTEnhances vehicle response through increased steering effort, heightened
throttle response, modified active sound control, and more responsive ride
and/or handling (if Active Da mper System and/or SH-AWD ® is equipped)
When in SPORT, the Auto Idle Stop System w ill stay disabled regardless of
the Auto Idle Stop OFF button
2Auto Idle Stop P. 464
Red
22 ACURA RDX-31TJB6300.book 461 ページ ２０２１年８月２日　月曜日　午前１１時０分

462
uuWhen Driving uAcura Integrated Dynamics System
Driving
■Next start-up mode
The mode for the next start-up is saved according to the following chart. Each keyless remote has its own mode saved.
*1:Interior accent light only available if equipped. Interior accent light changes with Dynamic Mode only when Accent Light Theme is
set to Dynamic Mode .
2Customized Features P. 359
2 Lighting area of the accent light P. 463
Last Dynamic ModeNext Dynamic ModeWelcome Accent Light Color*1
SNOWNORMALWhite
COMFORTCOMFORTBlue
NORMAL or SPORTNORMALWhite
22 ACURA RDX-31TJB6300.book 462 ページ ２０２１年８月２日　月曜日　午前１１時０分

463
uuWhen Driving uAcura Integrated Dynamics System
Driving

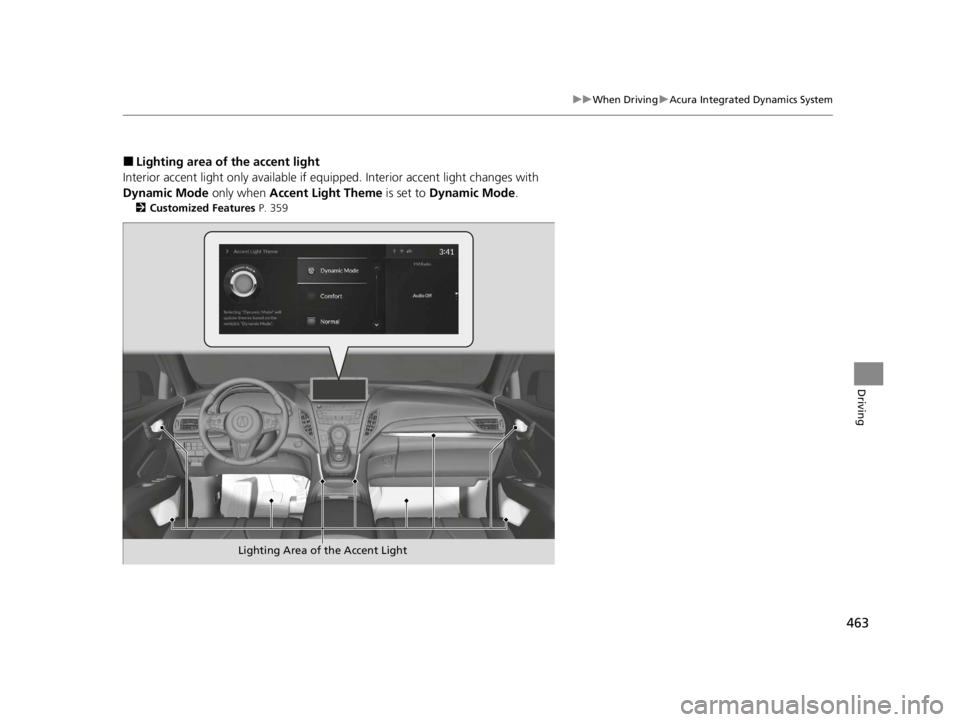

■Lighting area of the accent light
Interior accent light only available if equipped. Interior accent light changes with
Dynamic Mode only when Accent Light Theme is set to Dynamic Mode .
2Customized Features P. 359
Lighting Area of the Accent Light
22 ACURA RDX-31TJB6300.book 463 ページ ２０２１年８月２日　月曜日　午前１１時０分

464
uuWhen Driving uAuto Idle Stop
Driving
Auto Idle Stop
To help maximize fuel econ omy, the engine automatica lly stops when the vehicle
comes to a stop, depending on environmen tal and vehicle operating conditions. The
indicator (green) comes on at this time.
The environmental and vehicle conditions that
impact Auto Idle Stop system operation are
varied.
2Auto Idle Stop Activates When:
P. 467, 468
The engine then restarts once the vehicle is
about to move again, and the indicator
(green) goes off.
2 The Engine Automatically Restarts When:
P. 469
1 Auto Idle Stop
The 12-volt battery insta lled in this vehicle is
specifically designed for a m odel with Auto Idle Stop.
Using a 12-volt battery other than this specified type
may shorten the 12-volt ba ttery life, and prevent
Auto Idle Stop from activati ng. If you need to replace
the 12-volt battery, make sure to select the specified
type. Ask a dealer for more details.
Auto Idle Stop Indicator
(Green)
22 ACURA RDX-31TJB6300.book 464 ページ ２０２１年８月２日　月曜日　午前１１時０分

465
uuWhen Driving uAuto Idle Stop
Continued
Driving

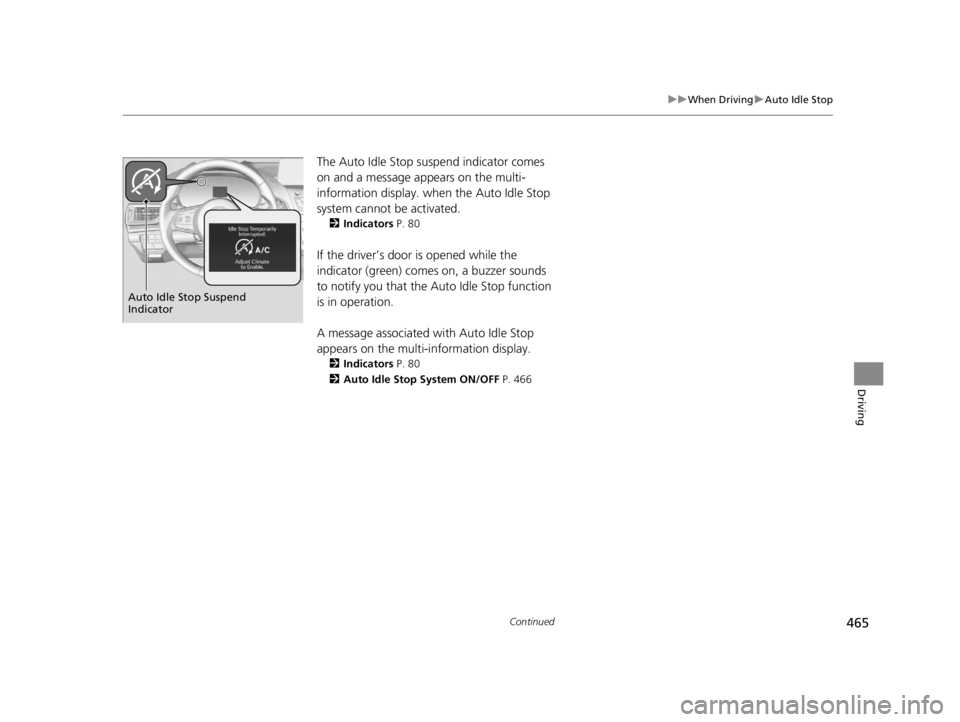

The Auto Idle Stop suspend indicator comes
on and a message appears on the multi-
information display. when the Auto Idle Stop
system cannot be activated.
2 Indicators P. 80
If the driver’s door is opened while the
indicator (green) comes on, a buzzer sounds
to notify you that the Auto Idle Stop function
is in operation.
A message associated with Auto Idle Stop
appears on the multi-information display.
2 Indicators P. 80
2 Auto Idle Stop System ON/OFF P. 466
Auto Idle Stop Suspend
Indicator
22 ACURA RDX-31TJB6300.book 465 ページ ２０２１年８月２日　月曜日　午前１１時０分

uuWhen Driving uAuto Idle Stop
466
Driving
To turn the Auto Idle Stop system off, press
this button. The Auto Idle Stop system stops.
u Auto Idle Stop system will stop, the
indicator will come on and a message
appears on the multi-information
display.
The Auto Idle Stop syst em is turned on every
time you start the engine, even if you turned it
off the last time you drove the vehicle.
■Auto Idle Stop System ON/OFF1 Auto Idle Stop System ON/OFF
If you turn off the Auto Id le Stop system while it is
activated, the engine will restart.
2 Auto Idle Stop Activates When: P. 467
If you hold the Auto Idle Stop OFF button, you can
disable idle stop messages. 2 Indicators P. 80
Auto Idle Stop OFF
Indicator
Auto Idle Stop OFF
Button
22 ACURA RDX-31TJB6300.book 466 ページ ２０２１年８月２日　月曜日　午前１１時０分

Continued467
uuWhen Driving uAuto Idle Stop
Driving
The vehicle stops with the gear position in (D and the brake pedal depressed.
When you put the transmission into
(P, the Auto Idle Stop continues to operate,
even if the brake pedal is released. u If you depress the brake pedal, the engine may automatically restart.
■Auto Idle Stop does not activate when:
• The Auto Idle Stop OFF button is pressed.
• The driver’s seat belt is not fastened.
• The engine is not adequately warmed up or coolant temperature is high.
• The transmission fluid temperature is low or high.
• The vehicle comes to a stop again befo re the vehicle speed reaches 3 mph (5
km/h) after the engine starts.
• The vehicle is stopped on a steep incline.
• The transmission is in a position other than
(D.
• The engine is started with the hood open.
u Turn off the engine. Close the hood before you restart the engine to activate
Auto Idle Stop.
• The battery charge is low.
• The internal temperature of the ba ttery is 14°F (−10°C). or less.
• The climate control system is in use, and the outside temperature is below −4°F
(−20°C) or over 104°F (40°C).
• The climate control system is in use, and the temperature is set to Hi or Lo .
• is ON (indicator on).
• The Integrated Dynamics Sy stem mode is changed to SNOW or SPORT mode.
■Auto Idle Stop Activates When:1Auto Idle Stop Activates When:
Do not open the hood while the Auto Idle Stop
function is activated. If the hood is opened, the
engine will not re start automatically.
In this case, restart the engine with the ENGINE
START/STOP button.
2 Starting the Engine P. 443
When ACC with Low Speed Follow is in operation,
the vehicle stops without de pressing the brake pedal
and Auto Idle Stop may activate.
Pressing the ENGINE START/STOP button causes
the engine to no longer rest art automatically. Follow
the standard procedure to start the engine.
2 Starting the Engine P. 443
22 ACURA RDX-31TJB6300.book 467 ページ ２０２１年８月２日　月曜日　午前１１時０分

468
uuWhen Driving uAuto Idle Stop
Driving
■Auto Idle Stop may not activate when:
• The vehicle is stopped by braking suddenly.
• The steering wheel is operated.
• Altitude is high.
• The climate control system is in use, and there is a significant difference between
the set temperature and the actual interior temperature.
• The climate control system is in use, and humidity in the interior is high.
22 ACURA RDX-31TJB6300.book 468 ページ ２０２１年８月２日　月曜日　午前１１時０分
