ACURA RDX 2023 User Guide

9

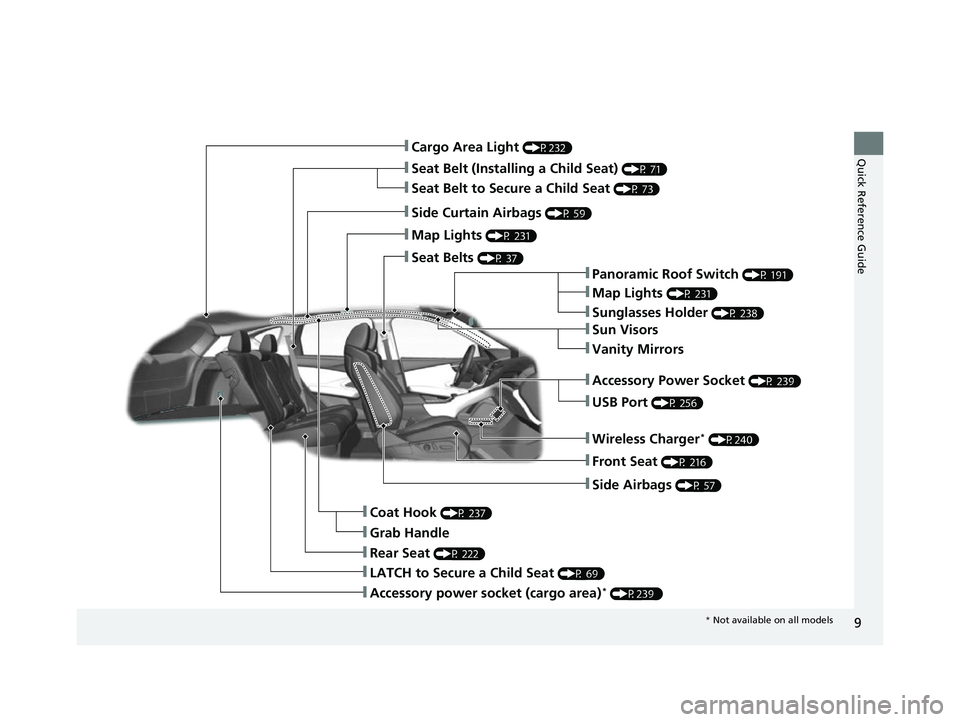

Quick Reference Guide❚Cargo Area Light (P232)
❚Seat Belt (Installing a Child Seat) (P 71)
❚Side Curtain Airbags (P 59)
❚Map Lights (P 231)
❚Seat Belts (P 37)
❚Panoramic Roof Switch (P 191)
❚Map Lights (P 231)
❚Sunglasses Holder (P 238)
❚USB Port (P 256)
❚Front Seat (P 216)
❚Side Airbags (P 57)
❚Coat Hook (P 237)
❚LATCH to Secure a Child Seat (P 69)
❚Rear Seat (P 222)
❚Sun Visors
❚Vanity Mirrors
❚Seat Belt to Secure a Child Seat (P 73)
❚Grab Handle
❚Accessory Power Socket (P 239)
❚Wireless Charger* (P240)
❚Accessory power socket (cargo area)* (P239 )
* Not available on all models
23 ACURA RDX-31TJB6400.book 9 ページ ２０２２年８月４日　木曜日　午後１時５１分

Visual Index
10
Quick Reference Guide
❚How to Refuel (P 576)
❚High-Mount Brake Light (P 608)
❚Opening/Closing the Tailgate (P173)
❚Rear Wiper (P 206, 612)
❚ChicaneTM Taillights, Brake and Rear Side Marker Lights (P 197, 607)
❚Rear Turn Signal Lights (P 196, 606)
❚Multi-View Rear Camera* (P 565)
❚Rear License Plate Light (P 197, 608)
❚Tailgate Outer Handle (P 178, 182)
❚ChicaneTM Taillights/Brake and Back-Up Lights (P 197, 608)
❚Windshield Wipers (P 204, 609)
❚Power Door Mirrors (P 214)
❚Maintenance Under the Hood (P 592)
❚Fog Lights* (P 200, 605)
❚Tires (P 614, 641, 649)
❚Door Lock/Unlock Control (P 160)
❚Front Turn Signal Lights (P 196, 605)
❚Parking/ChicaneTM Daytime Running Lights (P 197, 605)
❚Side Turn Signal Lights (P 196, 605)
❚Headlights (P 197, 605)
❚Front Side Marker Lights (P197, 605)
❚Surround View Camera System* (P 567)
❚Rearview Camera Washer* (P 204)
23 ACURA RDX-31TJB6400.book 10 ページ ２０２２年８月４日　木曜日　午後１時５１分

11
Quick Reference Guide
Auto Idle Stop Function
To improve fuel economy, the engine stops and then restarts as detailed below. When Auto Idle Stop is on, the Auto Idle Stop in dicator
(green) comes on. (P464)
At Automatic transmissionEngine status
Deceleration
Stop
Start-up
Depress the brake pedal.
Automatic Brake Hold Off
(P550) Automatic Brake Hold On
(P550)
On
Keep the brake pedal
depressed. With the automatic brake hold system
activated, you can release the brake pedal
when the indicato
r (green) comes on.
U.S. Canada
Off
Release the brake pedal. With the automatic brake hold system
activated, depress the accelerator pedal.Restarting
*
Not available on all models
23 ACURA RDX-31TJB6400.book 11 ページ ２０２２年８月４日　木曜日　午後１時５１分

12
Quick Reference Guide
Safe Driving (P 31)
Airbags (P 46)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 64)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restra ined in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P 77)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 36)
●Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 37)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
23 ACURA RDX-31TJB6400.book 12 ページ ２０２２年８月４日　木曜日　午後１時５１分

13
Quick Reference Guide
Instrument Panel (P 79)
Indicators (P 80)/Gauges (P 136)/Multi-Information Display (P 137)/
Head-Up Display
* (P 148)
Speedometer (P136 )
Fuel Gauge (P136 )
Multi-Information Display
(P137 )
Temperature Gauge (P136 )
Tachometer (P136 )
Immobilizer System Indicator/
Security System Alarm Indicator
(P99 )
Gear Position Indicator (P87 )/
Transmission System Indicator (P88 )
Turbo Meter
(P143 )
M (sequential mode) Indicator/
Gear Selection Indicator (P87 )
G-meter (P 144)
Head-Up Display* (P148 )
* Not available on all models
23 ACURA RDX-31TJB6400.book 13 ページ ２０２２年８月４日　木曜日　午後１時５１分

14
Quick Reference Guide
Controls (P 153)
Clock (P 154)
The clock is automatically updated through
the audio system.
You can adjust the time using the A-zone
touchpad.
aPress the (home) button.
bSelect Settings .
cSelect System .
dSelect Date & Time .
eSelect Set Date & Time .
fSelect Automatic Date & Time .
gSelect Off.
hSelect Set Date or Set Time .
iSelect (+/(- to adjust the dates, hours
and minutes.
jPress the (back) button to set the
date or time.
ENGINE START/STOP
Button
(P 193)
Press the button to change the vehicle’s
power mode.
Turn Signals (P 196)
Lights (P 197)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
23 ACURA RDX-31TJB6400.book 14 ページ ２０２２年８月４日　木曜日　午後１時５１分

15
Quick Reference Guide
Wipers and Washers
(P 204)
Wiper/Washer Control LeverAdjustment Ring
(-: Low Sensitivity*1
: Lower speed, fewer sweeps*2
(+: High Sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
*1 : Models with automatic intermittent wipers
*2 : Models without automatic intermittent
wipers
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P 212)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Models with automatic intermittent wipersUnlocking the Front
Doors from the Inside
(P 170)
●Pull either front door inner handle to
unlock and open it at the same time.
23 ACURA RDX-31TJB6400.book 15 ページ ２０２２年８月４日　木曜日　午後１時５１分

16
Quick Reference Guide
Tailgate (P 173)
●Press the tailgate outer handle to unlock
and open the tailgate when you have the
keyless remote on you.
●Press the power tailgate button on the
driver’s door.
●Press the power tailgate button on the
remote transmitter.
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the keyless remote.
Models with Hands Free Access
1 sec.
Power Door Mirrors
(P 214)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
●Press the folding button* to fold in and
out the door mirrors.
Selector Switch
Adjustment SwitchFolding Button*
23 ACURA RDX-31TJB6400.book 16 ページ ２０２２年８月４日　木曜日　午後１時５１分

17
Quick Reference Guide

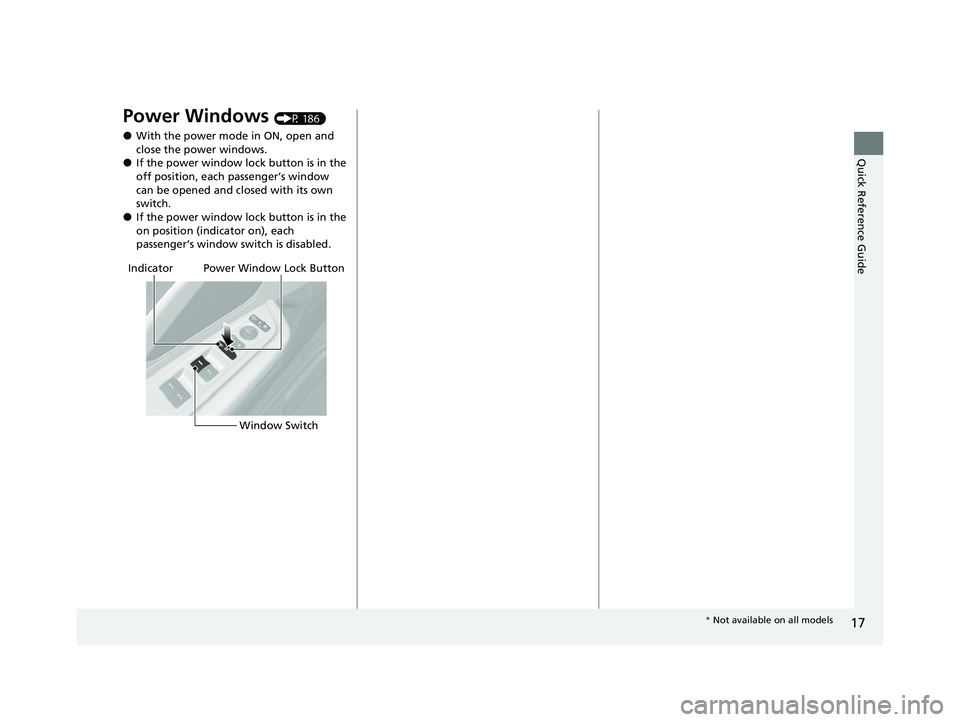

Power Windows (P 186)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Power Window Lock ButtonWindow Switch
Indicator
*
Not available on all models
23 ACURA RDX-31TJB6400.book 17 ページ ２０２２年８月４日　木曜日　午後１時５１分

18
Quick Reference Guide
Climate Control System (P 247)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Driver’s Side Temperature
Control Buttons
(Windshield Defroster) Button
A/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents, and back
of the center console. Air flows from dashboard
vents and back of the
center console. SYNC
(Synchronization) Button
(Recirculation) Button
AUTO Button
Passenger’s Side Temperature
Control Buttons
MODE Control Button (ON/OFF) Button
Fan Control Button
23 ACURA RDX-31TJB6400.book 18 ページ ２０２２年８月４日　木曜日　午後１時５１分
