navigation Acura RL 2008 Navigation Manual

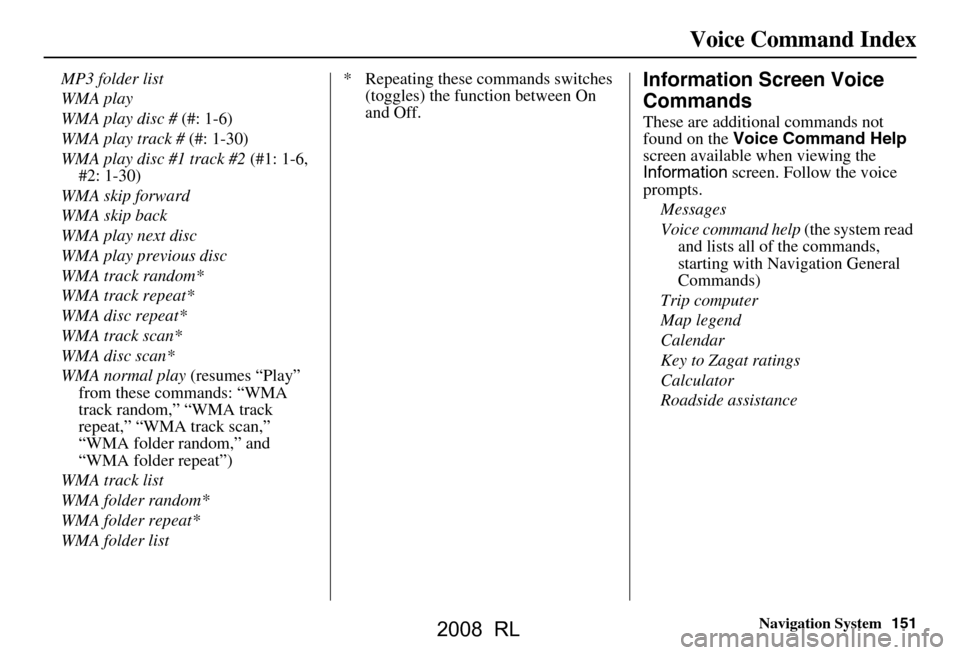

Navigation System151
Voice Command Index
MP3 folder list
WMA play
WMA play disc # (#: 1-6)
WMA play track # (#: 1-30)
WMA play disc #1 track #2 (#1: 1-6,
#2: 1-30)
WMA skip forward
WMA skip back
WMA play next disc
WMA play previous disc
WMA track random*
WMA track repeat*
WMA disc repeat*
WMA track scan*
WMA disc scan*
WMA normal play (resumes “Play”
from these commands: “WMA
track random,” “WMA track
repeat,” “WMA track scan,”
“WMA folder random,” and
“WMA folder repeat”)
WMA track list
WMA folder random*
WMA folder repeat*
WMA folder list * Repeating these commands switches
(toggles) the function between On
and Off.Information Screen Voice
Commands
These are additional commands not
found on the Voice Command Help
screen available when viewing the
Information screen. Follow the voice
prompts.
Messages
Voice command help (the system read
and lists all of the commands,
starting with Navigation General
Commands)
Trip computer
Map legend
Calendar
Key to Zagat ratings
Calculator
Roadside assistance
2008 RL

152Navigation System
Voice Command Index
Setup Screen (first)
Commands
The system accepts these commands on
Setup screen (first). (For Setup screen
(second), simply say what is written on
the screen, and follow the voice
prompts)
Brightness up
Brightness down
Brightness minimum/min.
Brightness maximum/max.
Contrast up
Contrast down
Contrast minimum/min.
Contrast maximum/max.
Black level up
Black level down
Black level minimum/min.
Black level maximum/max.
Volume up (tone indicates volume)
Volume down (tone indicates volume)
Volume minimum/min. (tone indicates
volume)
Volume maximum/max. (tone
indicates volume)
Volume off
Interface dial feedback off Interface dial feedback auto
Interface dial feedback on
Guidance prompts minimum/min.
Guidance prompts normal
Guidance prompts maximum/max.
On-Screen Commands
The system accepts these commands on
any screen. There are over 100 on-
screen commands. Just say what is
written on the screen (this excludes
listed items).
Next (or “Down”)
Previous (or “Up”)
Return
OK (except at Disclaimer screen)
Delete
Done
etc.
2008 RL

Navigation System153
Voice Command Index
On-Screen Spelling Assist
When speaking the letters or using
“spell mode,” you can substitute the
name that represents each letter or
symbol. This improves recognition. For
example:
 To select the letter “A”:
Say “ A,” “ Alpha ,” or “Apple .”
 To select the letter “M”: Say “ M,” “ Mary ,” or “ Mike. ”
The system will respond to the names
shown in the following tables. NOTE:
 The system will only respond to the
names shown in the following tables.
 To select the letter “A,” you can also; select the “A” by using the Interface
Dial .
 To select the numb er “1,” say “One”
or “Number One,” or select the “1”
by using the Interface Dial .
 To select the symbol “- (hyphen),” say “Hyphen” or “Symbol Hyphen,”
or select the “-” by using the
Interface Dial .
 When selecting letters using the voice control system, a confirmation box
may pop up to confirm the letter.
2008 RL

154Navigation System
Voice Command Index
Letters Assist Definitions:
Say Or say “...” Say Or say “...” Say Or say “...” Say Or say “...”
A Alpha/Apple
HHotel/Henry OOscar VVictor
B Bravo/Boy IIndia/Igloo PPapa/Paul WWhiskey/William
C Charlie JJuliet/John QQuebec/Queen XX-Ray
D Delta/Dog KKilo/King RRomeo/Robert YYankee/Yellow
E Echo/Edward LLima/Larry SSierra/Sam ZZulu/Zebra
F Foxtrot/Frank MMike/Mary TTango/Tom Enter
G Golf/George NNovember/Nancy UUniform/Uncle
2008 RL

Navigation System155
Voice Command Index
Symbol Assist Definitions:
NOTE:
The term “grave” (used for symbols À, È , Ì, and Ù) is pronounced like “save.”
Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...”
À A grave îI circumflex _Underscore
 A circumflex ïI umlaut `Back quote
Ä A umlaut ÔO circumflex ,Comma
Ç C cedilla ÙU grave .Dot
È E grave ÛU circumflex ?Question Mark
É E acute ÜU umlaut :Colon
Ê E circumflex @At sign ;Semi colon
ËE umlaut ^Caret +Plus
ì I grave *Asterisk Enter
2008 RL

156Navigation System
Voice Command Index
Numbers and Additional Symbol Assist Definitions:
Numbers Say “...” or “Number ...” Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...”
1
One-Hyphen~Tilde
2Two!Exclamation point/Slash
3Three”Double quote 4Four#Pound>Greater than
5Five$Dollar{Open brace
6Six%Percent}Close brace
7Seven&Ampersand Enter
8Eight’Apostrophe
9Nine(Open parenthesis
0Zero)Close parenthesis
2008 RL

Navigation System157
Index
A
Accessing the Address Book List
..... 86
Acura Automobile Client
Services
.....................................116
AcuraLink/Messages......... 75, 76, 108
ADD TO Today’s
Destinations
........................... 48, 50
Adding Destinations to the List........48
Address..............................27, 28, 87
Address Book..................... 27, 32, 86
Advanced............................ ...........35
Alaska (Operation)........................ 129
Auto Daylight............................... 101
Auto Service...................................34
Auto Time Zone............................ 101
Avoid Streets.................................. 71
B
Back to Current Route
..................... 72
Banking.......................................... 34
Basic Settings.................................91
Black Level.................................... 84
Bluetooth® HandsFreeLink®..........18
Breadcrumbs.............................20, 67
Brightness...................................... 83
By Address.....................................28
By Address Book............................32
By Go Home.................................. 49
By Intersection...............................39
By Map Input................................. 45
By Places....................................... 33
By Previous Destinations................44
By Today’s Destinations................. 47
C
Calculator
.... .................................. 81
Calendar..................................17, 78
CALL...................................... 18, 50
CANCEL button............................11
Cancel Current Route.....................70
Category............................33, 34, 88
CD Voice Commands...................149
Change Method.............................. 51
Change Routing Method.................70
Change State............................28, 39
Changing the DVD.......................118
Changing the Route........................ 70
Changing the Routing Method........51
Changing Your Destination.............73
City................................... 28, 40, 46
City Vicinity..................................37
Client Assistance..........................116
Climate Control Commands..........147
Clock Adjustment........................ 100
Color........................................... 104
Community....................................34
Continental USA............................47
Contrast......................................... 84
Convert (Unit)................................ 81
Correct Vehicle Position...............103
Coverage Areas............................ 120
Current Location...................... 21, 68
Current Position....................... 45, 87
Current Street................................... 6
D
Database Limitations
.................... 114
Daylight Savings Time (DST)
Selection
................................... 102
Delete Previous Destinations...........90
Delete Waypoints........................... 72
Destination........................ 27, 50, 73
Destination Icon............................. 62
Destination Map............................. 53
Detailed Coverage Areas......120, 124
Detour........................................... 70
Direct Route..................................51
Direction List.................................57
Display mode button......................11
Driving to Your Destination............50
DVD Voice Commands................150
2008 RL

158Navigation System
Index
E
Easy Route
..................................... 51
Edit Avoid Area..............................97
Edit Waypoint Search Area..............99
Edit/Delete Address........................ 89
Editing Today’s Destination List......48
Emergency..................................... 34
Entering a Destination.....................27
Entering Address Book....................86
Entering Schedule...........................79
Entering Security Code.................. 110
Entering the Street Number..............32
Entering Your Schedule................... 79
Error Message............................... 140
Exit Info......................................... 58
F
Find Place Commands
................... 146
Frequently Asked Questions..........132
G
Getting Started
..................... ...........10
Global Commands........................ 144
Glossary.............................. .........141
Go Home.................................. 27, 49
Going Off the Route........................67
GPS Initialization......................... 111
Guidance Mode............................100
Guidance Prompts....................57, 84
Guidance Screen............................ 55
H
Hawaii (Operation)
....................... 129
Home Address............................... 89
Hotel/Motel (Lodging)...................34
I
Icon Bar
...... .................................. 65
Incident Icons..........................20, 62
INFO button............................ 10, 76
Information Screen.........................76
Information Screen Voice
Commands
................................ 151
Interface Dial................................. 11
Interface Dial Feedback..................84
Interface Dial knob.........................11
Intersection.............................. 27, 39
K
Key to Zagat Ratings
...................... 80
L
Landmark Icons
............................. 62
Leisure.......................................... 34
Lodging (Hotel/Motel)....................34
M
Map Color
................................... 104
Map Coverage..............................120
Map Input...................... ..........27, 45
Map Legend....................... 20, 54, 78
Map Matching.............................. 111
Map Orientation.............................61
Map Scale......................................60
Map Screen.............................. 20, 54
MAP/GUIDE button.................10, 55
Maximize Freeways....................... 51
MENU button................................ 10
Menu Color................................. 105
Message........................................79
Messages......................... 75, 76, 108
Microphone................................... 13
Minimize Freeways........................51
Minimize Tool Roads..................... 51
MP3/WMA Voice Commands......150
2008 RL

Navigation System159
Index
N
Name
....................................... 33, 38
NAVI BACK button........................13
NAVI TALK button........................13
Navigation Display Commands......145
Navigation General Commands......144
O
Off-road Tracking
................... 67, 102
On-Screen Commands...................152
On-Screen Spelling Assist.............153
P
PC Card
........................................ 119
Personal Information.......................85
Phone Number.......................... 33, 38
PIN Number...................................89
Place Name.............................. 36, 37
Place Name by Keyword.................36
Places................................. 27, 33, 87
Previous Destinations.......... 27, 44, 87
R
Radio Voice Commands
....... ......... 149
Read List.................................. 35, 77
Rear View Camera.................12, 108
Recalculation........................... 67, 92
Reporting Errors..........................116
Rerouting...................................... 92
Restaurant.....................................34
Roadside Assistance.......................82
Route..........................50, 53, 67, 70
Routing & Guidance.......................92
Routing Method............................. 51
S
Save Current Location
.................... 68
Schedule........................................ 79
Screen........................................... 12
Search Waypoint on Route..............71
Security Code..............................110
Selecting the City.....................28, 40
Selecting the State....................28, 39
Selecting the Street...................30, 41
SET UP button...............................11
Setup Screen (first) Commands.....152
Shopping....................................... 35
Show Icon on Map.........................62
Sort by Distance to Travel..............37
Split Screen Guidance....................59
State.................................. 28, 39, 46
Street....................................... 30, 41
Switching Display Mode..............105
System Controls............................. 10
System Function Diagram...............26
System Information......................108
System Initialization.....................110
System Limitations....................... 112
System Set-up................................ 83
System Start-up..............................17
T
Temperature Voice Commands
..... 148
Time Adjustment......................... 102
Today’s Destination List................. 48
Today’s Destinations................27, 47
Traffic Display Legend................... 22
Traffic Flow...................................23
Traffic Incident........................ 24, 64
Traffic Speed................................. 64
Travel............................................ 35
Trip Computer............................... 77
Troubleshooting........................... 140
U
Unit Conversion
............................. 81
Units (mile or km)..........................91
Unverified Area Routing.................93
Unverified streets............................. 7
Update DVD................................ 118
2008 RL

160Navigation System
Index
Upper Display.................................12
Using the Voice Control System......14
V
Vehicle
.........................................102
Verbal Reminder...........................104
Verified streets..................................7
View Routes...................................51
Visiting Your Dealer.....................117
Voice.............................................91
Voice Command Help.....................76
Voice Command Index..................144
Voice Control Basics.......................13
Voice Recognition Feedback............91
Voice Recognition, Improving.........14
Volume..........................................84
W
Waypoints
......................................99
WMA Voice Commands...............150
Z
Zagat 2007
...............................34, 38
2008 RL
