engine ACURA RL 2012 Owner's Manual

Your vehicle has a keyless access
system. When you carry the remote
with you, you can lock/unlock the
door(s), unlock the trunk, and start
the engine without using the built-in
key.
The system may not work if:
Thebatteryof theremoteisweak.
You carry a cell phone, a laptop
computer, or other electrical
device near the remote. There is strong electrical current
nearby.
The remote is covered by metal.
A vehicle is being operated with a
transmitter nearby.
When the remote battery is dead.Protect the remote and the built-in
key f rom direct sunlight, high
temperature, and high humidity.
When the vehicle battery is dead.
Make sure the driver always carries
the remote/built-in key set.Do not drop the remote or the
built-in key, and do not set heavy
objects on them.
The built-in keys do not contain
batteries. Keep the remote and the built-in key
away f rom liquids. If they get wet,
dry them immediately with a sof t
cloth.
Always keep the remote and the
built-in key away from any magnetic
material.
Youshouldhavereceivedakey
number tag with your built-in key.
You will need this key number if you
ever have to get a lost key replaced.
UseonlyAcura-approvedkeyblanks.This key is used to lock/unlock the
doors, glove box, trunk pass-through
cover, and to start the engine (af ter
you remove the ignition switch cover,
see page ). The f ollowing keys come with your
vehicle. Refer to page for how to
separate the keys.
178181
CONT INUED
K eyless A ccess System
Built -in K ey
Keys
Inst rument s and Cont rols
167
BUILT-IN KEYS KEYLESS ACCESS
REMOTES
KEY NUMBER TAG
11/07/20 18:21:10 31SJA670_172
ProCarManuals.com

Anyone can lock/unlock a door or
open the trunk if the remote is
within the operating range of the
door or the trunk.
Theremotemaynotworkif:
It is too close to the vehicle.
It is above or below the vehicle,
even when it is within its operating
range. This remote is used to lock/unlock
the doors and unlock the trunk.
When you carry the remote, you can
lock/unlock the doors, unlock the
trunk, and start the engine without a
key.
You can lock/unlock the doors
within about a 32 inch (about 80 cm)
radius f rom the outside door handle.
You can open the trunk within about
a 32 inch (about 80 cm) radius f rom
thetrunkreleaseswitch.
K eyless A ccess Remot e
K eyless A ccess System
168
OPERATING
RANGE
11/07/20 18:21:17 31SJA670_173
ProCarManuals.com

The engine may not start if the
remote is subjected to strong radio
waves.
Also, the engine may not start if the
remote is too close to the windows. The engine may not run, and some
malf unctions may occur, if the
remote is:
Outside the vehicle.
On the dashboard.
On the rear interior panel.
In the glove box.
In the door pockets.
In the trunk, etc.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
f ollowing two conditions: (1) This device
may not cause harmf ul interf erence, and
(2) this device must accept any
interf erence received, including
interf erence that may cause undesired
operation.
Changes or modif ications not expressly
approved by the party responsible f or
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the f ollowing two
conditions: (1) this device may not cause
interf erence, and (2) this device must
accept any interf erence that may cause
undesired operation of the device.
K eyless A ccess System
Ignition Switch Operating Range
176
11/07/20 18:22:40 31SJA670_181
ProCarManuals.com

If the ignition switch cannot be
turned f rom the LOCK (0) position
to the ACCESSORY (I) position afterthe beep, the steering wheel is
locked. To unlock the steering wheel,
turn it right and lef t while turning
the ignition switch at the same time.
If theremoteandthevehicledonot
recognize each other, turn the
ignition switch to the LOCK (0)
position, remove the ignition switch
cover, insert the built-in key, and
turn the switch (see pages and
).
When you push the ignition switch,
theremoteandthevehiclerecognize
each other. Af ter the recognition,
the remote indicator f lashes, and a
beeper sounds once. Af ter the beep,
turn the ignition switch.
When the remote is out of the
operating range, the ignition switch
is locked.151
178
CONT INUED
Ignition Switch
K eyless A ccess System
Inst rument s and Cont rols
177
Make sure you know where the remote
is when you are inside the vehicle.
Remember that you can start the engine
without using the built-in key when the
remote is inside the vehicle.
Make sure you always carry the remote
with you.
11/07/20 18:22:47 31SJA670_182
ProCarManuals.com

To remove the ignition switch cover,
insert the built-in key (see page ),
then pull the cover out by pulling the
built-in key while pushing it. Also, if you close the door when the
ignition switch is not in the LOCK
(0) position and the remote is not
inside the vehicle, the keyless access
alarm sounds outside the vehicle, a
message appears on the multi-
inf ormation display, and the beeper
sounds if the ignition switch is in the
ON (II) position.
When the beeper sounds af ter you
close the driver’s door outside the
vehicle, check the position of the
ignition switch and the location of
the remote.
If the engine is running and you
removetheremotefromthevehicle,
it will continue to run. But once
turned to the LOCK (0) position, the
engine will not restart until a remote
is brought back into the vehicle. To turn the ignition switch to the
LOCK (0) position, put the
transmission in Park, press the
switch in, and turn it to the LOCK
(0) position. When the transmission
is not in Park, you cannot turn the
ignition switch to the LOCK (0)
position.
Bef ore leaving the vehicle, make
sure the ignition switch is in the
LOCK (0) position.
If you open the driver’s door with the
ignition switch in the ACCESSORY
(I) position, a beeper will sound.
You will also see a ‘‘RETURN
IGNITION SWITCH TO LOCK (0)
POSITION’’ message on the multi-
inf ormation display.181
K eyless A ccess System
Removing the Ignition Switch
Cover
178
BUILT-IN KEY IGNITION SWITCH COVER
pushpull
11/07/20 18:22:55 31SJA670_183
ProCarManuals.com

The engine does not restart if you
turn the ignition switch to the LOCK
(0) position when the remote is
outside the vehicle. Check where the
remote is. Make sure that you carry
the remote or built-in key with you
when you operate the ignition switch.
If you pass the remote through an
open window, the system does not
respond.Also,evenwhentheremote
is inside the vehicle, the beeper may
sound when the location of the
remote is not detected due to
surrounding conditions. It is not a
f ailure. Make sure that you carry the
remote with you. The outside beeper sounds when
the ignition switch is in the
ACCESSORY (I) or the ON (II)
position.
When the ignition switch is in the
ON (II) position, the multi-
inf ormation display shows
‘‘KEYLESS REMOTE NOT
DETECTED,’’ and the inside and
outside beepers sound.
The multi-inf ormation display
message goes away when you
bring the remote back inside the
vehicle, and close the door or
apply the parking brake.
If the engine is running and you
removetheremotefromthe
vehicle, it will continue to run.
Once turned to the LOCK (0)
position, the engine will not restart
until a remote is brought back into
the vehicle. When you are pressing the ignition
switch, or when the ignition switch is
in the ON (II) position, the beeper
sounds if you take the remote out of
the vehicle and close the door.
CONT INUED
K eyless A ccess System
K eyless Remot e Not Det ect ed
Beeper and Message
Inst rument s and Cont rols
179
11/07/20 18:23:04 31SJA670_184
ProCarManuals.com

The keyless access system
indicator comes on and stays on
while you are driving.
The indicator comes on and stays
on with the ignition switch in the
ON (II) position.
The multi-inf ormation display
shows ‘‘CHECK KEYLESS
ACCESS SYSTEM.’’
In this case, use the built-in key to
lock/unlock the doors and start the
engine. The indicator comes on f or several
seconds when you turn the ignition
switch to the ON (II) position. Have
your vehicle checked by your dealer
if : Thebatteriesintheremotenormally
last about 2 years. To ensure
maximum battery life, do not store
the remote close to electrical devices
such as computers or TVs. When the
multi-inf ormation display shows
‘‘KEYLESS REMOTE LOW
BATTERY,’’ replace the batteries as
soon as possible (see page ).175Check K eyless A ccess Syst em K eyless Remot e L ow Bat t ery
K eyless A ccess System
180
KEYLESS ACCESS SYSTEM
INDICATOR
11/07/20 18:23:12 31SJA670_185
ProCarManuals.com

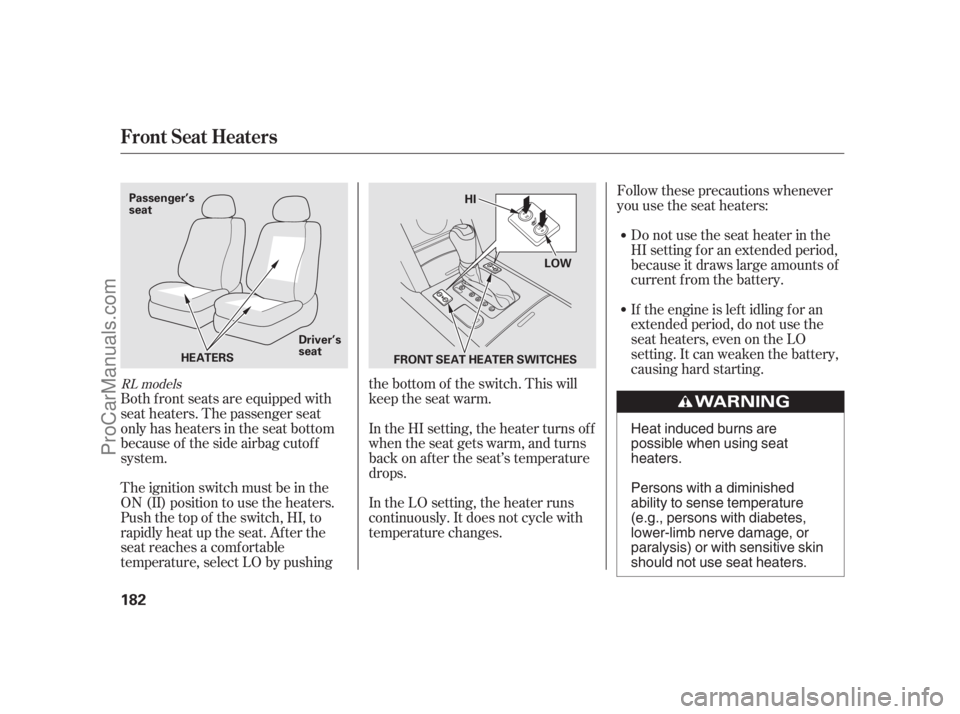

Both f ront seats are equipped with
seat heaters. The passenger seat
only has heaters in the seat bottom
because of the side airbag cutof f
system.
The ignition switch must be in the
ON (II) position to use the heaters.
Push the top of the switch, HI, to
rapidly heat up the seat. Af ter the
seat reaches a comfortable
temperature, select LO by pushingthe bottom of the switch. This will
keep the seat warm.
In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes.Follow these precautions whenever
you use the seat heaters:
Donotusetheseatheaterinthe
HI setting f or an extended period,
because it draws large amounts of
current from the battery.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters, even on the LO
setting. It can weaken the battery,
causing hard starting.
RL models
FrontSeatHeaters
182
Passenger’s
seat
Driver’s
seat
HEATERS
FRONT SEAT HEATER SWITCHESHI
LOW
Heat induced burns are
possible when using seat
heaters.
Persons with a diminished
ability to sense temperature
(e.g., persons with diabetes,
lower-limb nerve damage, or
paralysis) or with sensitive skin
should not use seat heaters.
11/07/20 18:23:27 31SJA670_187
ProCarManuals.com

Ý
Ý
Û µ
µ
µ

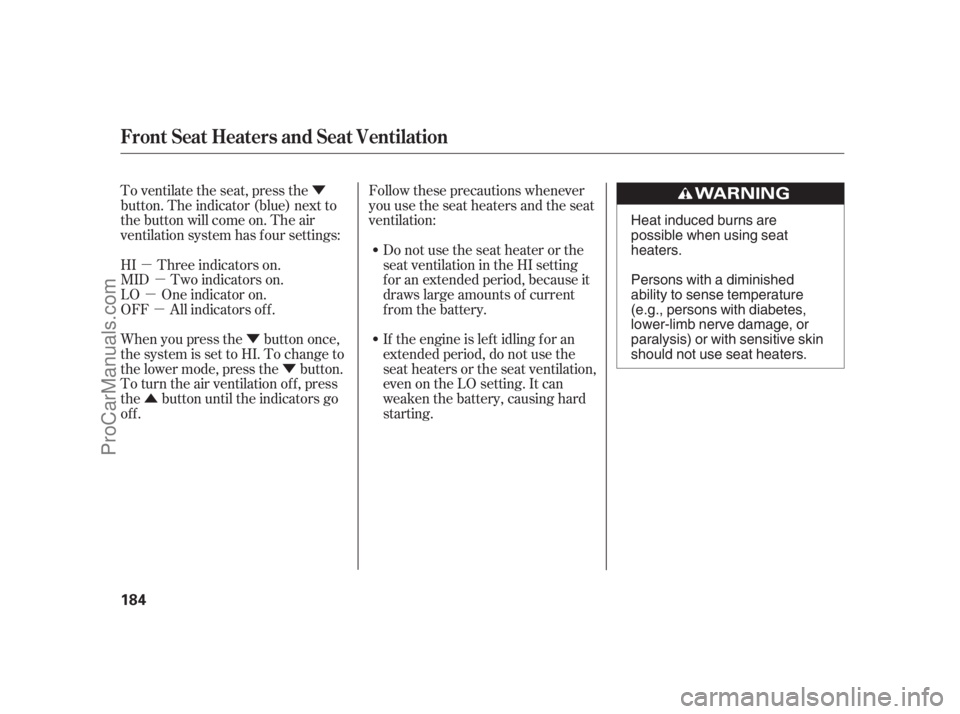

µÝFollow these precautions whenever
you use the seat heaters and the seat
ventilation:
Donotusetheseatheaterorthe
seat ventilation in the HI setting
f or an extended period, because it
draws large amounts of current
from the battery.
When you press the button once,
the system is set to HI. To change to
the lower mode, press the button.
To turn the air ventilation off, press
the button until the indicators go
off. HI Three indicators on.
MID Two indicators on.
LO One indicator on.
OFF All indicators of f . To ventilate the seat, press the
button. The indicator (blue) next to
the button will come on. The air
ventilation system has four settings:
If the engine is lef t idling f or an
extended period, do not use the
seat heaters or the seat ventilation,
even on the LO setting. It can
weaken the battery, causing hard
starting.
Front Seat Heaters and Seat Ventilation
184
Heat induced burns are
possible when using seat
heaters.
Persons with a diminished
ability to sense temperature
(e.g., persons with diabetes,
lower-limb nerve damage, or
paralysis) or with sensitive skin
should not use seat heaters.
11/07/20 18:23:43 31SJA670_189
ProCarManuals.com

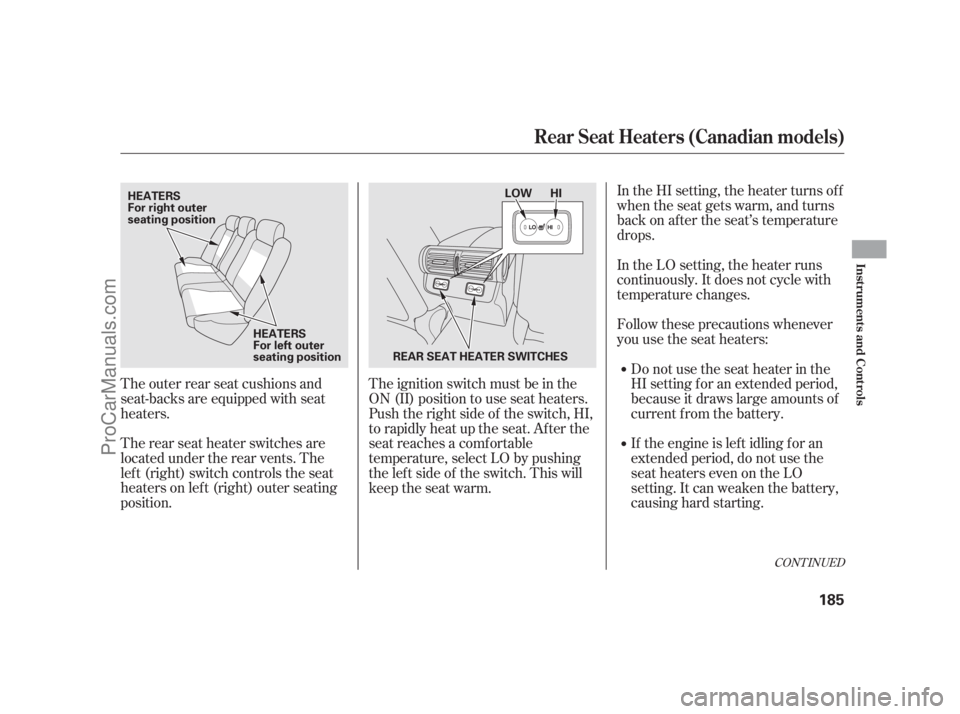

The outer rear seat cushions and
seat-backs are equipped with seat
heaters.
The rear seat heater switches are
located under the rear vents. The
lef t (right) switch controls the seat
heaters on lef t (right) outer seating
position.The ignition switch must be in the
ON (II) position to use seat heaters.
Push the right side of the switch, HI,
to rapidly heat up the seat. Af ter the
seat reaches a comfortable
temperature, select LO by pushing
the lef t side of the switch. This will
keep the seat warm.In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes.
Follow these precautions whenever
you use the seat heaters:
Donotusetheseatheaterinthe
HI setting f or an extended period,
because it draws large amounts of
current from the battery.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters even on the LO
setting. It can weaken the battery,
causing hard starting.
CONT INUED
Rear Seat Heaters (Canadian models)
Inst rument s and Cont rols
185
HEATERS
For right outer
seating position
HEATERS
For left outer
seating positionLOW HI
REAR SEAT HEATER SWITCHES
11/07/20 18:23:51 31SJA670_190
ProCarManuals.com
