Acura RLX 2016 Owner's Manual
Manufacturer: ACURA, Model Year: 2016, Model line: RLX, Model: Acura RLX 2016Pages: 581, PDF Size: 31.43 MB
Page 141 of 581

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
140
Controls
Fully insert the key and turn it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors cannot be locked wh en the keyless access remote is inside the vehicle, and
any door is open.
■Locking/Unlocking the Doors Using a Key1 Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors lock at the sa me time. When unlocking,
the driver’s door unlocks first. Turn the key a second
time within a few seconds to unlock the remaining
doors.
If you unlock the doors with the key, the alarm goes
off when you open the hood or select other than
( P
before the power mode is set to ON.
You can customize the door unlock mode setting. 2 Customized Features P. 113, 286
Lock
Unlock
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
lock at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in
the vehicle.
16 ACURA RLX E-AWD-31TY36200.book 140 ページ 2015年5月22日 金曜日 午後3時 50分
Page 142 of 581

141
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
You can remotely check if your vehicle’s doors
are all locked or any are unlocked using the
keyless access remote from extended
distances.
Press the lock button, the Am ber (LEFT) LED blinks once. Then after three seconds
one of the following feedback will come:
• Green (center) comes on: Acknowle dges that the doors are locked.
• Red (right) comes on: Acknowledges that doors are not locked, or any door is not
completely closed.
• Red (right) blinks three times: The remote does not receive the door lock status
from the vehicle.
■Checking Door Lock Status*1 Checking Door Lock Status*
Operate the remote in an open space. If there are
buildings or other obstacl es between your vehicle
and the remote, the remote may not work even
within the operable range. However, the range of
unlock, all doors, and panic functions are the same as
the standard keyless access remote. 2 Using the Remote Transmitter P. 136
When checking the door lock status, you can also
turn the power system on or off. 2 Remote Engine Start with Vehicle
Feedback
* P. 368
Red
Green
Amber
Lock Button
* Not available on all models
16 ACURA RLX E-AWD-31TY36200.book 141 ページ 2015年5月22日 金曜日 午後3時 50分
Page 143 of 581

142
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

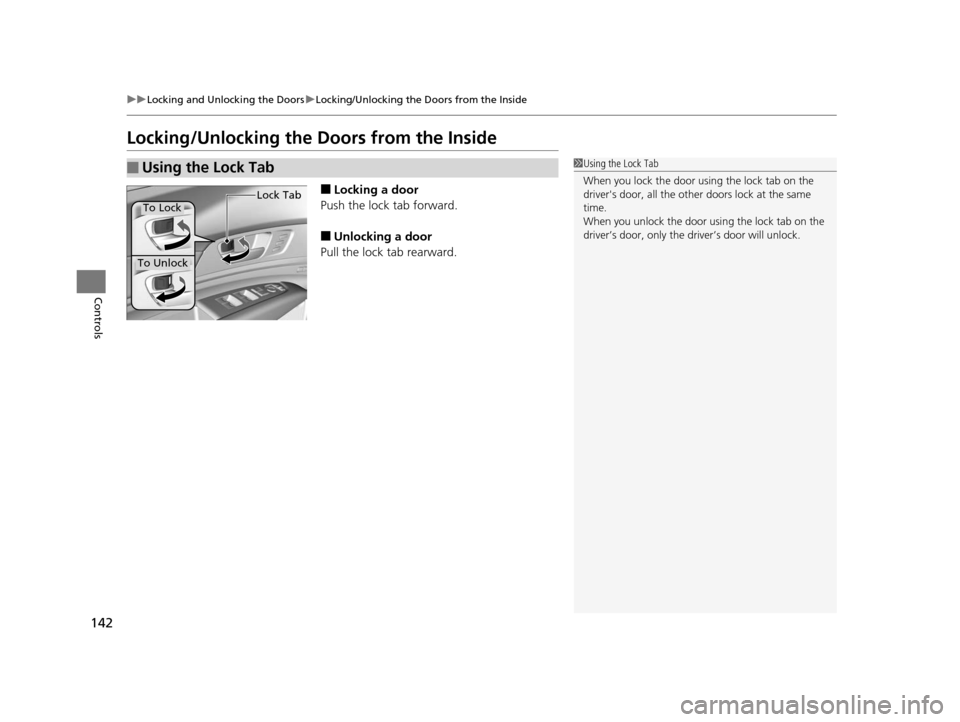

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, all the other doors lock at the same
time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To UnlockLock Tab
To Lock
16 ACURA RLX E-AWD-31TY36200.book 142 ページ 2015年5月22日 金曜日 午後3時
50分
Page 144 of 581

Continued143
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

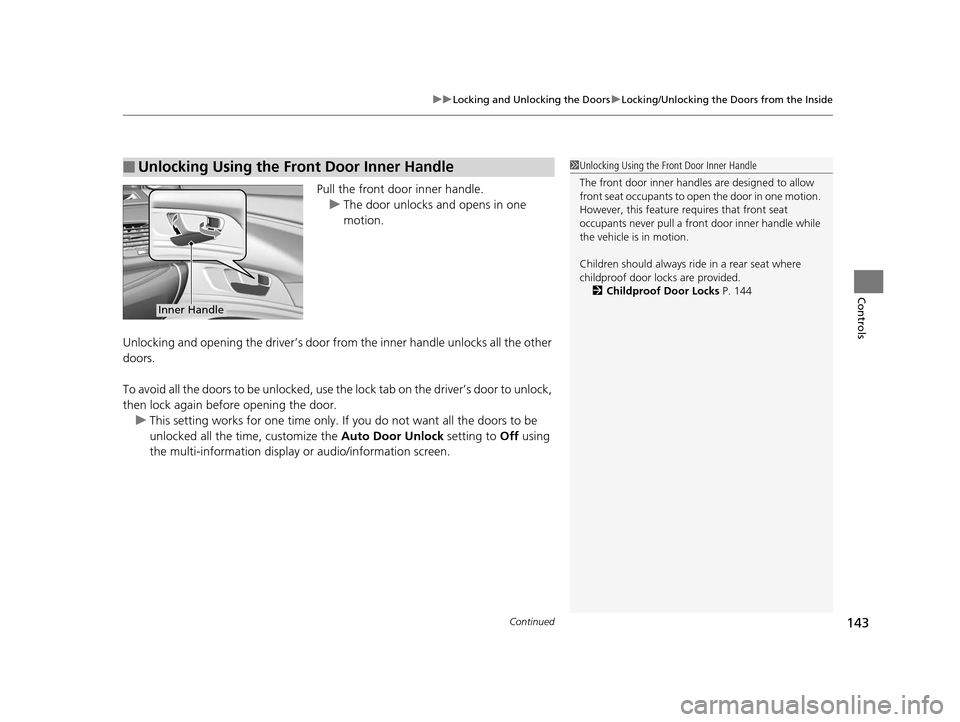

Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only. If you do not want all the doors to be
unlocked all the time, customize the Auto Door Unlock setting to Off using
the multi-information display or audio/information screen.
■Unlocking Using the Front Door Inner Handle1 Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided. 2 Childproof Door Locks P. 144
Inner Handle
16 ACURA RLX E-AWD-31TY36200.book 143 ページ 2015年5月22日 金曜日 午後3時 50分
Page 145 of 581

uuLocking and Unlocking the Doors uChildproof Door Locks
144
Controls
Press the master door lock switch in as shown
to lock or unlock all doors.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock eith er front door using the
master door lock switch, all the other doors lock/
unlock at the same time.
To Unlock
To Lock
Master Door Lock Switch
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Unlock
Lock
16 ACURA RLX E-AWD-31TY36200.book 144 ページ 2015年5月22日 金曜日 午後3時 50分
Page 146 of 581

145
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls

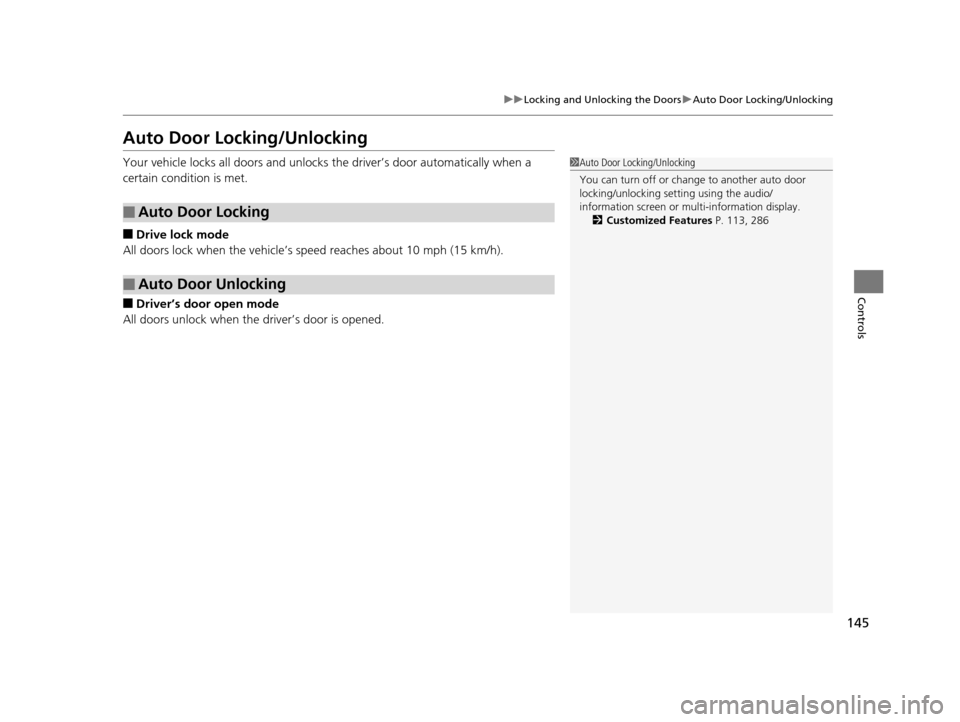

Auto Door Locking/Unlocking
Your vehicle locks all doors and unlocks the driver’s door automatically when a
certain condition is met.
■Drive lock mode
All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen or mu lti-information display.
2 Customized Features P. 113, 286
16 ACURA RLX E-AWD-31TY36200.book 145 ページ 2015年5月22日 金曜日 午後3時 50分
Page 147 of 581

146
Controls

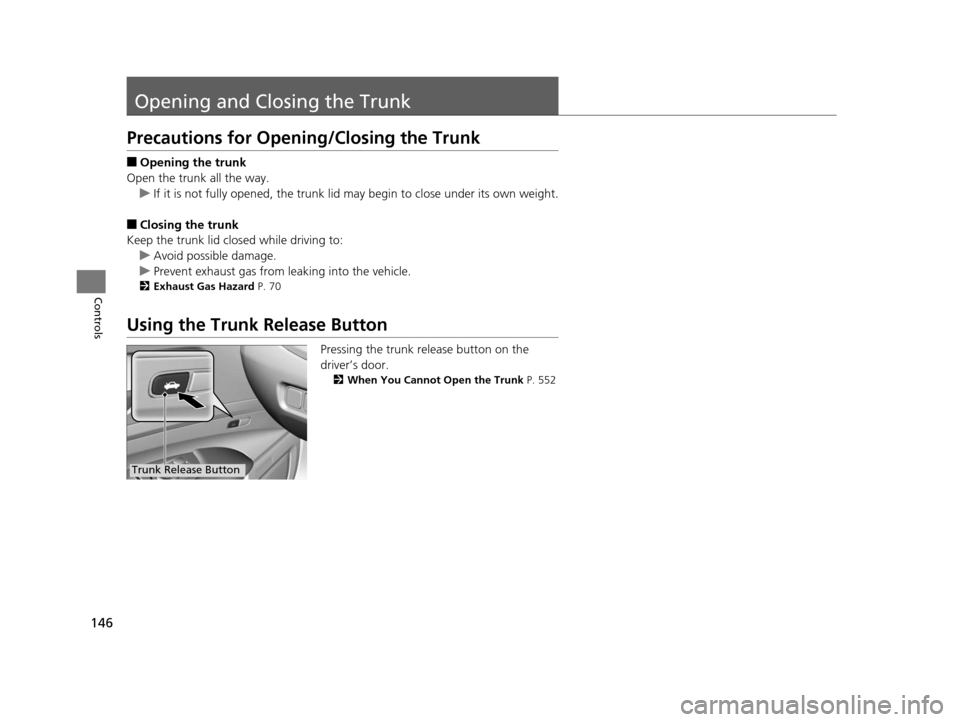

Opening and Closing the Trunk
Precautions for Opening/Closing the Trunk
■Opening the trunk
Open the trunk all the way. u If it is not fully opened, the trunk lid may begin to close under its own weight.
■Closing the trunk
Keep the trunk lid clos ed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 70
Using the Trunk Release Button
Pressing the trunk release button on the
driver’s door.
2When You Cannot Open the Trunk P. 552
Trunk Release Button
16 ACURA RLX E-AWD-31TY36200.book 146 ページ 2015年5月22日 金曜日 午後3時 50分
Page 148 of 581

147
uuOpening and Closing the Trunk uUsing the Remote Transmitter
Controls
Push up the release bu tton on the trunk lid
after the doors are unlocked.
2 When You Cannot Open the Trunk P. 552
Even if the trunk is locked, you can open the
trunk if you carry the keyless access remote.
u The beeper sounds.
Using the Remote Transmitter
Press the trunk release button for
approximately one second to unlock and open
the trunk.
1Using the Trunk Release Button
•Do not leave the keyless access remote in the
vehicle when you get out . Carry it with you.
•Even if you are not carrying the keyless access
remote, you can unlock the trunk while someone
else with the remote is within range.
•Do not leave the keyless access remote inside the
trunk and close the lid. The beeper sounds and the
trunk cannot be closed.
Trunk
Release
Button
Trunk
Release
Button
Trunk
Release
Button
16 ACURA RLX E-AWD-31TY36200.book 147 ページ 2015年5月22日 金曜日 午後3時 50分
Page 149 of 581

148
uuOpening and Closing the Trunk uEmergency Trunk Opener
Controls

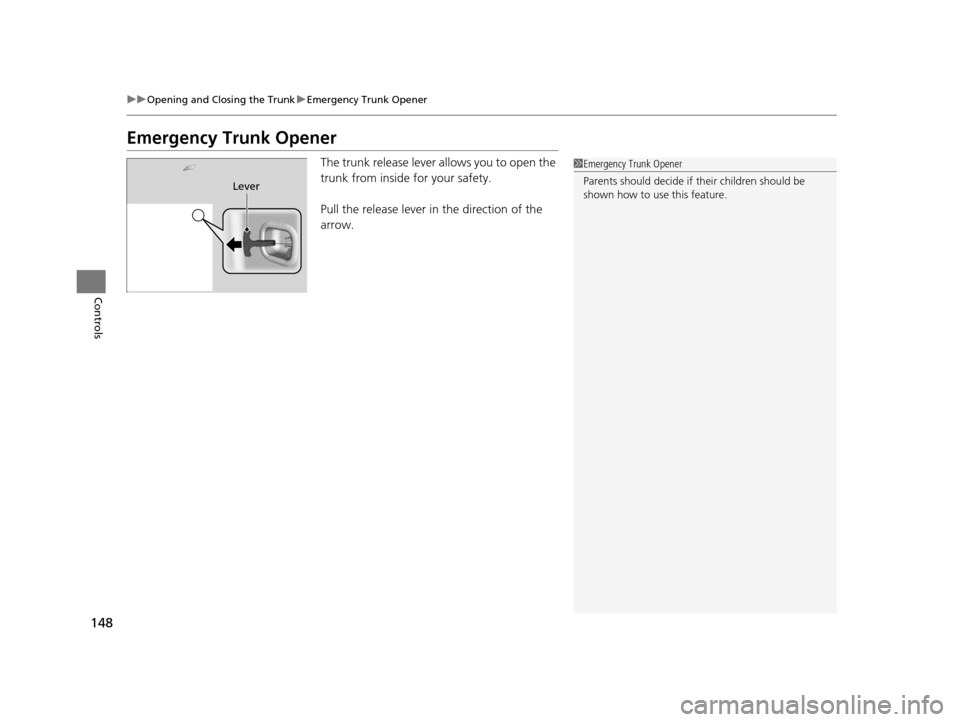

Emergency Trunk Opener
The trunk release lever allows you to open the
trunk from inside for your safety.
Pull the release lever in the direction of the
arrow.1Emergency Trunk Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
16 ACURA RLX E-AWD-31TY36200.book 148 ページ 2015年5月22日 金曜日 午後3時 50分
Page 150 of 581

149Continued
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the power system. Each key cont ains electronic transmitters that use
electronic signals to verify the key.
Pay attention to the follo wing when pressing the POWER button:
• Do not allow objects that emit strong radio waves near the POWER button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system with the keyless
access remote.
Security System Alarm
The security system alarm activates when the trunk, hood or doors are forcibly
opened. The alarm does not go off if the trunk or doors are opened with the key,
remote transmitter or keyless access system.
However, the alarm goes off when a door is opened with the key, then select other
than
(P or the hood is opened before the power mode is set to ON.
■When the security system alarm activates
The horn sounds intermittently and all of the exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the remote transmitter or keyless access system. The
system, along with the horn and flashing lights, is deactivated.
1 Immobilizer System
NOTICE
Leaving the keyless access re mote in the vehicle can
result in theft or accident al movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm
The security alarm conti nues for a maximum of two
minutes until the security system deactivates.
16 ACURA RLX E-AWD-31TY36200.book 149 ページ 2015年5月22日 金曜日 午後3時 50分
