505Continued
Maintenance

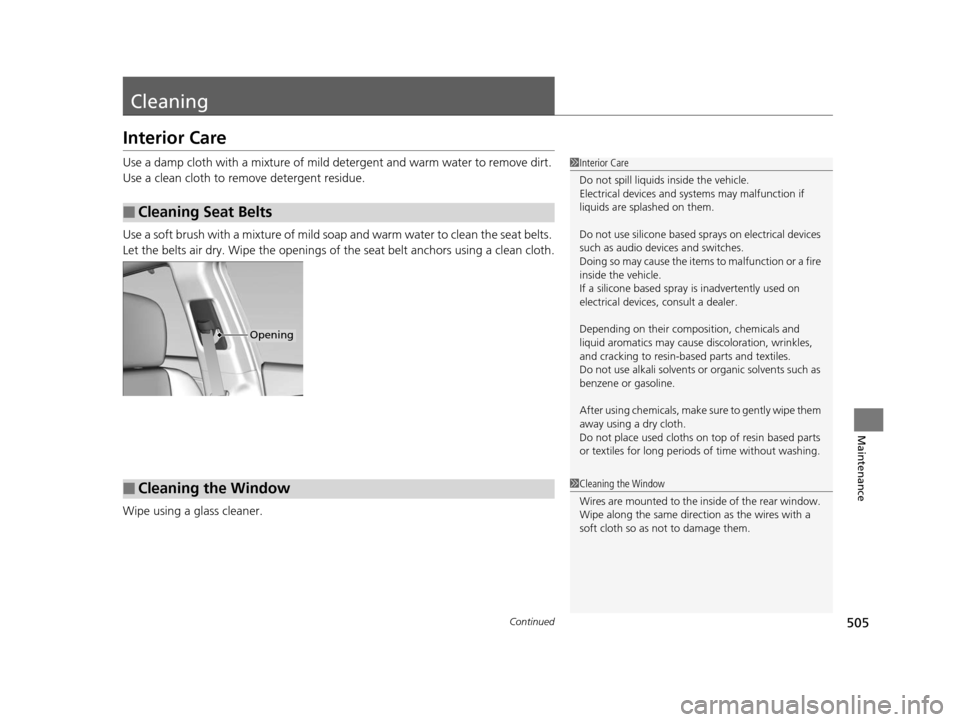

Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the openings of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle.
Electrical devices and sy stems may malfunction if
liquids are splashed on them.
Do not use silicone based sp rays on electrical devices
such as audio devices and switches.
Doing so may cause the items to malfunction or a fire
inside the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemical s, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Opening
■Cleaning the Window1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
16 ACURA RLX E-AWD-31TY36200.book 505 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

507
uuCleaning uExterior Care
Continued
Maintenance
Exterior Care
Dust off the vehicle body after you drive.
Regularly inspect your vehi cle for scratches on painted surfaces. A scratch on a
painted surface can result in body rust. If you find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
• Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.
• Turn off the automatic intermittent wipers.
• Keep sufficient distance between the cleaning nozzle and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
■Washing the Vehicle
■Using an Automated Car Wash
■Using High Pressure Cleaners
1 Washing the Vehicle
Do not spray water into the air intake vents. It can
cause a malfunction.
Air Intake Vents
1Using an Automated Car Wash
When using an automated car wash that pulls the
vehicle through with a convey or, make sure vehicle is
in car wash mode. 2 If you want to keep the transmission in
(N
position (car wash mode) P. 376
16 ACURA RLX E-AWD-31TY36200.book 507 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

uuCleaning uExterior Care
508
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. Use a sponge and mild detergent to wipe away promptly.
Be careful not to use harsh chemicals (inc luding some commercial wheel cleaners) or
a stiff brush. They can damage the clear coat of the aluminum alloy wheels that
helps keep the aluminum from corroding and tarnishing.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Applying Wax
NOTICE
Chemical solvents and strong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the pa inted surface of the parts
made of resin.
16 ACURA RLX E-AWD-31TY36200.book 508 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

509
uuCleaning uExterior Care
Maintenance

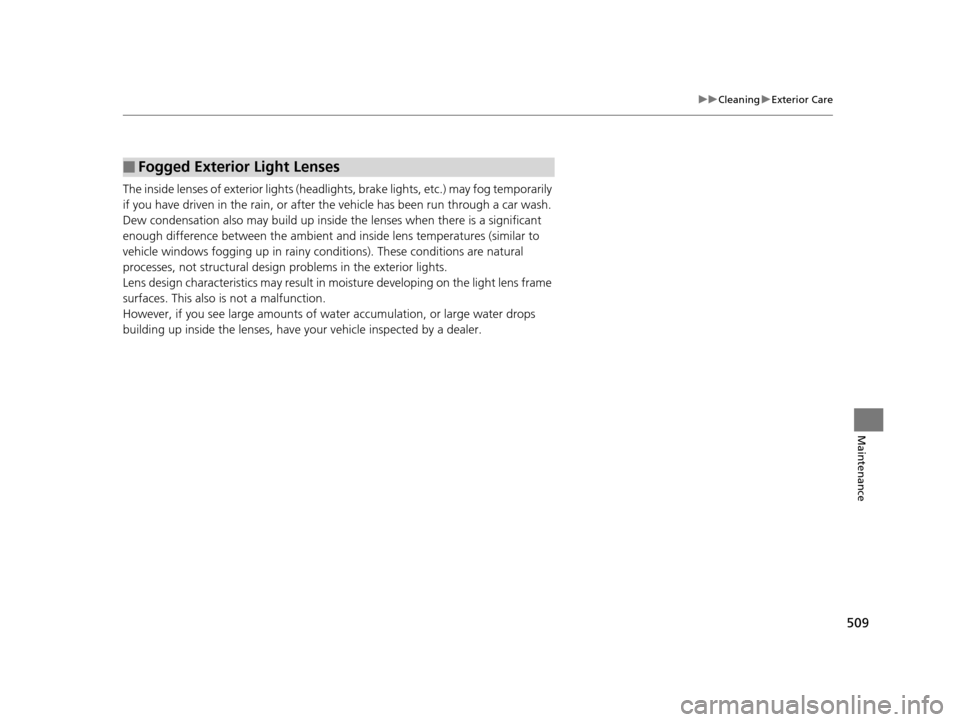

The inside lenses of exterior lights (headlights, brake light s, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Fogged Exterior Light Lenses
16 ACURA RLX E-AWD-31TY36200.book 509 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

Continued517
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electronic
devices into other accessory power
sockets.
2 Accessory Power Sockets P. 190
5.Turn the power system on.
u Keep the power system on while
injecting sealant and air.
2 Carbon Monoxide Gas P. 70
6.Turn the selector switch to SEALANT/
AIR .
1Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usi ng the gauge, turn the air
compressor off only after the sealant injection is
complete.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
SEALANT/AIR side
16 ACURA RLX E-AWD-31TY36200.book 517 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

Continued523
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
7. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electronic
devices into other accessory power
sockets.
2 Accessory Power Sockets P. 190
8.Turn the power system on.
u Keep the power system on while
injecting air.
2 Carbon Monoxide Gas P. 70
9.Turn the selector switch to AIR ONLY.
10. Press the inflator switch to turn on the kit.
u The compressor starts to inject air into
the tire.
11. Inflate the tire to the specified air pressure.
1Inflating an Under-inflated Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
AIR ONLY
side
ON
16 ACURA RLX E-AWD-31TY36200.book 523 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

546
uuFuses uFuse Locations
Handling the Unexpected
Located inside the left side of the front
bumper. Pull the inner fender back, then
push the tabs to open the box.
2 Front Side Marker Light Bulbs P. 485
■Circuit protected and fuse rating
Inner
Fender
Circuit ProtectedAmps
1HCA 120 A
2TCU30 A
3HCA 220 A
4STRG MOVE 120 A
5−−
6−−
There are two fuse boxes in the driver's side.
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Driver’s Side Door Lock10 A
2Passenger’s Side Door Lock10 A
3Driver’s Door Lock10 A
4Driver’s Side Door Unlock10 A
5Passenger’s Side Door
Unlock10 A
6Driver’s Door Unlock10 A
7Door Lock20 A
8−−
9Power System 110 A
10IG1 DR17.5 A
11Meter10 A
12Passenger’s Side Fuse Box20 A
13ACCESSORY7.5 A
14−−
15Driver’s Power Seat Sliding20 A
16Moonroof20 A
17Rear Driver’s Side Power Window20 A
18STRG MOVE 220 A
19Driver’s Power Window20 A
20Power System 215 A
21Fuel Pump20 A
22Power System 27.5 A
23Starter Cut7.5 A
24IG1 DR27.5 A
16 ACURA RLX E-AWD-31TY36200.book 546 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

548
uuFuses uFuse Locations
Handling the Unexpected
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■Passenger’s Side Interior Fuse
Box
Fuse Label
Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2Front Seat Heaters/AVS20 A
3Rear Passenger’s Side
Power Window20 A
4Front Passenger’s Lumbar Support7.5 A
5−−
6A/C Water Pump10 A
7Passenger’s Power Seat Sliding20 A
8Passenger’s Power Seat
Reclining20 A
9Rear Seat Heaters*(20 A)
10−−
11Fly Start15 A
12Accessory Power Socket
(Console Compartment)20 A
13Accessory Power Socket (Center Pocket)20 A
14AS ECU7.5 A
15Glove Box7.5 A
16−−
17−−
18Front Passenger’s Power
Window20 A
19SRS110 A
*1:Models without surround view camera system
*2:Models with surround view camera system
20ABS/VSA7.5 A
21−−
22e-pretensioner(7.5 A)
23−−
24SRS27.5 A
25Illumination7.5 A
26Right e-pretensioner(20 A)
27Heated Steering Wheel*(10 A)
28Audio AMP30 A*1
40 A*2
Circuit ProtectedAmps
* Not available on all models
16 ACURA RLX E-AWD-31TY36200.book 548 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

Index
570
Index
Index
Numbers
12-Volt Battery Charging System Indicator .................................................... 79
A
AAC.................................................... 248, 272
ABS (Anti-lock Brake System) ................... 428
Accessories and Modifications ................. 461
Accessory Power Sockets .......................... 190
Acoustic Vehicle Alerting System ............ 382
AcuraLink .................................................. 352
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) ............................ 88, 385
Additives Coolant ........................................... 480, 482
Engine Oil ................................................ 475
Washer .................................................... 483
Additives, Engine Oil ................................ 475
Adjusting Armrest ................................................... 181
Front Seats .............................................. 175
Head Restraints........................................ 178
Mirrors .................................................... 172
Steering Wheel ........................................ 171
Temperature ............................................ 110
Agile Handling Assist System ................... 414
Aha
TM Menu .............................................. 271
AhaTM Radio .............................................. 281 Air Conditioning System (Climate Control
System) .................................................... 200
Changing the Mode ................................ 203
Defrosting the Windshield and Windows ............................................... 207
Dust and Pollen Filter............................... 504
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Air Pressure ....................................... 493, 557
Airbags ........................................................ 43
Advanced Airbags ..................................... 49
Airbag Care............................................... 57
Driver’s Knee Airbag.................................. 50
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 46
Indicator.............................................. 55, 82
Passenger Airbag Off Indicator .................. 56
Sensors ..................................................... 43
Side Airbags .............................................. 52
Side Curtain Airbags.................................. 54
AM/FM Radio ............................................ 240
Anti-lock Brake System (ABS) .................. 428
Indicator.................................................... 82
Armrest ..................................................... 181
Audio Remote Controls ........................... 215
Audio System ............................................ 212
Adjusting the Sound................................ 230
Auxiliary Input Jack.................................. 213 Error Messages ....................................... 277
General Information................................ 282
HDD ....................................................... 251
Internet Radio ......................................... 269
iPod ........................................................ 261
MP3/WMA/AAC ............................. 248, 272
Reactivating ............................................ 214
Recommended CDs ................................ 283
Recommended Devices ........................... 285
Remote Controls ..................................... 215
Security Code ......................................... 214
Shortcuts ................................................ 218
Theft Protection ...................................... 214
USB Flash Drives...................................... 285
USB Port ................................................. 213
Audio/Information Screen ....................... 225
Authorized Manuals ................................ 565
Auto Door Locking/Unlocking ................ 145
Customize ...................................... 119, 301
Auto Engine Stop/Start .............................. 13
Automatic Brake Hold ............................. 426
Indicator ........................................... 76, 426
Automatic Brake Hold System Indicator ........................................... 76, 426
Automatic Lighting .................................. 160
Auxiliary Input Jack ................................. 213
Average Fuel Economy ............................ 110
Average Speed ......................................... 111
16 ACURA RLX E-AWD-31TY36200.book 570 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

571
Index
B
Battery12-Volt ................................................... 501
12-Volt Battery Charging System
Indicator ......................................... 79, 539
Charging (12-Volt Battery) ...................... 501
High Voltage........................................... 422
Jump Starting ......................................... 534
Maintenance (Checking the 12-Volt Battery) ................................................. 501
Maintenance (Replacing) ......................... 502
Battery Types .............................................. 12
Belts (Seat) .................................................. 36
Beverage Holders ..................................... 189
Blind Spot Information (BSI) System ....... 416
Bluetooth ® Audio ..................................... 275
Bluetooth ® HandsFreeLink ®.................... 313
Booster Seats (For Children) ...................... 69
Brake System ............................................ 423
Anti-lock Brake System (ABS) .................. 428
Automatic Brake Hold ............................. 426
Brake Assist System................................. 429
Fluid ....................................................... 483
Foot Brake .............................................. 425
Parking Brake.......................................... 423
Brake System (Amber) Indicator ................................................... 77
Brake System (Red)
Indicator ........................................... 74, 540
Brightness Control (Head-Up Display) .... 167Brightness Control (Instrument Panel)
.... 166
BSI (Blind Spot Information) System ....... 416
Bulb Replacement .................................... 484
Back-Up Lights ........................................ 487
Brake/Taillight s and Rear Side Marker
Lights .................................................... 487
Door Outer Handle Ambient Lights .......... 488
Fog Lights ................................................ 484
Front Side Marker Lights .......................... 485
Front Turn Signal/Parking Lights ............... 484
Headlights ............................................... 484
High-Mount Brake Light .......................... 488
Rear License Plate Lights .......................... 488
Rear Turn Signal Lights ............................ 486
Side Turn Signal/Em ergency Indicator
Lights .................................................... 485
Taillights .................................................. 487
Bulb Specifications ................................... 556
C
CAMERA Button....................................... 449
Carbon Monoxide Gas ................................ 70
Cargo Area ................................................ 193
Cargo Hooks ............................................. 192
Carrying Cargo .................................. 361, 363
CD Player ................................................... 248
Center Pocket ........................................... 188
Certification Label .................................... 558
Changing Bulbs ......................................... 484
Charging System Indicator ....................... 539Child Safety
................................................. 58
Childproof Door Locks............................. 144
Child Seat .................................................... 58
Booster Seats ............................................ 69
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 65
Larger Children ......................................... 68
Rear-facing Child Seat ............................... 60
Selecting a Child Seat ................................ 62
Using a Tether ........................................... 67
Childproof Door Locks ............................. 144
Cleaning the Exterior ............................... 507
Cleaning the Interior ................................ 505
Client Service Information ....................... 566
Climate Control System ............................ 200
Changing the Mode ................................ 203
Defrosting the Windshield and Windows ............................................... 207
Dust and Pollen Filter............................... 504
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Clock .......................................................... 132
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 430
Coat Hooks ............................................... 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 430
Compact Spare Tire (Optional) ........ 525, 557
16 ACURA RLX E-AWD-31TY36200.book 571 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分
