578
uuFuses uFuse Locations
Handling the Unexpected
Located inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.
1. Pry on the lower edge of the panel using
a flat-tip screwdriver.
25Start DIAG7.5 A
26Air Conditioning7.5 A
27Daytime Running Lights7.5 A
28ACC Key Lock7.5 A
29Driver’s Lumbar Support7.5 A
30SMART10 A
31−−
32Driver’s Power Seat
Reclining20 A
33Left e-pretensioner(20 A)
34IG1 Box30 A
Circuit ProtectedAmps
Outer Panel
uWrap the flat-tip screwdriver with a
cloth to prevent scratches.
2. Pull the outer panel towards you, then
remove it. Fuse locations are shown on the image
below.
Locate the fuse in question by the fuse
number in the image and chart.
■Circuit protected
and fuse rating
3
12
Fuse Box
Circuit ProtectedAmps
1IG Main 230 A
2ST MG30 A
3IG Main 130 A
18 ACURA RLX E-AWD-31TY36400.book 578 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

580
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

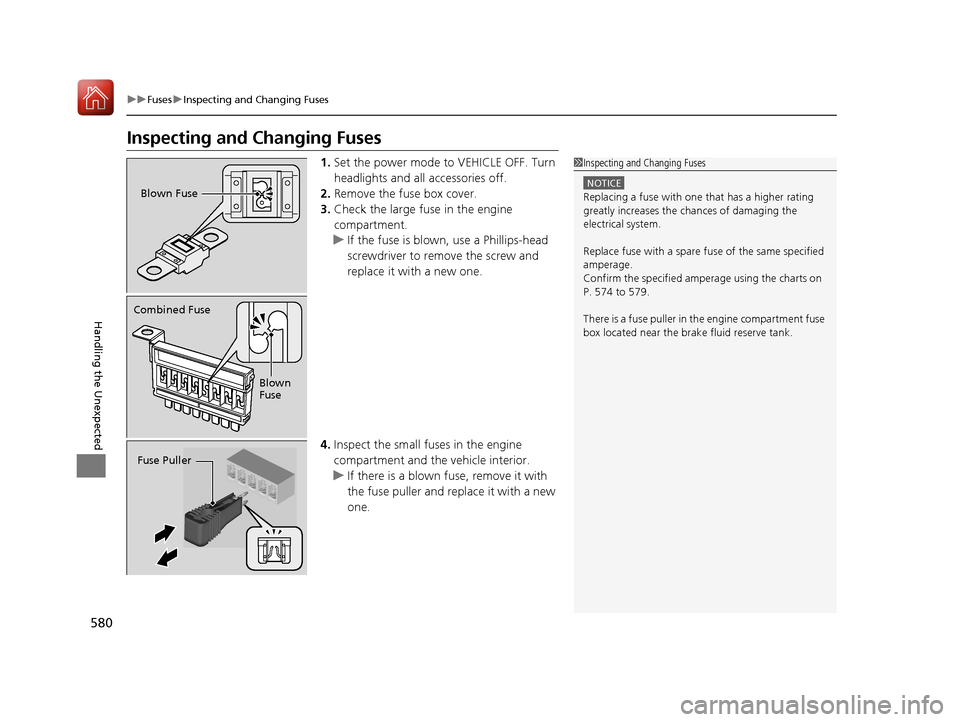

Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified ampera ge using the charts on
P. 574 to 579.
There is a fuse puller in the engine compartment fuse
box located near the br ake fluid reserve tank.Blown Fuse
Combined Fuse
Blown
Fuse
Fuse Puller
