engine coolant Acura RLX HYBRID 2018 User Guide

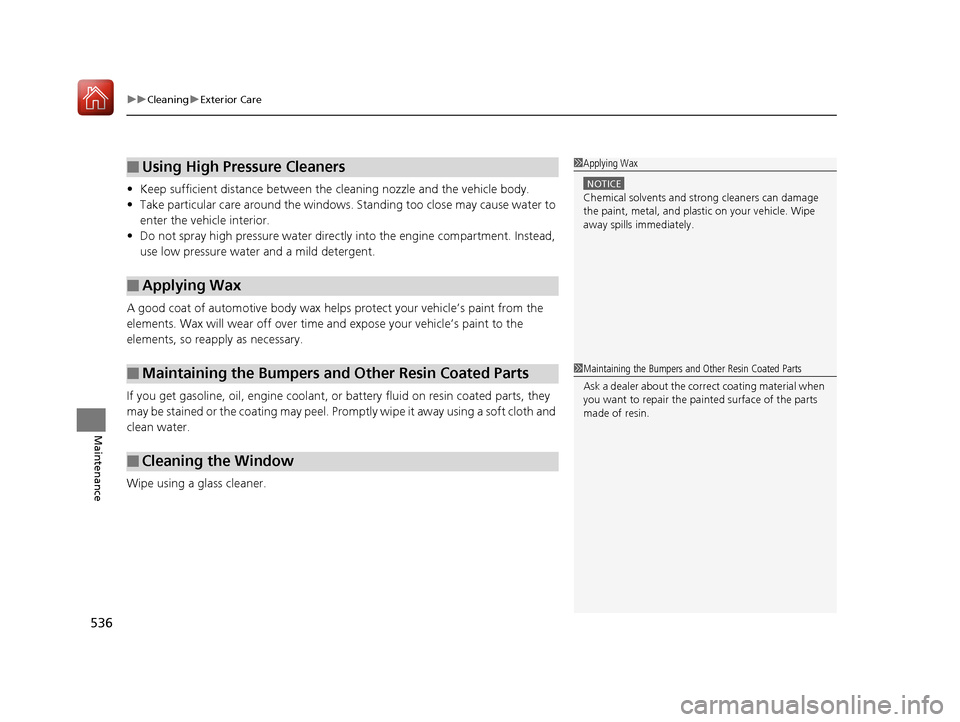

uuCleaning uExterior Care
536
Maintenance
• Keep sufficient distance between the cleaning nozzl e and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
■Using High Pressure Cleaners
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the pa inted surface of the parts
made of resin.
18 ACURA RLX E-AWD-31TY36400.book 536 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

uuOverheating uHow to Handle Overheating
568
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
turn the power system off once the high
temperature indicator goes off.
u If the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
2 Radiator P. 511
■Last thing to do
Once the engine has cooled sufficiently , turn the power system on and check the
high temperature indicator. If the high temp erature indicator is off, resume driving.
If it stays on, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve
Tank
MAX
MIN
18 ACURA RLX E-AWD-31TY36400.book 568 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

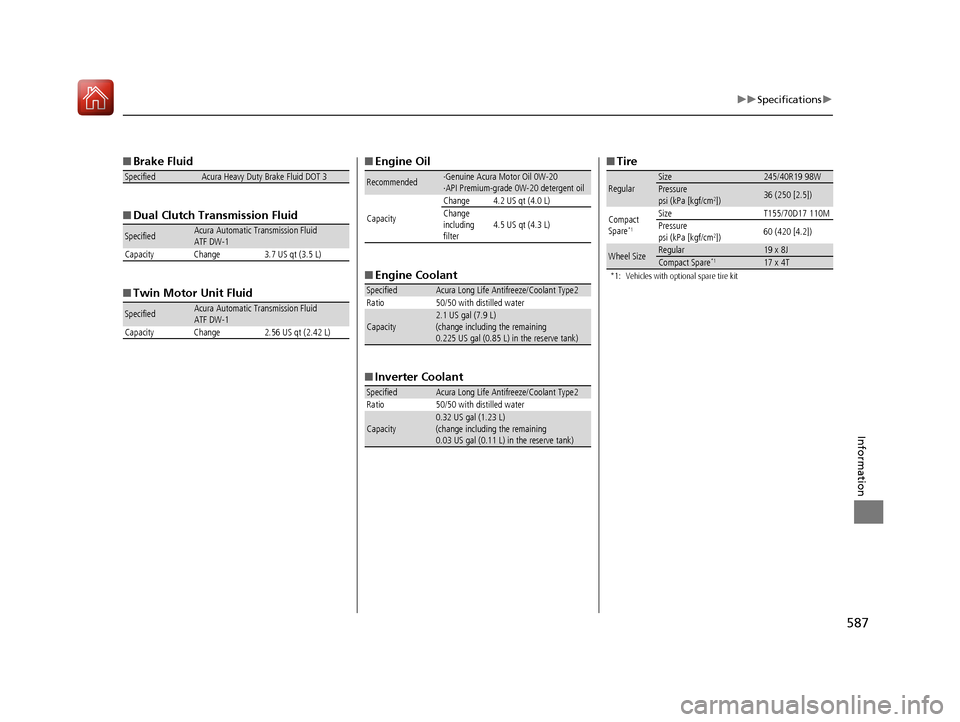

587
uuSpecifications u
Information
■Brake Fluid
■ Dual Clutch Transmission Fluid
■ Twin Motor Unit Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 3.7 US qt (3.5 L)
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.56 US qt (2.42 L)
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.5 US qt (4.3 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity2.1 US gal (7.9 L)
(change including the remaining
0.225 US gal (0.85 L) in the reserve tank)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.32 US gal (1.23 L)
(change including the remaining
0.03 US gal (0.11 L) in the reserve tank)
■ Tire
*1: Vehicles with optional spare tire kit
RegularSize245/40R19 98WPressure
psi (kPa [kgf/cm2])36 (250 [2.5])
Compact
Spare*1
SizeT155/70D17 110M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular19 x 8JCompact Spare*117 x 4T
18 ACURA RLX E-AWD-31TY36400.book 587 ページ ２０１７年７月２０日　木曜日　午後６時
８分

Index
600
Index
Index
Numbers
12-Volt Battery Charging System Indicator .................................................... 81
A
AAC.................................................... 245, 269
ABS (Anti-lock Brake System) ................... 458
Accessories and Modifications ................. 538
Accessory Power Sockets .......................... 190
Acoustic Vehicle Alerting System ............ 397
AcuraLink .................................................. 365
AcuraWatch
TM..................................... 26, 398
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ............................ 90, 404
Additives
Coolant ........................................... 510, 512
Engine Oil ................................................ 505
Washer .................................................... 514
Adjusting Armrest ................................................... 181
Front Seats .............................. 175, 178, 180
Head Restraints........................................ 178
Mirrors .................................................... 172
Steering Wheel ........................................ 171
Temperature ............................................ 116
Agile Handling Assist ................................ 443
Aha
TM Menu .............................................. 268
AhaTM Radio .............................................. 278 Air Conditioning System (Climate Control
System) .................................................... 200
Changing the Mode ................................ 203
Defrosting the Windshield and Windows ............................................... 207
Dust and Pollen Filter............................... 532
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Air Pressure ....................................... 522, 587
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
Airbag Care............................................... 59
Driver’s Knee Airbag.................................. 52
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator.............................................. 57, 84
Passenger Airbag Off Indicator .................. 58
Sensors ..................................................... 45
Side Airbags .............................................. 54
Side Curtain Airbags.................................. 56
AM/FM Radio ............................................ 237
Anti-lock Brake System (ABS) .................. 458
Indicator.................................................... 84
Armrest ..................................................... 181
Audio Remote Controls ........................... 215
Audio System ............................................ 212
Adjusting the Sound................................ 230
Auxiliary Input Jack.................................. 213 Error Messages ....................................... 274
General Information................................ 279
HDD ....................................................... 248
Internet Radio ......................................... 266
iPod ........................................................ 258
MP3/WMA/AAC ............................. 245, 269
Reactivating ............................................ 214
Recommended CDs ................................ 280
Recommended Devices ........................... 282
Remote Controls ..................................... 215
Security Code ......................................... 214
Shortcuts ................................................ 218
Theft Protection ...................................... 214
USB Flash Drives...................................... 282
USB Port ................................................. 213
Audio/Information Screen ....................... 225
Authorized Manuals ................................ 595
Auto Door Locking/Unlocking ................ 142
Customize .............................................. 312
Auto Engine Stop/Start .............................. 13
Auto High-Beam ...................................... 160
Automatic Brake Hold ............................. 456
Indicator ........................................... 78, 456
Automatic Brake Hold System Indicator ........................................... 78, 456
Automatic Lighting .................................. 157
Auxiliary Input Jack ................................. 213
Average Fuel Economy ............................ 116
Average Speed ......................................... 117
18 ACURA RLX E-AWD-31TY36400.book 600 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

602
Index
Coolant (Engine)....................................... 510
Adding to the Radiator ............................ 511
Adding to the Reserve Tank ..................... 510
High Temperature Indicator ....................... 85
Low Temperature Indicator ........................ 85
Overheating............................................. 567
Coolant (Inverter) ..................................... 512
Creeping (Dual Clutch Transmission) ....... 386
Cross Traffic Monitor ................................ 474
Cup Holders ............................................... 189
Customized Features ................................ 297
D
Daytime Running Lights ........................... 159
Dead Battery (12-Volt) ............................. 564
Defrosting the Windshield and Windows .................................................. 207
Devices that Emit Radio Waves ................ 589
Dimming Headlights ............................................... 156
Rearview Mirror ....................................... 172
Dipstick (Engine Oil) ................................. 506
Directional Signals (Turn Signal) .............. 155
Door Mirrors ............................................. 173
Doors ......................................................... 129
Auto Door Locking .................................. 142
Auto Door Unlocking ............................... 142
Door Open Message .................................. 37
Keys ........................................................ 129 Locking/Unlocking the Doors from
the Inside ........................................ 18, 139
Locking/Unlocking the Doors from the Outside ........................................... 131
Lockout Prevention System ...................... 137
DOT Tire Quality Grading ........................ 524
Driver’s Knee Airbag .................................. 52
Driving ...................................................... 373
Braking ................................................... 452
Dual Clutch Transmission ........................ 386
Shifting Gear ........................................... 387
Turning on the Power.............................. 380
Driving Position Memory System ............ 169
Dual Clutch Transmission
Creeping ................................................. 386
Fluid ........................................................ 513
Kickdown ................................................ 386
Operating the Shift Button ................ 23, 389
Shifting ................................................... 387
Dust and Pollen Filter ............................... 532
E
Elapsed Time............................................. 117
Electric Parking Brake Indicator.................................................... 77
Electric Parking Brake System
Indicator............................................ 77, 571
Electric Power Steering (EPS) System Indicator............................................ 84, 571 Electronic Stability Control (ESC)
............ 441
Emergency ................................................ 581
Emissions Testing (Readiness Codes) ...... 591
Energy Efficiency ........................................ 12
Engine ....................................................... 588
Coolant .................................................. 510
Jump Starting ......................................... 564
Oil .......................................................... 505
Remote Engine Start ............................... 382
Engine Compartment Cover .................... 504
Engine Coolant ........................................ 510
Adding to the Radiator ........................... 511
Adding to the Reserve Tank .................... 510
High Temperature Indicator ...................... 85
Low Temperature Indicator ....................... 85
Overheating ............................................ 567
Engine Oil ................................................. 505
Adding ................................................... 507
Checking ................................................ 506
Displaying Oil Life ................................... 498
Low Oil Pressure Indicator ................. 76, 569
Recommended Engine Oil ....................... 505
e-pretensioners .......................................... 40
EPS (Electric Power Steering) System ........ 84
Exhaust Gas Hazard (Carbon Monoxide) .. 72
Expanded Rear Door Sunshades ............. 199
Exterior Care (Cleaning) .......................... 535
Exterior Mirrors ........................................ 173
18 ACURA RLX E-AWD-31TY36400.book 602 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

603
Index
F
Features.................................................... 211
Filters Dust and Pollen....................................... 532
Oil .......................................................... 508
Flat Tire ............................................. 543, 555
Floor Mats ................................................ 534
Fluids
Brake ...................................................... 513
Dual Clutch Transmission ........................ 513
Engine Coolant ....................................... 510
Inverter Coolant ...................................... 512
Windshield Washer ................................. 514
Foot Brake ................................................ 455
Front Airbags (SRS) .................................... 48
Front Seat Heaters ................................... 195
Front Seat Heaters and Ventilation ........ 196
Front Seats ................................ 175, 178, 180
Adjusting ................................ 175, 178, 180
Front Sensor Camera ............................... 402
Fuel ..................................................... 25, 490
Economy................................................. 492
Gauge .................................................... 112
Instant Fuel Economy .............................. 117
Low Fuel Indicator..................................... 83
Range ..................................................... 117
Recommendation............................ 490, 586
Refueling ................................................ 490
Fuel Economy ........................................... 492
Fuel Fill Door ...................................... 25, 491 Fuses
.......................................................... 574
Inspecting and Changing ......................... 580
Locations ................................. 574, 577, 579
G
Gasoline (Fuel)
Economy ................................................. 492
Gauge ..................................................... 112
Information ............................................. 490
Instant Fuel Economy ............................... 117
Low Fuel Indicator ..................................... 83
Refueling ................................................. 490
Gauges ...................................................... 112
Gear Position Indicator ...................... 81, 389
Gear Shift Positions
Dual Clutch Transmission ......................... 387
Glass (care) ........................................ 533, 536
Glove Box .................................................. 184
H
Handling the Unexpected ........................ 541
HandsFreeLink ® (HFL) ............................... 326
Auto Answer ........................................... 340
Automatic Import of Cellular Phonebook and
Call History ............................................ 342
Automatic Transferring ............................ 340
Displaying Messages ................................ 360
Editing User Name ................................... 339
HFL Buttons ............................................. 326 HFL Menus .............................................. 328
HFL Status Display ................................... 327
Limitations for Manual Operation ............ 327
Making a Call .......................................... 351
Options During a Call .............................. 357
Phone Setup............................................ 332
Phonebook Phonetic Modification ........... 346
Receiving a Call ....................................... 356
Receiving a Text/E-m
ail Message.............. 358
Ring Tone................................................ 341
Roadside Assistance ................................ 364
Selecting a Mail Account ......................... 359
Speed Dial ............................................... 343
To Create a Security PIN .......................... 338
To Set Up a Text/E-mail Message Option................................................... 337
Use Contact Photo .................................. 341
Hard Disk Drive (HDD) Audio .................. 248
Hazard Warning Button .............................. 4
Head Restraints ........................................ 178
Headlight Washers ................................... 165
Headlights ................................................. 156
Aiming .................................................... 515
Auto High-Beam ..................................... 160
Automatic Operation............................... 157
Dimming ................................................. 156
Operating................................................ 156
Head-Up Display ....................................... 119
Brightness Control................................... 167
Heated Steering Wheel ............................ 194
Heaters (Seat) ........................... 195, 196, 197
18 ACURA RLX E-AWD-31TY36400.book 603 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

604
Index
HFL (HandsFreeLink®)............................... 326
High Beam Indicator ................................... 87
High Voltage Battery ................................ 451
Hill Start Assist System .............................. 384
HomeLink ® Universal Transceiver ............ 323
Honda App License Agreement ............... 283
Hybrid Vehicle SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®) ............ 9
I
Identification Numbers
Engine, Motor, and Transmission ............. 588
Vehicle Identification ............................... 588
Illumination Control
Buttons............................................ 166, 167
Immobilizer System .................................. 146
Indicator .................................................... 87
Indicators ..................................................... 76
12-Volt Battery Charging System ....... 81, 569
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)...................................... 90, 404
Anti-lock Brake System (ABS) ..................... 84
Automatic Brake Hold........................ 78, 456
Automatic Brake Hold System ............ 78, 456
Blind Spot Information (BSI) ............... 92, 446
Brake System (Amber)................................ 79
Brake System (Red) ............................ 76, 570
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 92, 93 Door and Trunk Open ............................... 37
Electric Parking Brake ................................ 77
Electric Parking Brake System ............ 77, 571
Electric Power Steering (EPS) System .. 84, 571
Fog Light ................................................... 87
Gear Position............................................. 81
High Beam ................................................ 87
High Temperature ..................................... 85
Immobilizer System ................................... 87
Keyless Access System ............................... 88
Lane Keeping Assist System (LKAS) .... 91, 425
Lights On .................................................. 87
Low Fuel ................................................... 83
Low Oil Pressure ................................ 76, 569
Low Temperature ...................................... 85
Low Tire Pressure/TPMS ............. 86, 447, 449
Malfunction Indicator Lamp............... 81, 570
POWER SYSTEM ........................................ 80
READY ...................................................... 80
Road Departure Mitigation (RDM) ............. 89
Seat Belt Reminder .............................. 39, 83
Security System Alarm ............................... 88
SPORT Mode ..................................... 88, 395
Supplemental Restraint System ............ 57, 84
System Message ........................................ 86
Transmission ............................................. 82
Turn Signal ................................................ 86
Vehicle Stability Assist (VSA
®)
System ............................................ 85, 441
VSA ® OFF .......................................... 85, 442 Information
.............................................. 585
Instant Fuel Economy .............................. 117
Instrument Panel ........................................ 75
Brightness Control .................................. 166
Interface Dial ............................................ 216
Interior Lights ........................................... 182
Interior Rearview Mirror ......................... 172
Inverter Coolant ....................................... 512
J
Jack (Wheel Nut Wrench) ........................ 558
Jump Starting ........................................... 564
K
Key Number Tag ...................................... 130
Keyless Access System .............................. 131
Keyless Lockout Prevention ..................... 137
Keys ........................................................... 129
Lockout Prevention ................................. 137
Number Tag............................................ 130
Rear Door Won’t Open ........................... 141
Remote Transmitter ................................ 136
Two-way Keyless Access Remote..... 138, 382
Types and Functions................................ 129
Kickdown (Dual Clutch Transmission) .... 386
18 ACURA RLX E-AWD-31TY36400.book 604 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

605
Index
L
Lane Keeping Assist System (LKAS)........ 423
Language (HFL) ........................................ 327
LATCH (Child Seats) ................................... 65
Lights ................................................ 156, 515
Automatic............................................... 157
Bulb Replacement ................................... 515
Daytime Running Lights .......................... 159
Fog Lights ............................................... 159
High Beam Indicator ................................. 87
Interior.................................................... 182
Light Switches......................................... 156
Lights On Indicator.................................... 87
Turn Signals ............................................ 155
Load Limits ............................................... 377
Locking/Unlocking ................................... 129
Auto Door Locking/Unlocking ................. 142
Childproof Door Locks ............................ 141
From Inside ............................................. 139
From Outside .......................................... 131
Keys........................................................ 129
Using a Key............................................. 137
Lockout Prevention System ..................... 137
Low Battery Charge (12-Volt) ................. 569
Low Fuel Indicator ..................................... 83
Low Keyless Access Remote Signal Strength .................................................. 130
Low Oil Pressure Indicator ................. 76, 569
Lower Anchors ........................................... 65
Luggage (Maximum Load Limit) ............. 377
Lumbar Support ....................................... 176
M
Maintenance............................................. 493
12-Volt Battery ........................................ 530
Brake Fluid .............................................. 513
Cleaning .................................................. 533
Climate Control System ........................... 532
Coolant ........................................... 510, 512
Maintenance Minder
TM............................ 497
Oil ........................................................... 506
Precautions .............................................. 494
Radiator .................................................. 511
Remote Transmitter ................................. 531
Replacing Light Bulbs ............................... 515
Safety ...................................................... 495
Service Items ........................................... 500
Tires ........................................................ 521
Transmission Fluid ................................... 513
Under the Hood ...................................... 502
Malfunction Indicator Lamp .............. 81, 570
Map Lights ................................................ 183
Maximum Load Limit ............................... 377
Meters, Gauges ......................................... 112
Mirrors ....................................................... 172
Adjusting ................................................. 172
Door........................................................ 173
Exterior .................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 538
Moonroof .................................................. 151
MP3 ................................................... 245, 269
Multi-Information Display ....................... 114Multi-View Rear Camera
.......................... 478
N
Numbers (Identification).......................... 588
O
Odometer................................................. 116
Oil (Engine) ....................................... 505, 587
Adding .................................................... 507
Checking................................................. 506
Displaying Oil Life .................................... 498
Low Oil Pressure Indicator ................. 76, 569
Recommended Engine Oil ............... 505, 587
Viscosity .......................................... 505, 587
On Demand Multi-Use Display
TM............. 217
Open Source Licenses ............................... 296
Opening Trunk ...................................................... 583
Opening/Closing Hood....................................................... 503
Moonroof ............................................... 151
Power Windows ...................................... 149
Trunk ...................................................... 143
Operating the Switches Around the Steering
Wheel ...................................................... 152
Outside Temperature Display .................. 116
Overheating .............................................. 567
18 ACURA RLX E-AWD-31TY36400.book 605 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
