Acura RLX HYBRID 2018 Owner's Manual

540
18 ACURA RLX E-AWD-31TY36400.book 540 ページ ２０１７年７月２０日　木曜日　午後６時８分

541
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 542
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 543
Changing a Flat Tire ......................... 555
Power System Won’t Start Checking the Procedure ................... 561
If the Keyless Access Remote Battery is Weak ............................................. 562
Emergency Power System Off........... 563
Jump Starting .................................... 564
Overheating How to Handle Overheating ............. 567 Indicator, Coming On/BlinkingIf the Low Oil Pressure Indicator Comes On .. 569
If the 12-Volt Battery Charging System
Indicator Comes On ....................... 569
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 570
If the Brake System Indicator (Red) Comes
On ................................................. 570
If the Electric Power Steering (EPS) System Indicator Comes On .............................. 571
If the Electric Parking Brake System Indicator Comes On............................................. 571
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks........................ 572 If the Transmission System Indicator Blinks
along with the Warning Message... 573
Fuses
Fuse Locations ................................. 574
Inspecting and Changing Fuses ........ 580
Emergency Towing ........................... 581
When You Cannot Unlock the Fuel Fill Door ................................................. 582
When You Cannot Open the Trunk .. 583
RefuelingRefueling From a Portable Fuel Container ... 584
18 ACURA RLX E-AWD-31TY36400.book 541 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

542
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the trunk.
Vehicles with optional spare tire kit
Jack
Jack Handle Bar Towing Hook
Wheel Nut Wrench/
Jack Handle Funnel
Flat-tip Screwdriver Grip Towing Hook Funnel
Flat-tip Screwdriver Grip
Tool Case
Vehicle without optional spare tire
kit is shown.
Vehicles without optional spare tire kit
18 ACURA RLX E-AWD-31TY36400.book 542 ページ ２０１７年７月２０日　木曜日　午後６時
８分

543Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Temporarily Repairing a Flat Tire
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
The kit should not be used in the following situations.
Instead, contact a dealer or a roadside assistant to
have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
When the puncture is:Kit Use
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
18 ACURA RLX E-AWD-31TY36400.book 543 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

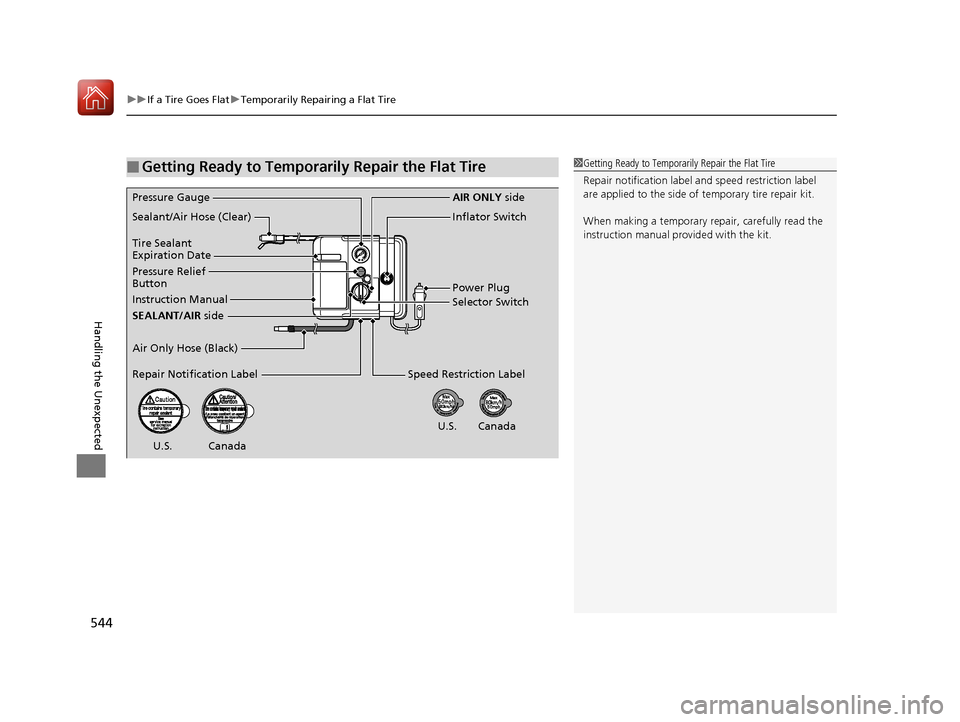

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
544
Handling the Unexpected
■Getting Ready to Temporarily Repair the Flat Tire1Getting Ready to Temporarily Repair the Flat Tire
Repair notificati on label and speed restriction label
are applied to the side of temporary tire repair kit.
When making a temporary repair, carefully read the
instruction manual provided with the kit.
Instruction Manual
Air Only Hose (Black)
Speed Restriction Label
Repair Notification Label Pressure Relief
Button Inflator Switch
Selector Switch
SEALANT/AIR side
Sealant/Air Hose (Clear)
AIR ONLY
side
Power Plug
Pressure Gauge
Tire Sealant
Expiration Date
U.S. Canada
U.S. Canada
18 ACURA RLX E-AWD-31TY36400.book 544 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

545

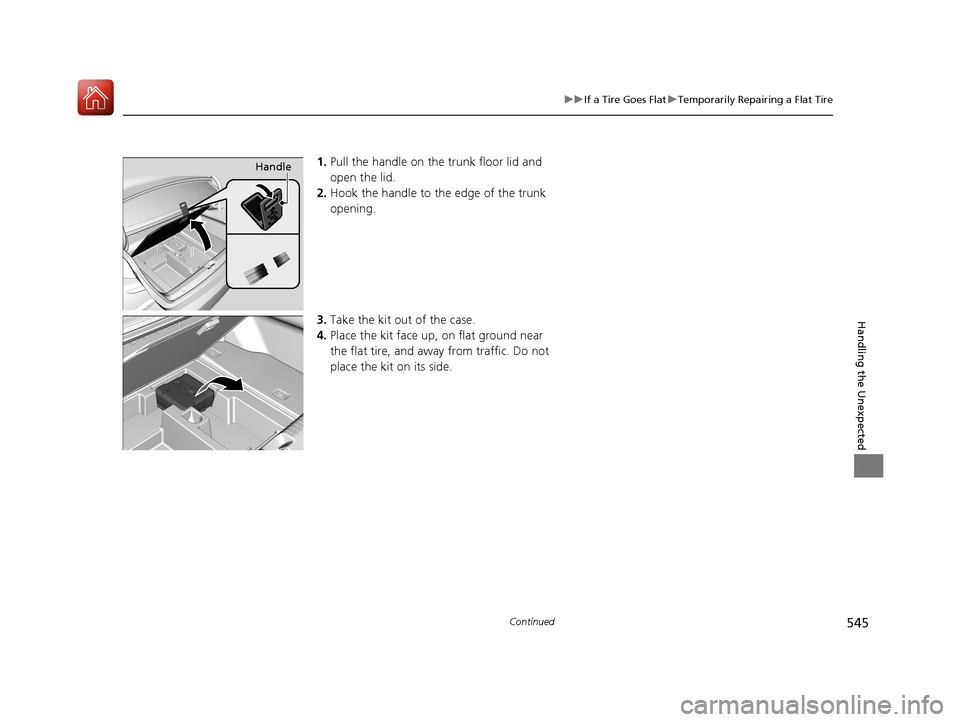

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
1. Pull the handle on the trunk floor lid and
open the lid.
2. Hook the handle to the edge of the trunk
opening.
3. Take the kit out of the case.
4. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.Handle
18 ACURA RLX E-AWD-31TY36400.book 545 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

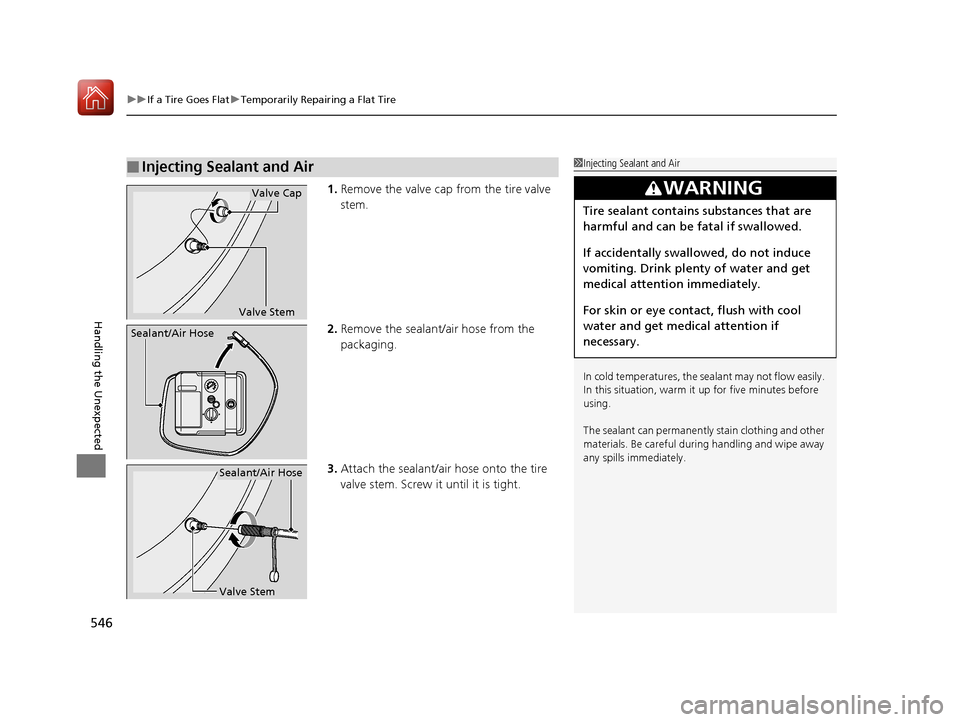

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
546
Handling the Unexpected
1. Remove the valve cap from the tire valve
stem.
2. Remove the sealant/air hose from the
packaging.
3. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Injecting Sealant and Air1Injecting Sealant and Air
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant can permanentl y stain clothing and other
materials. Be careful duri ng handling and wipe away
any spills immediately.
3WARNING
Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
Valve Stem
Valve Cap
Sealant/Air Hose
Valve Stem
Sealant/Air Hose
18 ACURA RLX E-AWD-31TY36400.book 546 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

Continued547
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electronic
devices into other accessory power
sockets.
5. Turn the power system on.
u Keep the power system on while
injecting sealant and air.
2 Carbon Monoxide Gas P. 72
6.Turn the selector switch to SEALANT/
AIR .
1Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
There are two accessory power sockets:
•In the center pocket
•In the console compartment 2 Accessory Power Sockets P. 190
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
SEALANT/AIR side
18 ACURA RLX E-AWD-31TY36400.book 547 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

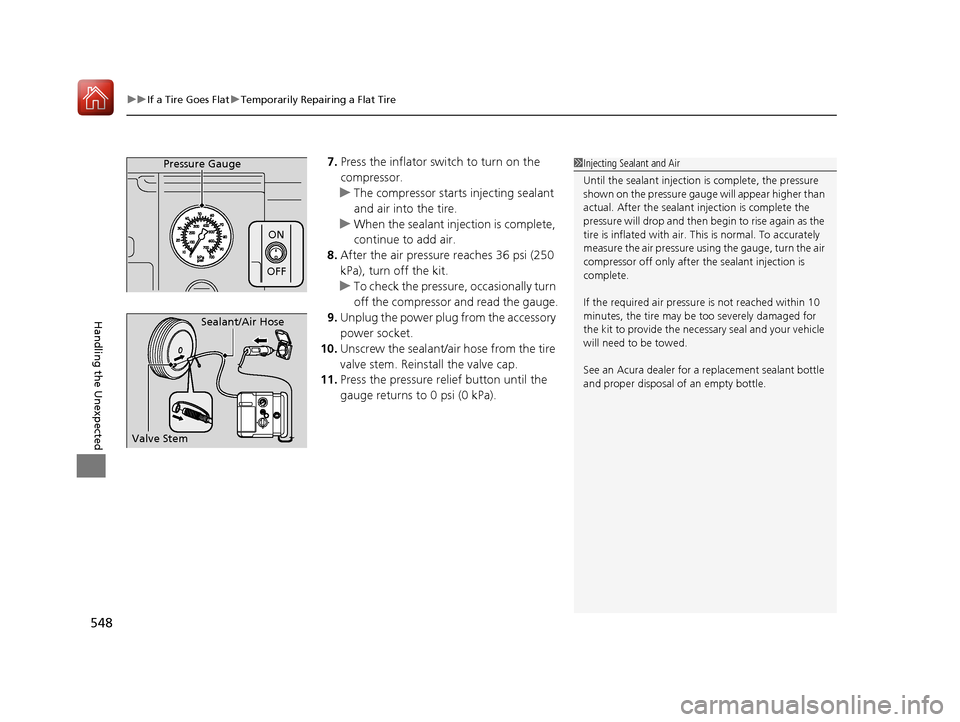

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
548
Handling the Unexpected
7. Press the inflator switch to turn on the
compressor.
u The compressor starts injecting sealant
and air into the tire.
u When the sealant injection is complete,
continue to add air.
8. After the air pressure reaches 36 psi (250
kPa), turn off the kit.
u To check the pressure , occasionally turn
off the compressor and read the gauge.
9. Unplug the power plug from the accessory
power socket.
10. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.
11. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).Pressure Gauge
ON
OFF
1Injecting Sealant and Air
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usi ng the gauge, turn the air
compressor off only after the sealant injection is
complete.
If the required air pressure is not reached within 10
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal and your vehicle
will need to be towed.
See an Acura dealer for a replacement sealant bottle
and proper disposal of an empty bottle.
Sealant/Air Hose
Valve Stem
18 ACURA RLX E-AWD-31TY36400.book 548 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

549

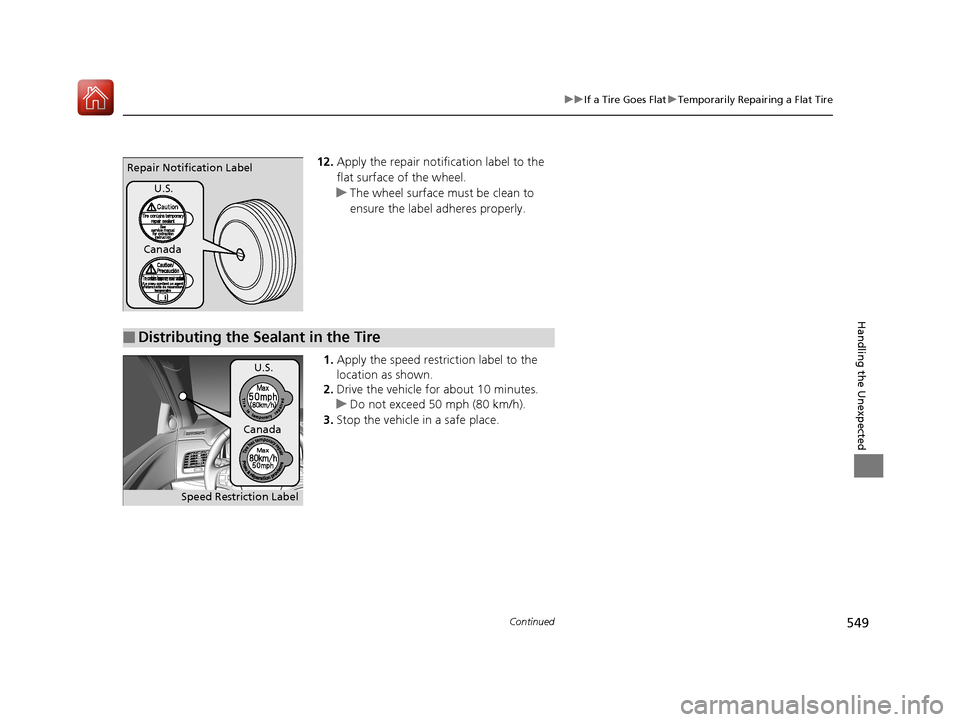

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
12. Apply the repair notification label to the
flat surface of the wheel.
u The wheel surface must be clean to
ensure the label adheres properly.
1. Apply the speed restriction label to the
location as shown.
2. Drive the vehicle for about 10 minutes.
u Do not exceed 50 mph (80 km/h).
3. Stop the vehicle in a safe place.Repair Notification Label
U.S.
Canada
■Distributing the Sealant in the Tire
Speed Restriction Label U.S.
Canada
