Acura RLX HYBRID 2018 Owner's Manual

570
uuIndicator, Coming On/Blinking uIf the Malfunction Indicato r Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action . If necessary, downshift the
transmission to slow the vehicle using regenerative braking.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If both red and amber brake system indicators come
on, stop the vehicle in a safe place and have it
inspected by a dealer immediately.U.S.
Canada
18 ACURA RLX E-AWD-31TY36400.book 570 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

571

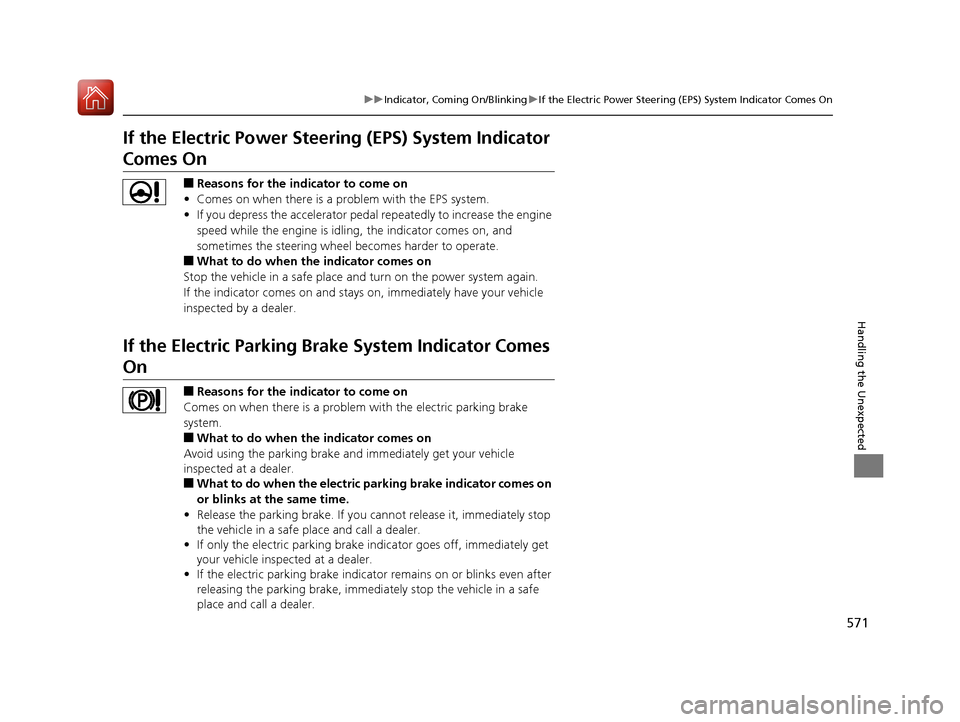

uuIndicator, Coming On/Blinking uIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place a nd turn on the power system again.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
If the Electric Parking Brake System Indicator Comes
On
■Reasons for the indicator to come on
Comes on when there is a proble m with the electric parking brake
system.
■What to do when th e indicator comes on
Avoid using the parking brake and immediately get your vehicle
inspected at a dealer.
■What to do when th e electric parking brake indicator comes on
or blinks at the same time.
• Release the parking brake. If you cannot release it, immediately stop
the vehicle in a safe place and call a dealer.
• If only the electric parking brake indicator goes off, immediately get
your vehicle inspected at a dealer.
• If the electric parking brake indicato r remains on or blinks even after
releasing the parking brake, immedi ately stop the vehicle in a safe
place and call a dealer.
18 ACURA RLX E-AWD-31TY36400.book 571 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

572
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire
* is installed, the indica tor blinks for about one
minute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver’s side doorjamb.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driv ing for a few miles (kilometers).
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 572 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

573
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by a dealer.
• Change the gear position to
(N after you turn the power system on.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The power system cannot be turned on unless the parking brake is
set.
2 Turning on the Power P. 380
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 581
18 ACURA RLX E-AWD-31TY36400.book 573 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

574
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
There are four fuse boxes in the engine
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reserve tank.
Push the tabs to open the box.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1IG1A ACG FR15 A
2IG1A MISS SOL110 A
3−−
4− −
5SMART7.5 A
6 IG1B ECU FR 7.5 A
7IG1B OP FR7.5 A
8 IGP2 15 A
9DBW15 A
10 IGP 15 A
11IG Coil15 A
12 ACM 20 A
13Headlight Washer*(30 A)
14 Interior Lights 10 A
15Back Up Radio10 A
16 Back Up 10 A
17AFP10 A
18 Front Washer 15 A
19Stop7.5 A
20 Right Headlight High Beam 10 A
21Trunk10 A
22 Small 15 A
23Front Fog Lights*(7.5 A)
24 Left Headlight High Beam 10 A
25IMA Motor15 A
26 Right Headlight Low Beam 15 A
27Left Headlight Low Beam15 A
28 IGP2 Sub 7.5 A
29Power Rear Sunshade*(20 A)
30 Heated Windshield 20 A
31Wiper30 A
Circuit ProtectedAmps
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 574 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

575
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located near the 12-volt battery. Push the
tabs to open the box.
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Main Fuse200 A
2
−(40 A)
Rear Defroster 40 A DR F/B Main 1 60 AAS F/B Main 1 60 A R/B Main 3 50 A
AS F/B Main 2 60 A ABS/VSA RLY 30 A
Heater Motor 40 A
3
R/B Main 160 A
ESB40 A
IG Main60 A
DR F/B Main 260 A
SBW60 A
R/B Main 260 A
Horn & Hazard20 A
ABS/VSA Motor40 A
4EOP 30A
5Left Electric Parking Brake30 A
6 Right Electric Parking Brake 30 A
7Injector20 A
8 Hazard 15 A
9IGA 27.5 A
10 − −
11Horn10 A
Located near the + terminal on the 12-volt
battery. Push the tabs to open the box.
■Circuit protected and fuse rating
1
2Tab
Circuit ProtectedAmps
1Radiator Fan50 A
2EPS80 A
18 ACURA RLX E-AWD-31TY36400.book 575 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

576
uuFuses uFuse Locations
Handling the Unexpected
Located inside the left side of the front
bumper. Use the following procedure to
reach the box.
1. Turn the steering wheel all the way to the
right.
2. Remove the holding clips (A) and (B) by
inserting a flat-tip sc rewdriver and lifting
the center pins up.
u Make sure to reinstall the clips after
inspecting the fuses.
u To reinstall the clips, insert them with
the center pins raised, and push until
they are flat.
Inner Fender
Clip (A)
Clips
(B)
Clip (A)
Clip (B)


3.Pull the inner fender back.
4. Pull the lock tab to the direction shown in
the image and pull out the fuse box.
Lock Tab
18 ACURA RLX E-AWD-31TY36400.book 576 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

577
uuFuses uFuse Locations
Continued
Handling the Unexpected
Push the tabs to remove the cover.
■Circuit protected and fuse rating
Tab
Circuit ProtectedAmps
1HCA 120 A
2TCU30 A
3HCA 220 A
4STRG MOVE 120 A
5−−
6−−
There are two fuse boxes in the driver's side.
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Driver’s Side Door Lock10 A
2Passenger’s Side Door Lock10 A
3Driver’s Door Lock10 A
4Driver’s Side Door Unlock10 A
5Passenger’s Side Door
Unlock10 A
6Driver’s Door Unlock10 A
7Door Lock20 A
8−−
9Power System 110 A
10IG1 DR17.5 A
11Meter10 A
12Passenger’s Side Fuse Box20 A
13ACCESSORY7.5 A
14−−
15Driver’s Power Seat Sliding20 A
16Moonroof20 A
17Rear Driver’s Side Power Window20 A
18STRG MOVE 220 A
19Driver’s Power Window20 A
20Power System 215 A
21Fuel Pump20 A
22Power System 27.5 A
23Starter Cut7.5 A
24IG1 DR27.5 A
18 ACURA RLX E-AWD-31TY36400.book 577 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

578
uuFuses uFuse Locations
Handling the Unexpected
Located inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.
1. Pry on the lower edge of the panel using
a flat-tip screwdriver.
25Start DIAG7.5 A
26Air Conditioning7.5 A
27Daytime Running Lights7.5 A
28ACC Key Lock7.5 A
29Driver’s Lumbar Support7.5 A
30SMART10 A
31−−
32Driver’s Power Seat
Reclining20 A
33Left e-pretensioner(20 A)
34IG1 Box30 A
Circuit ProtectedAmps
Outer Panel
uWrap the flat-tip screwdriver with a
cloth to prevent scratches.
2. Pull the outer panel towards you, then
remove it. Fuse locations are shown on the image
below.
Locate the fuse in question by the fuse
number in the image and chart.
■Circuit protected
and fuse rating
3
12
Fuse Box
Circuit ProtectedAmps
1IG Main 230 A
2ST MG30 A
3IG Main 130 A
18 ACURA RLX E-AWD-31TY36400.book 578 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

579
uuFuses uFuse Locations
Handling the Unexpected
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■Passenger’s Side Interior Fuse
Box
Fuse Label
Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2Front Seat Heaters/AVS*20 A
3Rear Passenger’s Side
Power Window20 A
4Front Passenger’s Lumbar Support7.5 A
5Daytime Running Lights7.5 A
6A/C Water Pump10 A
7Passenger’s Power Seat Sliding20 A
8Passenger’s Power Seat
Reclining20 A
9Rear Seat Heaters20 A
10−−
11Fly Start15 A
12Accessory Power Socket
(Console Compartment)20 A
13Accessory Power Socket (Center Pocket)20 A
14AS ECU7.5 A
15Glove Box7.5 A
16−−
17−−
18Front Passenger’s Power
Window20 A
19SRS110 A
*1:Models without surround view camera system
*2:Models with surround view camera system
20ABS/VSA7.5 A
21BATT ECU7.5 A
22e-pretensioner7.5 A
23−−
24SRS27.5 A
25Illumination7.5 A
26Right e-pretensioner20 A
27Heated Steering Wheel10 A
28Audio AMP30 A*1
40 A*2
Circuit ProtectedAmps
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 579 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
