display Acura RLX HYBRID 2020 Owner's Guide

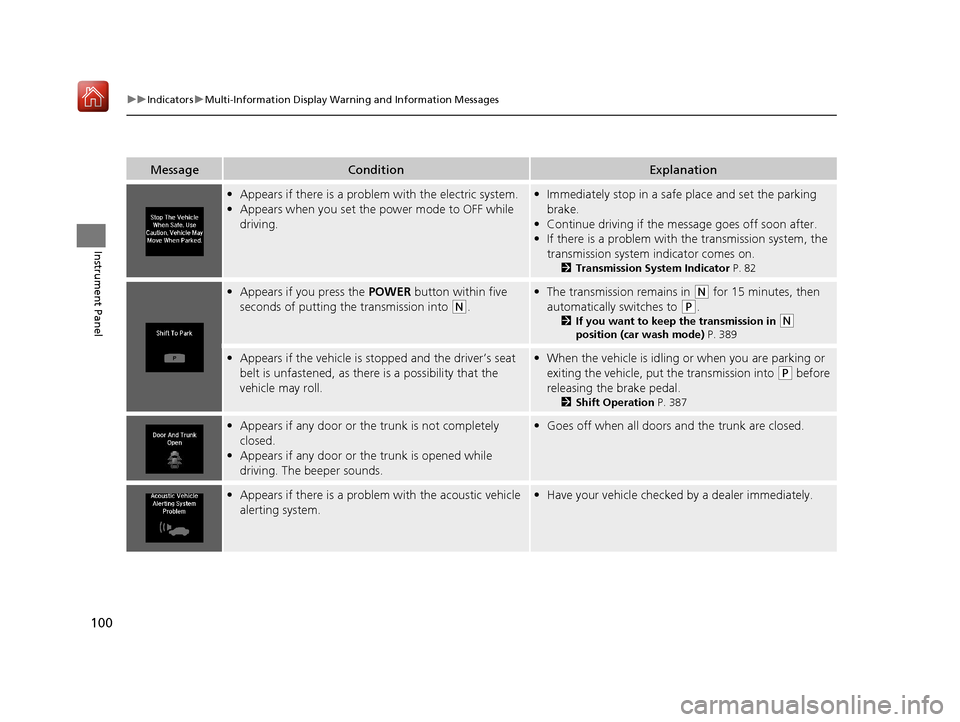

100
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the electric system.
• Appears when you set the power mode to OFF while
driving.•Immediately stop in a safe place and set the parking
brake.
• Continue driving if the message goes off soon after.
• If there is a problem with the transmission system, the
transmission system indicator comes on.
2 Transmission System Indicator P. 82
•Appears if you press the POWER button within five
seconds of putting the transmission into
(N.
• The transmission remains in (N for 15 minutes, then
automatically switches to
(P.
2 If you want to keep the transmission in (N
position (car wash mode) P. 389
• Appears if the vehicle is stopped and the driver’s seat
belt is unfastened, as there is a possibility that the
vehicle may roll.•When the vehicle is idling or when you are parking or
exiting the vehicle, put the transmission into
(P before
releasing the brake pedal.
2 Shift Operation P. 387
•Appears if any door or the trunk is not completely
closed.
• Appears if any door or the trunk is opened while
driving. The beeper sounds.•Goes off when all doors and the trunk are closed.
•Appears if there is a problem with the acoustic vehicle
alerting system.• Have your vehicle checked by a dealer immediately.
20 ACURA RLX HYBRID-31TY36601.book 100 ページ ２０１９年７月２３日　火曜日　午後６時２５分

101
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears if there is a problem with the radiator system.•Drive slowly to prevent ov erheating and have your
vehicle checked by a dealer as soon as possible.
• Appears when there is a pr oblem with the headlights.•Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle chec ked by a dealer as soon as
possible.
• Appears if there is a problem with the parking sensor
system.•Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If th e indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
• Appears if the automatic brake hold is automatically
canceled while it is in operation.•Immediately depress the brake pedal.
•Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 454
Models with
parking sensor
system
20 ACURA RLX HYBRID-31TY36601.book 101 ページ ２０１９年７月２３日　火曜日　午後６時２５分

102
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the automatic brake hold button is
pressed without wearing the driver’s seat belt.•Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 454
•Appears when the automatic brake hold button is
pressed without depressing the brake pedal while the
automatic brake hold is in operation.•Press the automatic brake ho ld button with the brake
pedal depressed.
2 Automatic Brake Hold P. 454
•Appears when the parking brake is applied
automatically while it is in operation.
2 Automatic Brake Hold P. 454
2 Parking Brake P. 450
•Appears if there is a problem with the auto high-beam.•Manually operate the headlight switch.
• If you are driving with the high-beam headlights when
this happens, the headlights are changed to low beams.
• Appears when the area around the camera on the
windshield is blocked by dirt, mud, etc.•Stop your vehicle in a safe pl ace, and wipe it off with a
soft cloth.
• If the message does not disappear after cleaning the
lens, have your vehicle checked by a dealer.
20 ACURA RLX HYBRID-31TY36601.book 102 ページ ２０１９年７月２３日　火曜日　午後６時２５分

103
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears after the 12-volt battery charging system
indicator comes on.•Your vehicle has less ability to accelerate and may be
harder to start on an incline.
• Contact a dealer immediately.
•Appears when the High Volt age battery temperature is
too low to operate (approx. -22°F [-30°C] or below).•You can start the engine an d use the climate control
system to warm up the interior, which will also warm
the High Voltage battery e nough for you to drive the
vehicle.
• The engine speed does not in crease even if you fully
depress the accelerator pedal.
• Appears when the High Voltage battery and other
system control temperatures are too low to operate
(approx. -40°F [-40°C] or below).•You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.
• Contact a dealer if necessary.
•Appears when the rear mo tor fluid temperature is
extremely low.• The vehicle speed is temporarily limited up to 74 mph
(120 km/h). This is canceled after the fluid temperature
rises.
20 ACURA RLX HYBRID-31TY36601.book 103 ページ ２０１９年７月２３日　火曜日　午後６時２５分

104
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if the AWD system has a problem due to a
hybrid system or power distribution control failure.•Set the power mode to OFF, then set it back to ON.
Have your vehicle checked by a dealer if the message
appears again.
• Appears when the High Voltage battery is running
extremely low due to continuous slow driving.•Driving at low speed for a long time decreases the
amount of electricity generated, leading to High
Voltage battery drain.
•Appears when the High Voltage battery is drained even
further and a stop is needed to charge the battery.•Stop in a safe place in (P, then charge the High Voltage
battery by letting the engine idle.
2 If the 12-Volt Battery Charging System Indicator
Comes On P. 567
•Appears when the High Voltage battery is being
charged, after it has lost most of its charge. In this case,
the vehicle is parked and the engine is running to
supply power to the charging system.•Do not drive the vehicle until READY indicator comes
on.
• Apply the parking brake.
2 READY Indicator P. 80
20 ACURA RLX HYBRID-31TY36601.book 104 ページ ２０１９年７月２３日　火曜日　午後６時２５分

105
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Flashes when the system senses a likely collision with a
vehicle in front of you.•Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 458
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
•Appears when ACC with Lo w Speed Follow has been
automatically canceled.• You can resume the set speed after the condition that
caused ACC with Low Speed Fo llow to cancel improves.
Press the RES/+/SET/– switch up.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
•Appears when the vehicle in front of you starts moving
while your vehicle is stopped automatically by ACC with
Low Speed Follow.•Either press the RES/+/SET/– switch, or depress the
accelerator pedal.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
•Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with
Low Speed Follow is in operation.• ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
•Appears when pressing the RES/+/SET/– switch down
while the distance between yo ur vehicle and the vehicle
ahead of you is too close.• ACC with Low Speed Fo llow cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
20 ACURA RLX HYBRID-31TY36601.book 105 ページ ２０１９年７月２３日　火曜日　午後６時２５分

106
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the driver’s s eat belt is unfastened while
your vehicle is automatically stopped by ACC with Low
Speed Follow.• ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
•Appears when pressing the RES/+/SET/– switch down
while the driver’s seat belt is unfastened.• ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
•Appears when the transmission is put into any position
other than
(D while ACC with Low Speed Follow is in
operation.
• ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
•Appears when pressing the RES/+/SET/– switch down
while the transmiss ion is not in
(D.
•ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
20 ACURA RLX HYBRID-31TY36601.book 106 ページ ２０１９年７月２３日　火曜日　午後６時２５分

107
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when the vehicle is stopped on a very steep
slope while ACC with Low Speed Follow is in operation.•ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
•Appears when pressing the RES/+/SET/– switch down
while the vehicle is stopped on a very steep slope.• ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
•Appears when the vehicle sp eed slows down to 25 mph
(40 km/h) and the vehicle ahead of you goes out of the
ACC with Low Speed Follow range while ACC with Low
Speed Follow is in operation.• ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
20 ACURA RLX HYBRID-31TY36601.book 107 ページ ２０１９年７月２３日　火曜日　午後６時２５分

108
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when pressing the RES/+/SET/– switch down
while the parking brake is applied.• ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
2 Parking Brake P. 450
•Appears when the parking brake is applied
automatically while ACC with Low Speed Follow is in
operation.• ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
2 Parking Brake P. 450
•Appears when pressing the RES/+/SET/– switch down
while the vehicle is movi ng and the brake pedal is
depressed.• ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 402
•Appears if ACC with Low Sp eed Follow is canceled
while your vehicle is automatically stopped by ACC with
Low Speed Follow.• Immediately depress the brake pedal.
20 ACURA RLX HYBRID-31TY36601.book 108 ページ ２０１９年７月２３日　火曜日　午後６時２５分

109
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.
• Keep the vehicle within the lane you are driving.
2 Lane Keeping Assist System (LKAS) P. 421
•Appears when the vehicle is driving out of a detected
line.
- The steering wheel vibrates ra pidly when the vehicle is
drifting out of a detected line.
- The steering wheel vibrates ra pidly when the vehicle is
drifting out of a detected line. The system also steers
the vehicle to help you remain within your driving lane.
•Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System P. 416
•You can change the setting for the road departure
mitigation system. Narrow, Normal , Wide , and
Warning Only can be selected.
2Customized Features P. 295
•Appears when the vehicle is likely to drive out of a
detected line.
- The system steers the vehicle to help you remain
within your driving lane.
—
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Narrow, Normal, or Wide
Road Departure Mitigation (RDM) System
When you selected Narrow
20 ACURA RLX HYBRID-31TY36601.book 109 ページ ２０１９年７月２３日　火曜日　午後６時２５分
