uuGauges and Displays uHead-Up Display
Instrument Panel
The display also s hows the following
warnings.
• System Message Indicator: Appears
when a problem is detected. A system
message on the multi-information display
appears at the same time.
2 Multi-Information Display Warning
and Information Messages P. 94
•Lane Departure Warning: When your
vehicle is too close to the traffic lane lines,
the lane departure warning appears.
2 Lane Keeping Assist System (LKAS)
P. 421
• Head-up Warning Lights:
Flash when the BRAKE message appears
on the multi-information display.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 458
Come on when the BRAKE message
appears on the multi- information display.
2Adaptive Cruise Control (ACC) with
Low Speed Follow P. 402
Lane Departure Warning
System Message Indicator
20 ACURA RLX HYBRID-31TY36601.book 120 ページ ２０１９年７月２３日　火曜日　午後６時２５分

Continued121
uuGauges and Displays uHead-Up Display
Instrument Panel

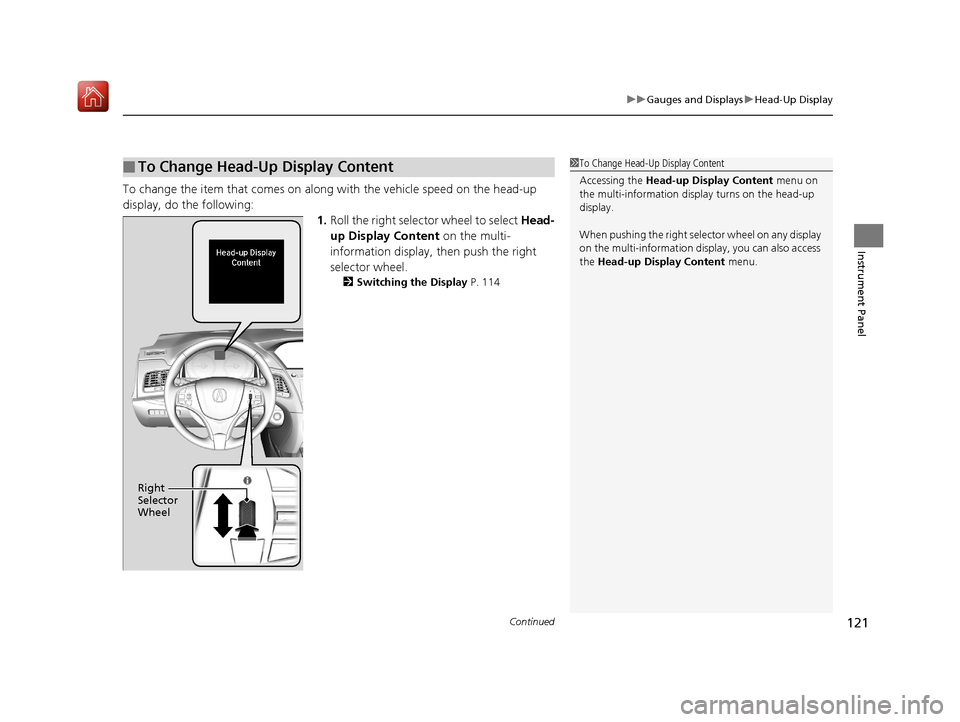

To change the item that comes on along with the vehicle speed on the head-up
display, do the following: 1.Roll the right selector wheel to select Head-
up Display Content on the multi-
information display, then push the right
selector wheel.
2 Switching the Display P. 114
■To Change Head-Up Display Content1To Change Head-Up Display Content
Accessing the Head-up Display Content menu on
the multi-information disp lay turns on the head-up
display.
When pushing the right sele ctor wheel on any display
on the multi-information disp lay, you can also access
the Head-up Display Content menu.
Right
Selector
Wheel
20 ACURA RLX HYBRID-31TY36601.book 121 ページ ２０１９年７月２３日　火曜日　午後６時２５分

122
uuGauges and Displays uHead-Up Display
Instrument Panel

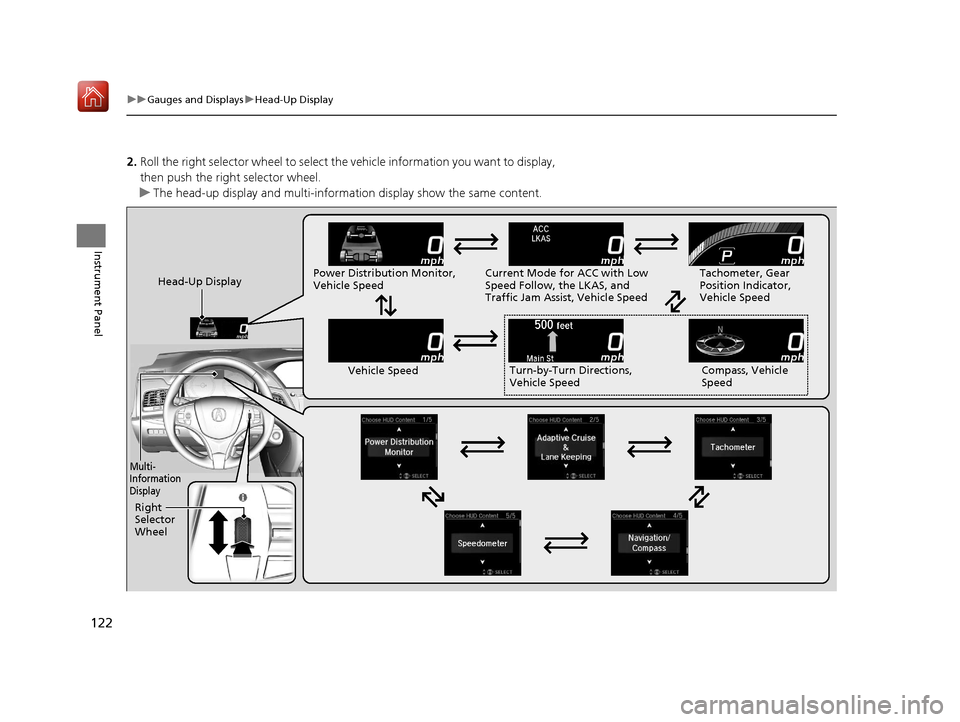

2. Roll the right selector wheel to select the vehicle information you want to display,
then push the right selector wheel.
u The head-up display and multi-informati on display show the same content.
Head-Up Display
Multi-
Information
Display
Right
Selector
Wheel
Power Distribution Monitor,
Vehicle SpeedCurrent Mode for ACC with Low
Speed Follow, the LKAS, and
Traffic Jam Assist, Vehicle Speed Tachometer, Gear
Position Indicator,
Vehicle Speed
Vehicle Speed Turn-by-Turn Directions,
Vehicle Speed Compass, Vehicle
Speed
20 ACURA RLX HYBRID-31TY36601.book 122 ページ ２０１９年７月２３日　火曜日　午後６時２５分

Continued123
uuGauges and Displays uHead-Up Display
Instrument Panel
Shows your driving speed in mph or km/h.
Shows the number of engine revolutions as a bar graph.
Shows the current gear selection.
2 Gear Position Indicator P. 81
Shows the current mode for ACC with Low Speed Follow, LKAS, and traffic jam
assist.
2To Switch ACC with Low Speed Follow to Cruise Control P. 414
2 Lane Keeping Assist System (LKAS) P. 421
2 Traffic Jam Assist P. 428
The navigation system shows you turn-by-turn directions to your destination.
When the navigation system is not providing driving guidance, an image of a
compass appears in the head-up display.
2Refer to the Navigation System Manual
■Vehicle Speed
■Tachometer
■Gear Position Indicator
■Current Mode for ACC with Low Speed Follow, the LKAS,
and Traffic Jam Assist
■Turn-by-Turn Directions
1Vehicle Speed
Switch between mph and km/h by using the
customized features on the audio/information
screen.
2 Customized Features P. 295
1Turn-by-Turn Directions
You can select whether to have the turn-by-turn
display come on duri ng the route guidance.
2 Customized Features P. 295
20 ACURA RLX HYBRID-31TY36601.book 123 ページ ２０１９年７月２３日　火曜日　午後６時２５分

uuGauges and Displays uHead-Up Display
124
Instrument Panel
Consists of two monitoring displays, one that indicates the vehicle’s power flow,
and the other, the torque distribution.
■Power flow monitor
Shows motor and engine power flow, indicating what supplies power to the vehicle,
or if the battery is being charged.
■Power Distribution Monitor
Head-up displayColor of
indicators
Power is
supplied by the
motors and the
engine.Blue
Power is only
supplied by the
motors.Blue
Power is only
supplied by the
engine.Blue
The motors
charge the High
Voltage battery.Green
1 Power Distribution Monitor
The power distribution monito r can be also displayed
on the audio/information display.
2 Audio/Information Screen P. 225
While the vehicle is stat ionary with the engine
running, the following may appear on the display.
Engine Icon
(Engine on)
Power Flow
Indicator
Engine Icon
(Engine off)
Power Flow
Indicator
Engine Icon
(Engine on)
Power Flow
Indicator
Engine Icon
(Engine on)
Power Flow
Indicator
20 ACURA RLX HYBRID-31TY36601.book 124 ページ ２０１９年７月２３日　火曜日　午後６時２５分

125
uuGauges and Displays uHead-Up Display
Instrument Panel
■SPORT HYBRID SH-AWD ® torque distribution monitor
The indicators on the displa y show the amount of torque being transferred to each
wheel or regenerative energy being supplied to the High Voltage battery.
2 SPORT HYBRID Super Handling-All Wheel DriveTM (SPORT HYBRID SH-AWD® )
P. 442
Torque Indicator
How much torque is being
transferred is shown in
four scales. The indicators
appear in blue. How much regenerative
braking is being supplied to
the High Voltage battery is
shown in three scales. The
indicators appear in green.
20 ACURA RLX HYBRID-31TY36601.book 125 ページ ２０１９年７月２３日　火曜日　午後６時２５分

128
Controls
Clock
Adjusting the Clock
The clock is automatically updated through the navigation system, so the time does
not need to be adjusted.
You can also adjust the time manually in the audio/information screen, with the
power mode in ON.
■Using the Settings menu on the audio/information screen1.Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
3. Move or to select the Clock tab.
4. Rotate to select Clock Adjustment,
then press .
5. Rotate to change hour, then press .
6. Rotate to change minute, then press
.
■Adjusting the Time
1Adjusting the Clock
These indications are used to show how to operate
the interface dial.
Rotate to select.
Press to enter.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 295
Hour
Clock/Wallpaper Type
System settings
Clock Display
20 ACURA RLX HYBRID-31TY36601.book 128 ページ ２０１９年７月２３日　火曜日　午後６時２５分

uuOperating the Switches Around the Steering Wheel uPOWER Button
154
Controls
Warning buzzers may sound from inside and/
or outside the vehicle to remind you that the
keyless access remote is out of the vehicle. If
the buzzer continues even after the remote is
put back inside, place it to be within its
operational range.
■When the power mode is in ON
If the keyless access remote is taken out of the
vehicle, and the driver’s door is closed, a
warning buzzer sounds from both inside and
outside the vehicle. A warning message on
the multi-information display notifies the
driver inside that the remote is outside of the
vehicle.
■When the power mode is in
ACCESSORY
If the keyless access remote is taken out of the
vehicle, and all the doors are closed, a
warning buzzer sounds from outside the
vehicle.
■Keyless Access Remote Reminder1 Keyless Access Remote Reminder
When the keyless access remote is within the
system’s operational range, and the driver’s door is
closed, the warni ng function cancels.
If the keyless access remote is taken out of the vehicle
after the power system has been turned on, you can
no longer change the POWER button mode or
restart the power system. Always make sure if the
remote is in your vehi cle when you operate the
POWER button.
Removing the keyless access remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the keyless access remote on the
dashboard or in the glove box. It may cause the
warning buzzer to activa te. Under some other
conditions that can prevent the vehicle from locating
the remote, the warning buzzer may also activate
even if the remote is within the system’s operational
range.
20 ACURA RLX HYBRID-31TY36601.book 154 ページ ２０１９年７月２３日　火曜日　午後６時２５分

166
uuOperating the Switches Around the Steering Wheel uBrightness Control
Controls
Brightness Control
When the power mode is in ON, you can use
the
(+ or (- button to adjust instrument
panel brightness.
Brighten: Press the
(+ button.
Dim: Press the
(- button.
You will hear a beep when the brightness
reaches minimum or maximum. Several
seconds after you have adjusted the
brightness, you will be returned to the
previous screen.
■Brightness level indicator
The brightness level is shown on the multi-
information display while you are adjusting it.
■Adjusting the Instrument Panel Brightness1 Adjusting the Instrument Panel Brightness
Instrument panel brightne ss varies, depending on
whether the exterior lights are on or off. The
instrument panel dims to reduce glare when they are
on.
When it is bright out side and the headlight
integration with the wiper
* is activated, the
instrument panel bri ghtness does not change.
To cancel the reduced in strument panel brightness
when the exterior lights are on, press the
( + button
until the brightness display is up to max, the beeper
sounds.
The brightness can be set differently for when the
exterior lights are on, and when they are off.
( + Button
(- Button
* Not available on all models
20 ACURA RLX HYBRID-31TY36601.book 166 ページ ２０１９年７月２３日　火曜日　午後６時２５分

167
uuOperating the Switches Around the Steering Wheel uBrightness Control
Controls
When the head-up display is on, press and
hold the HUD button until its brightness level
indicator on the multi- information display.
Brighten: Press the button.
Dim: Press the button.
Several seconds after you have adjusted the
brightness, you will be returned to the
previous screen.
■Brightness level indicator
The brightness level is shown on the multi-
information display whil e you are adjusting it.

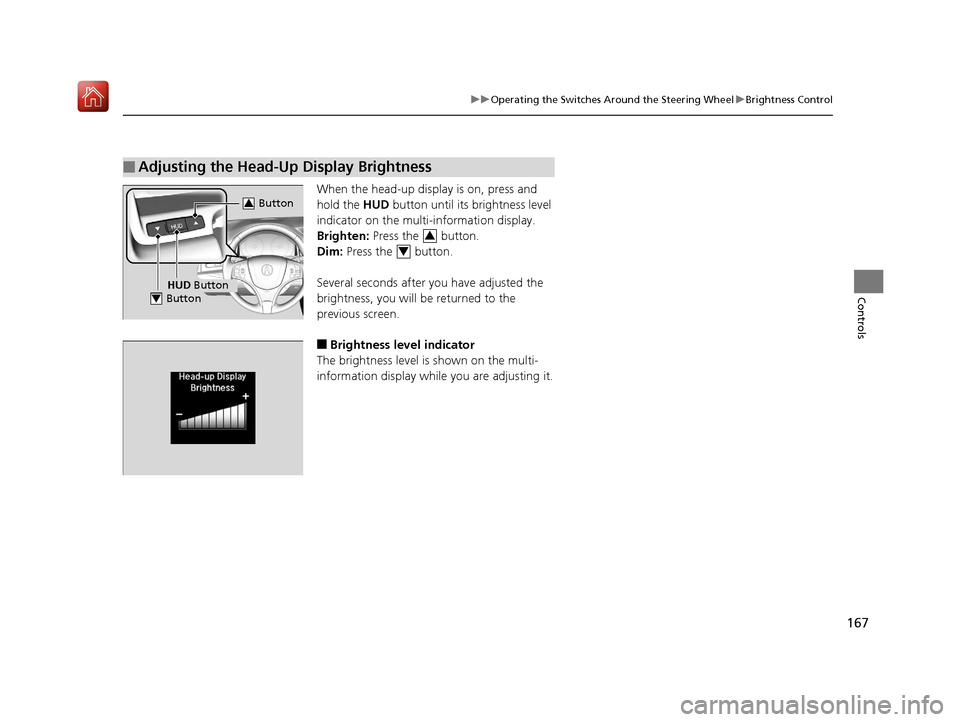

■Adjusting the Head-Up Display Brightness
Button3
Button4HUD Button
3
4
